Samsung
DVD Player

Model # DVD-HD960 Official Samsung dvd player

Here are the diagrams and repair parts for Official Samsung DVD-HD960 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Int Crkt 1203-000122
#NI

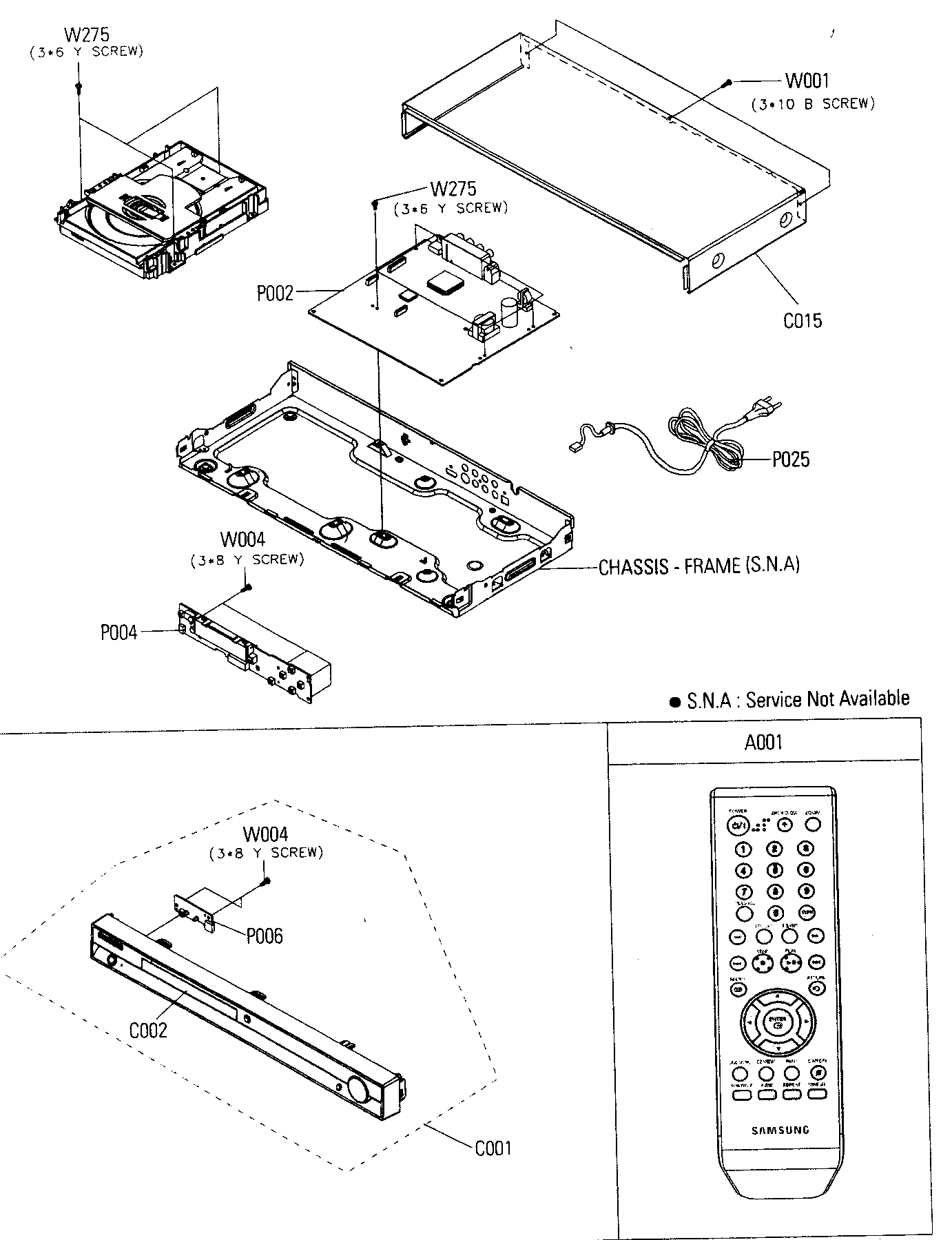

Cabinet parts 1 diagram

Int crkt

Part #1203-000122

The manufacturer no longer makes this part, and there's no substitute part

Button Pla AK64-01439A
#NI

Cabinet parts 1 diagram

Button pla

Part #AK64-01439A

The manufacturer no longer makes this part, and there's no substitute part

Clamp AK61-00360A
#H102

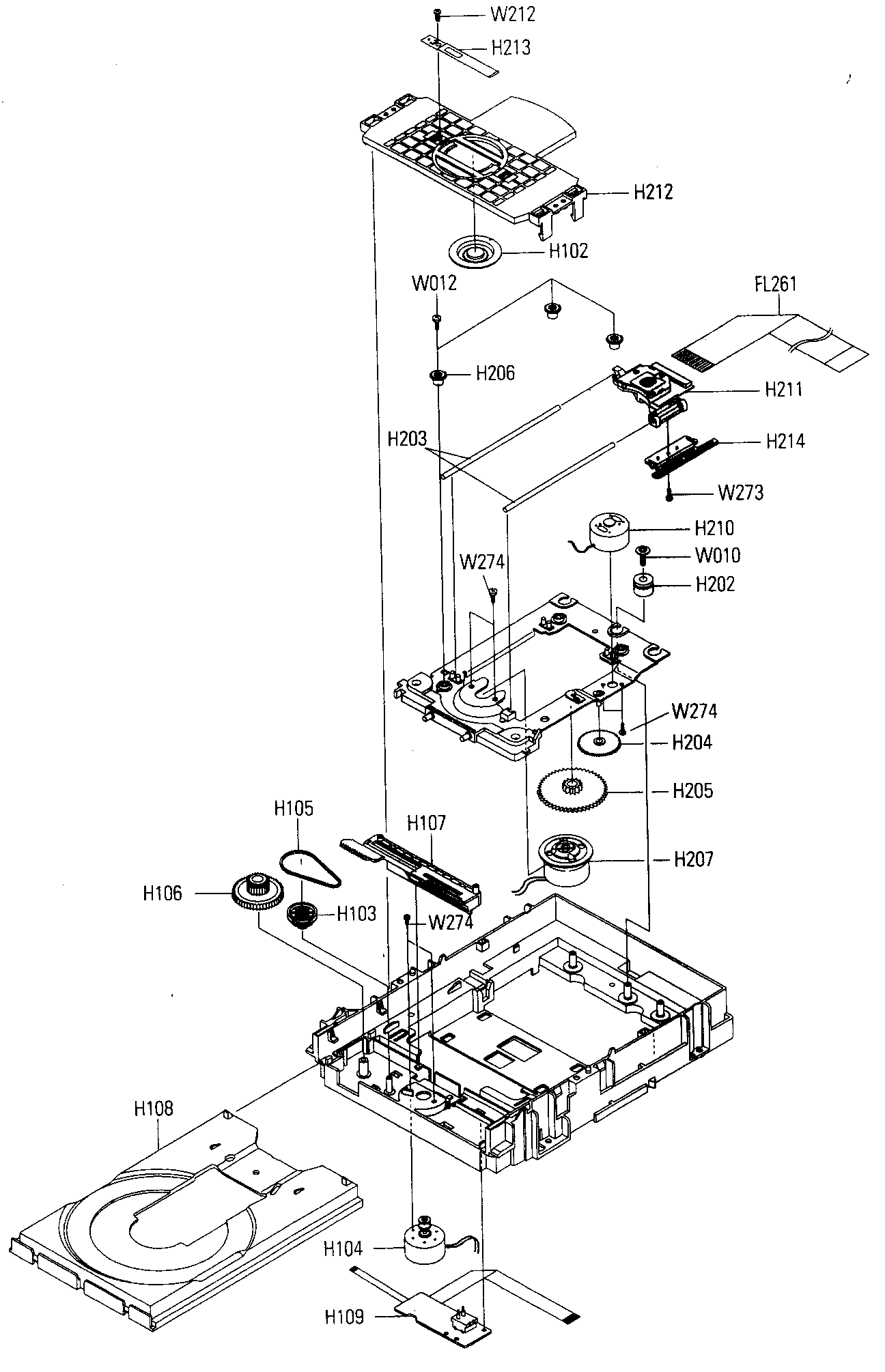

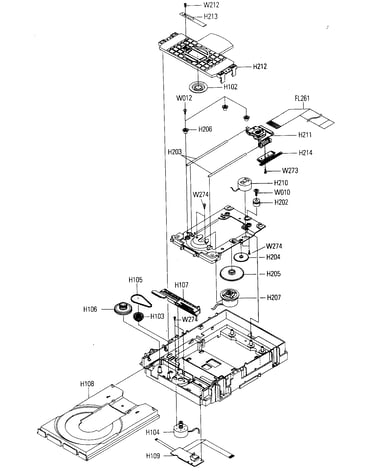

Cabinet parts 2 diagram

Clamp

Part #AK61-00360A

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 2201-002076
#NI

Cabinet parts 1 diagram

Capacitor

Part #2201-002076

The manufacturer no longer makes this part, and there's no substitute part

Sub Power AK41-00449D
#NI

Cabinet parts 1 diagram

Sub power

Part #AK41-00449D

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1105-001336
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #1105-001336

The manufacturer no longer makes this part, and there's no substitute part

Gear AK66-00041A
#H106

Cabinet parts 2 diagram

Gear

Part #AK66-00041A

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front AK97-01605B
#C001

Cabinet parts 1 diagram

Cabinet front

Part #AK97-01605B

The manufacturer no longer makes this part, and there's no substitute part

Holder AK61-00363A
#H206

Cabinet parts 2 diagram

Holder

Part #AK61-00363A

The manufacturer no longer makes this part, and there's no substitute part

Cbf Signal Cable Adapter MF39-00299A
#NI

Cabinet parts 1 diagram

Cbf signal cable adapter

Part #MF39-00299A

The manufacturer no longer makes this part, and there's no substitute part
