Model # ZIBS240PCSS Official GE bar refrigerator

Here are the diagrams and repair parts for Official GE ZIBS240PCSS bar refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Error Codes

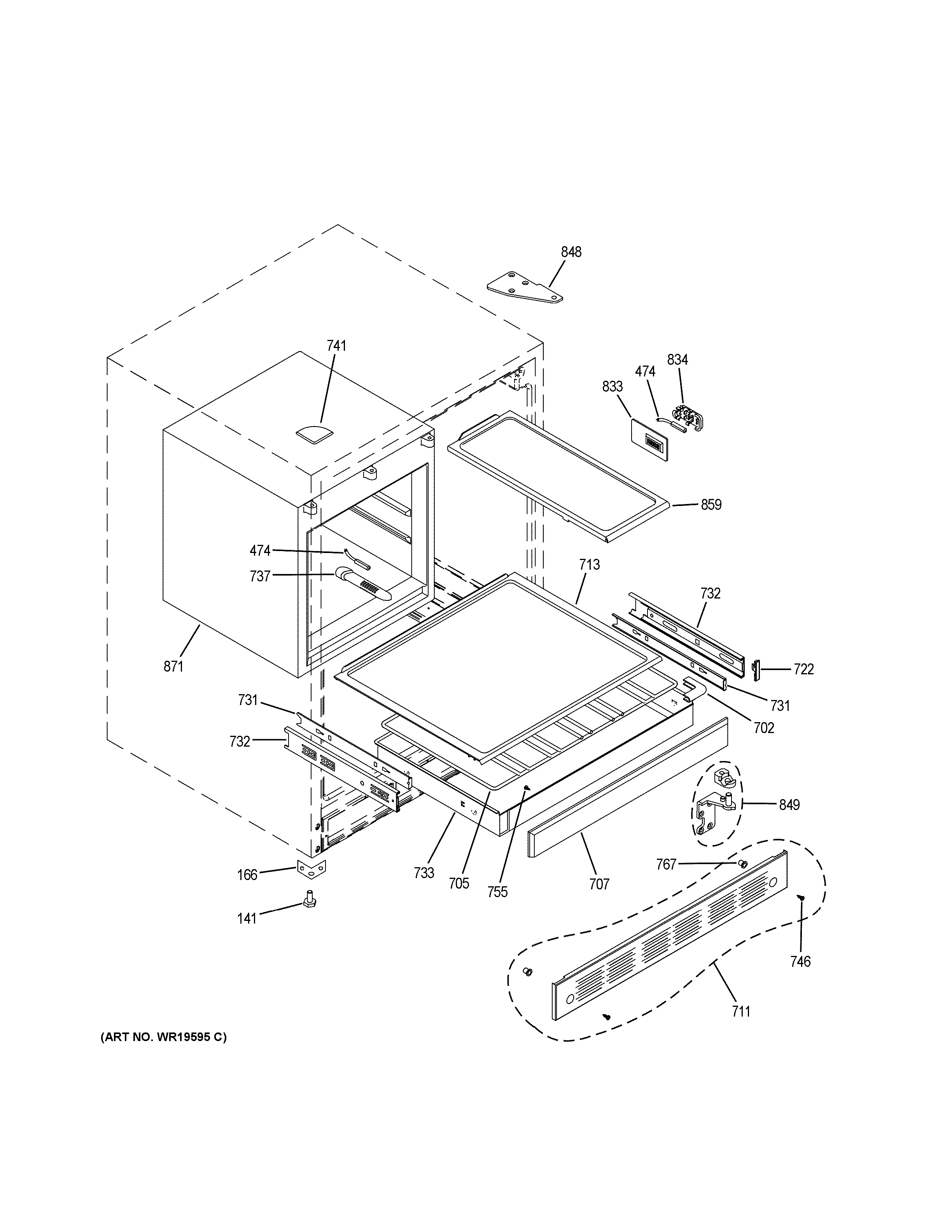

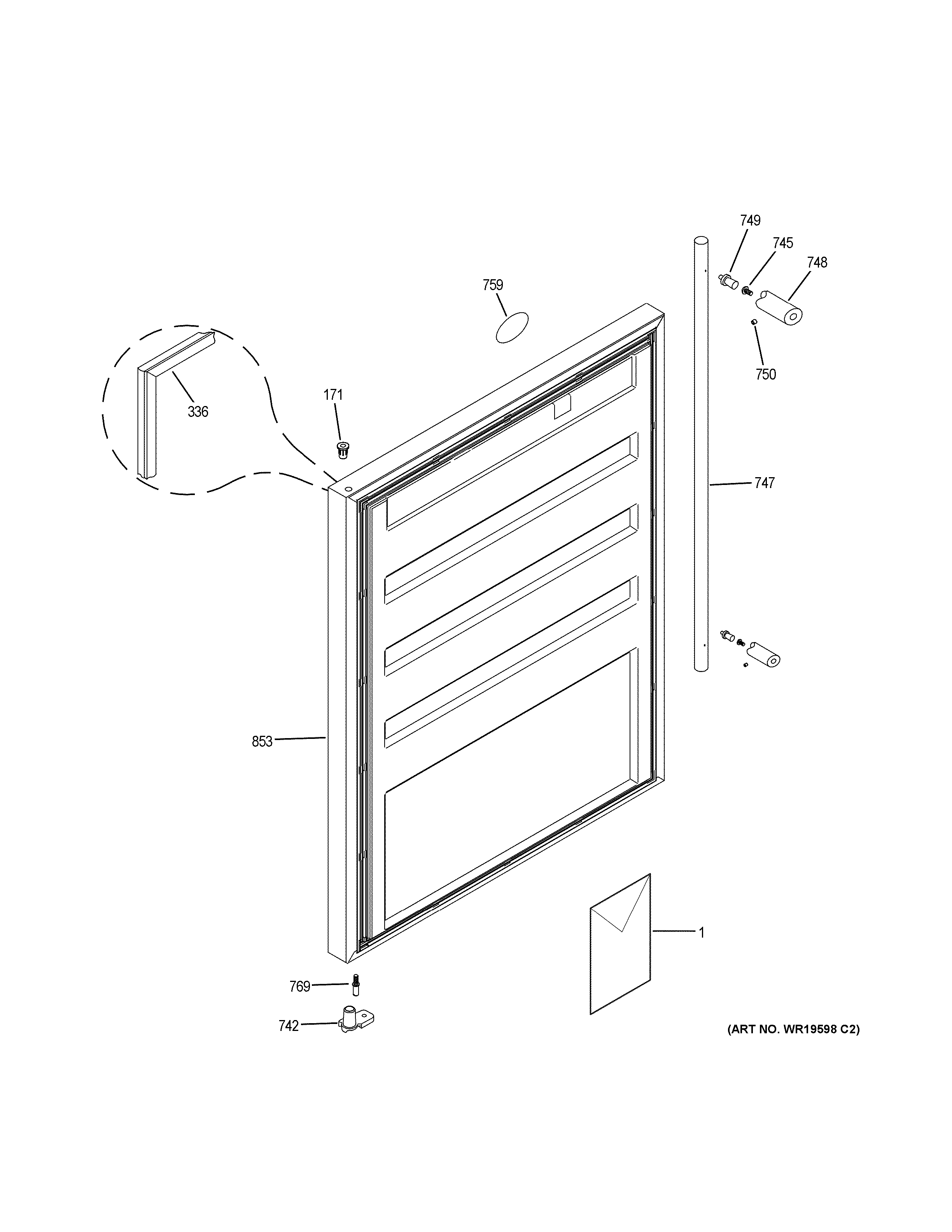

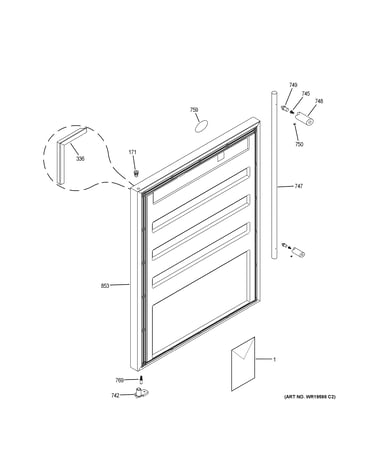

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Drawers & Bins

ALL PARTS

Showing 10 of 81 parts |

#868

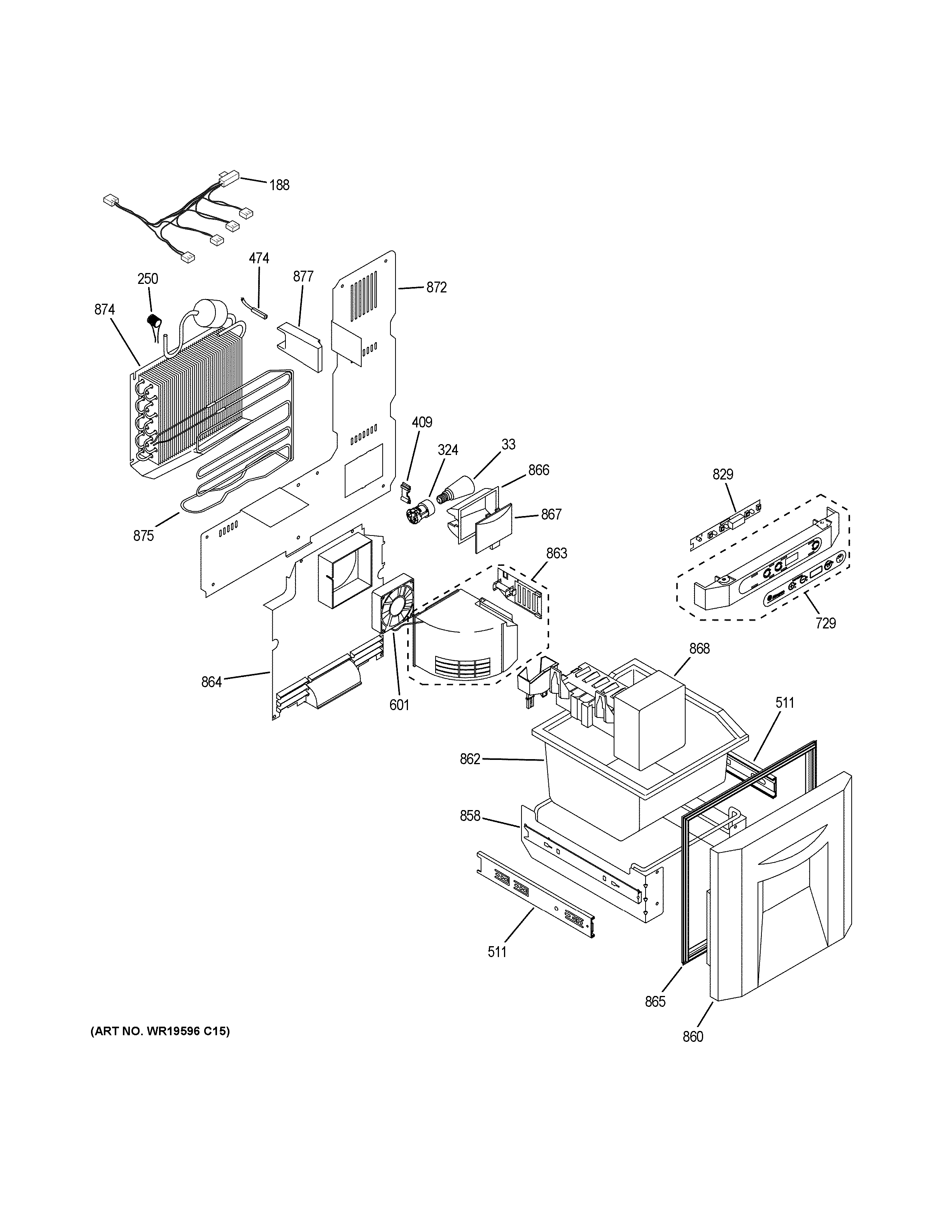

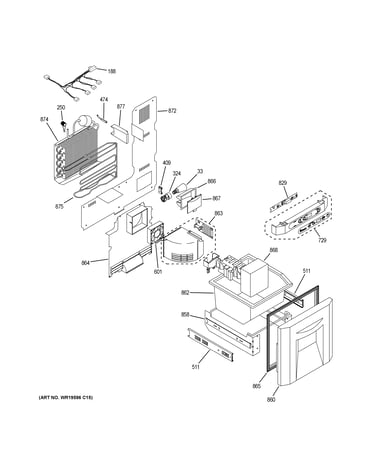

Freezer controls & components diagram

Electronic i

Part #WR30X10061

Replaced by #WR30X10093

$186.44 |

6% OFF Phone Price : $198.44

In Stock

Qty

#35

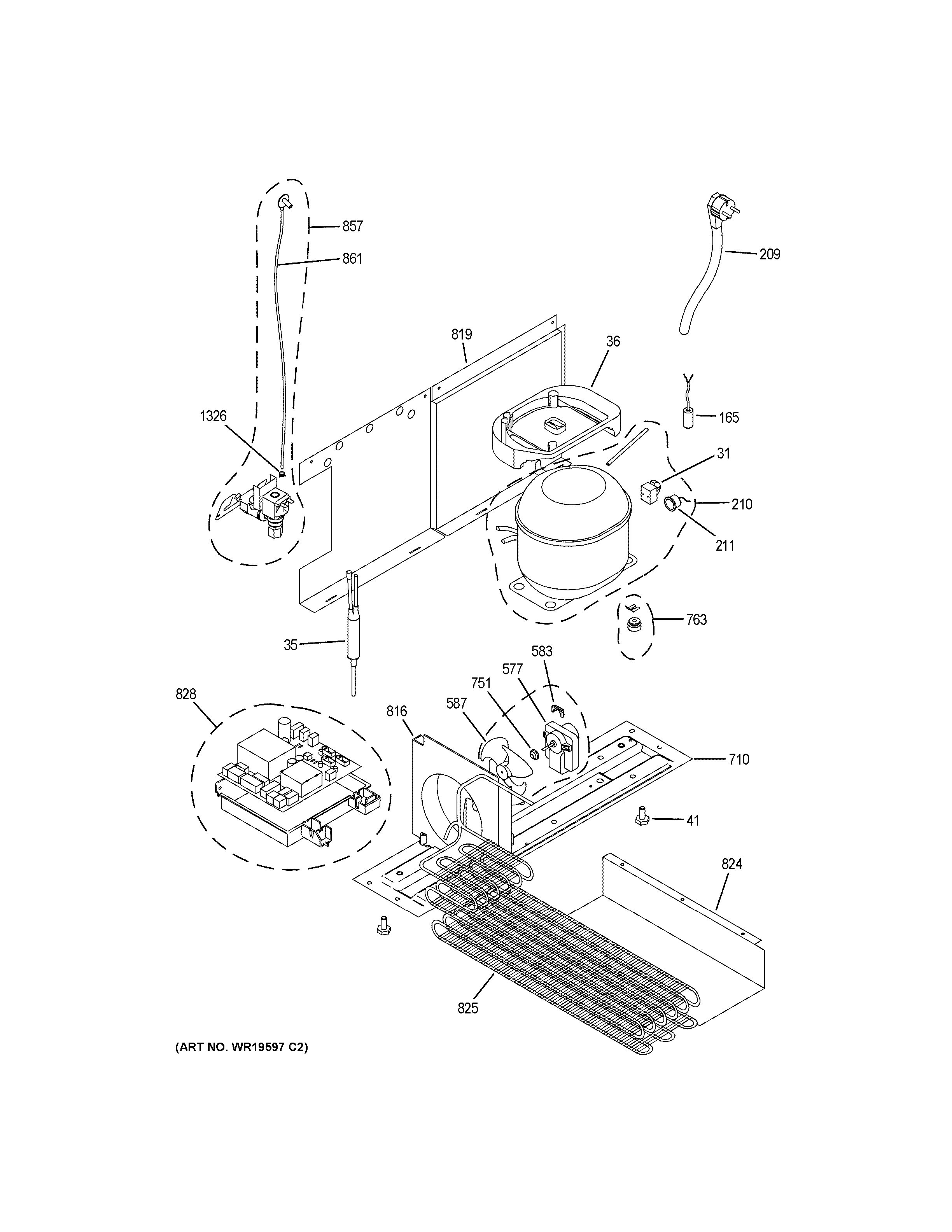

Machine compartment diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

$79.18 |

7% OFF Phone Price : $85.18

In Stock

Qty

Wine Cooler Electronic Control Board WR55X10408

#829

Freezer controls & components diagram

Wine cooler electronic control board

Part #WR55X10408

$213.82

In Stock

Qty

#165

Machine compartment diagram

Wine cooler run capacitor

Part #WR62X10033

$79.02 |

7% OFF Phone Price : $85.02

In Stock

Qty

Refrigerator Condenser Fan Motor Assembly WR60X10163

#577

Machine compartment diagram

Refrigerator condenser fan motor assembly

Part #WR60X10163

$198.84 |

6% OFF Phone Price : $210.84

In Stock

Qty

Temperature sensor

Part #WR55X10457

Replaced by #WR55X10409

$54.14 |

10% OFF Phone Price : $60.14

In Stock

Qty

#36

Machine compartment diagram

Drip tray

Part #WR17X11673

Replaced by #WR17X10374

$56.71

In Stock

Qty

#865

Freezer controls & components diagram

Gasket

Part #WR14X10190

$77.48 |

7% OFF Phone Price : $83.48

In Stock

Qty

#858

Freezer controls & components diagram

Drawer support

Part #WR02X11969

$177.77

In Stock

Qty

#41

Machine compartment diagram

Adjustable foot

Part #WR01X10451

$26.13 |

19% OFF Phone Price : $32.13

In Stock

Qty
