KitchenAid
Garbage Disposal

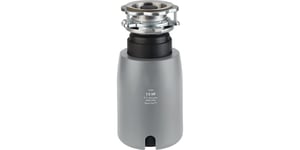

Model # KCDS250S0 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KCDS250S0 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Mounting Gasket 4211334
#14

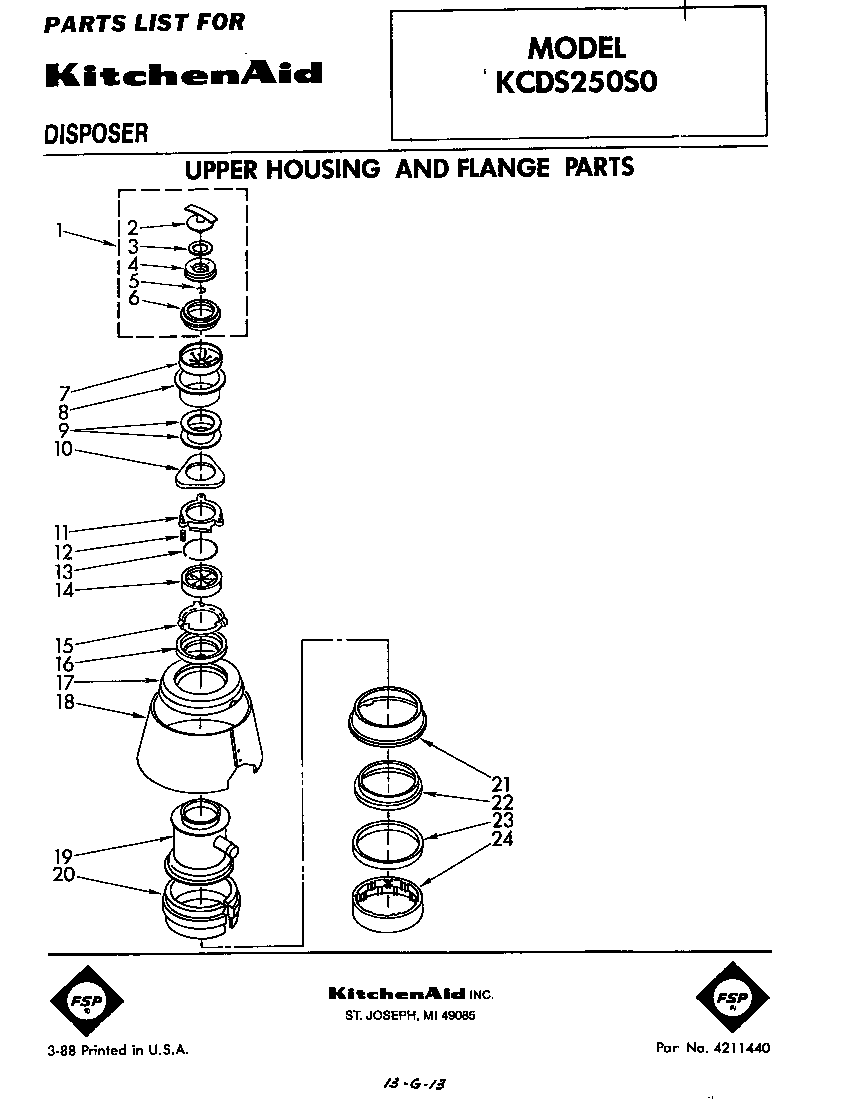

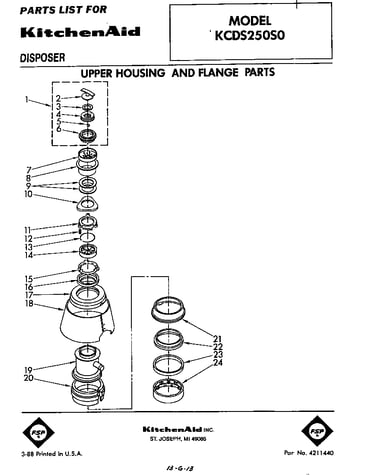

Upper housing and flange diagram

Mounting gasket

Part #4211334

Replaced by #WP4211334

?
Manufacturer substitution
This part replaces 4211334. Substitute parts can look different from the original.
This item is not returnable
$22.59 |
21% OFF Phone Price : $28.59
In Stock
Kit, Sleeve & Seal (includes Plug, Nut, Washer, Slinger,and Sleeve) 4211311
#1

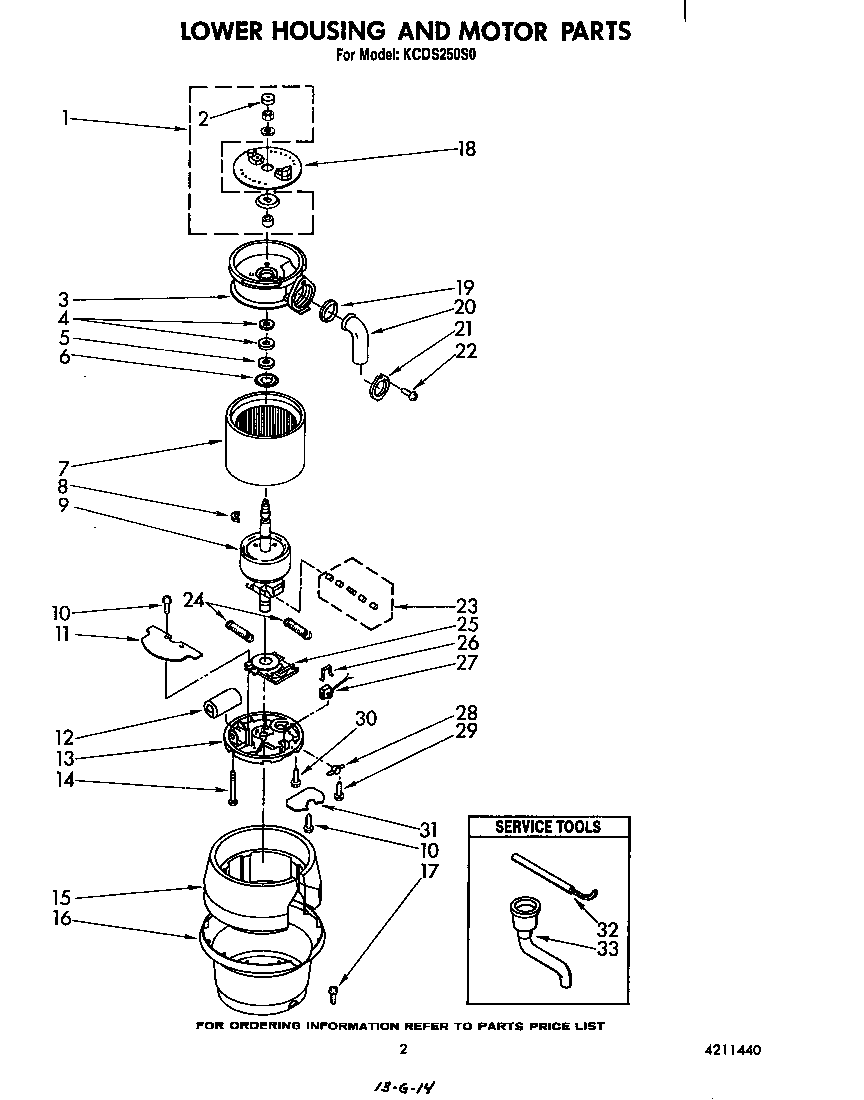

Lower housing and motor diagram

Kit, sleeve & seal (includes plug, nut, washer, slinger,and sleeve)

Part #4211311

The manufacturer no longer makes this part, and there's no substitute part

Trim, Shell Assembly 4211394
#16

Lower housing and motor diagram

Trim, shell assembly

Part #4211394

The manufacturer no longer makes this part, and there's no substitute part

Washer, Phenolic (2) 4211372
#4

Lower housing and motor diagram

Washer, phenolic (2)

Part #4211372

The manufacturer no longer makes this part, and there's no substitute part

Transfer Assembly 4211379
#23

Lower housing and motor diagram

Transfer assembly

Part #4211379

The manufacturer no longer makes this part, and there's no substitute part

C-ring 4211376
#8

Lower housing and motor diagram

C-ring

Part #4211376

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Guide LIT4171071

#NI

All parts diagram

Use and care guide

Part #LIT4171071

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 4211391
#31

Lower housing and motor diagram

Terminal cover

Part #4211391

The manufacturer no longer makes this part, and there's no substitute part

Overload, Protector 4211384
#27

Lower housing and motor diagram

Overload, protector

Part #4211384

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Top 4211363
#20

Upper housing and flange diagram

Insulation, top

Part #4211363

The manufacturer no longer makes this part, and there's no substitute part
