Model # IRP33803 Official Inglis electric freestanding range

Here are the diagrams and repair parts for Official Inglis IRP33803 electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

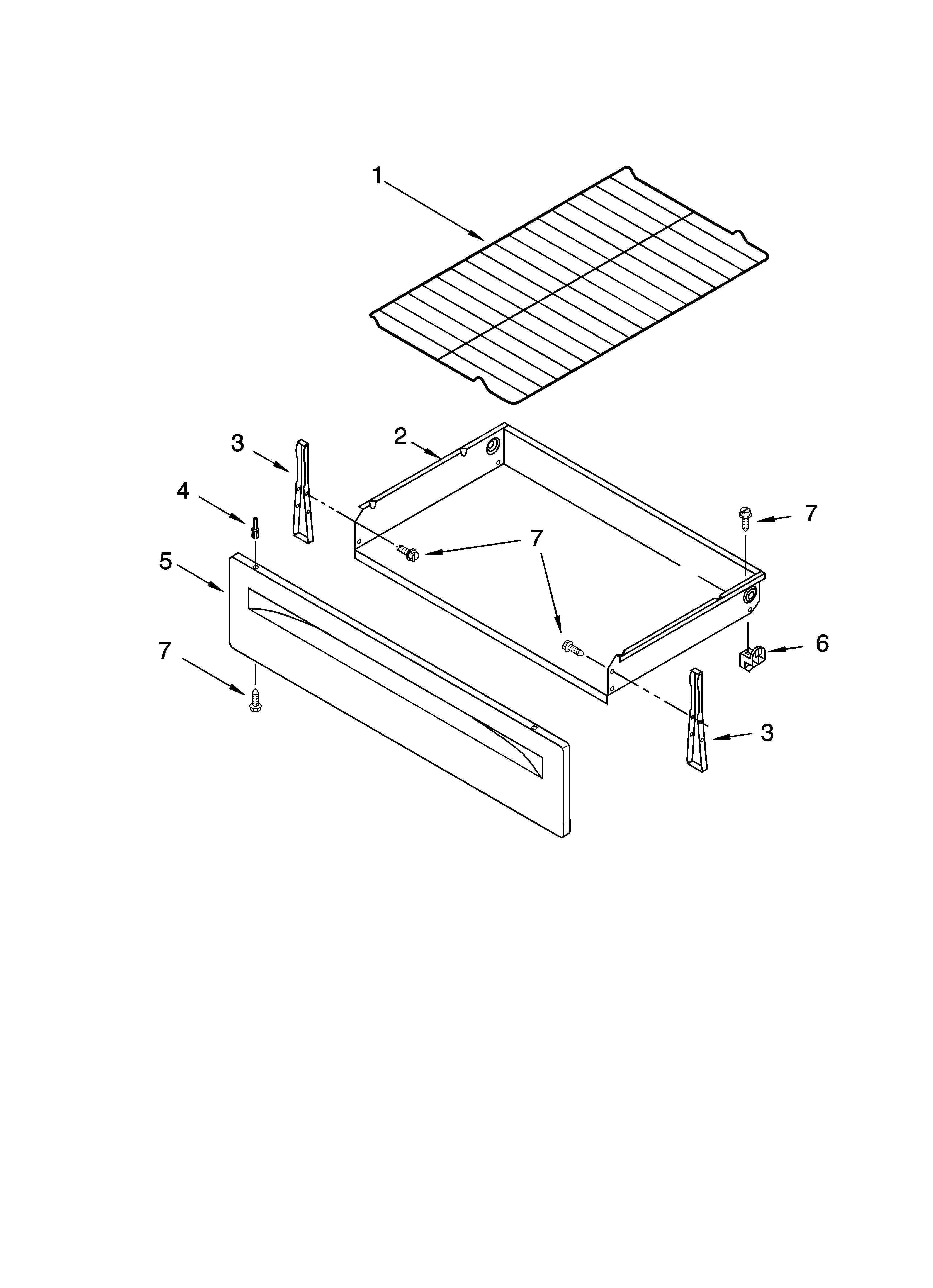

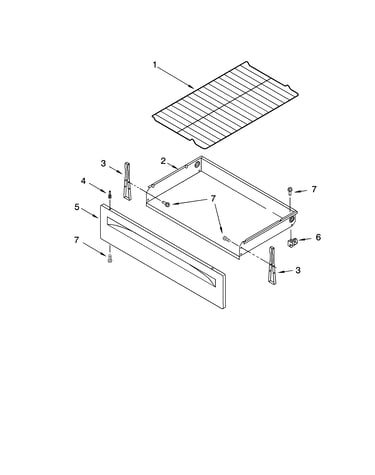

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Light Bulb 311255
#25

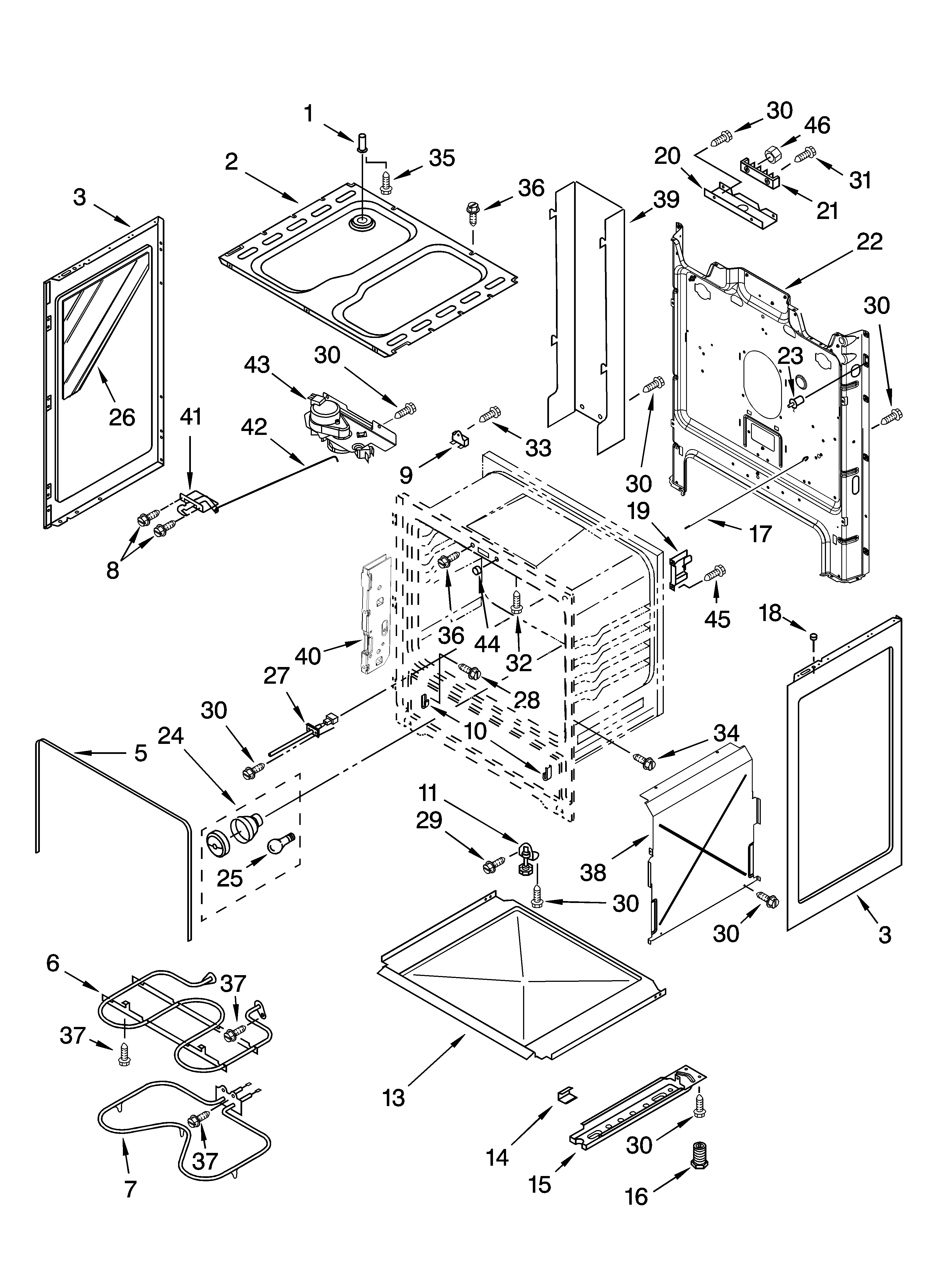

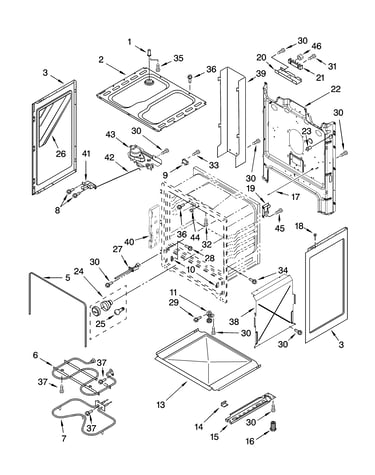

Chassis parts diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Infinite Switch 3148954
Infinite switch

Part #3148954

Replaced by #WP3149400

?
Manufacturer substitution
This part replaces 3148954. Substitute parts can look different from the original.
BEST SELLER
$37.80 |
14% OFF Phone Price : $43.80
In Stock
Range Oven Temperature Sensor W10181986
#27

Chassis parts diagram

Range oven temperature sensor

Part #W10181986

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces W10181986. Substitute parts can look different from the original.
BEST SELLER
$63.08 |
9% OFF Phone Price : $69.08
In Stock
Polish 3184478
#NI

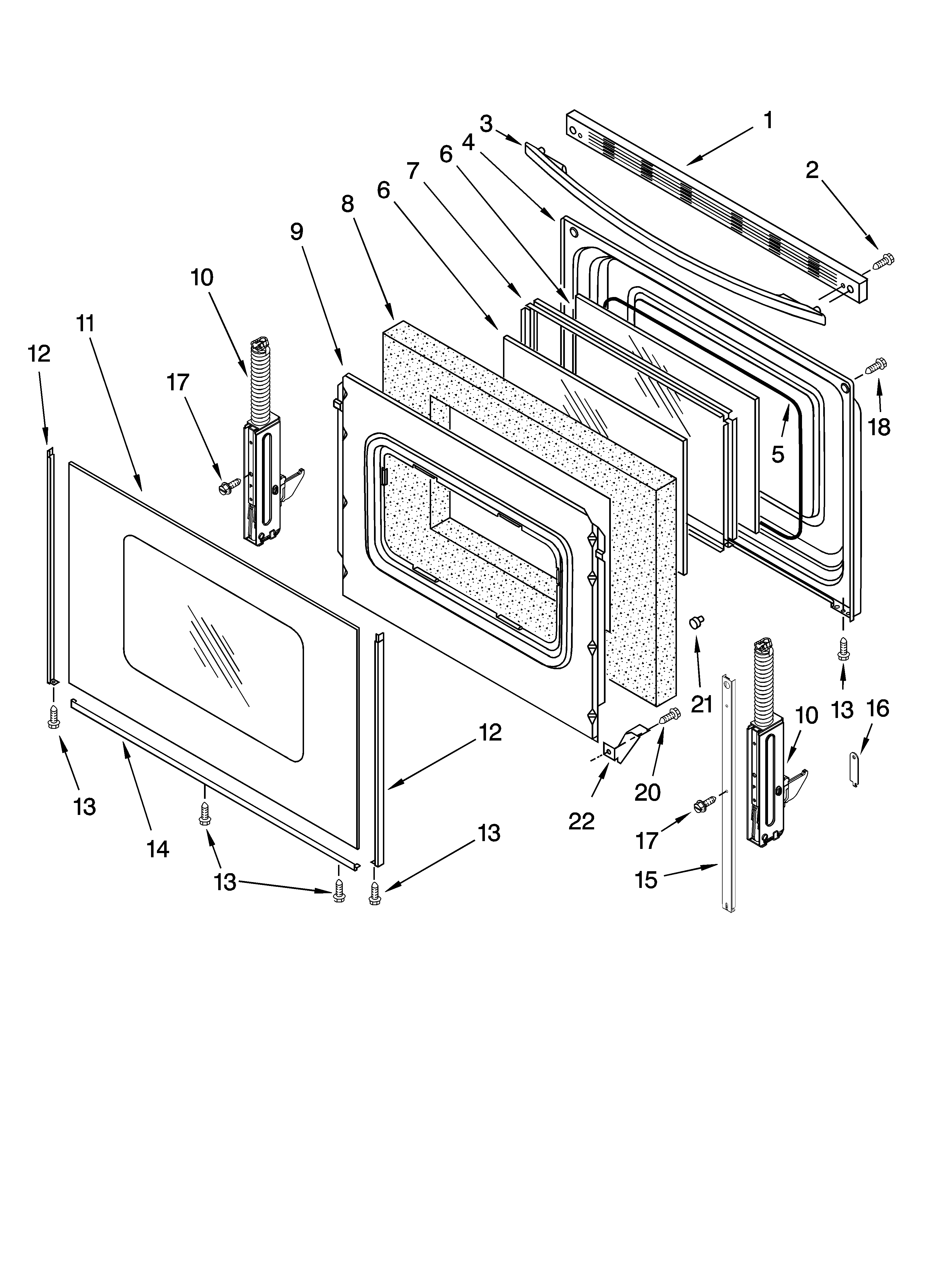

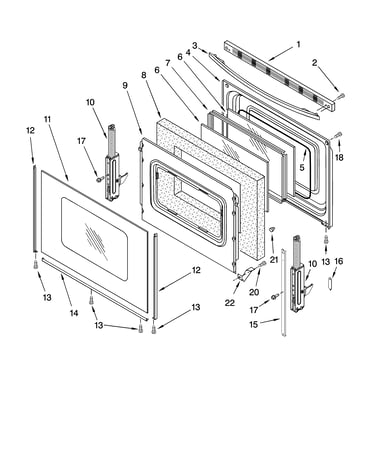

Door parts, optional parts (not included) diagram

Polish

Part #3184478

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3184478. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Surface Element Control Switch 3148952
Range surface element control switch

Part #3148952

Replaced by #WP3148952

?
Manufacturer substitution
This part replaces 3148952. Substitute parts can look different from the original.
BEST SELLER
$67.22 |
10% OFF Was : $74.69
In Stock
Range Safety Thermostat 3196548
#9

Chassis parts diagram

Range safety thermostat

Part #3196548

Replaced by #WP3196548

?
Manufacturer substitution
This part replaces 3196548. Substitute parts can look different from the original.
BEST SELLER
$23.64 |
20% OFF Phone Price : $29.64
In Stock
Appliance Touch-up Paint 72017
#NI

Door parts, optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Door parts, optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Coil Surface Element, 6-in 9761347
#11

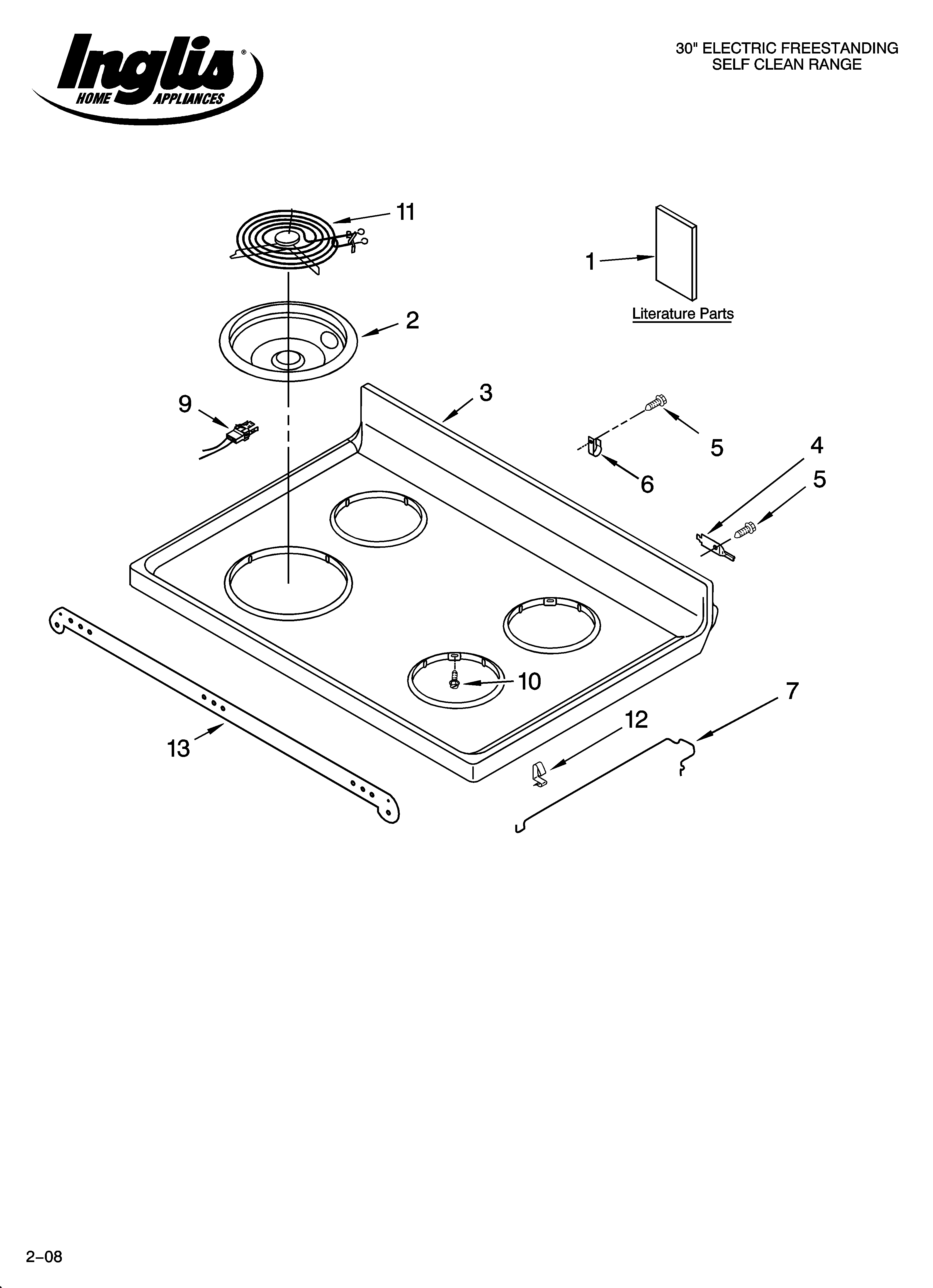

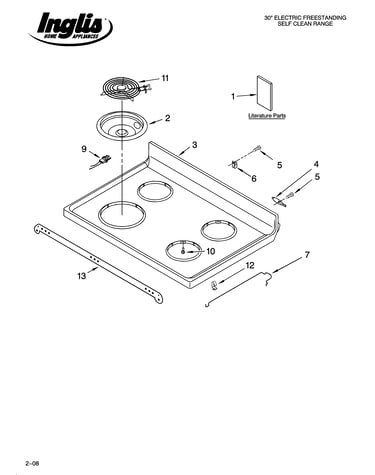

Cooktop parts diagram

Range coil surface element, 6-in

Part #9761347

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 9761347. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Range Screw 3400882
#16

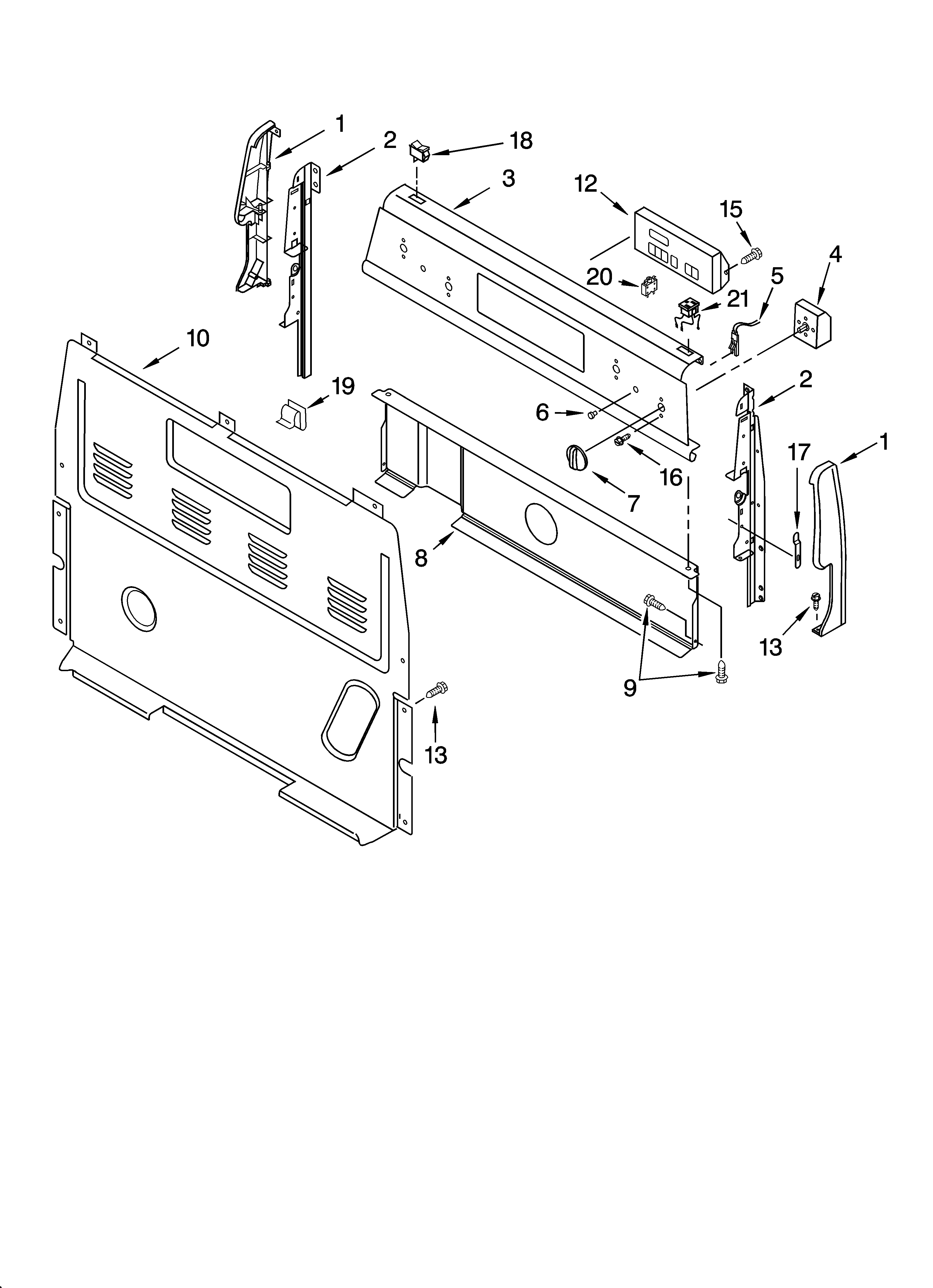

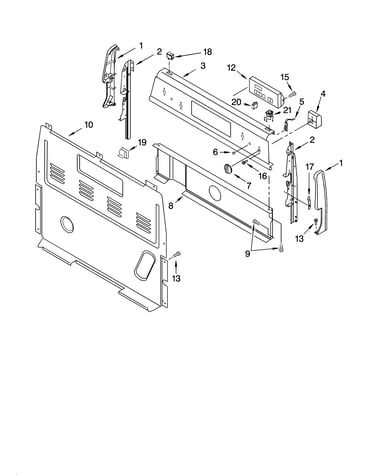

Control panel parts diagram

Range screw

Part #3400882

Replaced by #WP3400882

?
Manufacturer substitution
This part replaces 3400882. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
