Model # ARO3400W-P1143335NW Official Amana gas range
Here are the diagrams and repair parts for Official Amana ARO3400W-P1143335NW gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forARO3400W-P1143335NW Ranges
- #99

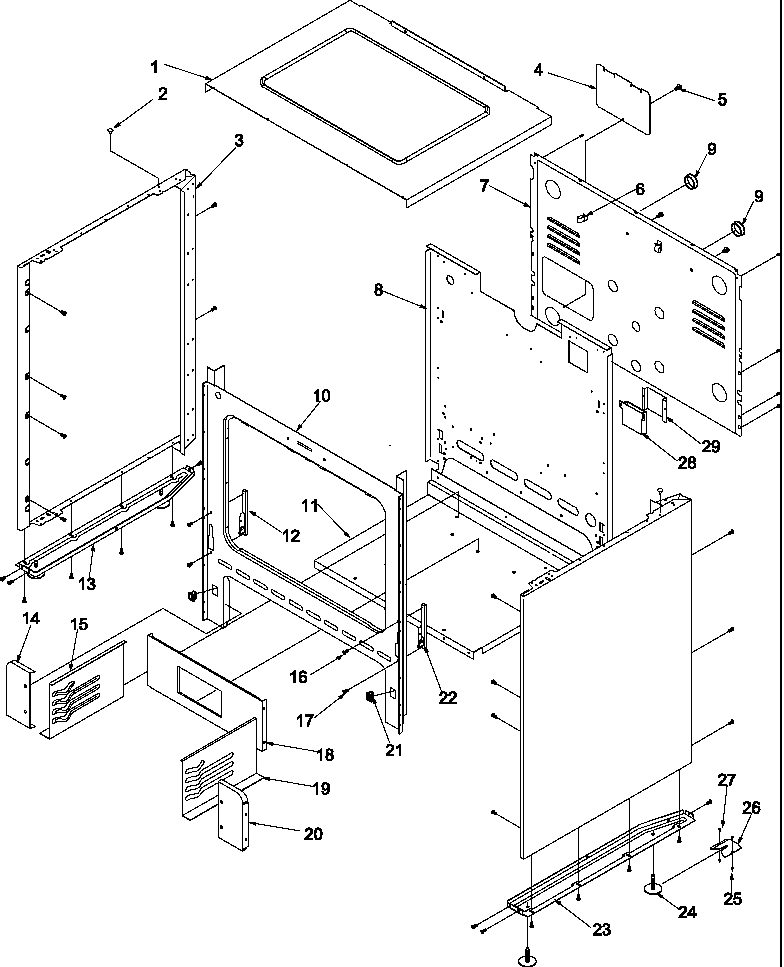

Main top and backguard diagram
ScrewPart #31750409
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 31750409. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #19

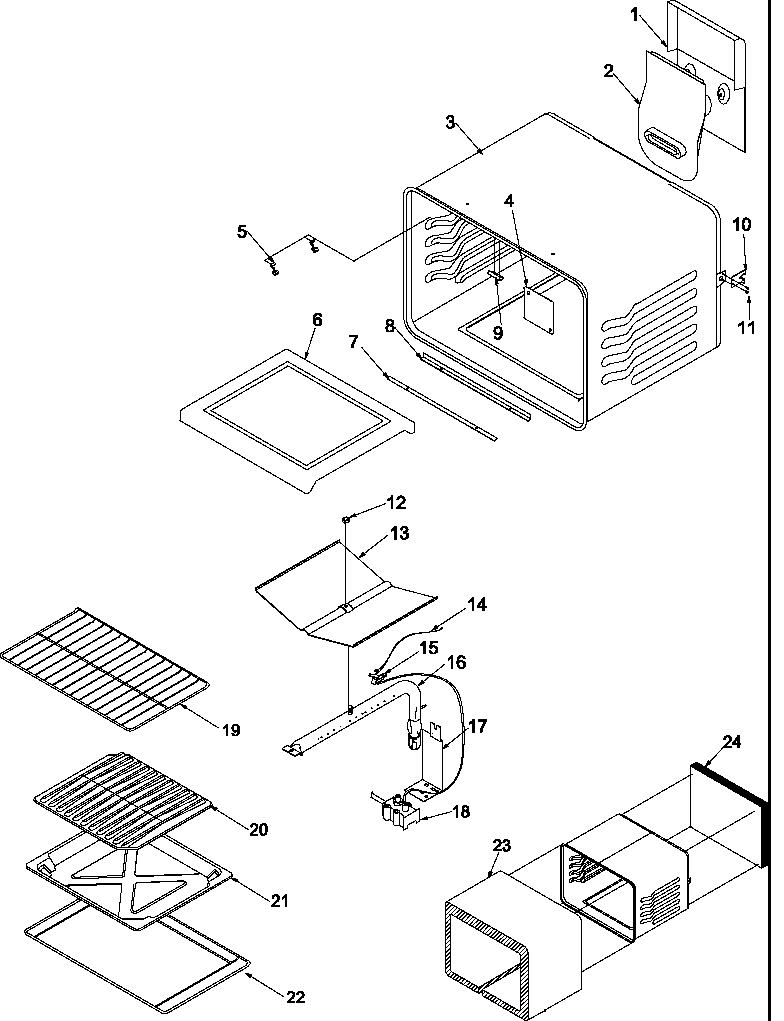

Cavity diagram
Oven rackPart #314763J
The manufacturer no longer makes this part, and there's no substitute part
- Screw, #10-1
Part #31750507
Replaced by #WP7101P126-60
?Manufacturer substitutionThis part replaces 31750507. Substitute parts can look different from the original.This item is not returnable$4.10 |20% OFF Phone Price : $5.10In Stock - Screw
Part #31750701
Replaced by #W11245710
?Manufacturer substitutionThis part replaces 31750701. Substitute parts can look different from the original.This item is not returnable$16.43 |11% OFF Phone Price : $18.43In Stock - #21
Cavity diagram
Broiler panPart #31793702CG
Replaced by #4396923
?Manufacturer substitutionThis part replaces 31793702CG. Substitute parts can look different from the original.$31.03 |16% OFF Phone Price : $37.03In Stock - Screw
Part #31750432
The manufacturer no longer makes this part, and there's no substitute part
- #5

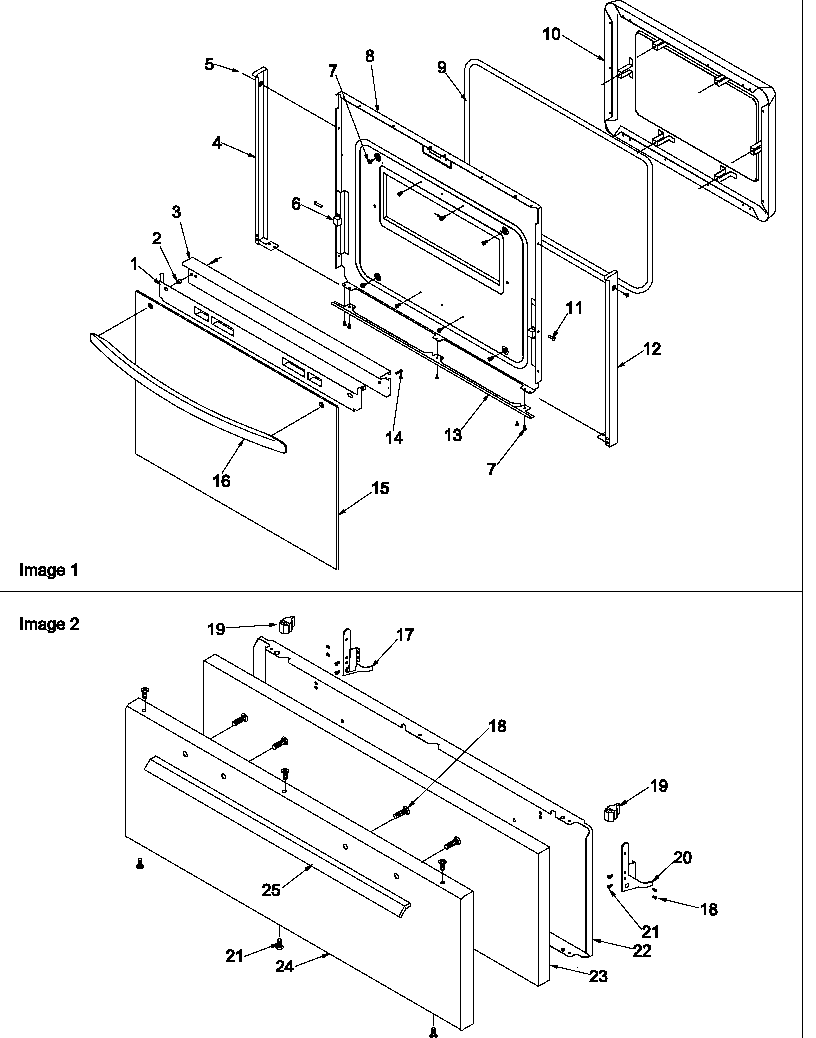

Oven door and broiler door diagram
ScrewPart #31750410
Replaced by #W11245710
?Manufacturer substitutionThis part replaces 31750410. Substitute parts can look different from the original.This item is not returnable$16.43 |11% OFF Phone Price : $18.43In Stock - #1
Cavity diagram
Shield, fluePart #31830801
The manufacturer no longer makes this part, and there's no substitute part
- #9
Cabinet diagram
BushingPart #308655B
The manufacturer no longer makes this part, and there's no substitute part
- #14
Cabinet diagram
Shield, side broil - lhPart #31831704CG
The manufacturer no longer makes this part, and there's no substitute part
