Top-Mount Refrigerator

Model # CTX14AYZALAD Official GE refrigerator - z series

Here are the diagrams and repair parts for Official GE CTX14AYZALAD refrigerator - z series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
40a15/22 STD372402
#435

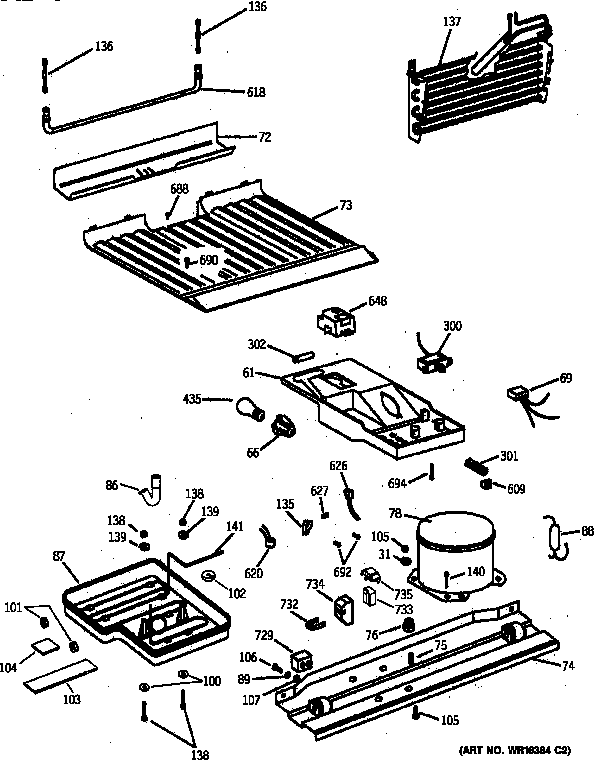

Unit parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Fan Blade WR60X0114
#613B

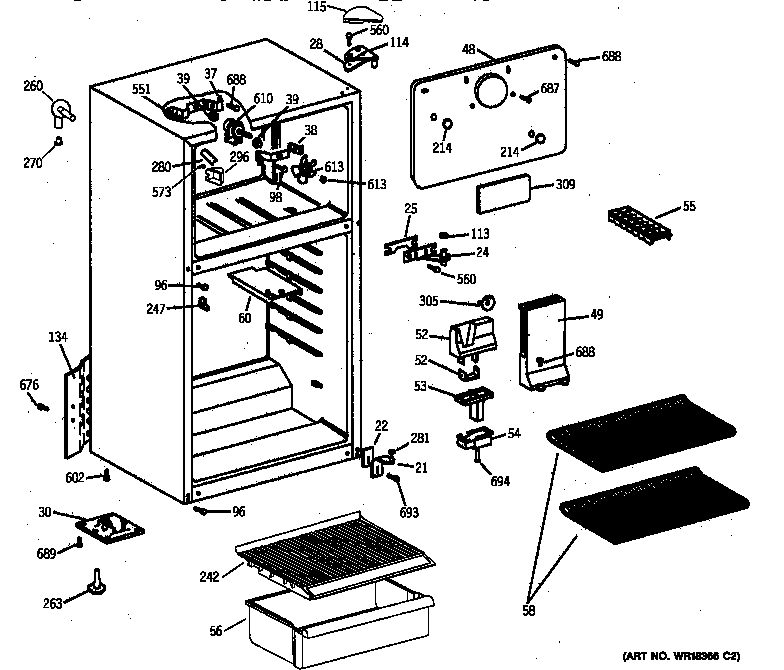

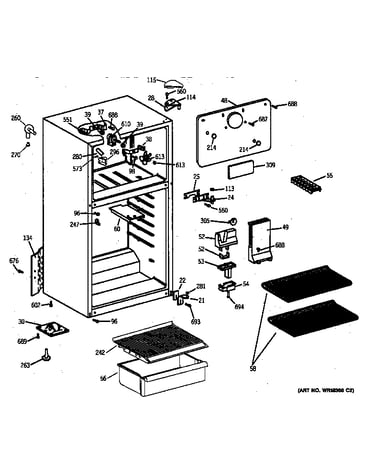

Cabinet diagram

Fan blade

Part #WR60X0114

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR60X0114. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Screw WR01X1728
#566

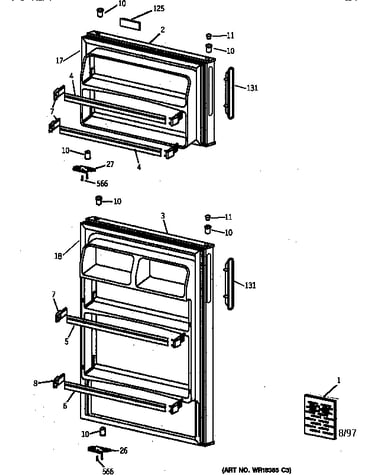

Doors diagram

Refrigerator screw

Part #WR01X1728

Replaced by #WR01X10590

?
Manufacturer substitution
This part replaces WR01X1728. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Cable Clamp WR01X5278
#627

Unit parts diagram

Cable clamp

Part #WR01X5278

Replaced by #WR1X5278

?
Manufacturer substitution
This part replaces WR01X5278. Substitute parts can look different from the original.
$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Defrost Thermostat WR50X0124
#620

Unit parts diagram

Refrigerator defrost thermostat

Part #WR50X0124

Replaced by #WR50X124

?
Manufacturer substitution
This part replaces WR50X0124. Substitute parts can look different from the original.
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Refrigerator Mounting Screw WZ05X0246
#689

Cabinet diagram

Refrigerator mounting screw

Part #WZ05X0246

This item is not returnable
$2.16
In Stock
Refrigerator Screw WR01X1591
#602

Cabinet diagram

Refrigerator screw

Part #WR01X1591

Replaced by #WR1X1591

?
Manufacturer substitution
This part replaces WR01X1591. Substitute parts can look different from the original.
This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Slider Adj WR02X7877
#263

Cabinet diagram

Slider adj

Part #WR02X7877

Replaced by #WR2X7877

?
Manufacturer substitution
This part replaces WR02X7877. Substitute parts can look different from the original.
$24.59 |
20% OFF Phone Price : $30.59
In Stock
Refrigerator Button Plug WR02X8247
#270

Cabinet diagram

Refrigerator button plug

Part #WR02X8247

Replaced by #WR2X8247

?
Manufacturer substitution
This part replaces WR02X8247. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Screw WZ04X0263
#676

Cabinet diagram

Refrigerator screw

Part #WZ04X0263

Replaced by #WD2X5166

?
Manufacturer substitution
This part replaces WZ04X0263. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
