Model # 5KFPM770SOB0 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid 5KFPM770SOB0 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |

Food Processor Scraper 8211760
#1

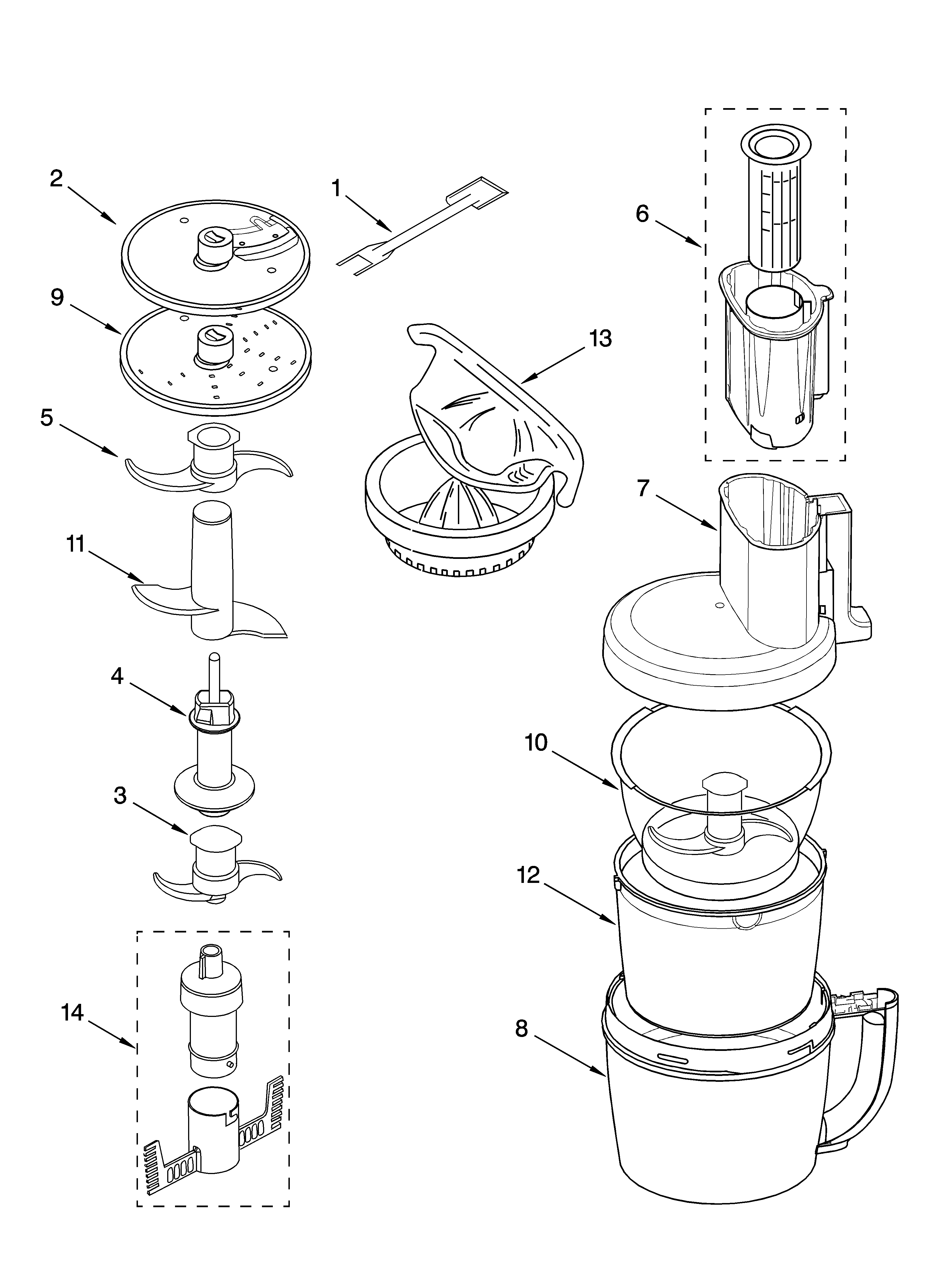

Attachment parts diagram

Food processor scraper

Part #8211760

$25.79
19% OFF Phone Price : $31.79
In Stock
Cover 8212093
#11

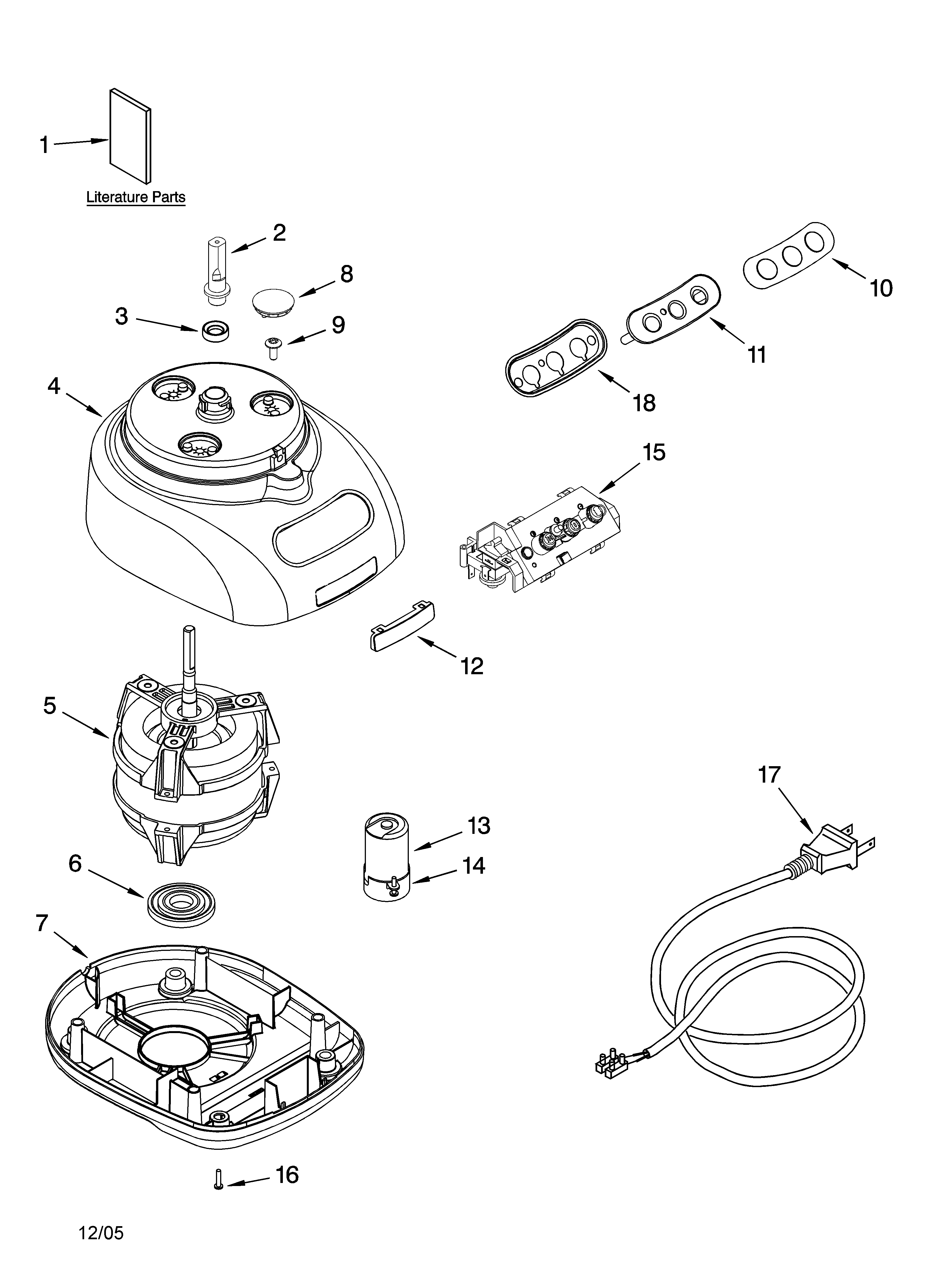

Motor and housing parts diagram

Cover

Part #8212093

The manufacturer no longer makes this part, and there's no substitute part

Screw 8211586
#9

Motor and housing parts diagram

Screw

Part #8211586

The manufacturer no longer makes this part, and there's no substitute part

Base 8212081
#7

Motor and housing parts diagram

Base

Part #8212081

The manufacturer no longer makes this part, and there's no substitute part

Bowl Cover 8212062
#7

Attachment parts diagram

Bowl cover

Part #8212062

The manufacturer no longer makes this part, and there's no substitute part

Cover 8212086
#8C

Motor and housing parts diagram

Cover

Part #8212086

The manufacturer no longer makes this part, and there's no substitute part

Panel Switch 8212090
#15

Motor and housing parts diagram

Panel switch

Part #8212090

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 8211842
#12

Motor and housing parts diagram

Nameplate

Part #8211842

The manufacturer no longer makes this part, and there's no substitute part

Bowl 8212067
#8C

Attachment parts diagram

Bowl

Part #8212067

The manufacturer no longer makes this part, and there's no substitute part

Base 8212083
#7C

Motor and housing parts diagram

Base

Part #8212083

The manufacturer no longer makes this part, and there's no substitute part
