Countertop Microwave

Model # R-330BW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-330BW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

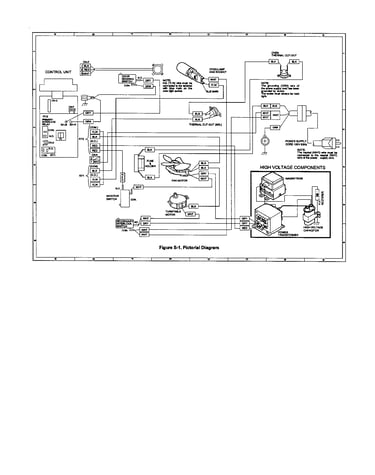

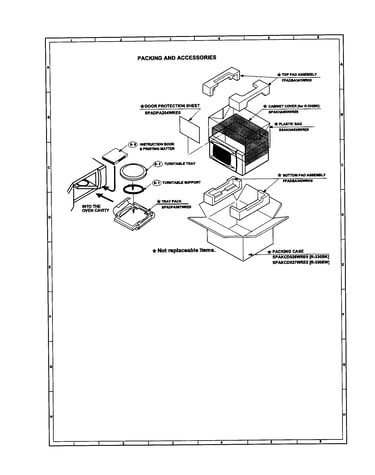

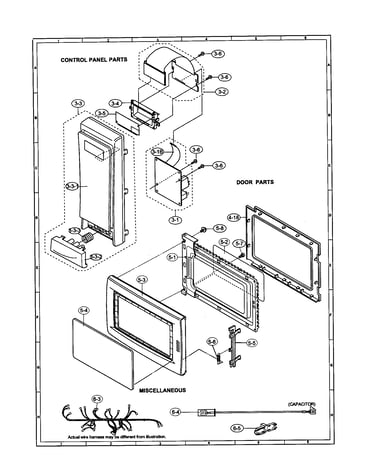

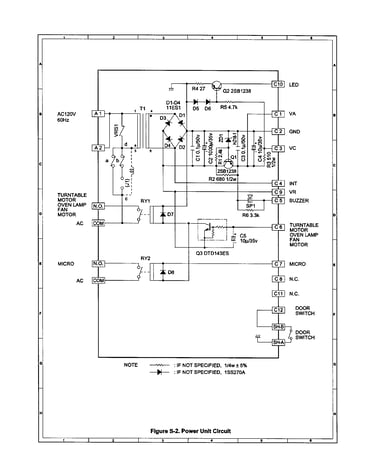

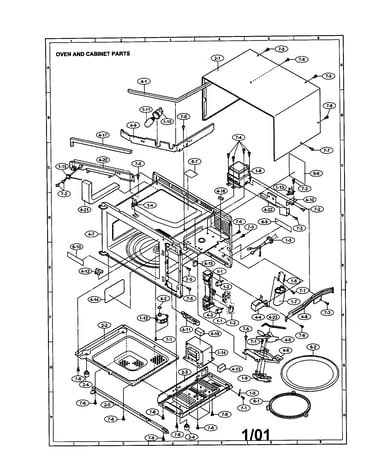

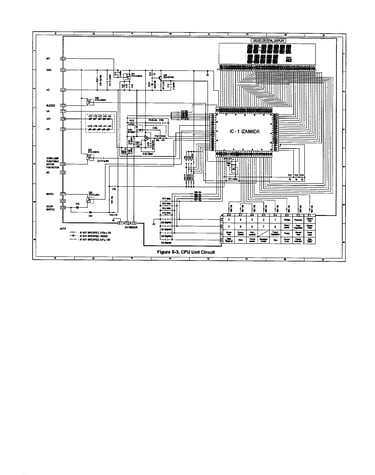

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Connector QCNCMA446DRE0

#3-01A

All parts diagram

Connector

Part #QCNCMA446DRE0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA110WRE0

#1-01

All parts diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part

Transistor VS2SB1238//-3

#NI

All parts diagram

Transistor

Part #VS2SB1238//-3

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support FROLPA079WRK0

#6-01

All parts diagram

Microwave turntable support

Part #FROLPA079WRK0

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cu RTHM-A078WRE0

#1-04

All parts diagram

Thermal cu

Part #RTHM-A078WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSGA399WRE0

#4-13

All parts diagram

Cushion

Part #PCUSGA399WRE0

The manufacturer no longer makes this part, and there's no substitute part

Stopper LSTPPA139WRF0

#5-05

All parts diagram

Stopper

Part #LSTPPA139WRF0

The manufacturer no longer makes this part, and there's no substitute part

Motor RMOTDA161WRE0

#1-12

All parts diagram

Motor

Part #RMOTDA161WRE0

The manufacturer no longer makes this part, and there's no substitute part

Transformer RTRN-A569WRE0

#1-14

All parts diagram

Transformer

Part #RTRN-A569WRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VCEAB31VW106M

#NI

All parts diagram

Capacitor

Part #VCEAB31VW106M

The manufacturer no longer makes this part, and there's no substitute part
