Model # GS650YRVIT5 Official State water heater
Here are the diagrams and repair parts for Official State GS650YRVIT5 water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
GS650YRVIT5 Water Heaters
#32

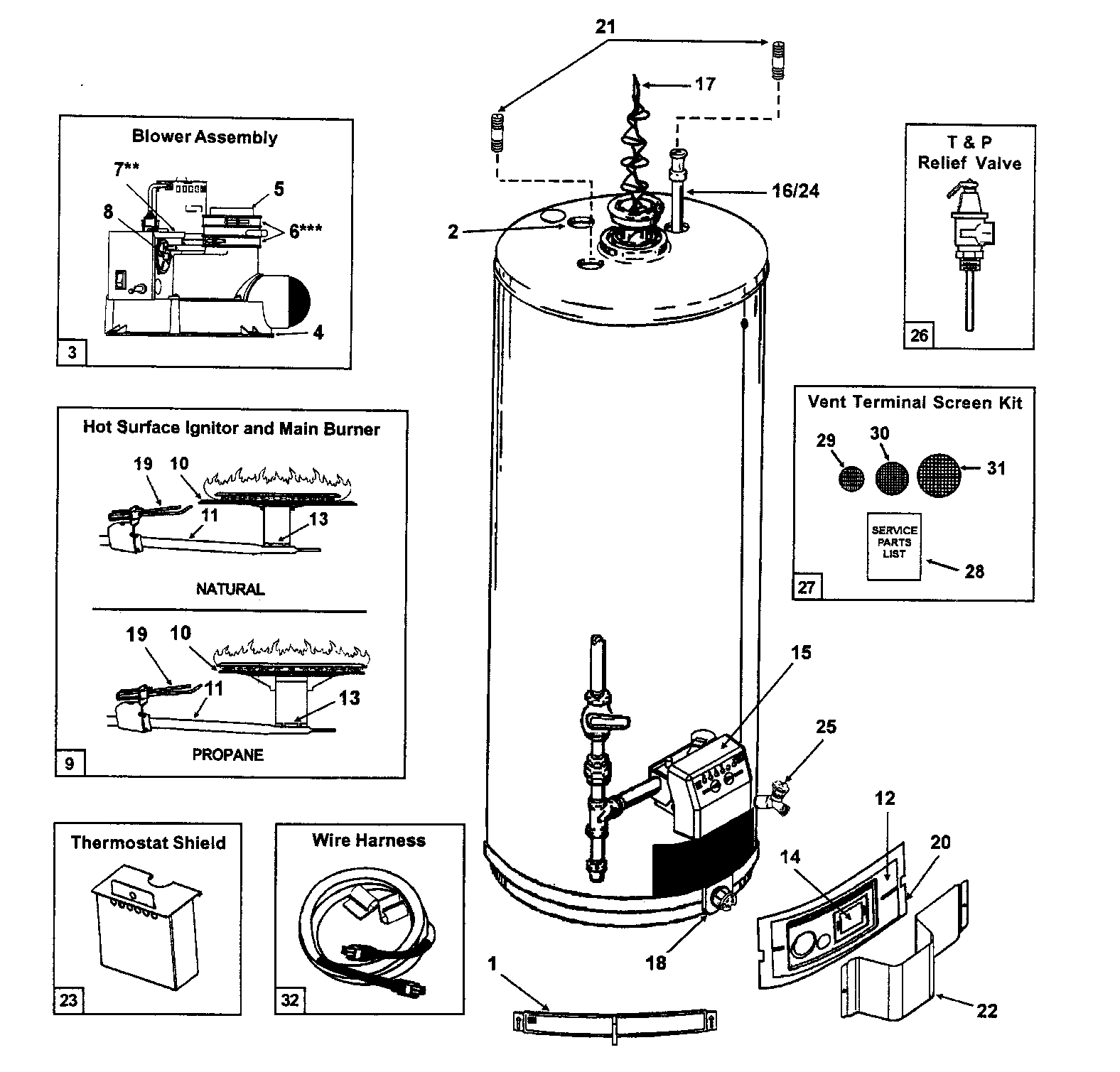

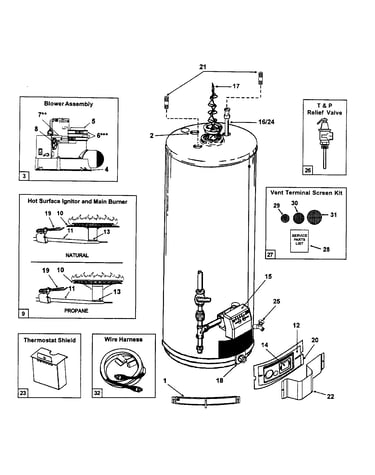

Water heater diagram
Kenmore water heater valve wiring kit
Part #9006022
$36.09 |
14% OFF Phone Price : $42.09
In Stock
#22
Water heater diagram
Outer door
Part #9003545
Replaced by #100109299
?
Manufacturer substitution
This part replaces 9003545. Substitute parts can look different from the original.
$35.56
In Stock
#2
Water heater diagram
Anode 33 in
Part #9000029
Replaced by #100108260
?
Manufacturer substitution
This part replaces 9000029. Substitute parts can look different from the original.
$48.89
In Stock
#21
Water heater diagram
Nipples-5"
Part #9003977
Replaced by #100109655
?
Manufacturer substitution
This part replaces 9003977. Substitute parts can look different from the original.
$36.67
In Stock
#26
Water heater diagram
Wheelers water heater temperature and pressure relief valve
Part #9000728
Replaced by #100108455
?
Manufacturer substitution
This part replaces 9000728. Substitute parts can look different from the original.
$35.56
In Stock
#1
Water heater diagram
Water heater air intake screen (replaces 183159, 183159-000, 9003983)
Part #9003406
Replaced by #100109216
?
Manufacturer substitution
This part replaces 9003406. Substitute parts can look different from the original.
$22.86
In Stock
#19
Water heater diagram
Water heater burner igniter assembly
Part #9005958
Replaced by #100110771
?
Manufacturer substitution
This part replaces 9005958. Substitute parts can look different from the original.
$188.12
In Stock
#27
Water heater diagram
Screen
Part #9006027
The manufacturer no longer makes this part, and there's no substitute part
#16
Water heater diagram
Inlet tube
Part #9006021
The manufacturer no longer makes this part, and there's no substitute part
#17
Water heater diagram
Flue baffle
Part #9006028
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your water heaters
Choose a symptom to see related water heater repairs.
Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…
Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…
Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…
Main causes: water supply needs chlorine treatment, anode rod too reactive…
Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…
Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…
Main causes: faulty pressure relief valve, water is overheating…
