Model # 917253590 Official Craftsman 42" & 48" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917253590 42" & 48" rotary lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
917253590 Lawn Tractor Attachments
Idler 2083R
#29

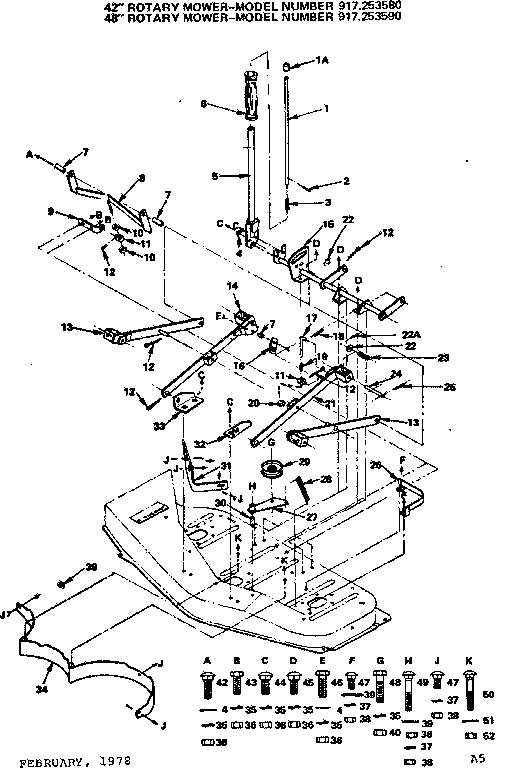

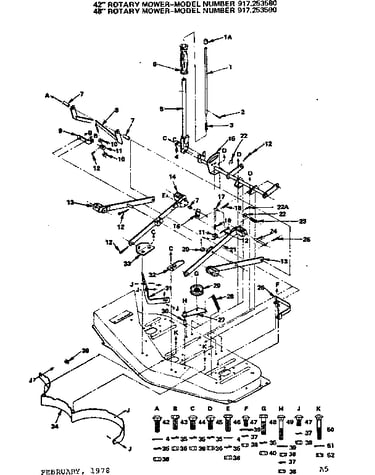

Lift assembly diagram

Idler

Part #2083R

Replaced by #532102403

?
Manufacturer substitution
This part replaces 2083R. Substitute parts can look different from the original.
$37.90 |
14% OFF Phone Price : $43.90
In Stock
Idler 634A565
#9

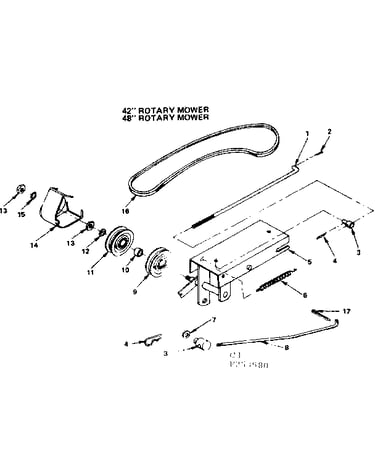

Idler assembly diagram

Idler

Part #634A565

Replaced by #583771401

?
Manufacturer substitution
This part replaces 634A565. Substitute parts can look different from the original.
$69.98 |
8% OFF Phone Price : $75.98
In Stock
Lawn Tractor Mower Attachment Idler Pulley 634A566
#11

Idler assembly diagram

Lawn tractor mower attachment idler pulley

Part #634A566

Replaced by #583771501

?
Manufacturer substitution
This part replaces 634A566. Substitute parts can look different from the original.
$64.98
In Stock
Wizard Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#46

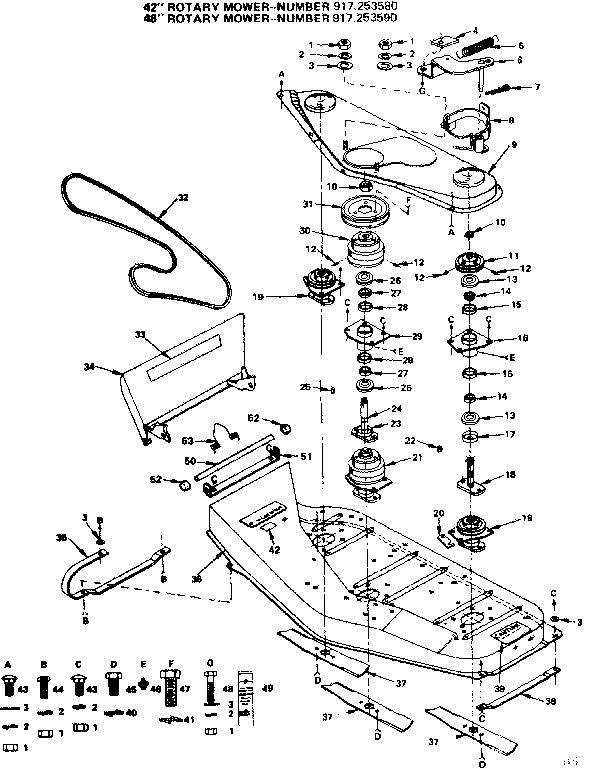

Mandrel assembly diagram

Wizard lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

Replaced by #532183226

?
Manufacturer substitution
This part replaces 6855M. Substitute parts can look different from the original.
This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Spring 3770R
#5

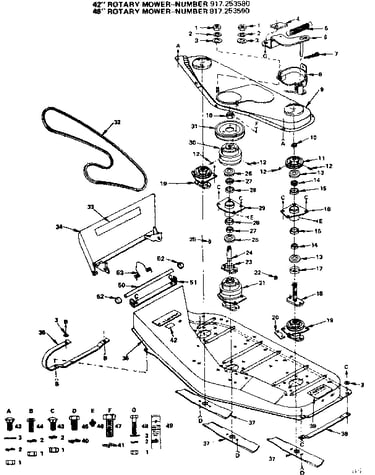

Mandrel assembly diagram

Spring

Part #3770R

Replaced by #583733001

?
Manufacturer substitution
This part replaces 3770R. Substitute parts can look different from the original.
$32.98 |
15% OFF Phone Price : $38.98
In Stock
V-belt 6943R
#32B

Mandrel assembly diagram

V-belt

Part #6943R

Replaced by #583774301

?
Manufacturer substitution
This part replaces 6943R. Substitute parts can look different from the original.
$51.98
In Stock
Adjustment Pin 3707R
#3

Idler assembly diagram

Adjustment pin

Part #3707R

Replaced by #583732801

?
Manufacturer substitution
This part replaces 3707R. Substitute parts can look different from the original.
$20.54
In Stock
Brake Shoe 2629R
#4

Mandrel assembly diagram

Brake shoe

Part #2629R

Replaced by #583730801

?
Manufacturer substitution
This part replaces 2629R. Substitute parts can look different from the original.
$26.64
In Stock
Hitch Pin, 2-pack 4939M
#2

Idler assembly diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Bushing 7375H
#9

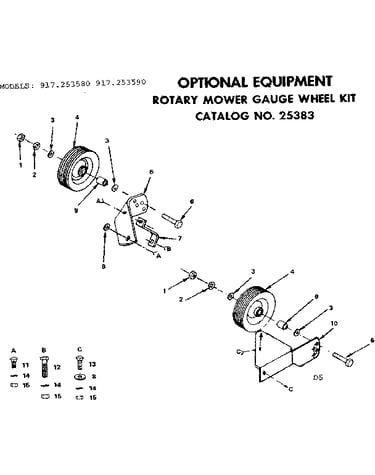

Optional equipment gauge wheels kit diagram

Bushing

Part #7375H

Replaced by #583775301

?
Manufacturer substitution
This part replaces 7375H. Substitute parts can look different from the original.
$8.54
In Stock
