Model # 131978110 Official Craftsman 22" power-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 131978110 22" power-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Blade 69334
#44

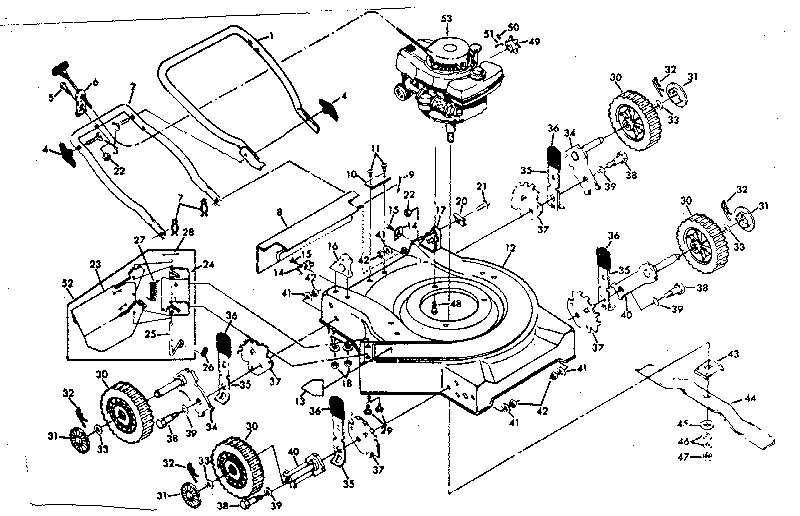

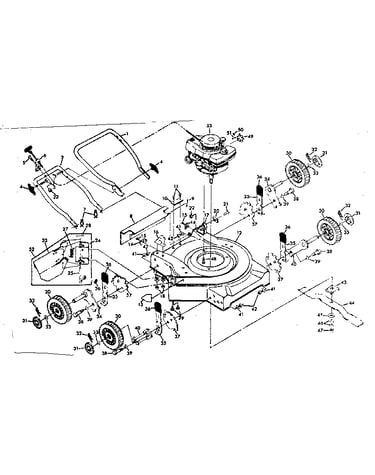

Mower deck diagram

Blade

Part #69334

Replaced by #532406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Washer 52160
#33

Mower deck diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Decal 78850
#13

Mower deck diagram

Decal

Part #78850

Replaced by #539913010

?
Manufacturer substitution
This part replaces 78850. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 59289
#19

Mower deck diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lock Nut, 1/4-20 STD541425
Lock nut, 1/4-20

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part

Handle Knob 63688
#4

Mower deck diagram

Handle knob

Part #63688

Replaced by #532183724

?
Manufacturer substitution
This part replaces 63688. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Screw 75136
#22

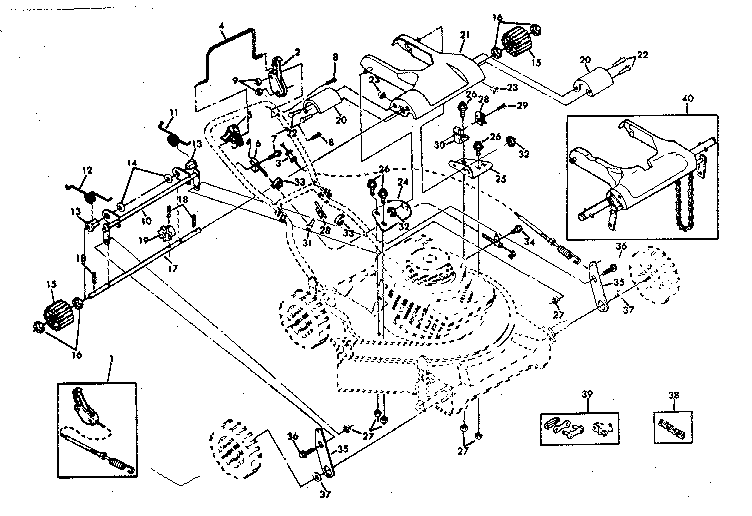

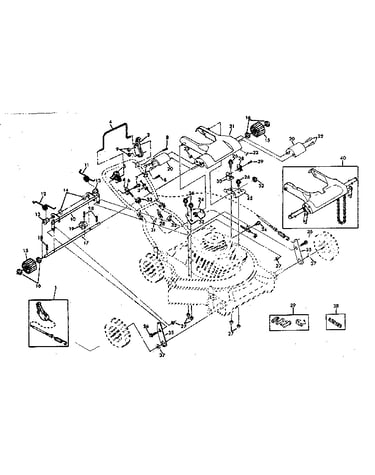

Drive assembly diagram

Screw

Part #75136

The manufacturer no longer makes this part, and there's no substitute part

Wheel And Tire Assembly 78890
#30

Mower deck diagram

Wheel and tire assembly

Part #78890

Replaced by #33781

?
Manufacturer substitution
This part replaces 78890. Substitute parts can look different from the original.
$13.19 |
13% OFF Phone Price : $15.19
In Stock
Lock Nut, #10-24 STD541410
Lock nut, #10-24

Part #STD541410

The manufacturer no longer makes this part, and there's no substitute part

Repair Link Kit STD316659
#39

Drive assembly diagram

Repair link kit

Part #STD316659

The manufacturer no longer makes this part, and there's no substitute part
