Model # 153311190 Official Kenmore solar power 8 pre-heat water heater

Here are the diagrams and repair parts for Official Kenmore 153311190 solar power 8 pre-heat water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
T & P Valve 0720054
#11

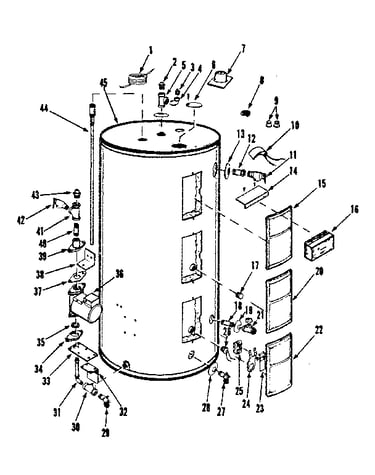

Replacement parts diagram

T & p valve

Part #0720054

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Tank Plug 9000480
#17

Replacement parts diagram

Kenmore tank plug

Part #9000480

This item is not returnable
$5.99
In Stock
Anode 1510631
#44

Replacement parts diagram

Anode

Part #1510631

$14.99
In Stock
Flange 0680064
Flange

Part #0680064

Replaced by #9000370

?
Manufacturer substitution
This part replaces 0680064. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Pump 1340004
#36

Replacement parts diagram

Pump

Part #1340004

Replaced by #9000603

?
Manufacturer substitution
This part replaces 1340004. Substitute parts can look different from the original.
$299.99
In Stock
Bracket 1190633
#14

Replacement parts diagram

Bracket

Part #1190633

Replaced by #9000602

?
Manufacturer substitution
This part replaces 1190633. Substitute parts can look different from the original.
This item is not returnable
$2.49
In Stock
Flange 0680001
#19

Replacement parts diagram

Flange

Part #0680001

Replaced by #9000333

?
Manufacturer substitution
This part replaces 0680001. Substitute parts can look different from the original.
$11.49
In Stock
Thermostat Bracket 0110322
#24

Replacement parts diagram

Thermostat bracket

Part #0110322

Replaced by #100108380

?
Manufacturer substitution
This part replaces 0110322. Substitute parts can look different from the original.
$27.78
In Stock
Thermostat 0180297
#16

Replacement parts diagram

Thermostat

Part #0180297

Replaced by #9000601

?
Manufacturer substitution
This part replaces 0180297. Substitute parts can look different from the original.
$237.99
In Stock
Pipe Clamp 0830007
#8

Replacement parts diagram

Pipe clamp

Part #0830007

Replaced by #9000604

?
Manufacturer substitution
This part replaces 0830007. Substitute parts can look different from the original.
This item is not returnable
$4.99
In Stock
