Amana
Trash Compactor

Model # ESMC-1/P18011-2T Official Amana compactor

Here are the diagrams and repair parts for Official Amana ESMC-1-P18011-2T compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

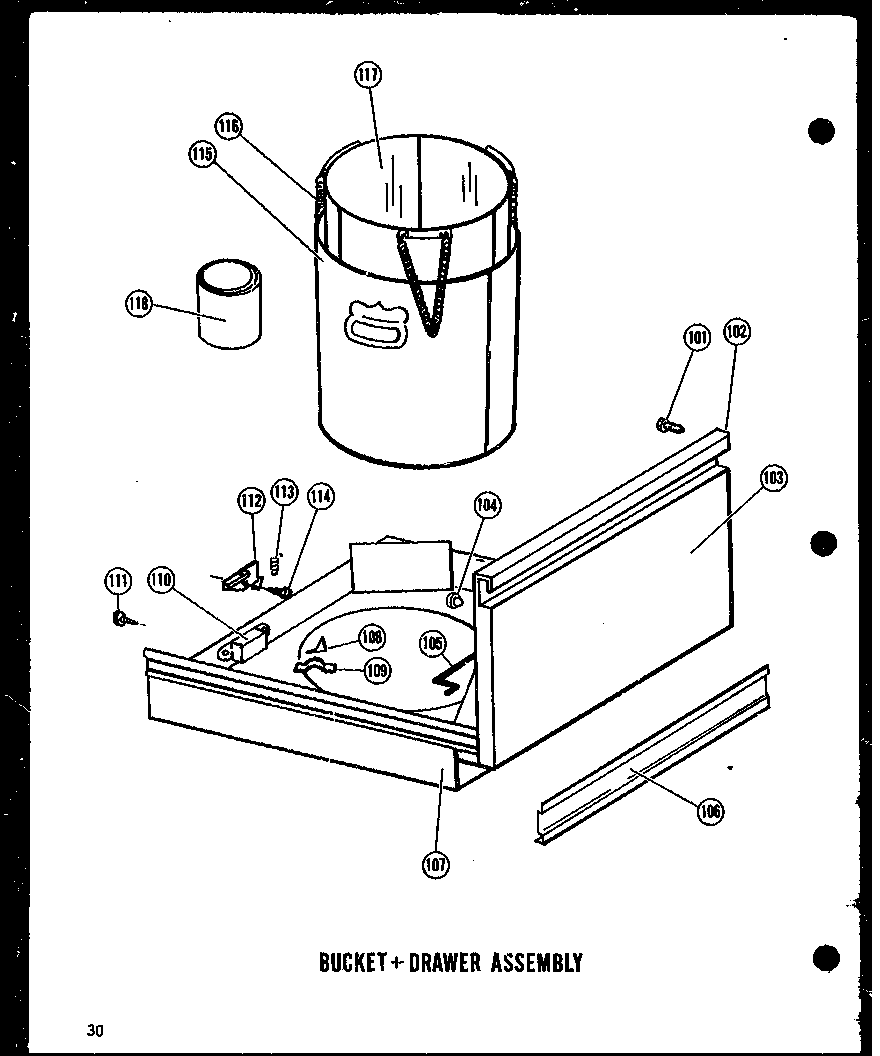

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Screw M0211016
Screw

Part #M0211016

This item is not returnable
$3.40
In Stock
Screw M0234029
#7

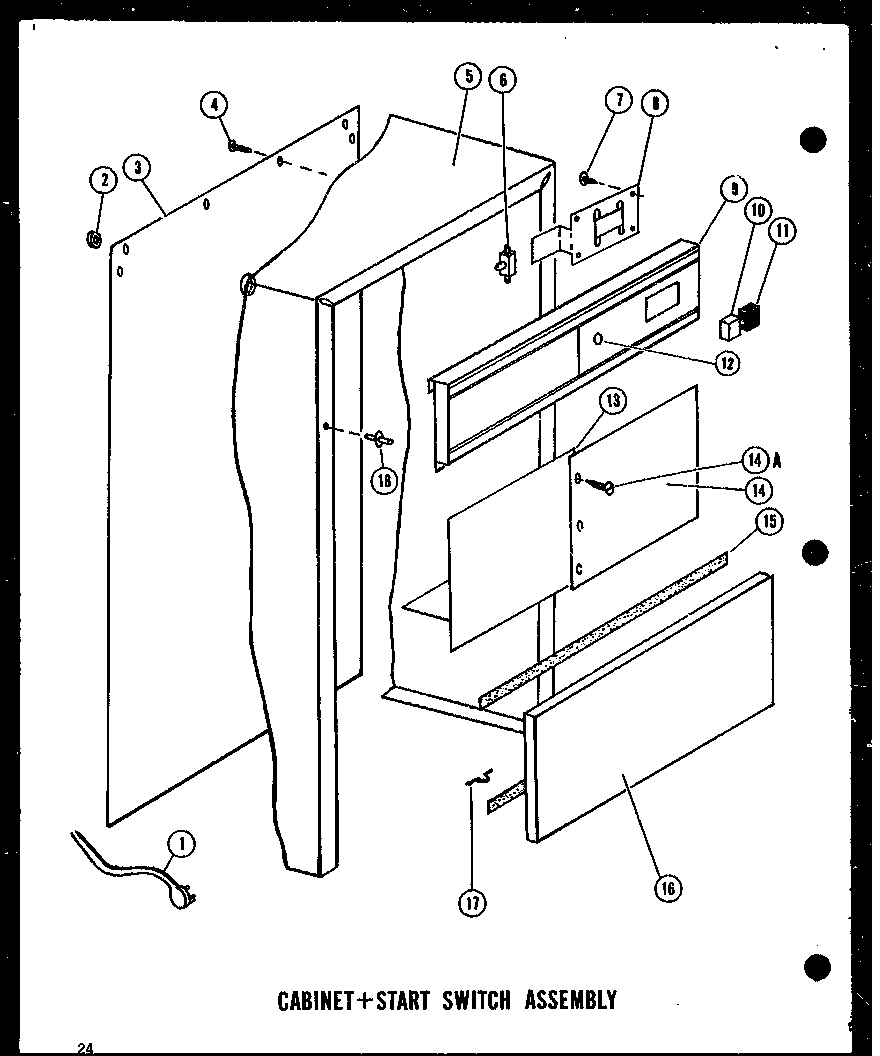

Cabinet + start switch assembly diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw M0211018

#NI

All parts diagram

Screw

Part #M0211018

The manufacturer no longer makes this part, and there's no substitute part

Screw M0211531
#54

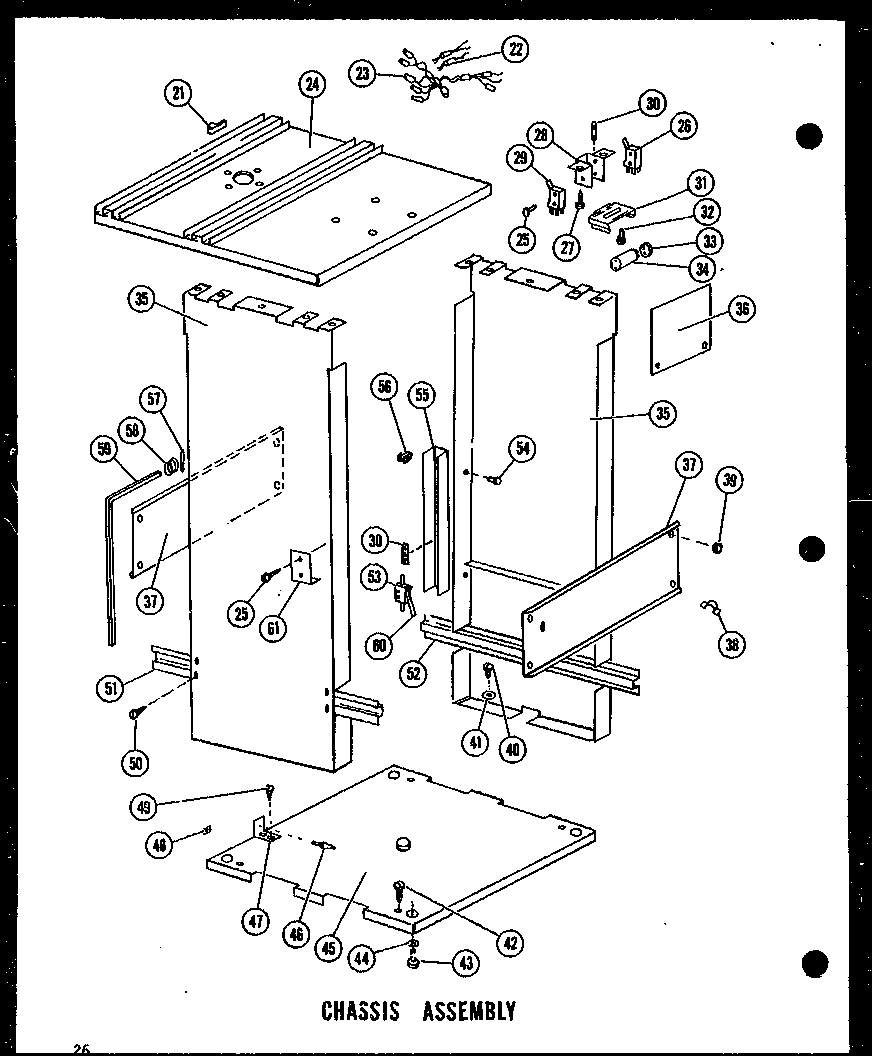

Chassis assembly diagram

Screw

Part #M0211531

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0211531. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Ass'y. Start-stop Switch & Bracket C1704901
#8

Cabinet + start switch assembly diagram

Ass'y. start-stop switch & bracket

Part #C1704901

The manufacturer no longer makes this part, and there's no substitute part

Lever, Actuator Arm A1504301
#60

Chassis assembly diagram

Lever, actuator arm

Part #A1504301

The manufacturer no longer makes this part, and there's no substitute part

Flange Nut, Leveler Bolt M0283610
#44

Chassis assembly diagram

Flange nut, leveler bolt

Part #M0283610

The manufacturer no longer makes this part, and there's no substitute part

Sleeve A1502201
#63

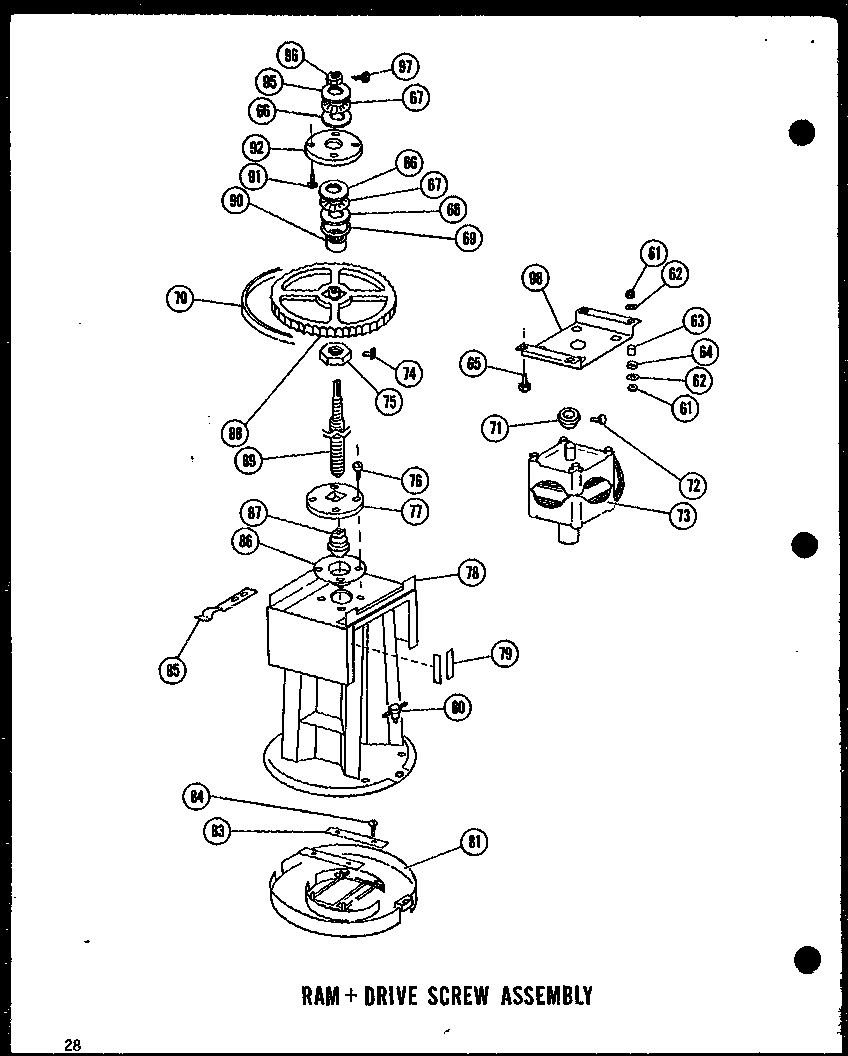

Ram + drive screw assembly diagram

Sleeve

Part #A1502201

The manufacturer no longer makes this part, and there's no substitute part

Race .030 B1602603
#66

Ram + drive screw assembly diagram

Race .030

Part #B1602603

The manufacturer no longer makes this part, and there's no substitute part

Screw, 5/16" - 18 X 1", Retainer Plate M0204962
#76

Ram + drive screw assembly diagram

Screw, 5/16" - 18 x 1", retainer plate

Part #M0204962

The manufacturer no longer makes this part, and there's no substitute part
