Model # UT-04005 Official Homelite hg600 lightning bug generator

Here are the diagrams and repair parts for Official Homelite UT-04005 hg600 lightning bug generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

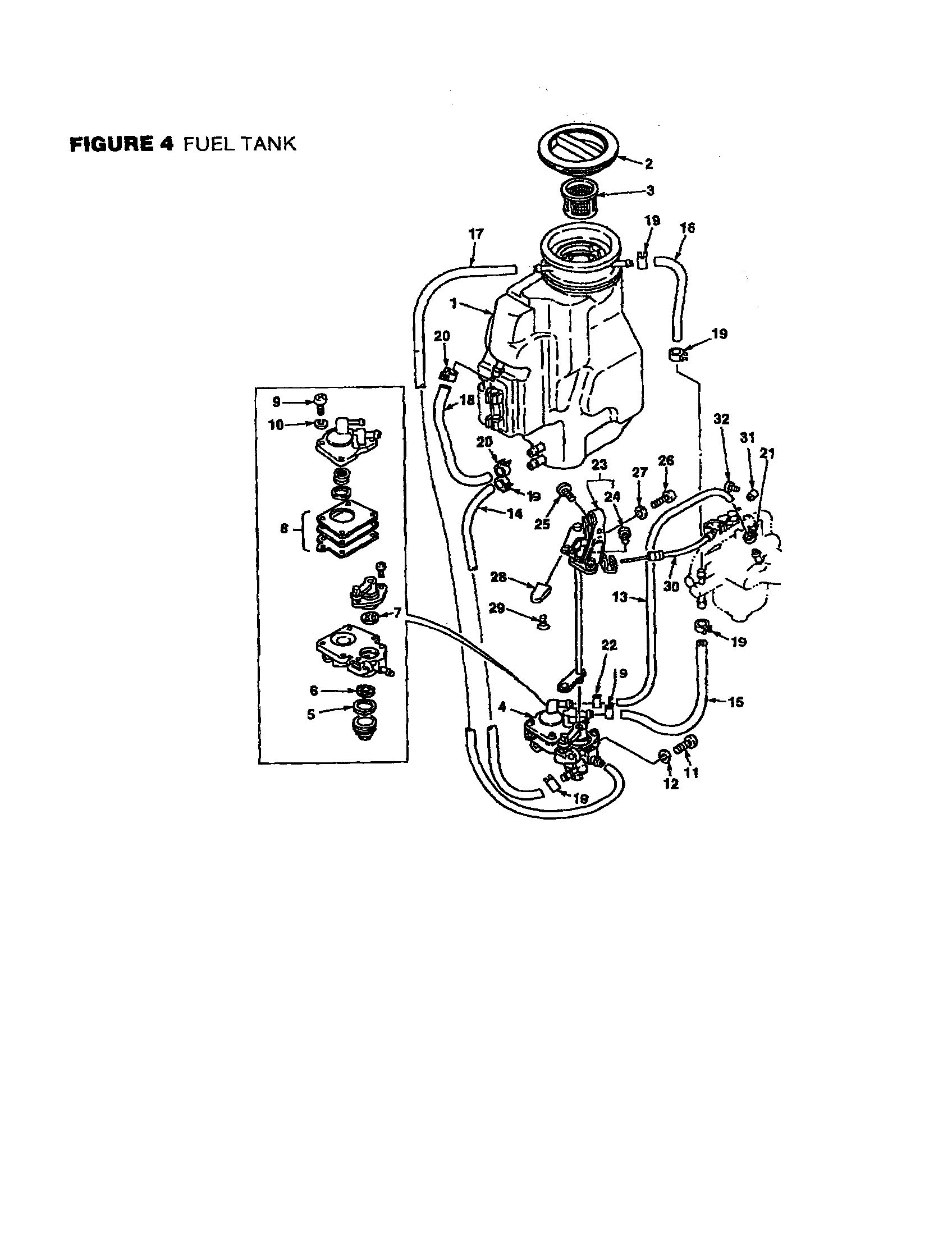

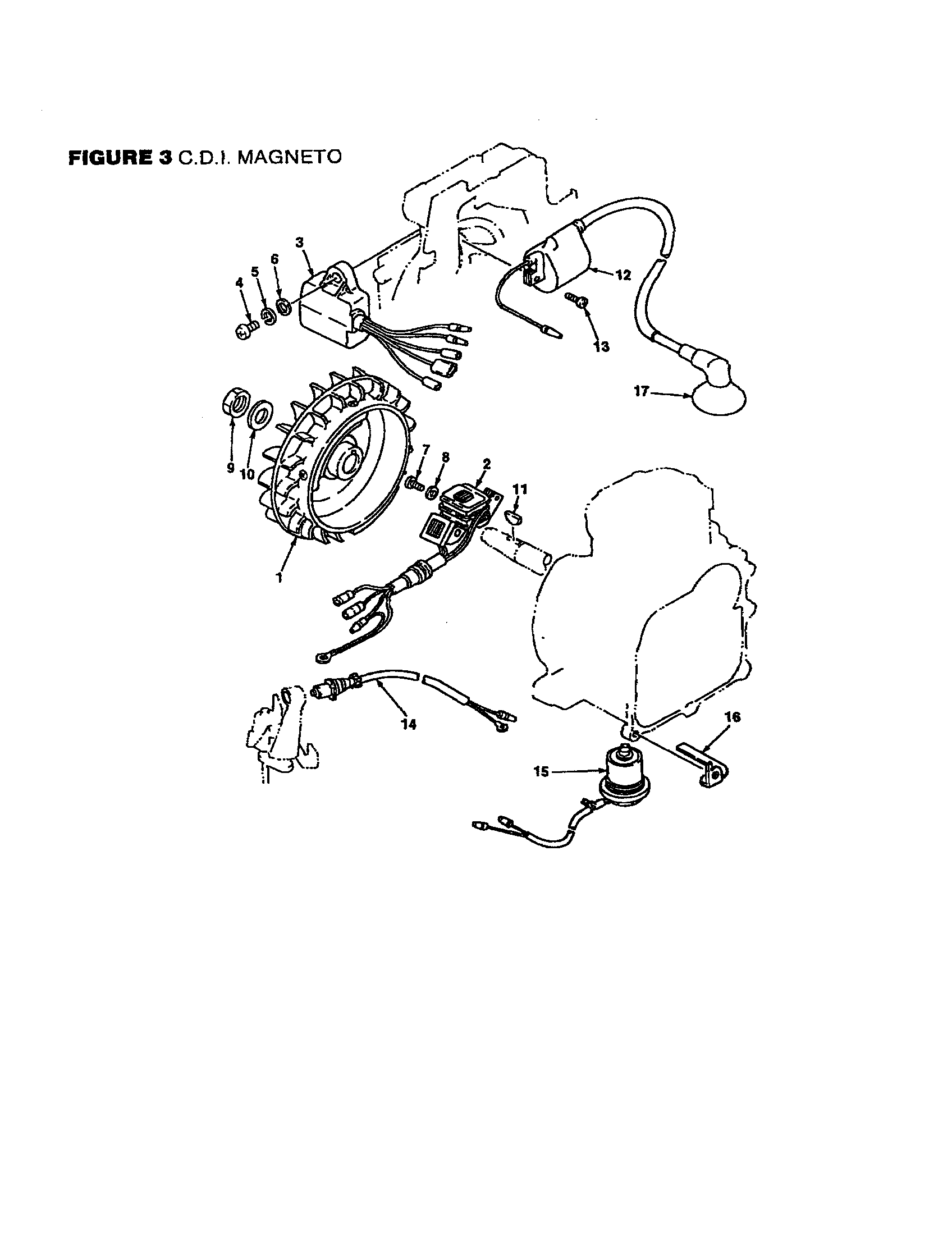

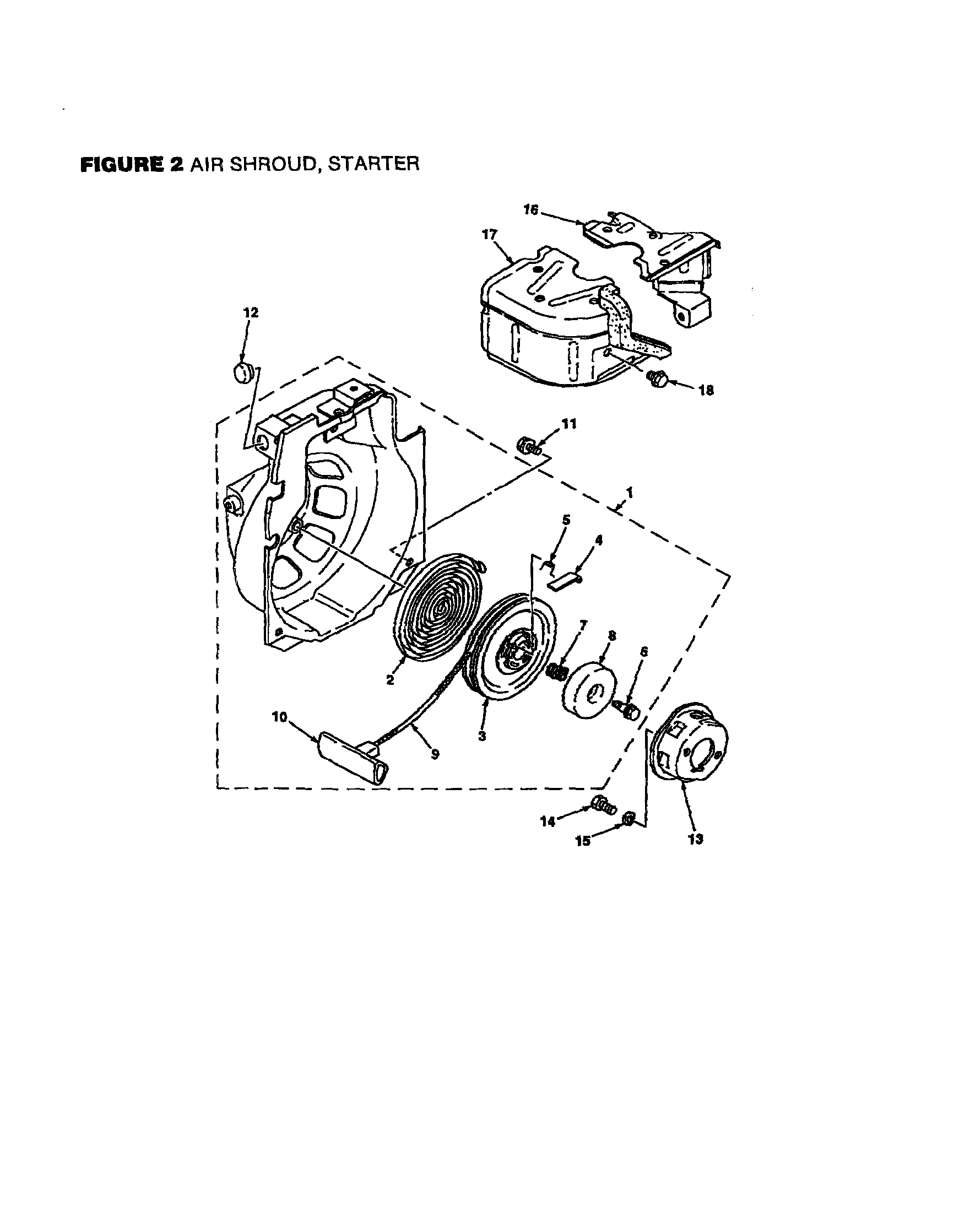

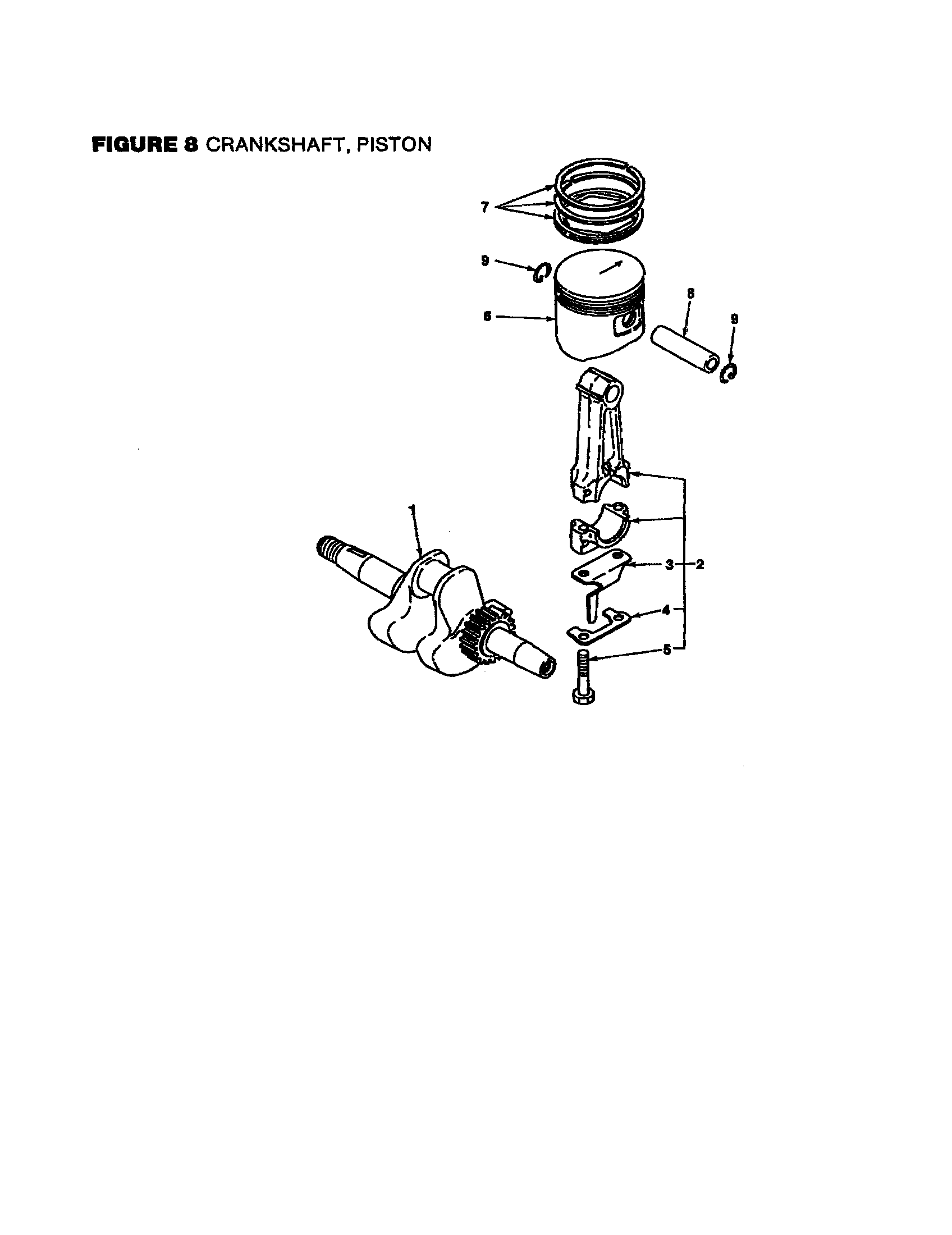

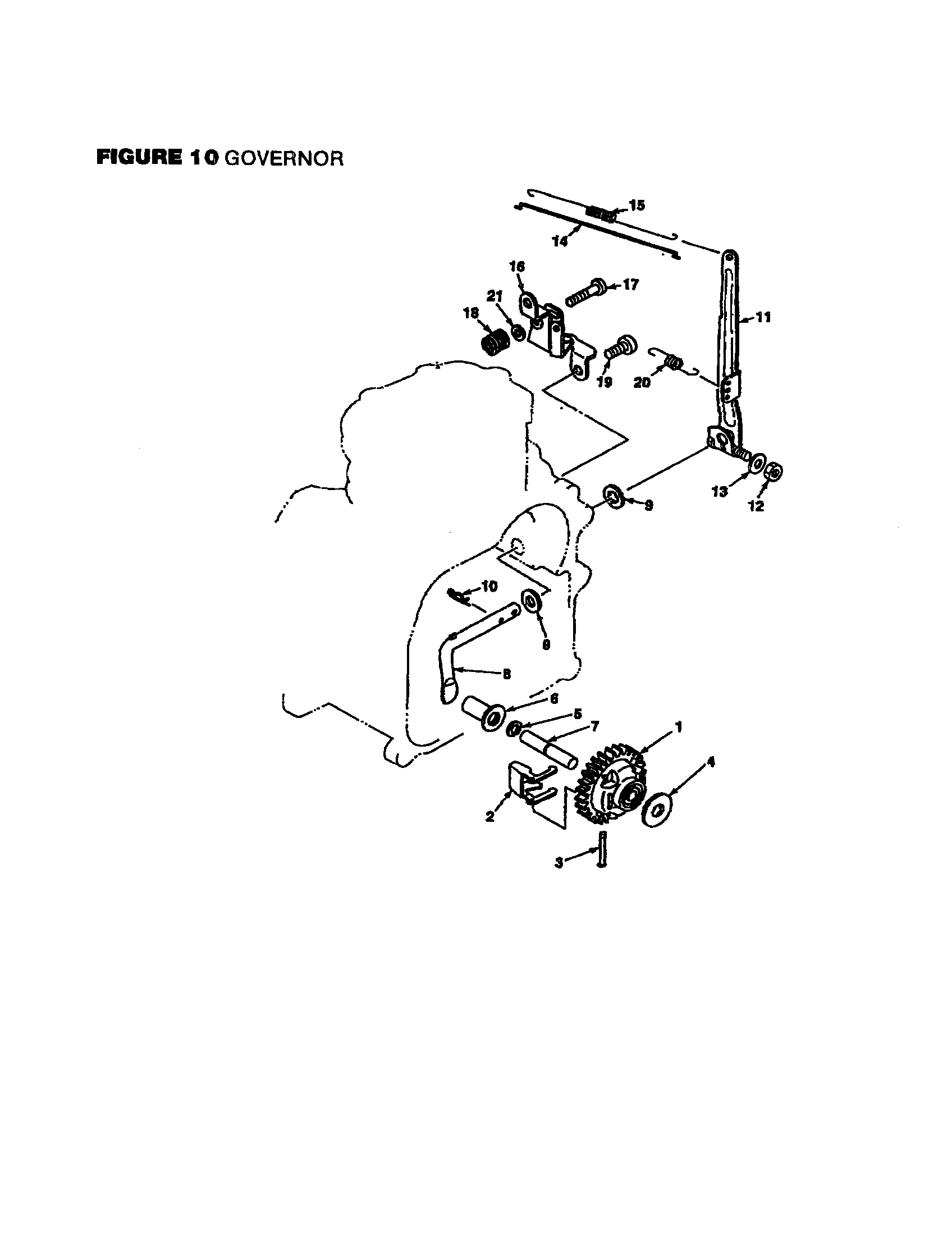

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 557 parts  |
Bolt-flange (2) 49025-23
#4

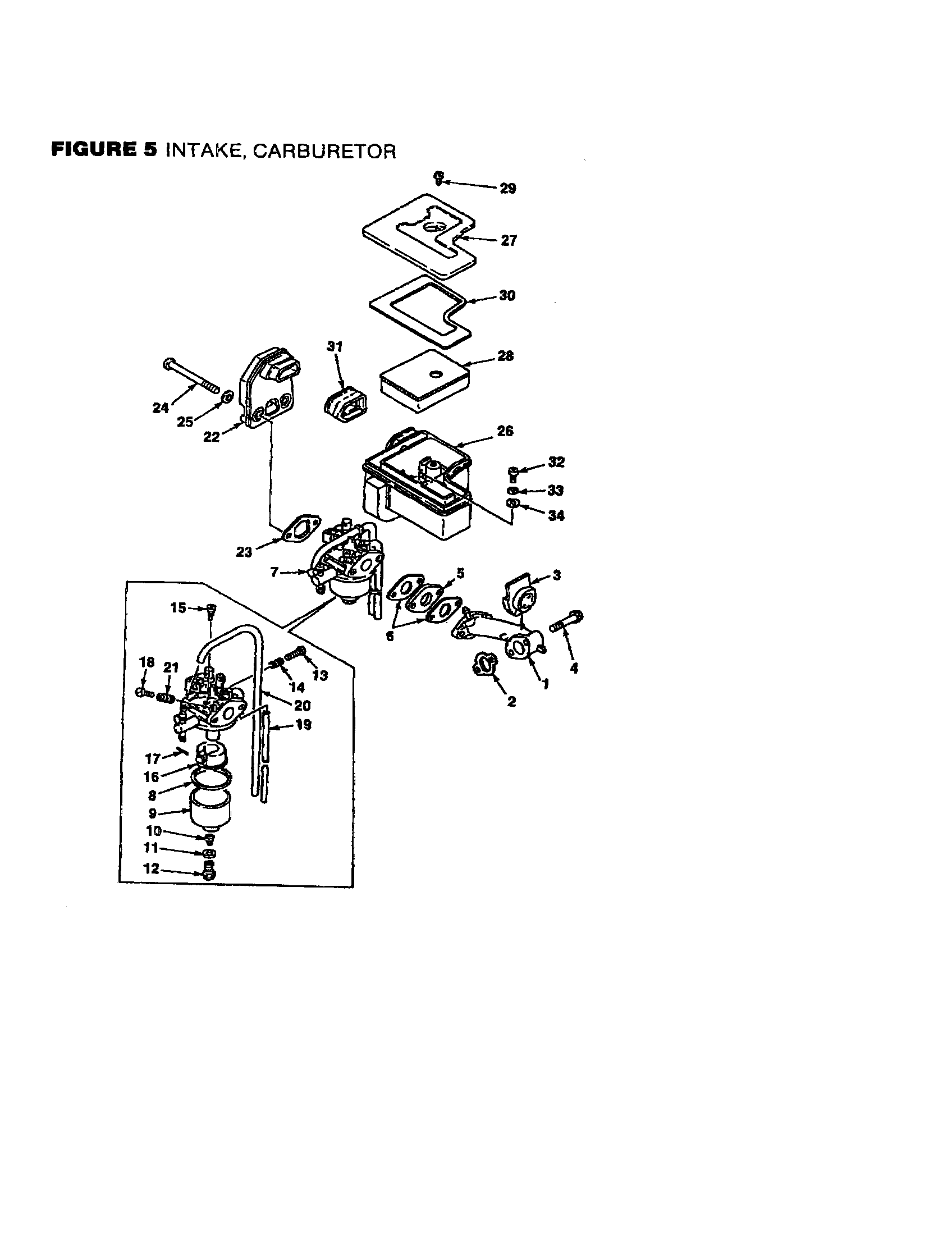

Intake carburetor diagram

Bolt-flange (2)

Part #49025-23

The manufacturer no longer makes this part, and there's no substitute part

Spring-compression (2) 49024-74
#5

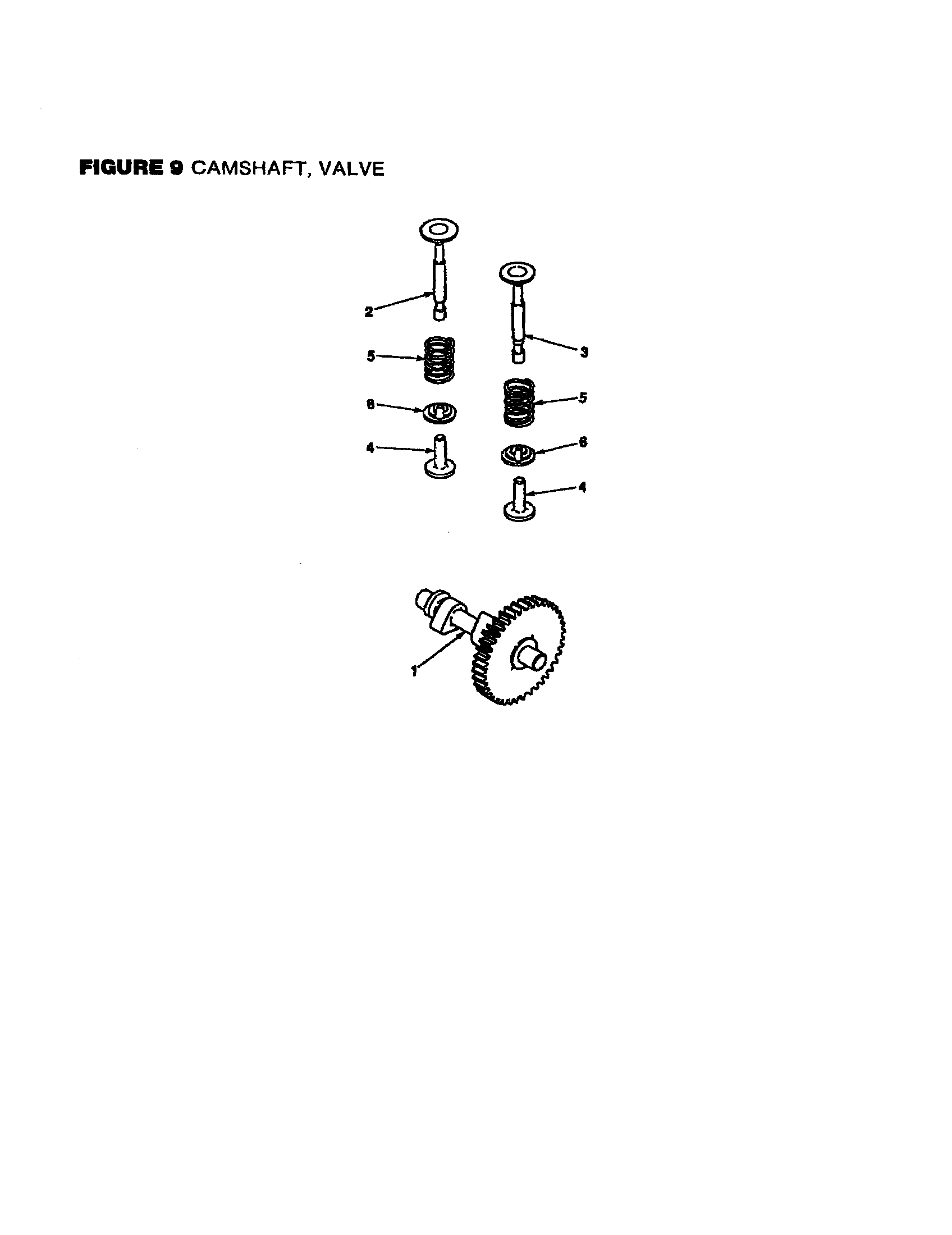

Camshaft, valve diagram

Spring-compression (2)

Part #49024-74

The manufacturer no longer makes this part, and there's no substitute part

Cover-crankcase 1 49023-70
#11

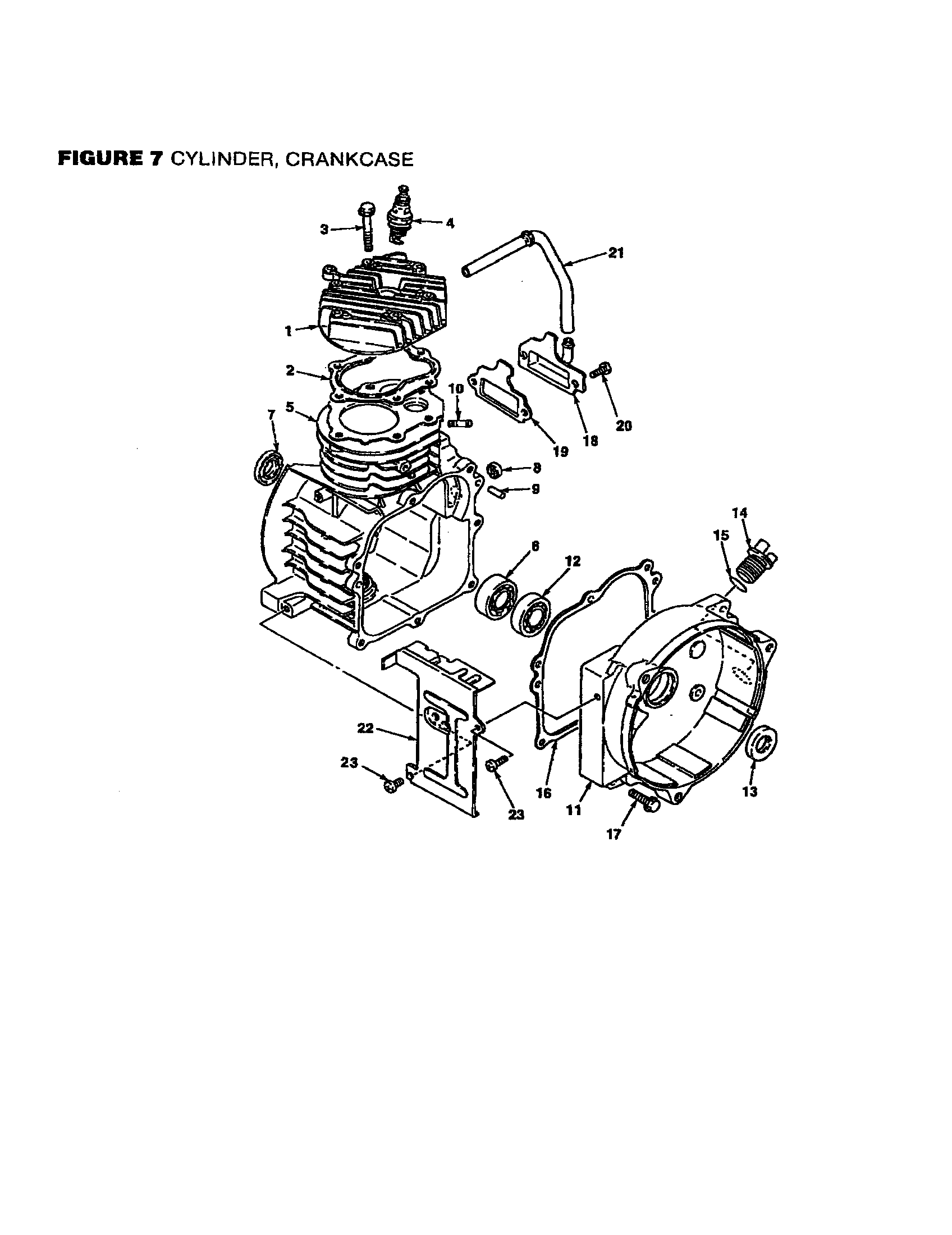

Cylinder, crankcase diagram

Cover-crankcase 1

Part #49023-70

The manufacturer no longer makes this part, and there's no substitute part

Rectifier Assembly 49024-21
#12

Generator diagram

Rectifier assembly

Part #49024-21

The manufacturer no longer makes this part, and there's no substitute part

Retainer-valve Spring (2) 49023-35
#6

Camshaft, valve diagram

Retainer-valve spring (2)

Part #49023-35

The manufacturer no longer makes this part, and there's no substitute part

Bearing 49025-10
#6

Cylinder, crankcase diagram

Bearing

Part #49025-10

The manufacturer no longer makes this part, and there's no substitute part

Screw-tapping (2) 49025-31
#19

Control box diagram

Screw-tapping (2)

Part #49025-31

The manufacturer no longer makes this part, and there's no substitute part

Emblem 3 (usa Ut-04005) 49025-83
#31

Front cover and rear cover diagram

Emblem 3 (usa ut-04005)

Part #49025-83

The manufacturer no longer makes this part, and there's no substitute part

Screw-tapping 49025-30
Screw-tapping

Part #49025-30

The manufacturer no longer makes this part, and there's no substitute part

Insulator-mounting (4) 49023-89
#5

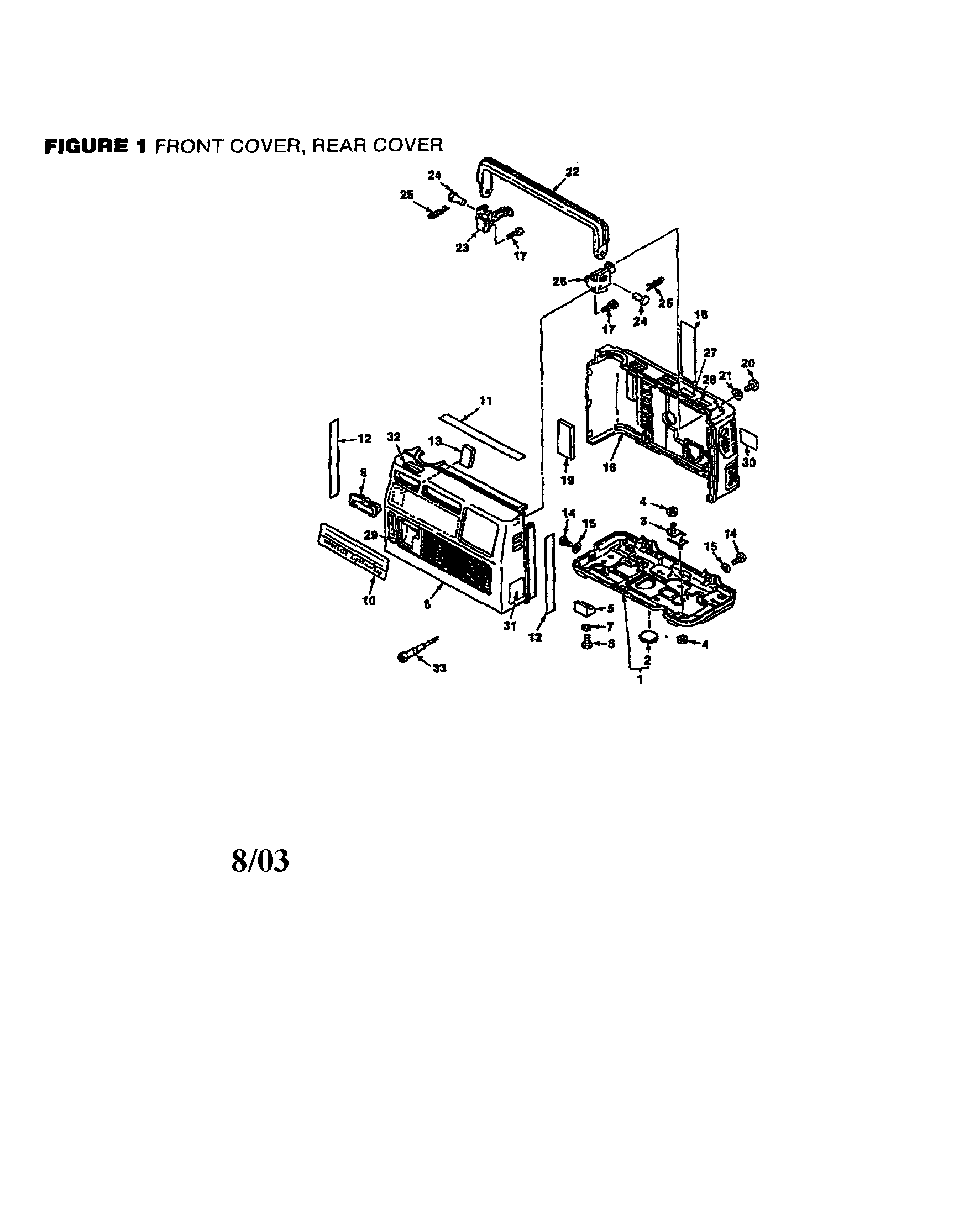

Front cover and rear cover diagram

Insulator-mounting (4)

Part #49023-89

The manufacturer no longer makes this part, and there's no substitute part
