Model # UT-04005 Official Homelite hg600 lightning bug generator

Here are the diagrams and repair parts for Official Homelite UT-04005 hg600 lightning bug generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

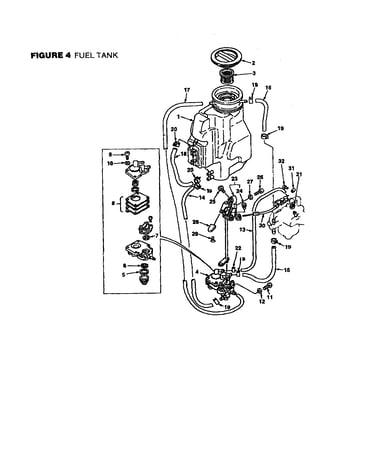

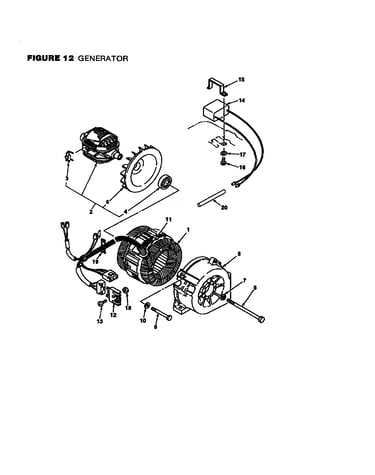

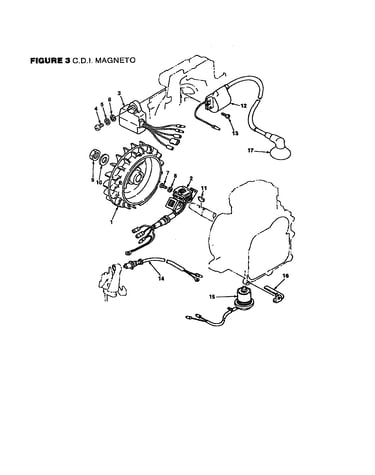

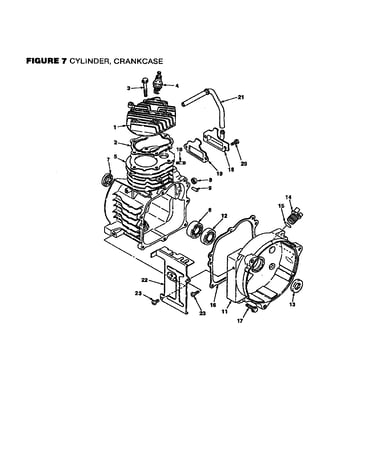

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 557 parts  |
Weight (2) 49023-25
#2

Governor diagram

Weight (2)

Part #49023-25

The manufacturer no longer makes this part, and there's no substitute part

Spring-throttle Stop 49023-45
#14

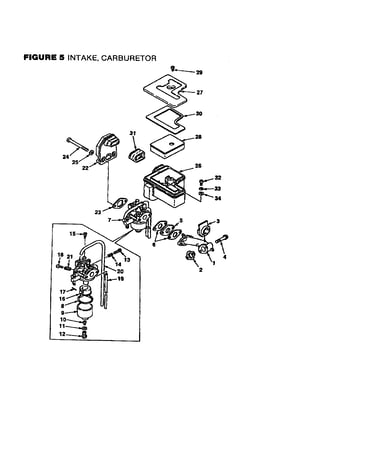

Intake carburetor diagram

Spring-throttle stop

Part #49023-45

The manufacturer no longer makes this part, and there's no substitute part

Nut 49025-17
Nut

Part #49025-17

The manufacturer no longer makes this part, and there's no substitute part

Nut 49025-17
Nut

Part #49025-17

The manufacturer no longer makes this part, and there's no substitute part

Emblem 4 49024-80
#18A

Front cover and rear cover diagram

Emblem 4

Part #49024-80

The manufacturer no longer makes this part, and there's no substitute part

Washer 49025-04
#15

Front cover and rear cover diagram

Washer

Part #49025-04

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 49025-56
#17

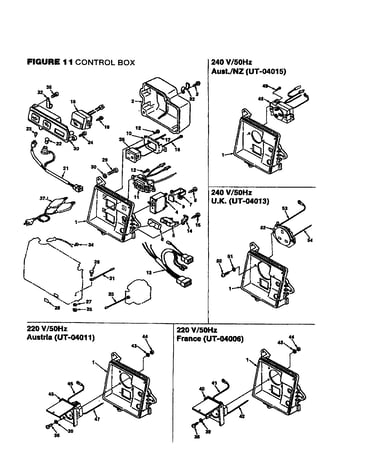

Control box diagram

Lead wire

Part #49025-56

The manufacturer no longer makes this part, and there's no substitute part

Washer-lock 49023-14
#4

Crankshaft, piston diagram

Washer-lock

Part #49023-14

The manufacturer no longer makes this part, and there's no substitute part

Washer-lock 49023-14
#4

Crankshaft, piston diagram

Washer-lock

Part #49023-14

The manufacturer no longer makes this part, and there's no substitute part

Bolt (2) 49025-25
#14

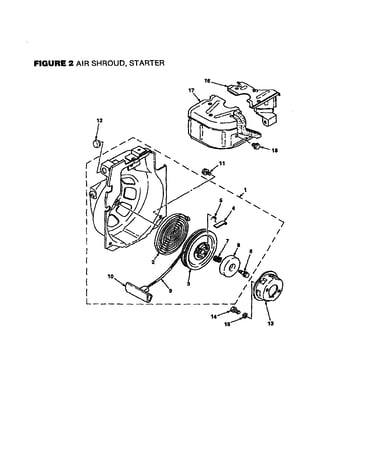

Air shroud and starter diagram

Bolt (2)

Part #49025-25

The manufacturer no longer makes this part, and there's no substitute part
