Side-By-Side Refrigerator

Model # HSM22IFTBSA Official Hotpoint refrigerator - t series

Here are the diagrams and repair parts for Official Hotpoint HSM22IFTBSA refrigerator - t series, as well as links to manuals and error code tables, if available.

By Schematic
By Part

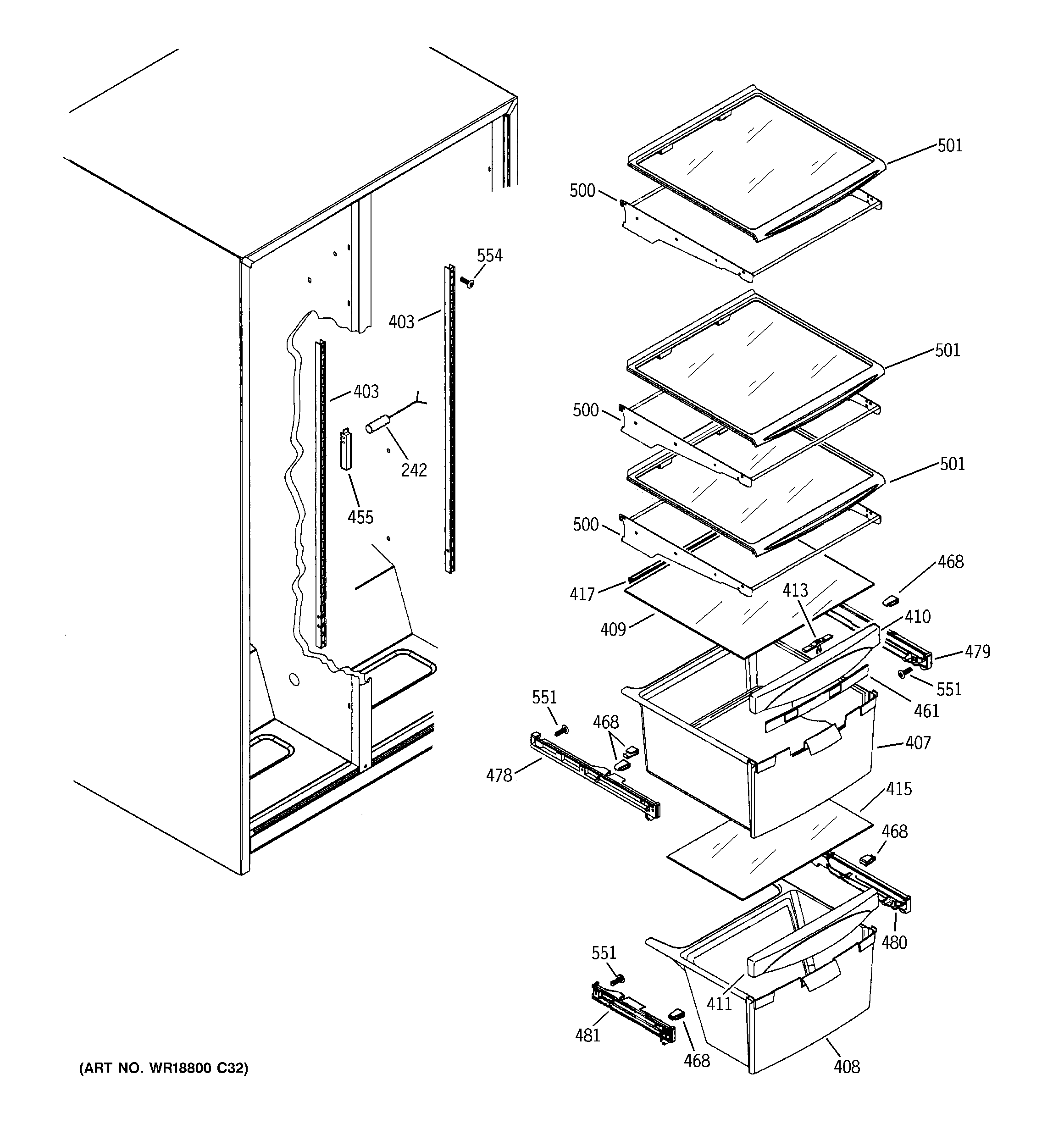

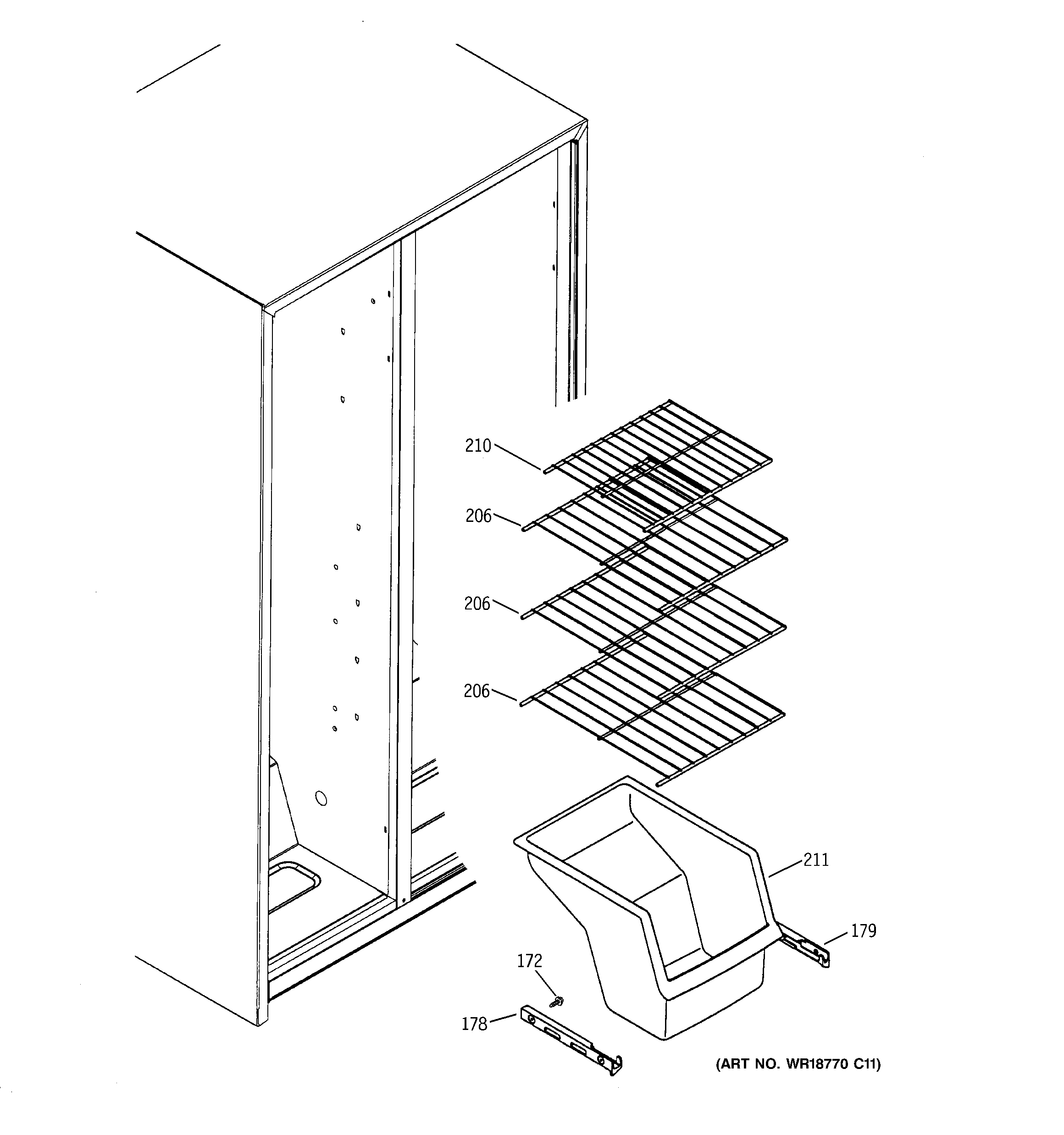

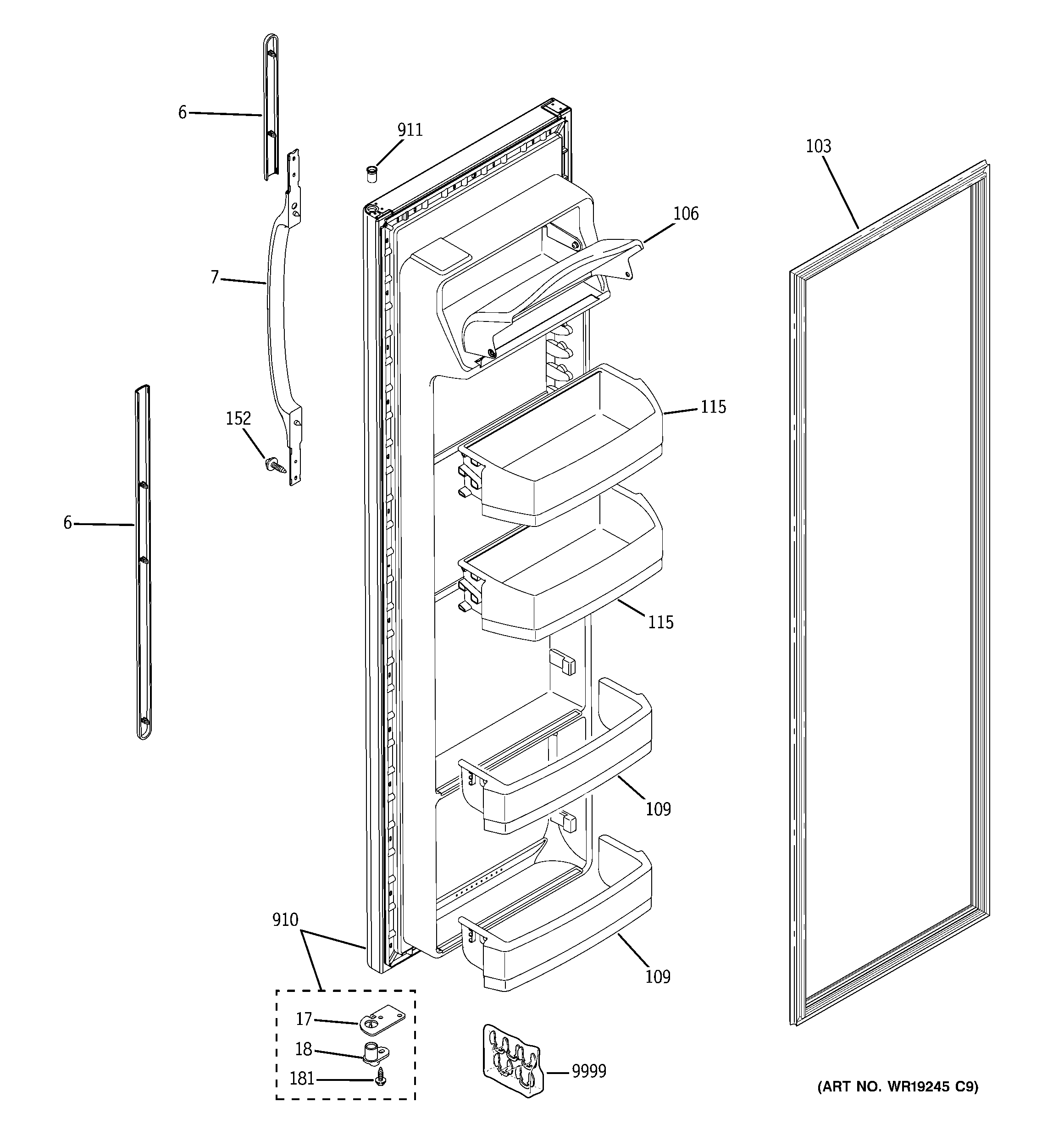

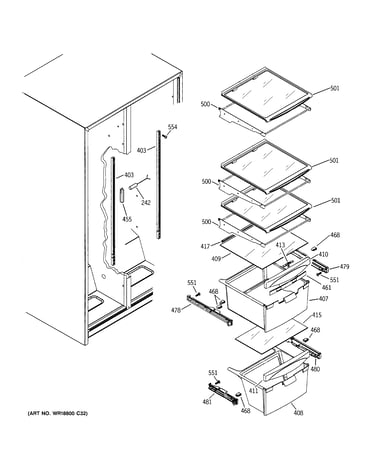

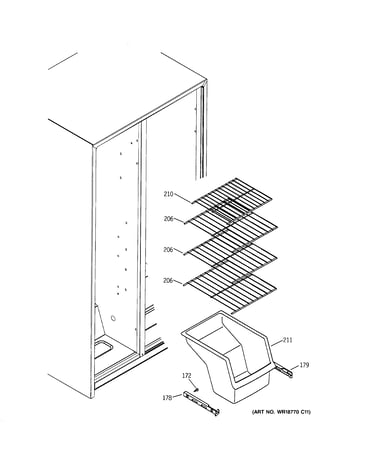

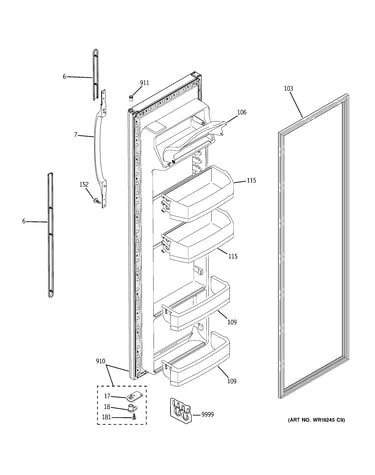

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
HSM22IFTBSA Refrigerators
Damper & The WR50X10034
Damper & the

Part #WR50X10034

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10034. Substitute parts can look different from the original.
4.5 (2)
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Refrigerator Temperature Sensor WR50X10067
#241

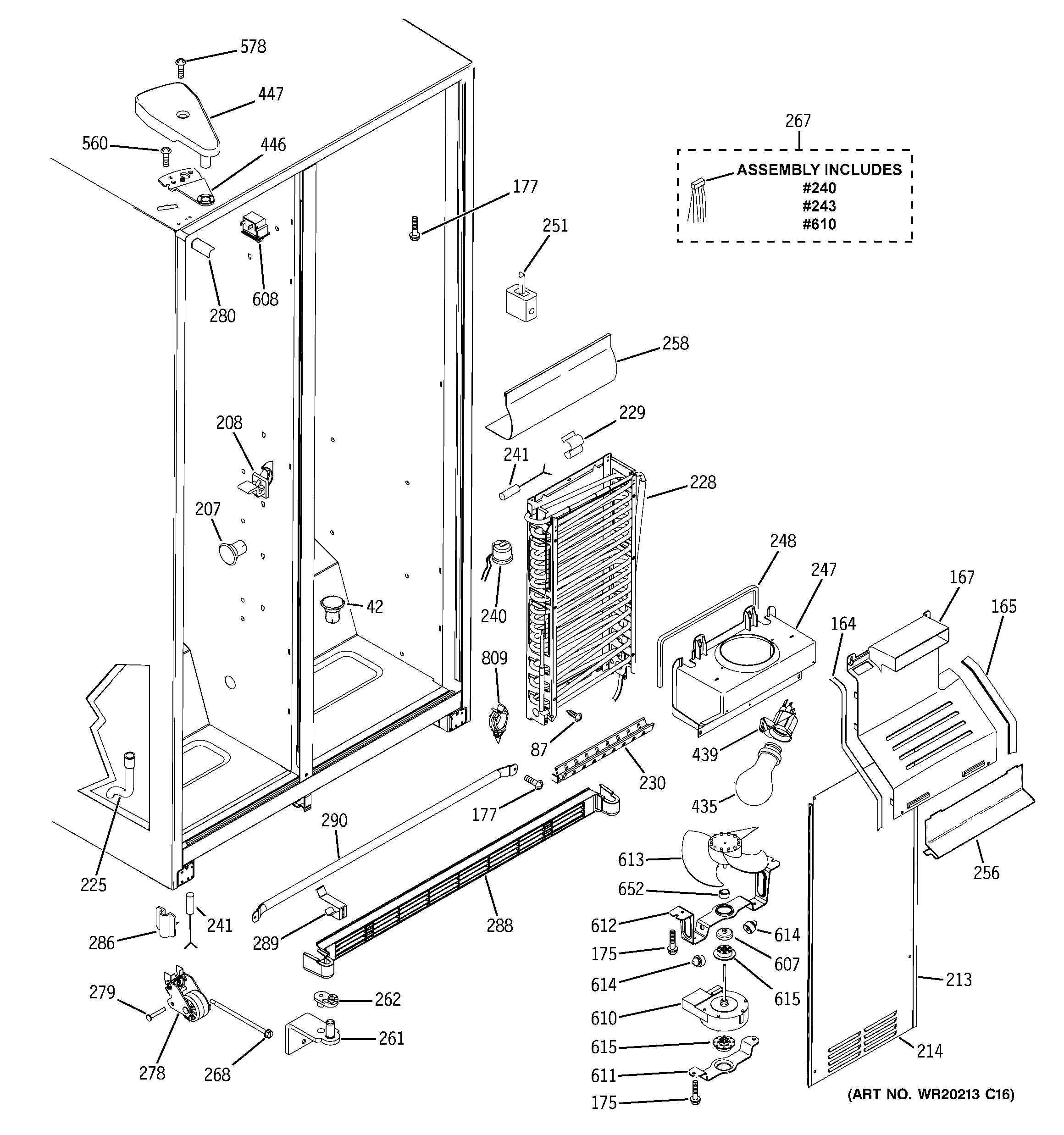

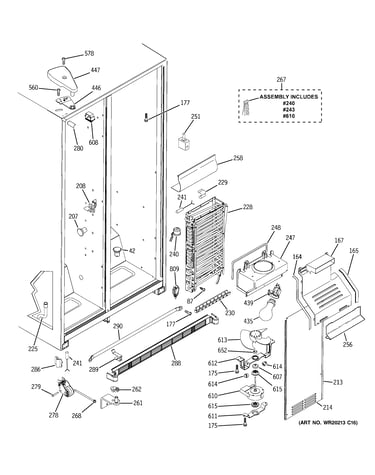

Freezer section diagram

Refrigerator temperature sensor

Part #WR50X10067

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10067. Substitute parts can look different from the original.
4.5 (2)
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Electronic I WR30X10061
#820

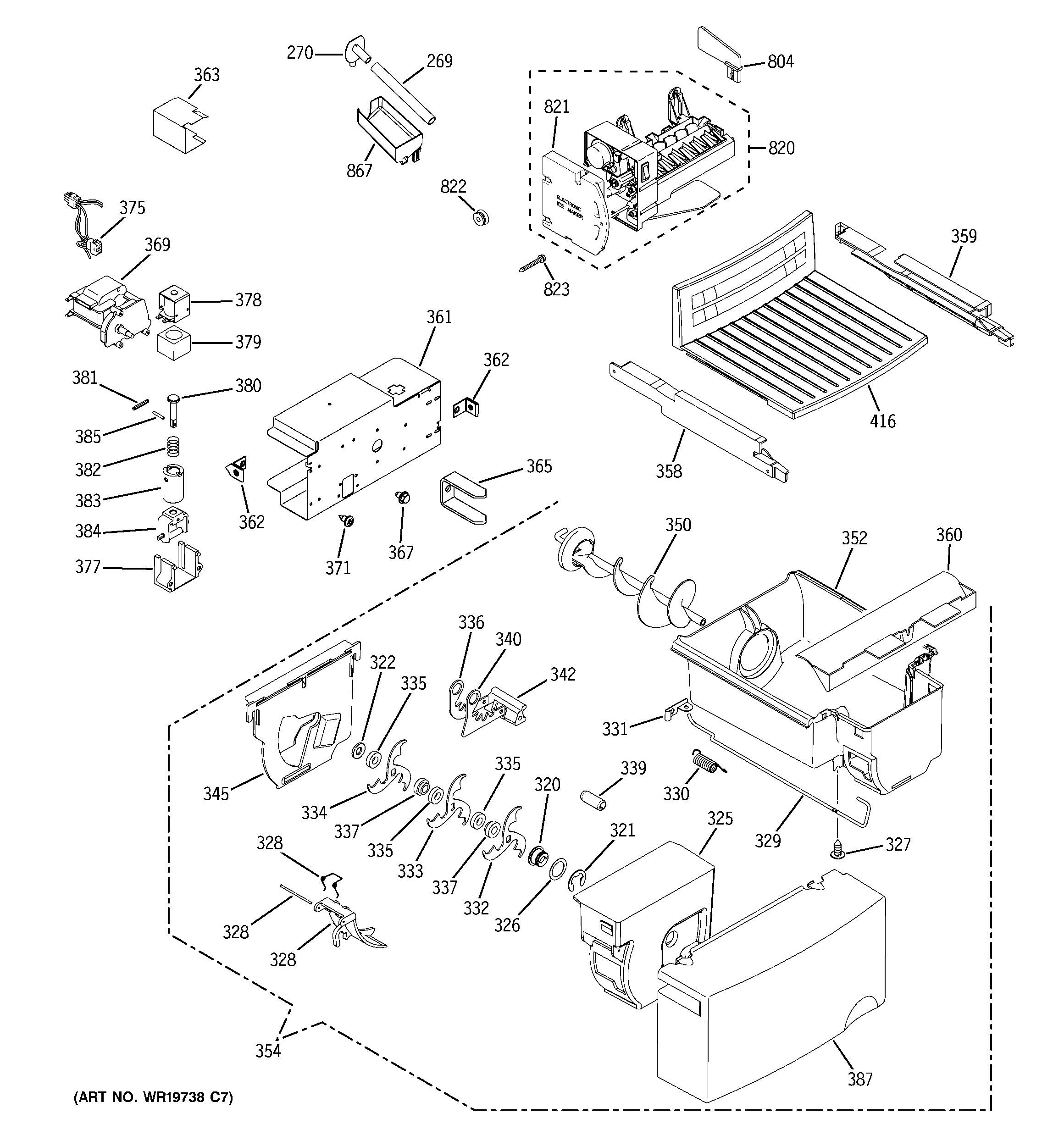

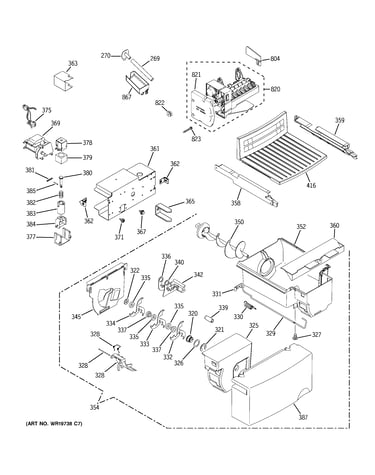

Ice maker & dipsenser diagram

Electronic i

Part #WR30X10061

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10061. Substitute parts can look different from the original.
4.38 (53)
BEST SELLER
$220.99 |
5% OFF Phone Price : $232.99
In Stock
Refrigerator Filter Dryer WR86X96
#740

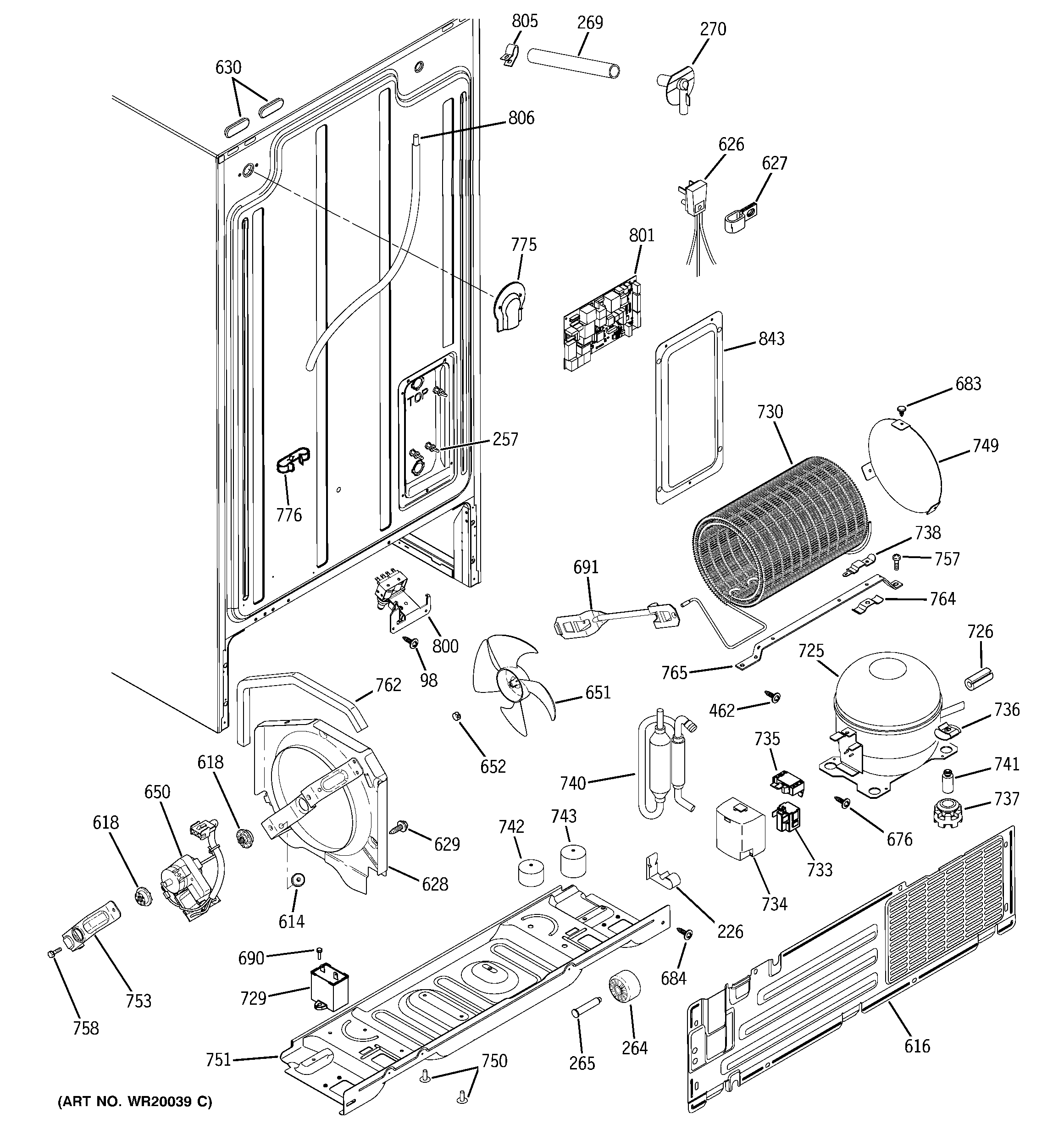

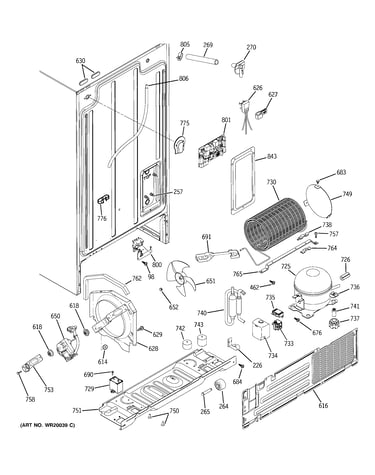

Sealed system & mother board diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$78.01 |
7% OFF Phone Price : $84.01
In Stock
Refrigerator Water Valve WR57X10040
#800

Sealed system & mother board diagram

Refrigerator water valve

Part #WR57X10040

Replaced by #WR57X33326

?
Manufacturer substitution
This part replaces WR57X10040. Substitute parts can look different from the original.
5 (1)
BEST SELLER
$83.96 |
7% OFF Phone Price : $89.96
In Stock
Refrigerator Light Bulb 60A
Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Ge Refrigerator Water Filter (replaces 9970, Mwfpa) MWF
#790

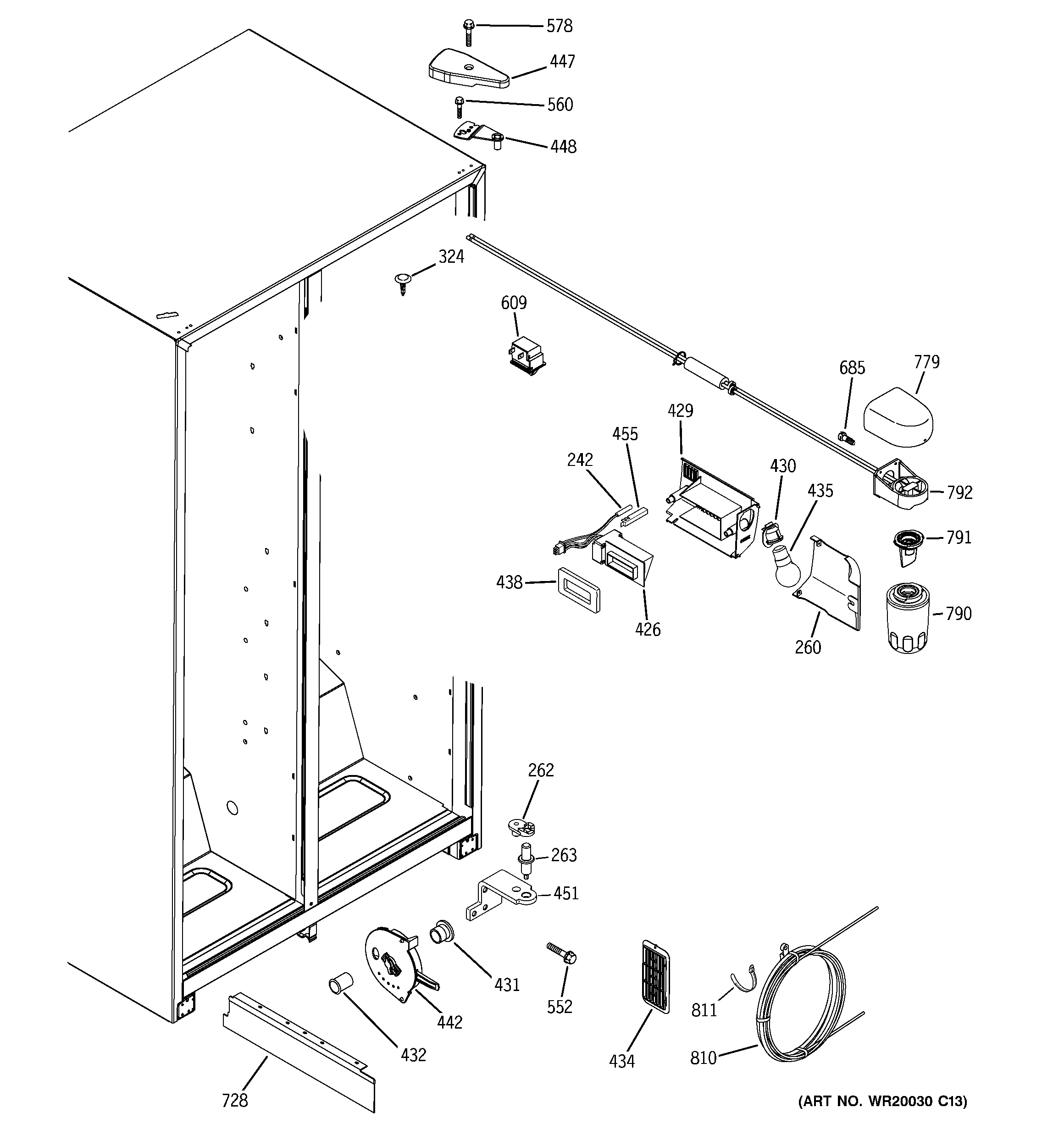

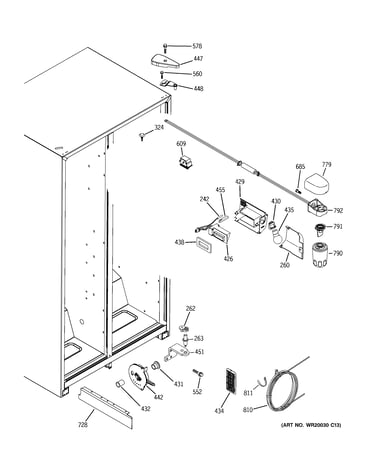

Fresh food section diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF

Replaced by #MWFP

?
Manufacturer substitution
This part replaces MWF. Substitute parts can look different from the original.
4 (3)
BEST SELLER

Get free shipping with Automatic Reorder

$49.99
In Stock
Dc Evaporator Motor WR50X10079
#240

Freezer section diagram

Dc evaporator motor

Part #WR50X10079

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10079. Substitute parts can look different from the original.
4.67 (3)
BEST SELLER
$23.44 |
20% OFF Phone Price : $29.44
In Stock
Refrigerator Compressor Kit WR87X10067
#725

Sealed system & mother board diagram

Refrigerator compressor kit

Part #WR87X10067

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10067. Substitute parts can look different from the original.
5 (1)
BEST SELLER
$448.79 |
$12.00 OFF Phone Price : $460.79
In Stock
Refrigerator Dispenser Ice Chute Door Kit (replaces Wr17x3093) WR17X11653
#62

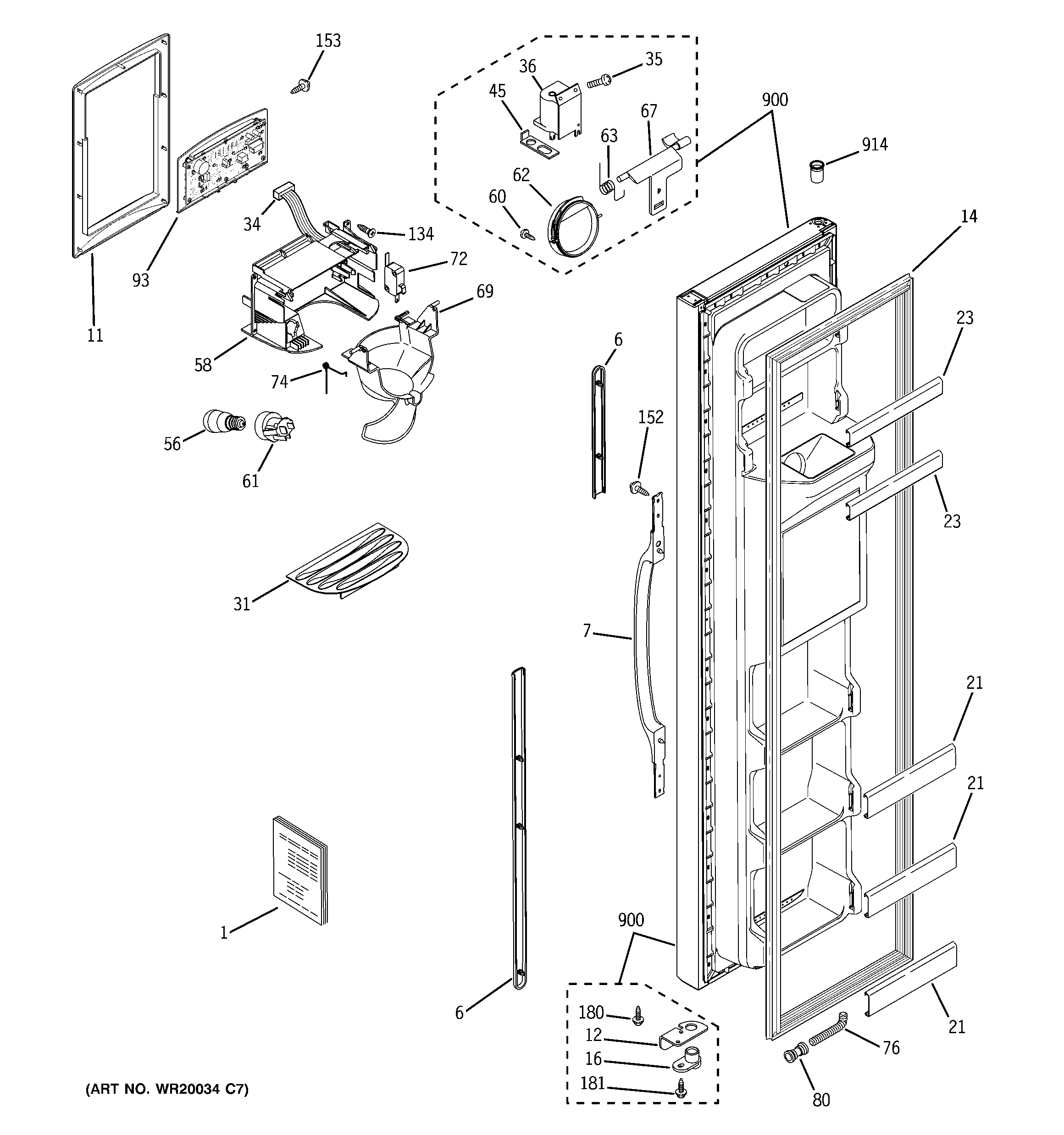

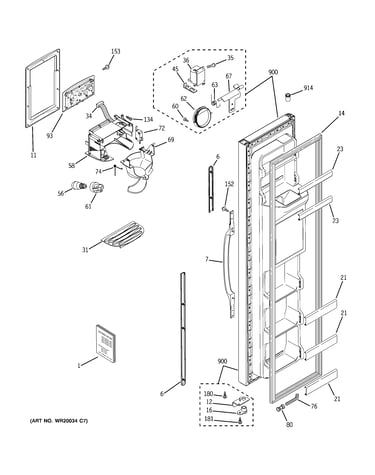

Freezer door diagram

Refrigerator dispenser ice chute door kit (replaces wr17x3093)

Part #WR17X11653

4.67 (3)
BEST SELLER
$14.89 |
12% OFF Phone Price : $16.89
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
