Craftsman
Radial Arm Saw

Model # 113197180 Official Craftsman radial saw

Here are the diagrams and repair parts for Official Craftsman 113197180 radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

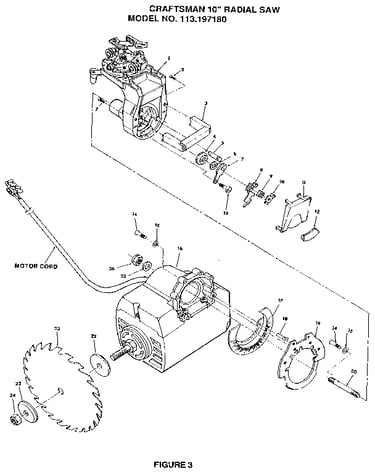

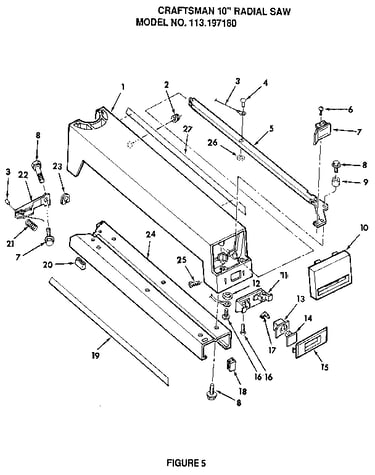

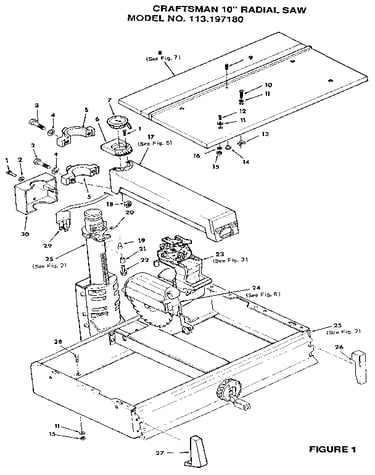

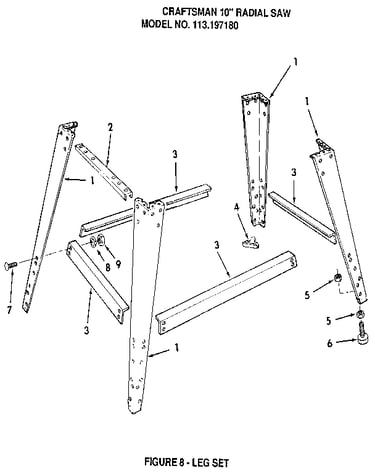

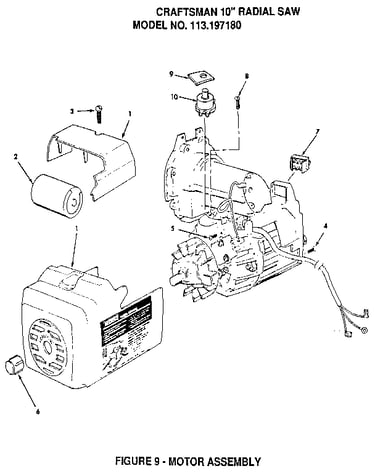

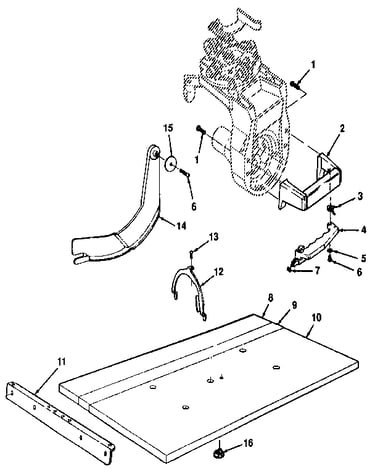

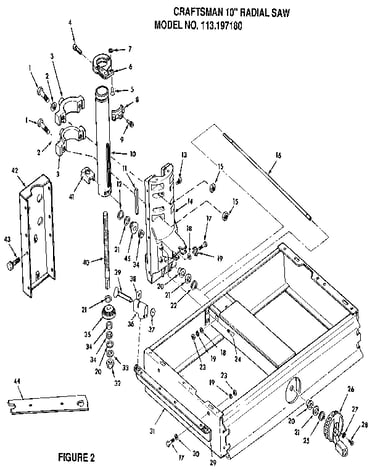

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Bolt STD533107
Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Screw, 1/4-20 X 5/8-in 817398-1
Radial arm saw screw, 1/4-20 x 5/8-in

Part #817398-1

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing Washer 60438
#39

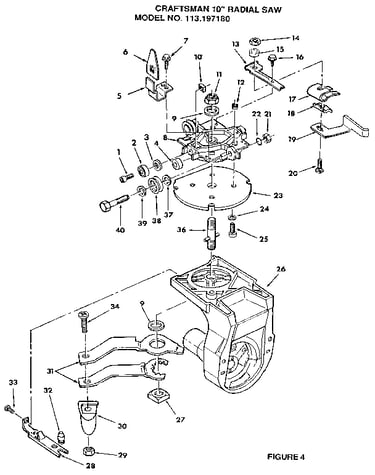

Figure 4 - yoke assembly diagram

Radial arm saw carriage bearing washer

Part #60438

The manufacturer no longer makes this part, and there's no substitute part

Screw 824159
#17

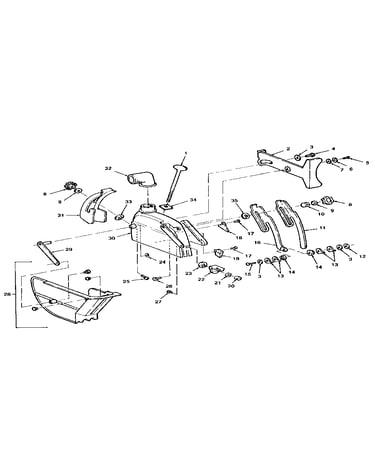

Guard diagram

Screw

Part #824159

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Rear 815757
Radial arm saw table, rear

Part #815757

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table, Front 818191
#4

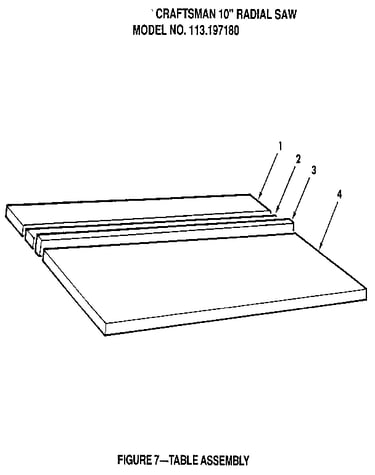

Figure 7 - table assembly diagram

Radial arm saw table, front

Part #818191

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Table 820572
Radial arm saw table

Part #820572

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing (replaces 819039) 63777
#38

Figure 4 - yoke assembly diagram

Radial arm saw carriage bearing (replaces 819039)

Part #63777

The manufacturer no longer makes this part, and there's no substitute part

Nut (silver) 62636
#12

Figure 4 - yoke assembly diagram

Nut (silver)

Part #62636

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Anti-kickback Bar Bearing And Retainer 816341
#12

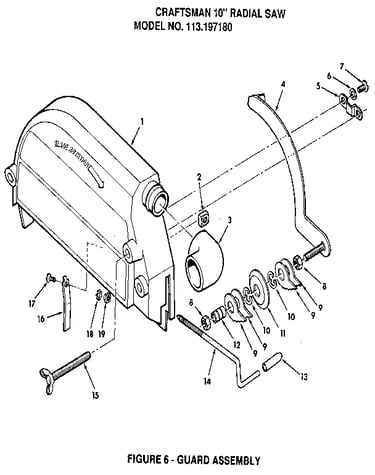

Figure 6 - guard assembly diagram

Radial arm saw anti-kickback bar bearing and retainer

Part #816341

The manufacturer no longer makes this part, and there's no substitute part
