Eureka
Upright Vacuum

Model # 4672ATV Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4672ATV upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Hose 61224-1
#2

Hose diagram

Hose

Part #61224-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Adapter 28243A-316N
#17

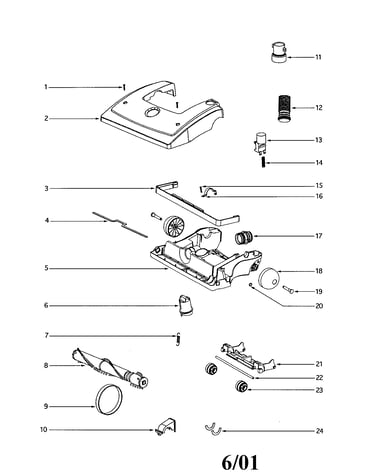

Hood diagram

Vacuum adapter

Part #28243A-316N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel, Front 39173A-119N
#23

Hood diagram

Vacuum wheel, front

Part #39173A-119N

The manufacturer no longer makes this part, and there's no substitute part

Brush-flr 61037
#8

Hose diagram

Brush-flr

Part #61037

The manufacturer no longer makes this part, and there's no substitute part

Eureka Cov-frt Hndl 61423-9
#2

Handle diagram

Eureka cov-frt hndl

Part #61423-9

The manufacturer no longer makes this part, and there's no substitute part

Cuff Hose 27468D-119N
#11

Hood diagram

Cuff hose

Part #27468D-119N

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 70820
#5

Hose diagram

Owner's manual

Part #70820

The manufacturer no longer makes this part, and there's no substitute part

Spring 39268
#9

Handle diagram

Spring

Part #39268

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27171A
#24

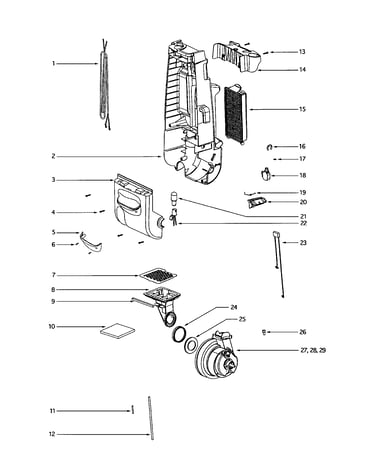

Housing diagram

Gasket

Part #27171A

The manufacturer no longer makes this part, and there's no substitute part

Handle Cover 15684-119N
#8

Handle diagram

Handle cover

Part #15684-119N

The manufacturer no longer makes this part, and there's no substitute part
