Maytag
Microwave/Hood Combo

Model # YMMV5208WS1 Official Maytag 2.0 cubic foot microwave/hood combo

Here are the diagrams and repair parts for Official Maytag YMMV5208WS1 2.0 cubic foot microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Diode W10245187
#26

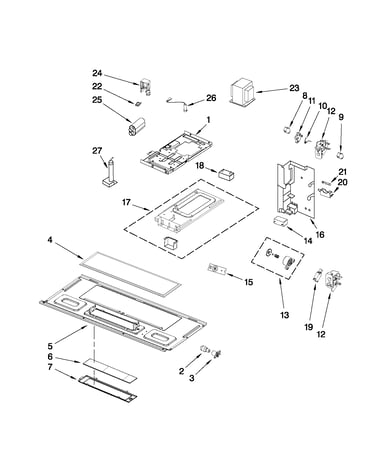

Interior and ventilation parts diagram

Diode

Part #W10245187

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10245187. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Microwave Door Switch W10269457
#8

Interior and ventilation parts diagram

Microwave door switch

Part #W10269457

Replaced by #W10727360

?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.84 |
17% OFF Phone Price : $5.84
In Stock
Microwave Door Interlock Switch (replaces W10211973) W10269458
#9

Interior and ventilation parts diagram

Microwave door interlock switch (replaces w10211973)

Part #W10269458

BEST SELLER
$23.43 |
20% OFF Phone Price : $29.43
In Stock
Interlock W10156813
#12A

Interior and ventilation parts diagram

Interlock

Part #W10156813

Replaced by #WPW10156813

?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
BEST SELLER
$7.56 |
12% OFF Phone Price : $8.56
In Stock
Cam Plate W10156811
#11

Interior and ventilation parts diagram

Cam plate

Part #W10156811

Replaced by #W10562613

?
Manufacturer substitution
This part replaces W10156811. Substitute parts can look different from the original.
BEST SELLER
$11.59 |
15% OFF Phone Price : $13.59
In Stock
Microwave Door Interlock Support, Upper 8206419
#12

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

BEST SELLER
$15.53
In Stock
Microwave Door Interlock Spring W10156812
#10

Interior and ventilation parts diagram

Microwave door interlock spring

Part #W10156812

BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Filter 8206230
#8

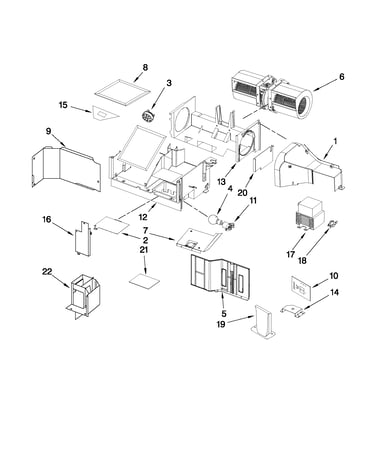

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14 |
15% OFF Phone Price : $13.14
In Stock
Mounting Plate W10245177
#1

Cabinet and installation parts diagram

Mounting plate

Part #W10245177

Replaced by #W11025649

?
Manufacturer substitution
This part replaces W10245177. Substitute parts can look different from the original.
$12.77 |
14% OFF Phone Price : $14.77
In Stock
Thermostat W10245195
#22

Interior and ventilation parts diagram

Thermostat

Part #W10245195

Replaced by #W10864742

?
Manufacturer substitution
This part replaces W10245195. Substitute parts can look different from the original.
$37.68 |
14% OFF Phone Price : $43.68
