Model # 1163261290C Official Kenmore vacuum cleaner
Here are the diagrams and repair parts for Official Kenmore 1163261290C vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
1163261290C Vacuum Cleaners
#24

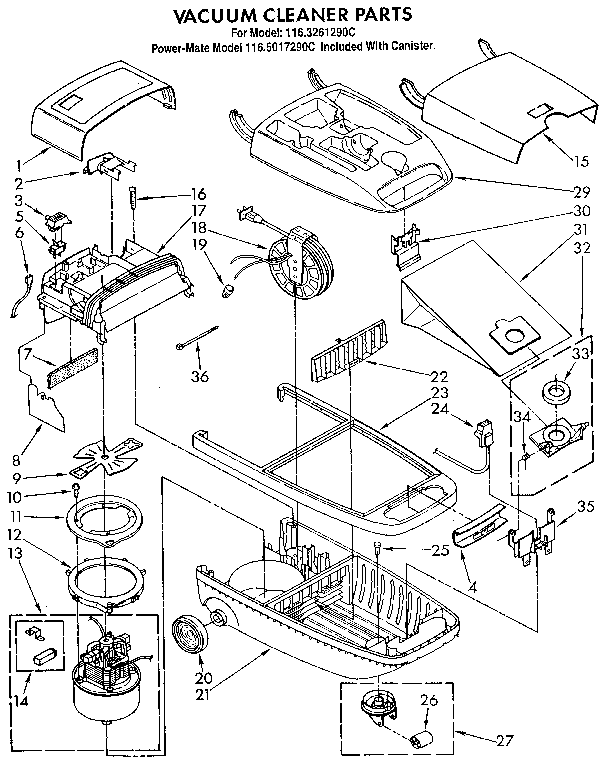

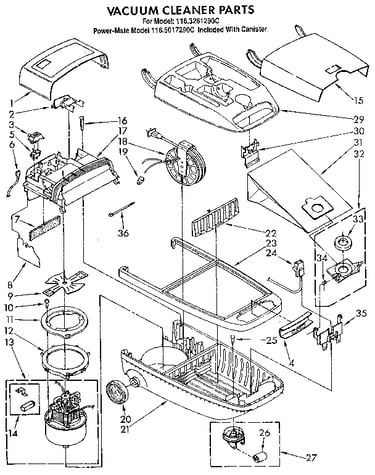

Vacuum cleaner diagram
Vacuum receptacle assembly
Part #4147243
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Owner's manual
Part #LIT4155857
The manufacturer no longer makes this part, and there's no substitute part
#31
Vacuum cleaner diagram
Dust bag
Part #706840
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Label, wiring diagram (french)
Part #LIT4148803
The manufacturer no longer makes this part, and there's no substitute part
#34
Vacuum cleaner diagram
Spring (silver)
Part #706024
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Repair parts list
Part #LIT4155880
The manufacturer no longer makes this part, and there's no substitute part
#29
Vacuum cleaner diagram
Canister hood
Part #4155493
The manufacturer no longer makes this part, and there's no substitute part
#1

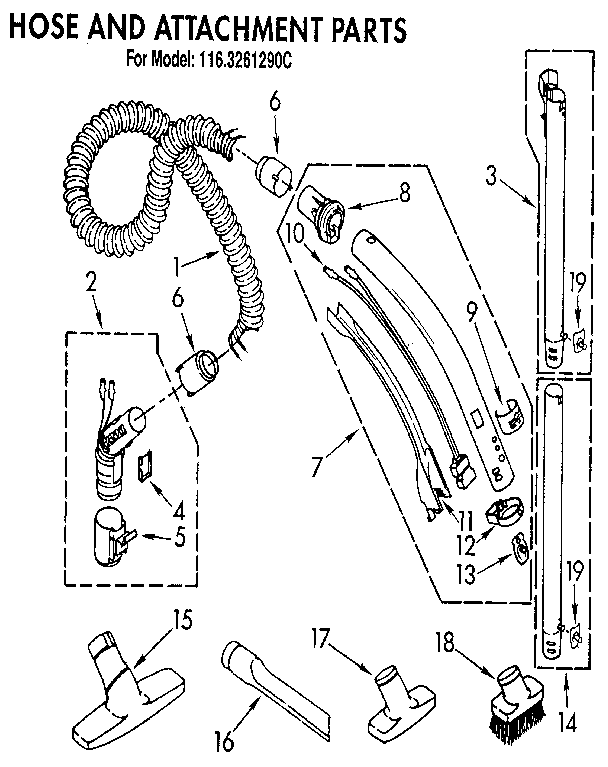

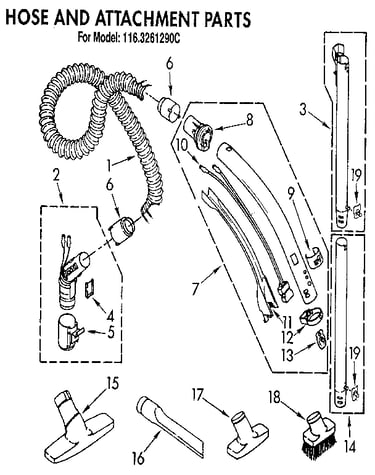

Hose and attachment diagram
Hose
Part #4153025
The manufacturer no longer makes this part, and there's no substitute part
#26
Vacuum cleaner diagram
Vacuum caster wheel
Part #4156141
The manufacturer no longer makes this part, and there's no substitute part
#36
Vacuum cleaner diagram
Cable tie
Part #596702
The manufacturer no longer makes this part, and there's no substitute part
