Kenmore
Garbage Disposal

Model # 17560200 Official Kenmore food waste disposer

Here are the diagrams and repair parts for Official Kenmore 17560200 food waste disposer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |

Emerson Garbage Disposal Screw 1468
#28

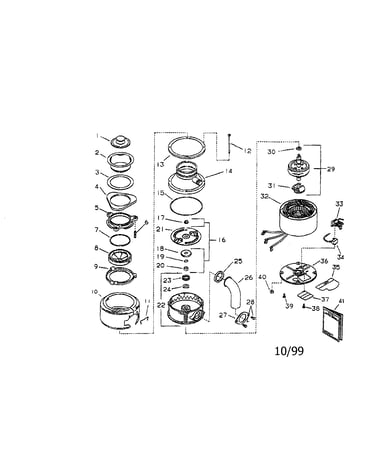

Food waste disposer diagram

Emerson garbage disposal screw

Part #1468

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Centrifugal Switch 2467
#31

Food waste disposer diagram

Insinkerator garbage disposal centrifugal switch

Part #2467

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Stopper 4310
#1

Food waste disposer diagram

Garbage disposal drain stopper

Part #4310

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Sink Flange 5141
#5

Food waste disposer diagram

Insinkerator garbage disposal sink flange

Part #5141

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Sink Flange Gasket 1160
#3

Food waste disposer diagram

Insinkerator garbage disposal sink flange gasket

Part #1160

The manufacturer no longer makes this part, and there's no substitute part

Emerson Screw 11448
#38

Food waste disposer diagram

Emerson screw

Part #11448

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Tube 8219
#26

Food waste disposer diagram

Garbage disposal drain tube

Part #8219

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Container O-ring 1473
#15

Food waste disposer diagram

Garbage disposal container o-ring

Part #1473

The manufacturer no longer makes this part, and there's no substitute part

Insinkerator Garbage Disposal Mounting Ring 5298
#9

Food waste disposer diagram

Insinkerator garbage disposal mounting ring

Part #5298

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Motor Shaft Seal 4250
#23

Food waste disposer diagram

Garbage disposal motor shaft seal

Part #4250

The manufacturer no longer makes this part, and there's no substitute part
