Model # 39025830 Official Kenmore standard shallow well jet pump

Here are the diagrams and repair parts for Official Kenmore 39025830 standard shallow well jet pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 31 parts |

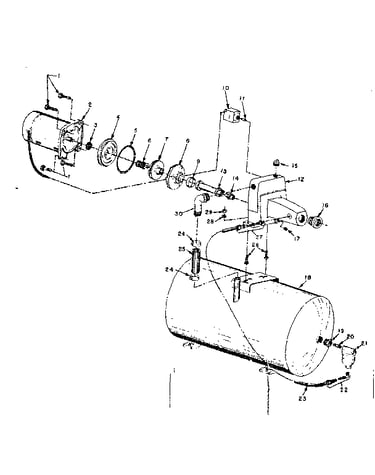

Replacement parts diagram

Slinger

Part #N69-1

Replaced by #17351-0009

This item is not returnable

$8.89 |

10% OFF Phone Price : $9.89

Back Order

Qty

Replacement parts diagram

Rotary seal

Part #U9-6

Replaced by #U109-6B

$106.69 |

10% OFF Phone Price : $118.69

Back Order

Qty

#14

Replacement parts diagram

Pump nozzle

Part #N34P-17

$28.33

In Stock

Qty

#22

Replacement parts diagram

Complete fitting

Part #U111-86

Replaced by #U111-212T

This item is not returnable

$27.69 |

18% OFF Phone Price : $33.69

Back Order

Qty

#16

Replacement parts diagram

Complete valve

Part #N212-10P

Replaced by #N212-12P

$118.69 |

9% OFF Phone Price : $130.69

In Stock

Qty

Replacement parts diagram

Seal plate

Part #N3-9

$123.70

In Stock

Qty

Pipe nipple

Part #U37-17GP

This item is not returnable

$6.98

In Stock

Qty

Replacement parts diagram

Pump diffuser

Part #L1-25P

This item is not returnable

$71.80

In Stock

Qty

Replacement parts diagram

Pump impeller

Part #J105-40P

$149.07 |

7% OFF Phone Price : $161.07

In Stock

Qty

Replacement parts diagram

Pump shaft seal

Part #N20-34

This item is not returnable

$25.69

In Stock

Qty
