Kenmore
Central Air Conditioner

Model # 25371451 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25371451 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Clamp 27669
#34

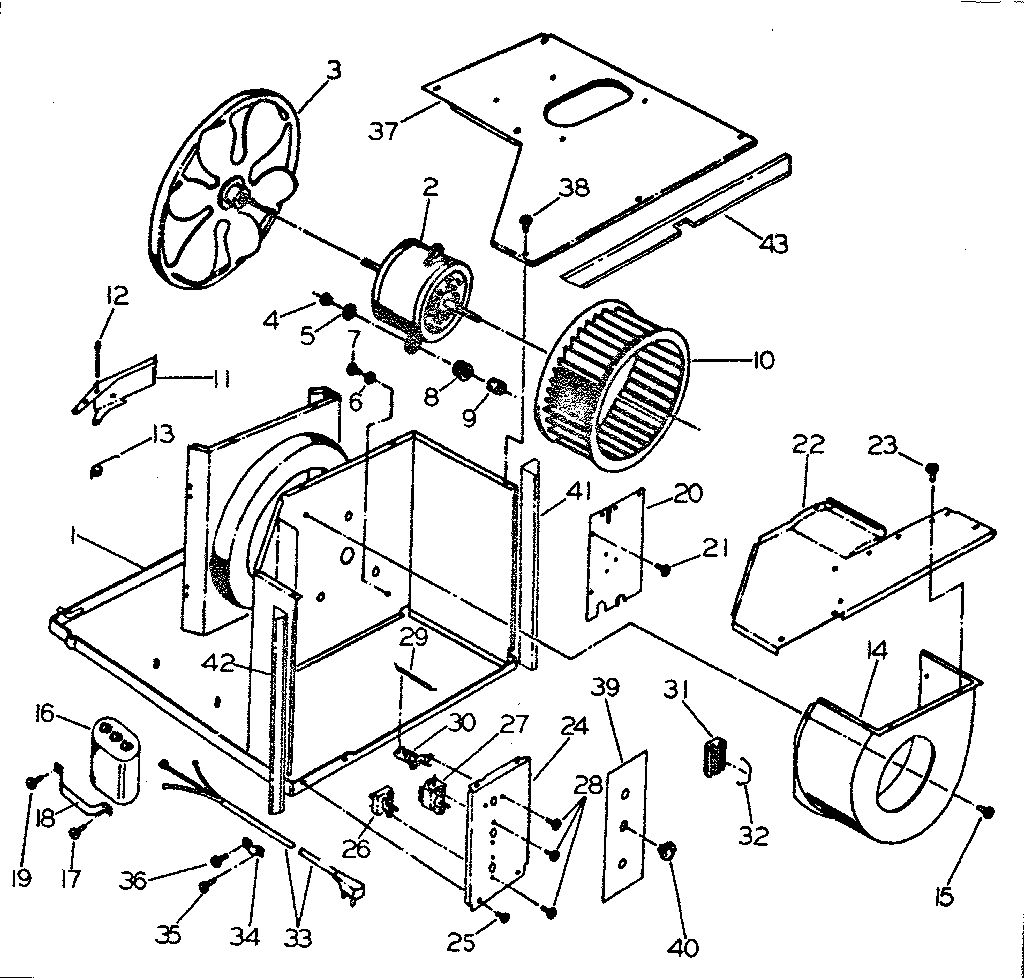

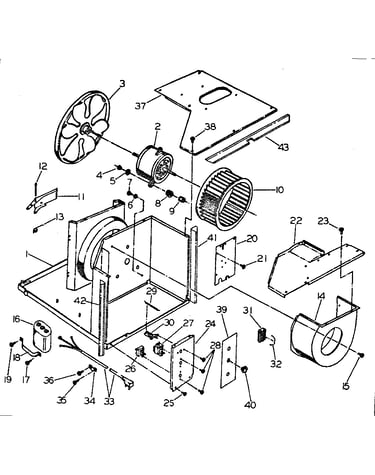

Electrical system & air handling parts diagram

Clamp

Part #27669

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 27669. Substitute parts can look different from the original.
$50.60
In Stock
Grommet 126340
#2

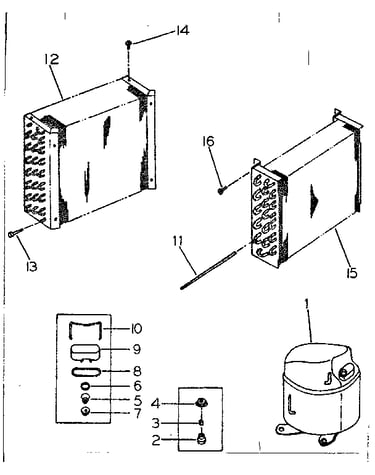

Refrigeration system diagram

Grommet

Part #126340

Replaced by #218513300

?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Screw 98540
#35

Electrical system & air handling parts diagram

Screw

Part #98540

The manufacturer no longer makes this part, and there's no substitute part

Louver 136381
#5

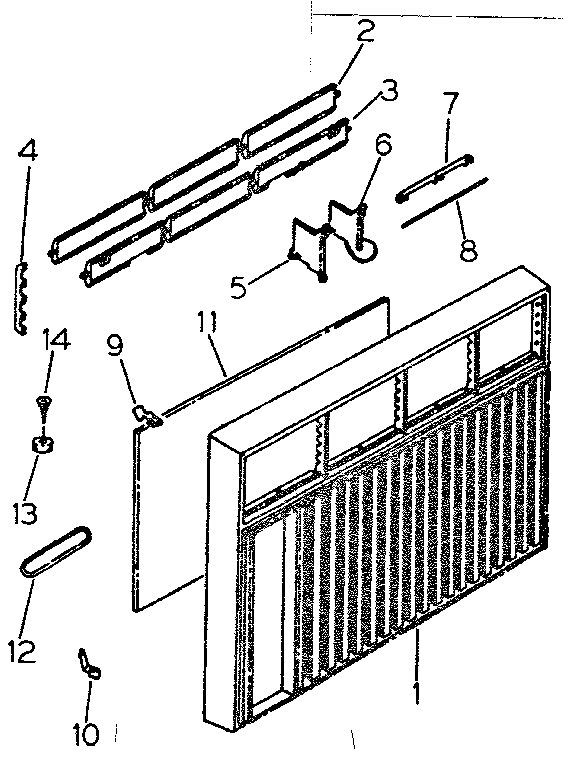

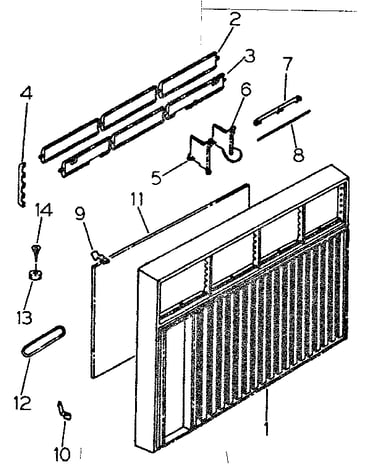

Cabinet and front parts diagram

Louver

Part #136381

The manufacturer no longer makes this part, and there's no substitute part

Spacer 123591
#31

Electrical system & air handling parts diagram

Spacer

Part #123591

The manufacturer no longer makes this part, and there's no substitute part

Louver 136378
#6

Cabinet and front parts diagram

Louver

Part #136378

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 117438
#27

Electrical system & air handling parts diagram

Thermostat

Part #117438

The manufacturer no longer makes this part, and there's no substitute part

Clip 112119
#9

Cabinet and front parts diagram

Clip

Part #112119

The manufacturer no longer makes this part, and there's no substitute part

Gasket 116432
#8

Refrigeration system diagram

Gasket

Part #116432

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Housing 149147-02
#14

Electrical system & air handling parts diagram

Air conditioner blower housing

Part #149147-02

The manufacturer no longer makes this part, and there's no substitute part
