KitchenAid
Stand Mixer

Model # 5KSM60SPXTER0 Official KitchenAid stand mixer

Here are the diagrams and repair parts for Official KitchenAid 5KSM60SPXTER0 stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Pin-bowl 240185
#4

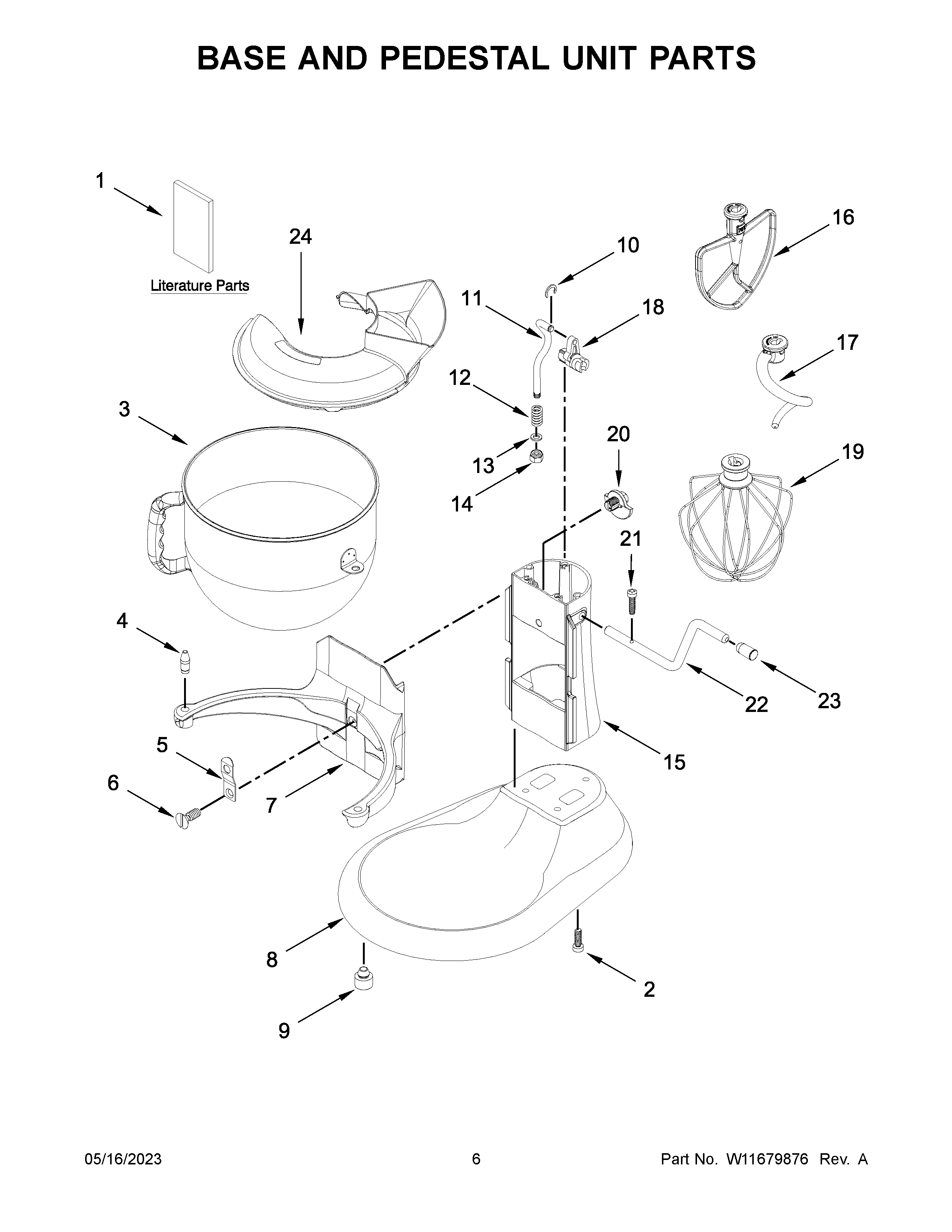

Base and pedestal unit parts diagram

Pin-bowl

Part #240185

Replaced by #WP240185

?
Manufacturer substitution
This part replaces 240185. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 3400814
#9

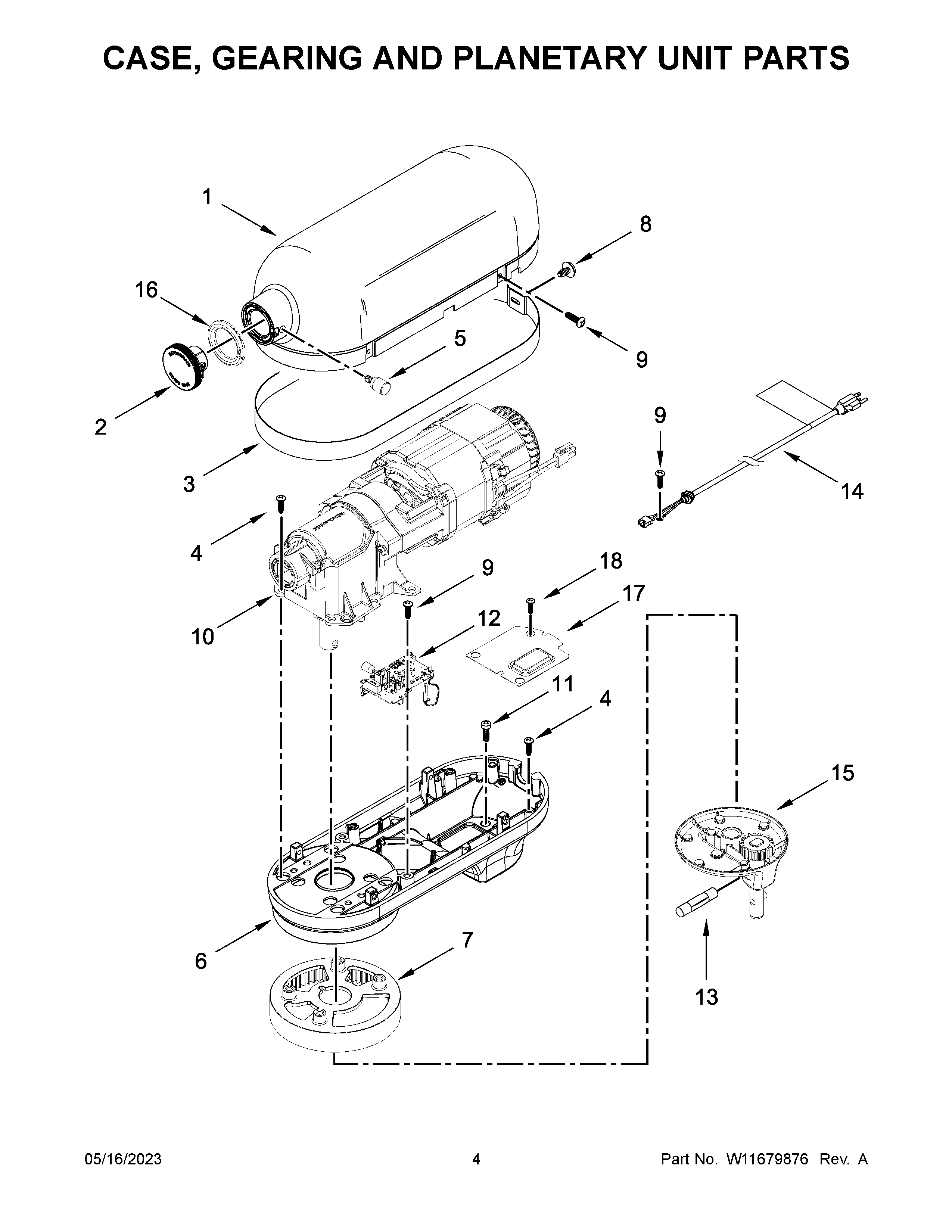

Case, gearing and planetary unit parts diagram

Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Pin-groove W10234531
#13

Case, gearing and planetary unit parts diagram

Pin-groove

Part #W10234531

Replaced by #WPW10234531

?
Manufacturer substitution
This part replaces W10234531. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Motor, 230 Volt Assembly W11480076
#10

Case, gearing and planetary unit parts diagram

Motor, 230 volt assembly

Part #W11480076

Replaced by #W11649201

?
Manufacturer substitution
This part replaces W11480076. Substitute parts can look different from the original.
$131.50
In Stock
Wire Whip 9703491
#19

Base and pedestal unit parts diagram

Wire whip

Part #9703491

Replaced by #WP9703491

?
Manufacturer substitution
This part replaces 9703491. Substitute parts can look different from the original.
$25.56 |
19% OFF Phone Price : $31.56
In Stock
Screw 3400617
#8

Case, gearing and planetary unit parts diagram

Screw

Part #3400617

This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Plate, Lower Housing W11560130
#17

Case, gearing and planetary unit parts diagram

Plate, lower housing

Part #W11560130

$27.18
In Stock
Thumb Screw (satin Chrome) W11521862
#5

Case, gearing and planetary unit parts diagram

Thumb screw (satin chrome)

Part #W11521862

$27.18
In Stock
Housing 9703311
#1A

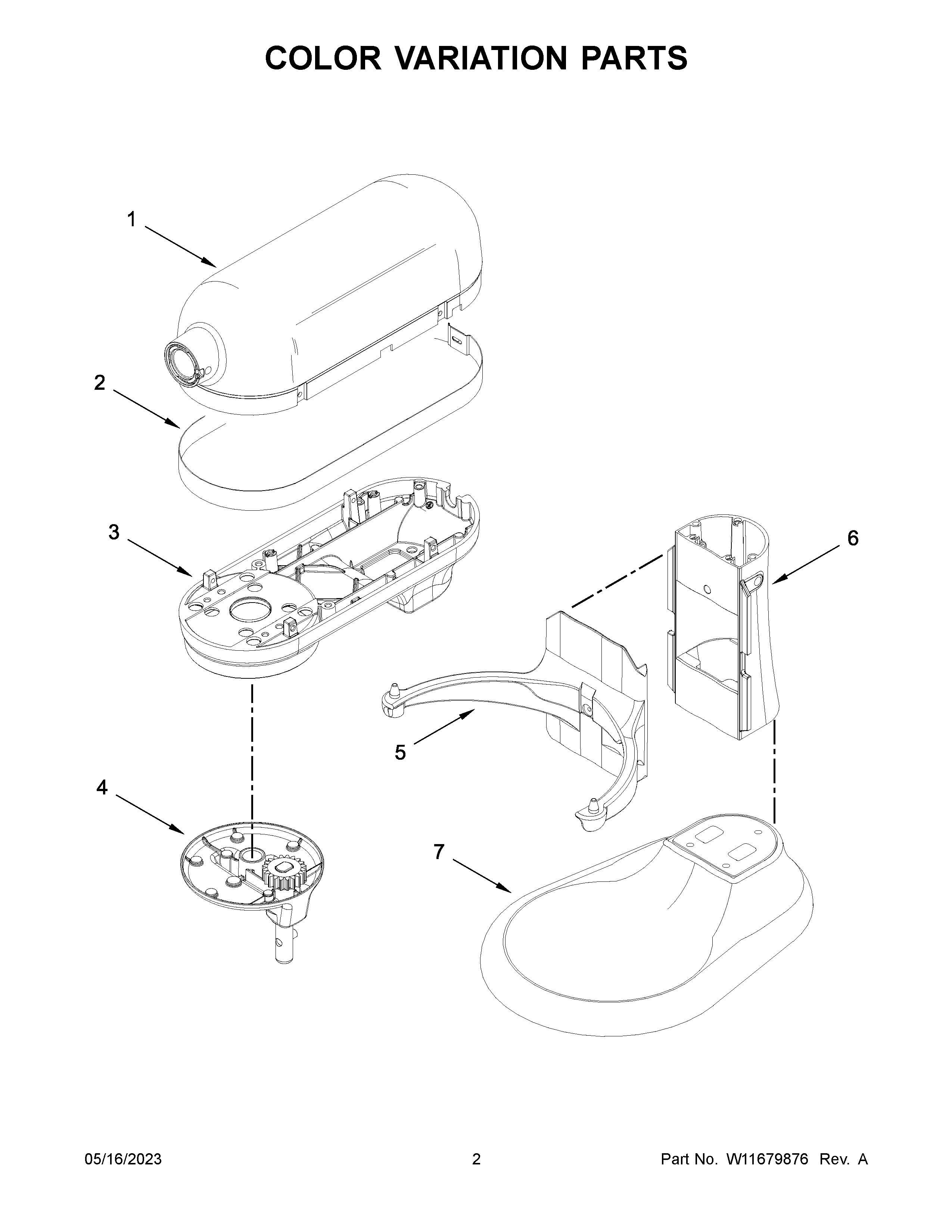

Color variation parts diagram

Housing

Part #9703311

$61.24
In Stock
Base 9705348
#7

Color variation parts diagram

Base

Part #9705348

$47.04
In Stock
