Thermador
Gas Range

Model # PRL366EH03 Official Thermador range

Here are the diagrams and repair parts for Official Thermador PRL366EH03 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

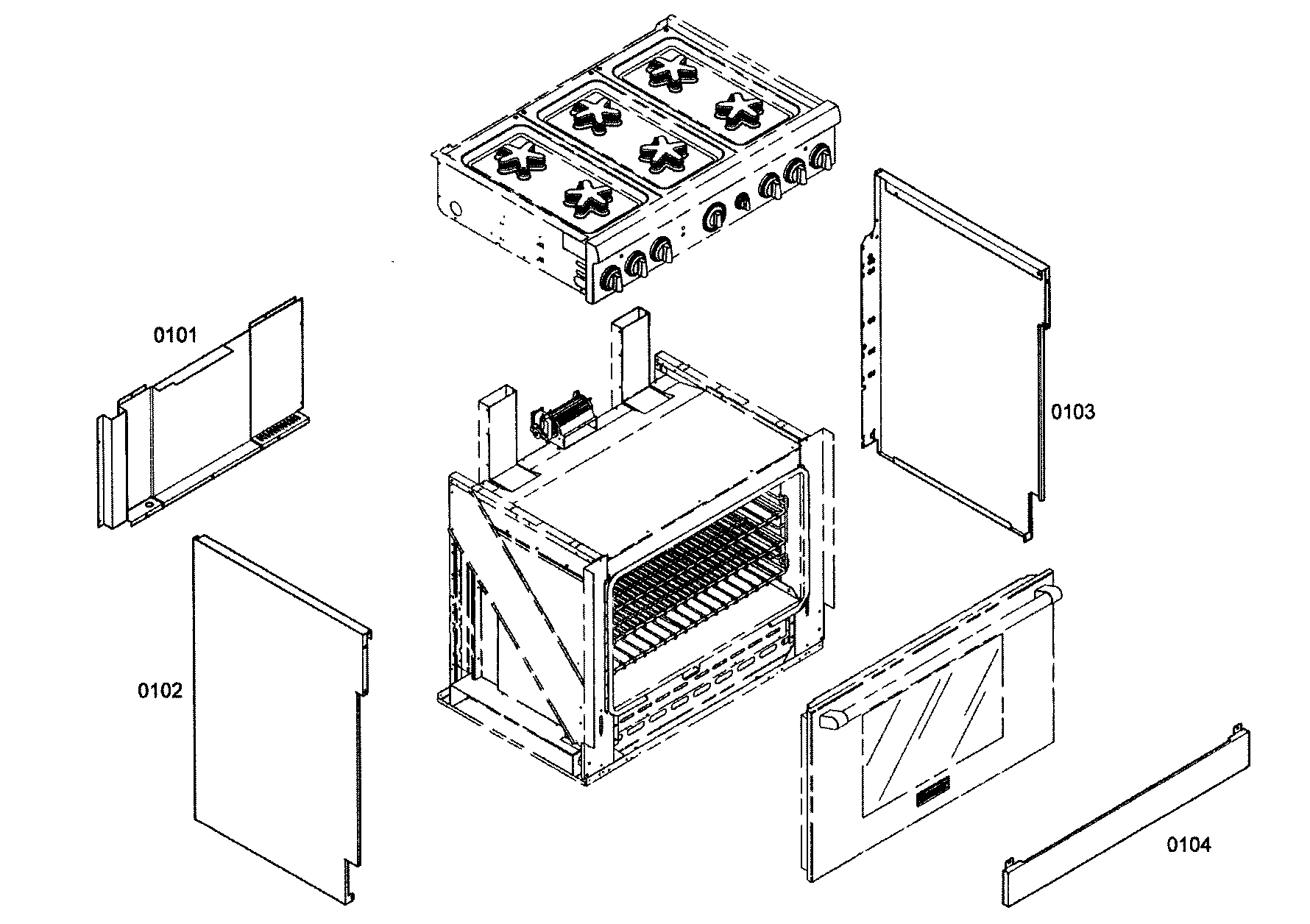

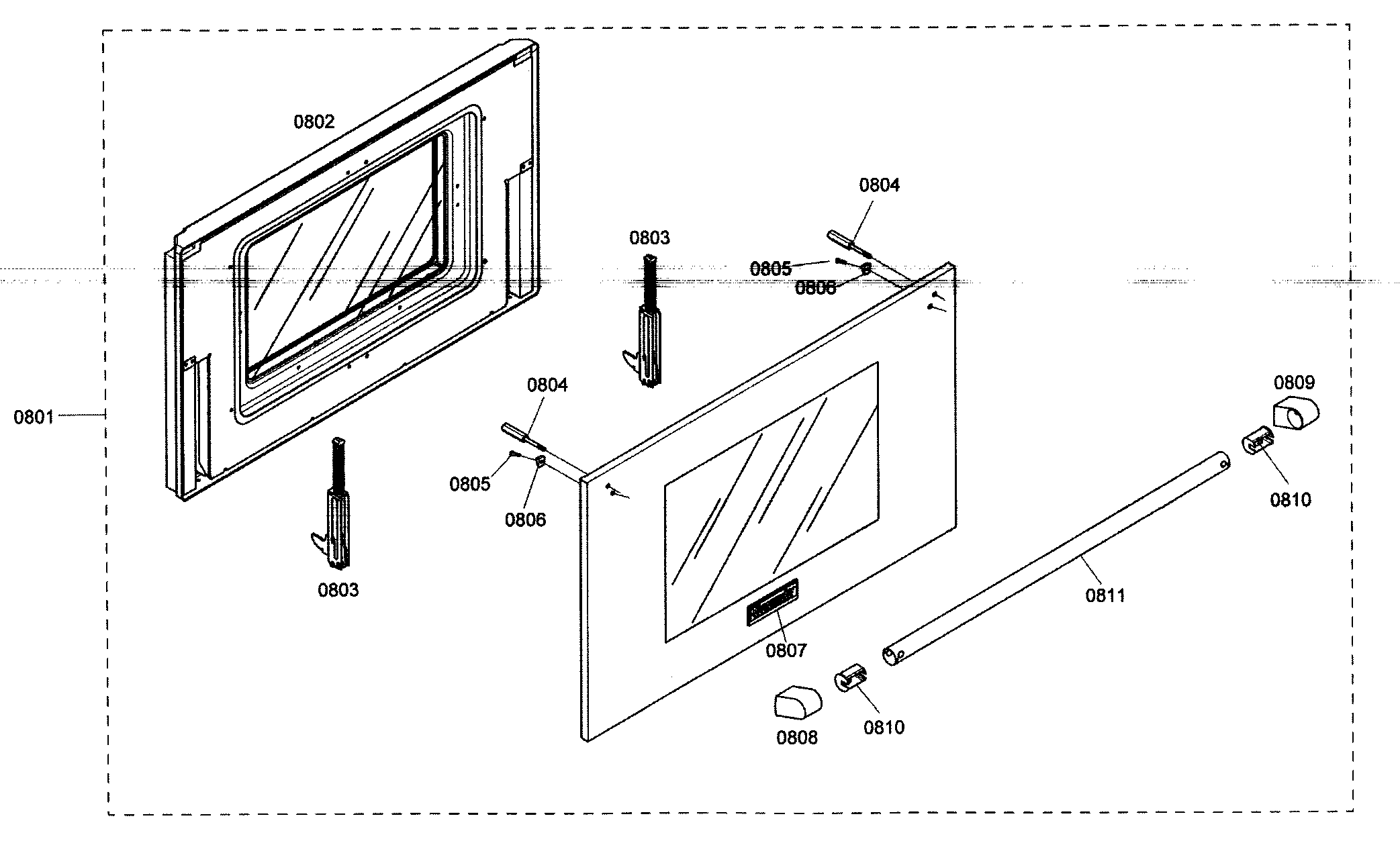

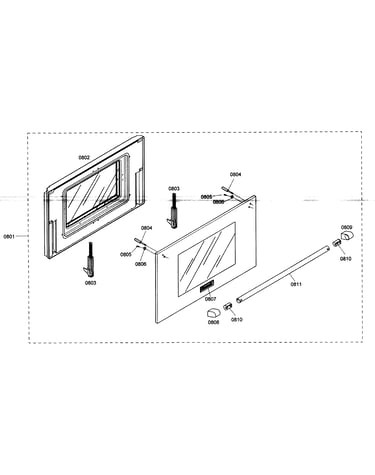

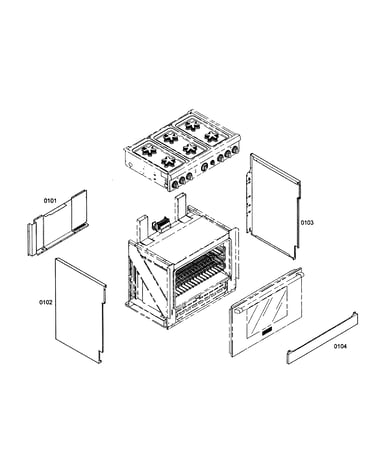

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Tube 189023
#302

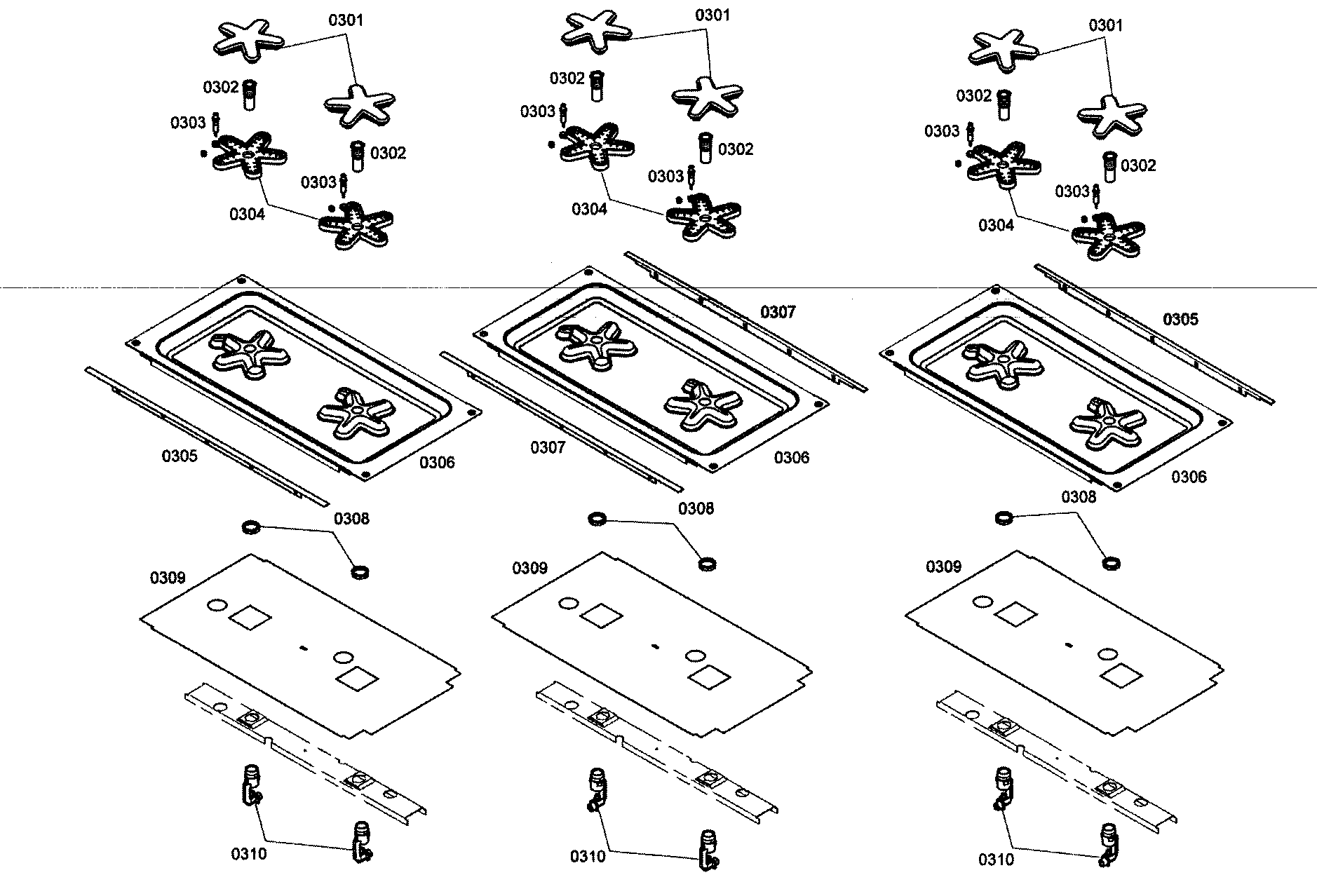

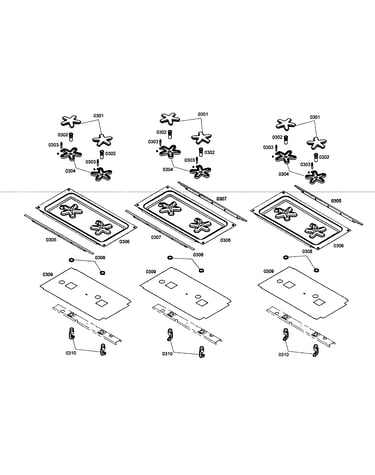

Burner assy diagram

Tube

Part #189023

Replaced by #00189023

?
Manufacturer substitution
This part replaces 189023. Substitute parts can look different from the original.
$35.49 |
14% OFF Phone Price : $41.49
In Stock
Igniter Plug 603777
#303

Burner assy diagram

Igniter plug

Part #603777

Replaced by #00603777

?
Manufacturer substitution
This part replaces 603777. Substitute parts can look different from the original.
$27.36
In Stock
Switch 428049
#202

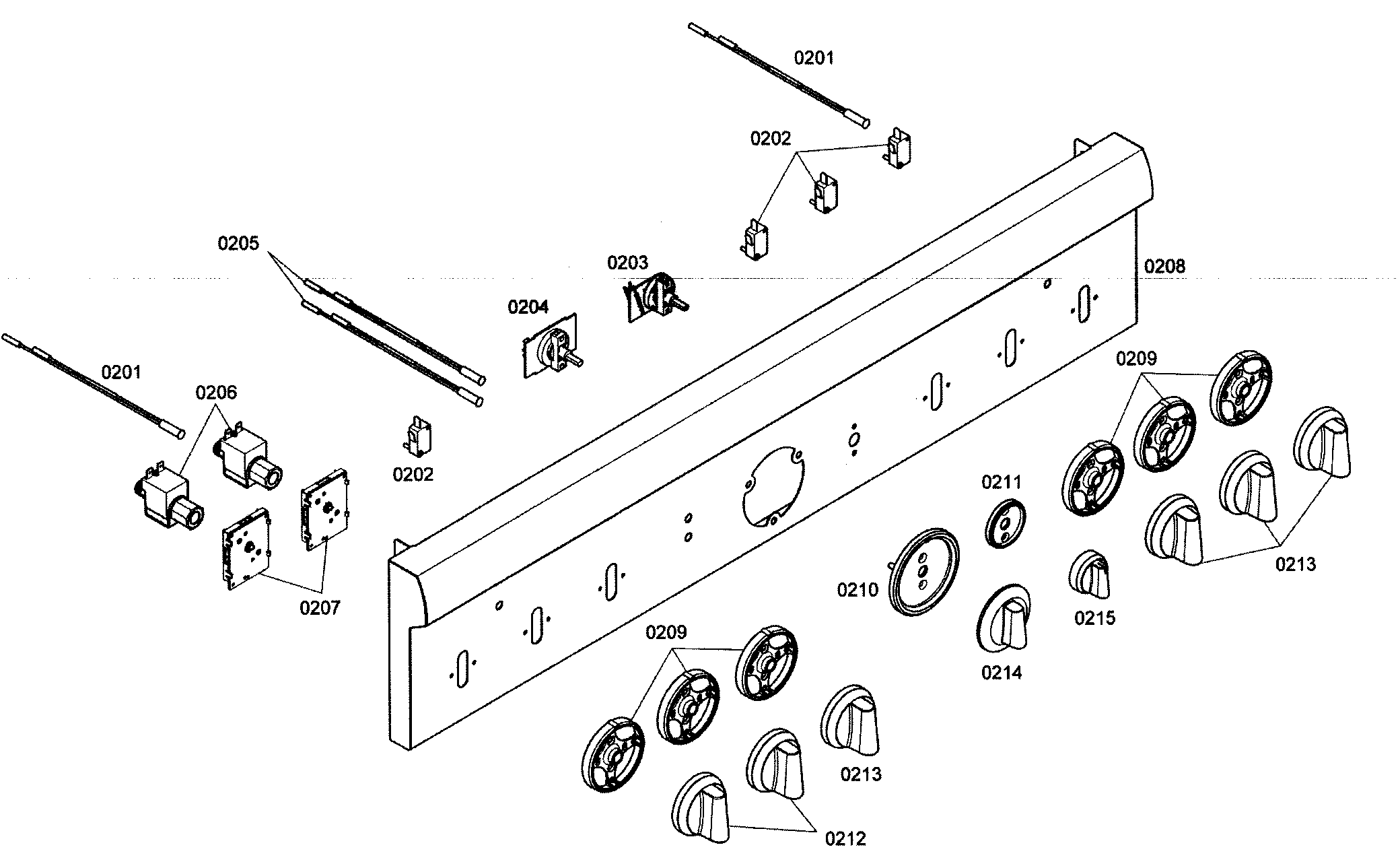

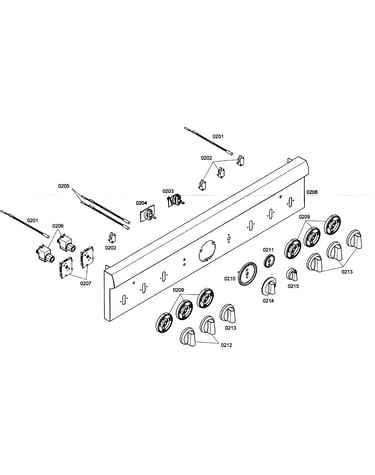

Control panel diagram

Switch

Part #428049

Replaced by #00428049

?
Manufacturer substitution
This part replaces 428049. Substitute parts can look different from the original.
$15.83 |
11% OFF Phone Price : $17.83
In Stock
Cover 489125
#604

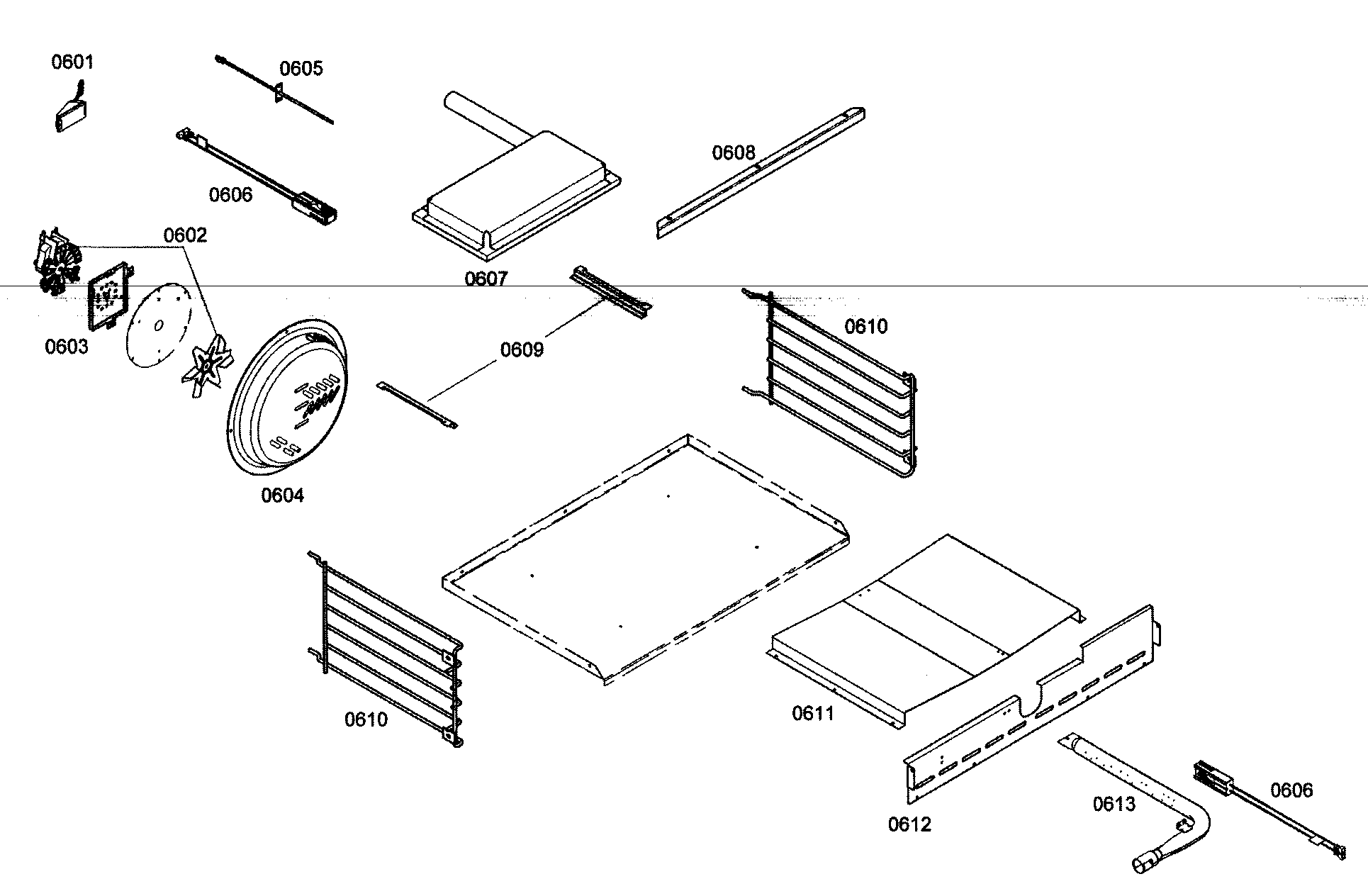

Oven diagram

Cover

Part #489125

Replaced by #00489125

?
Manufacturer substitution
This part replaces 489125. Substitute parts can look different from the original.
$202.62
In Stock
Door Seal 498114
#708

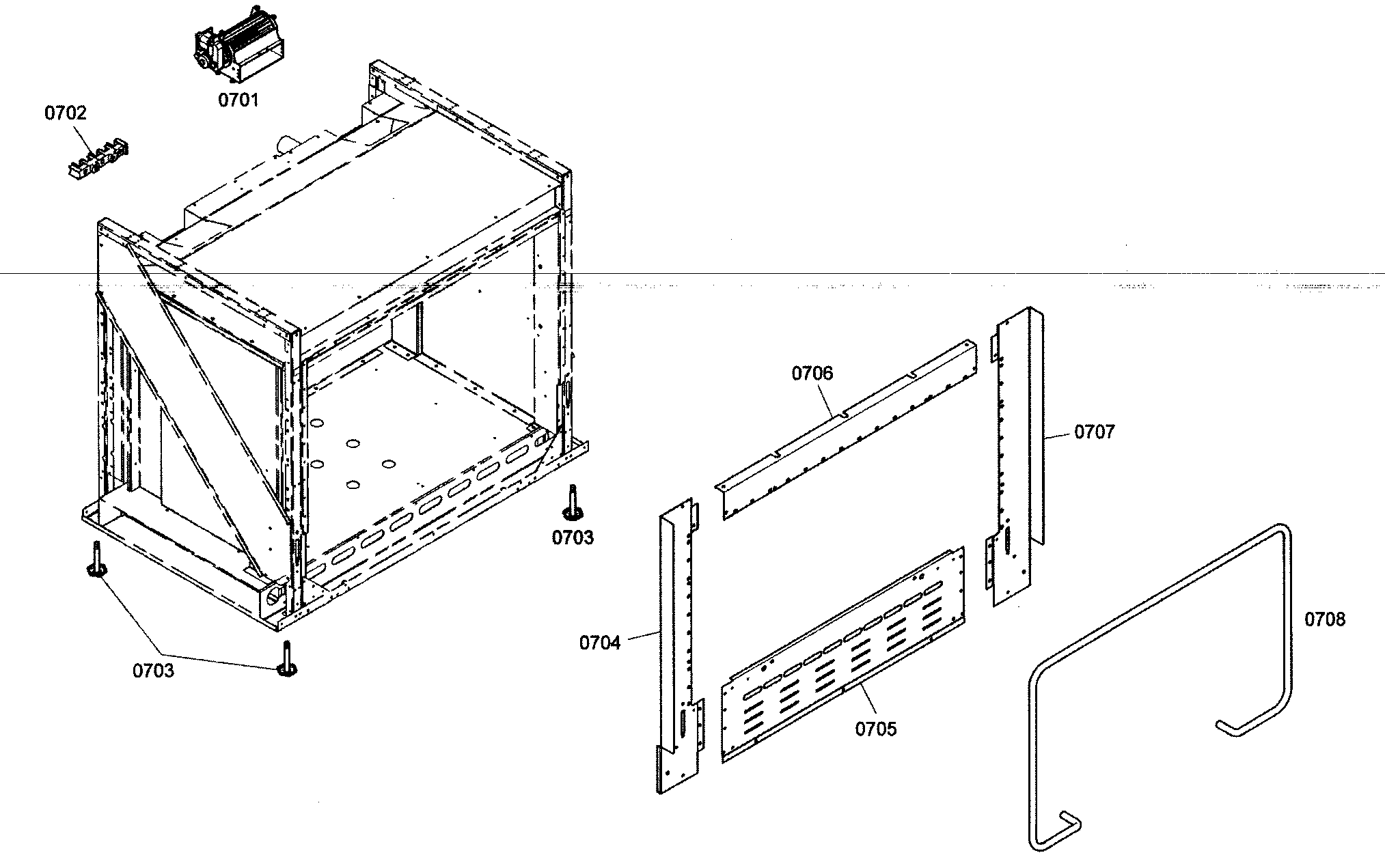

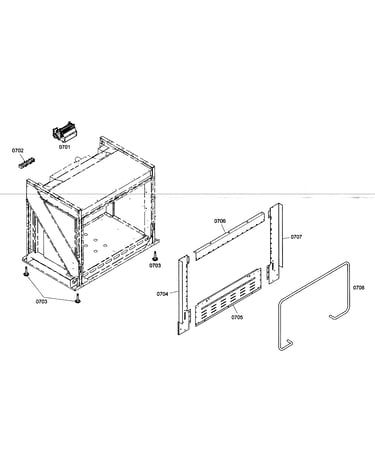

Inside parts diagram

Door seal

Part #498114

Replaced by #00498114

?
Manufacturer substitution
This part replaces 498114. Substitute parts can look different from the original.
$104.68
In Stock
Tube 445582
#420

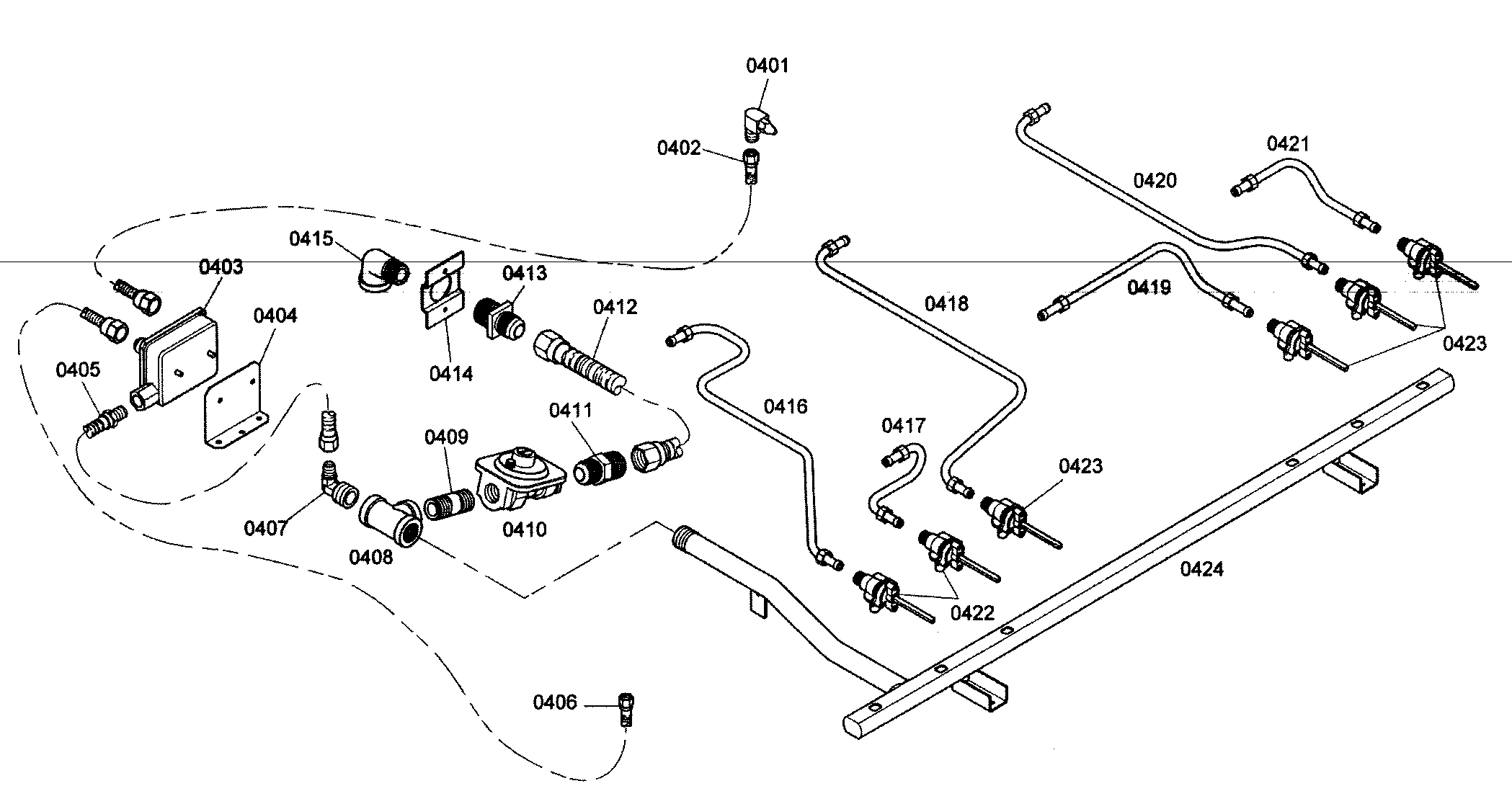

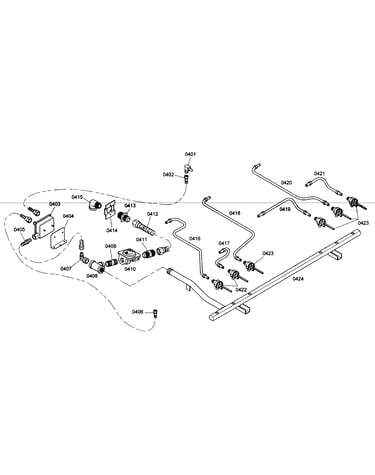

Gas supply diagram

Tube

Part #445582

Replaced by #00445582

?
Manufacturer substitution
This part replaces 445582. Substitute parts can look different from the original.
$136.49 |
8% OFF Phone Price : $148.49
In Stock
Support 498042
#610

Oven diagram

Support

Part #498042

Replaced by #00498042

?
Manufacturer substitution
This part replaces 498042. Substitute parts can look different from the original.
$124.94
In Stock
Control Unit 605350
#501

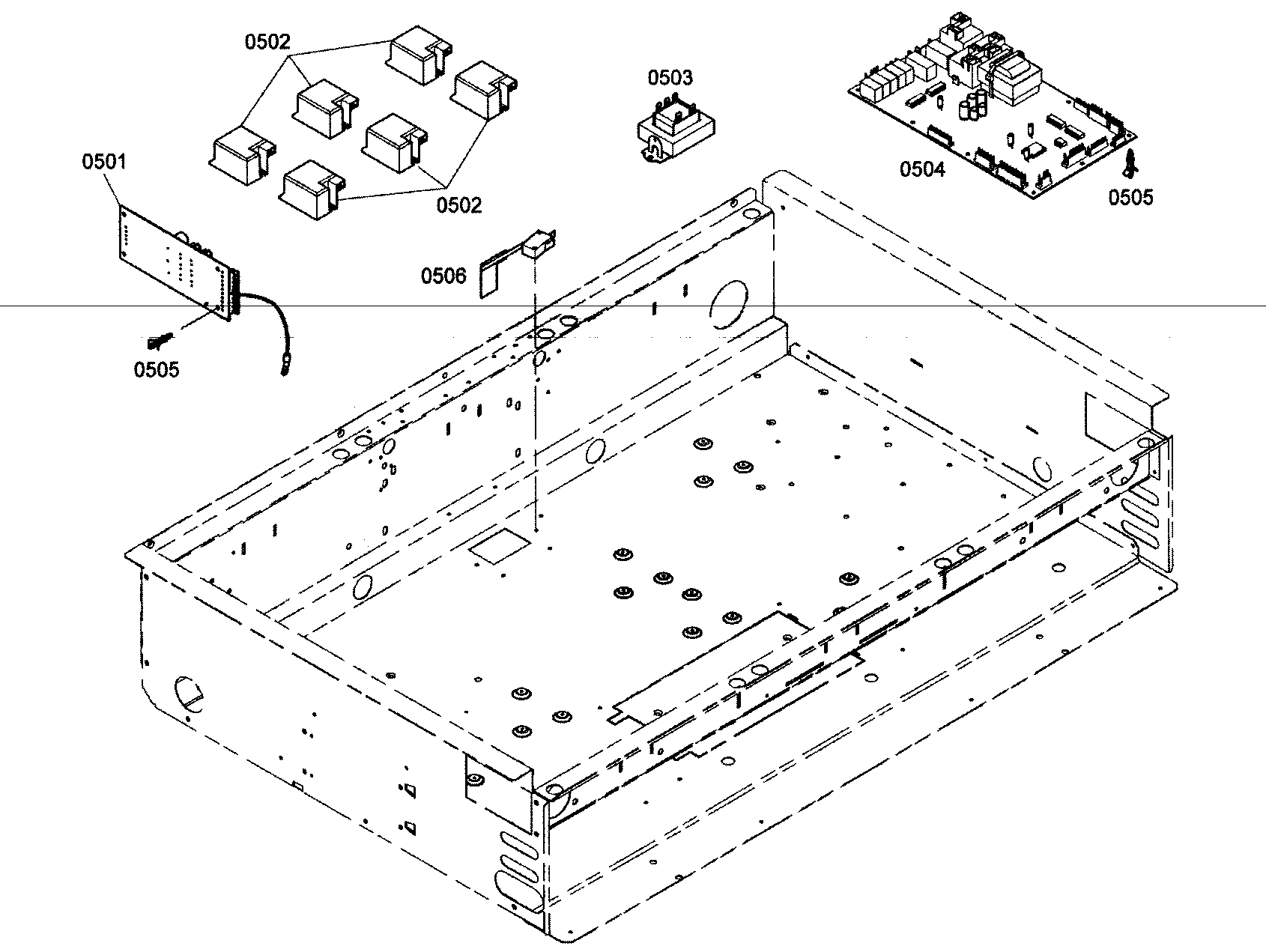

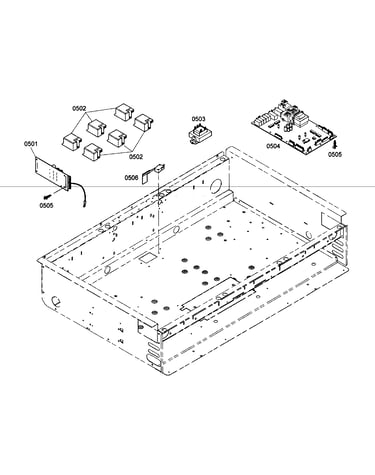

Control assy diagram

Control unit

Part #605350

Replaced by #00619016

?
Manufacturer substitution
This part replaces 605350. Substitute parts can look different from the original.
$192.89 |
6% OFF Phone Price : $204.89
In Stock
Range Grille Grid 143673
#904

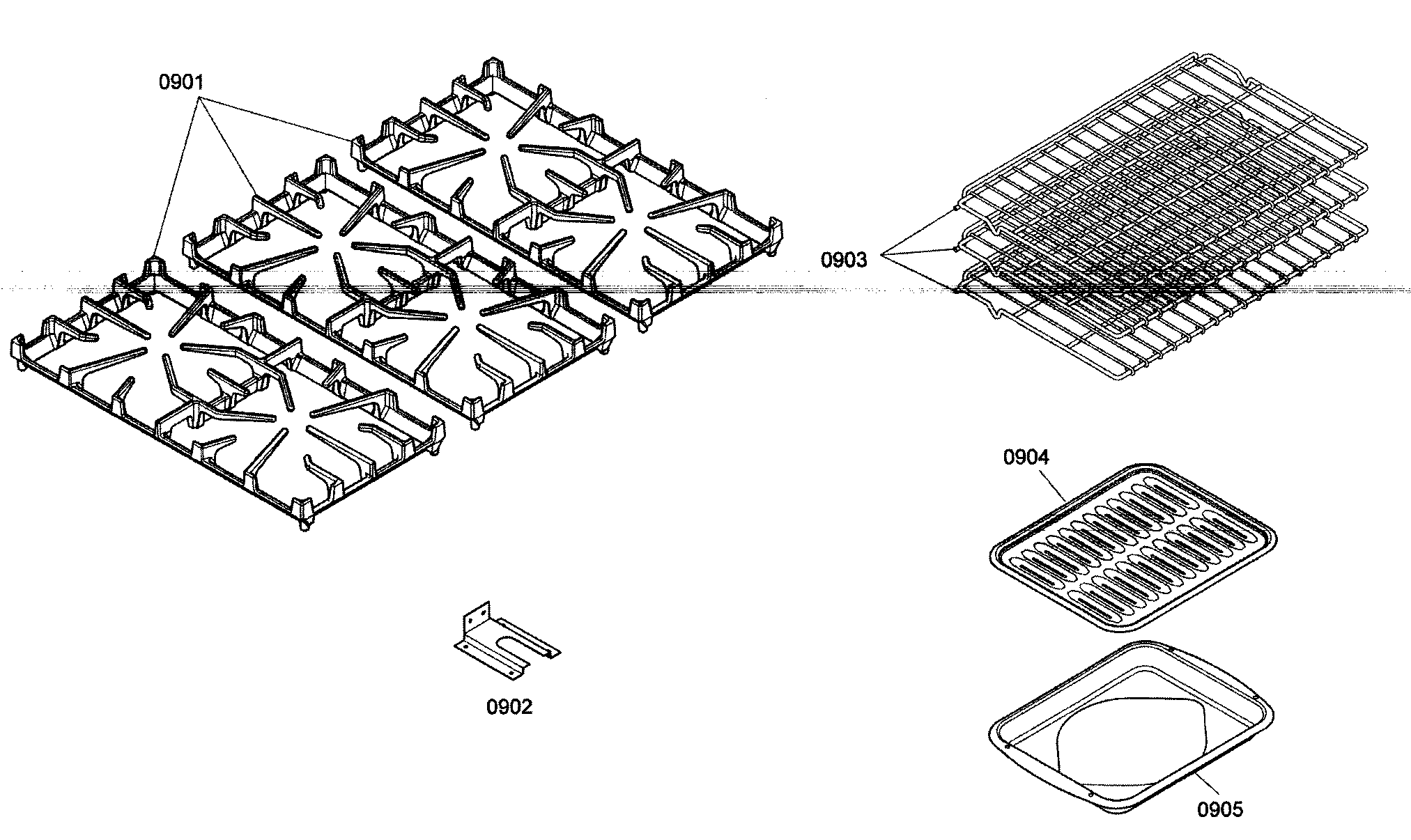

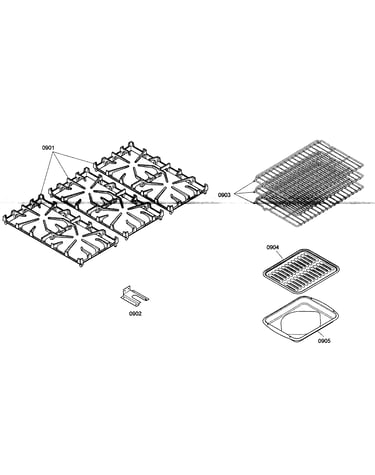

Accessory diagram

Range grille grid

Part #143673

Replaced by #00449756

?
Manufacturer substitution
This part replaces 143673. Substitute parts can look different from the original.
$57.89
In Stock
Grid Burner 143928
#901

Accessory diagram

Grid burner

Part #143928

Replaced by #00143928

?
Manufacturer substitution
This part replaces 143928. Substitute parts can look different from the original.
$231.54 |
5% OFF Phone Price : $243.54
In Stock
