Model # S3521--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3521- canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Tub Nozzle 38646039
#2

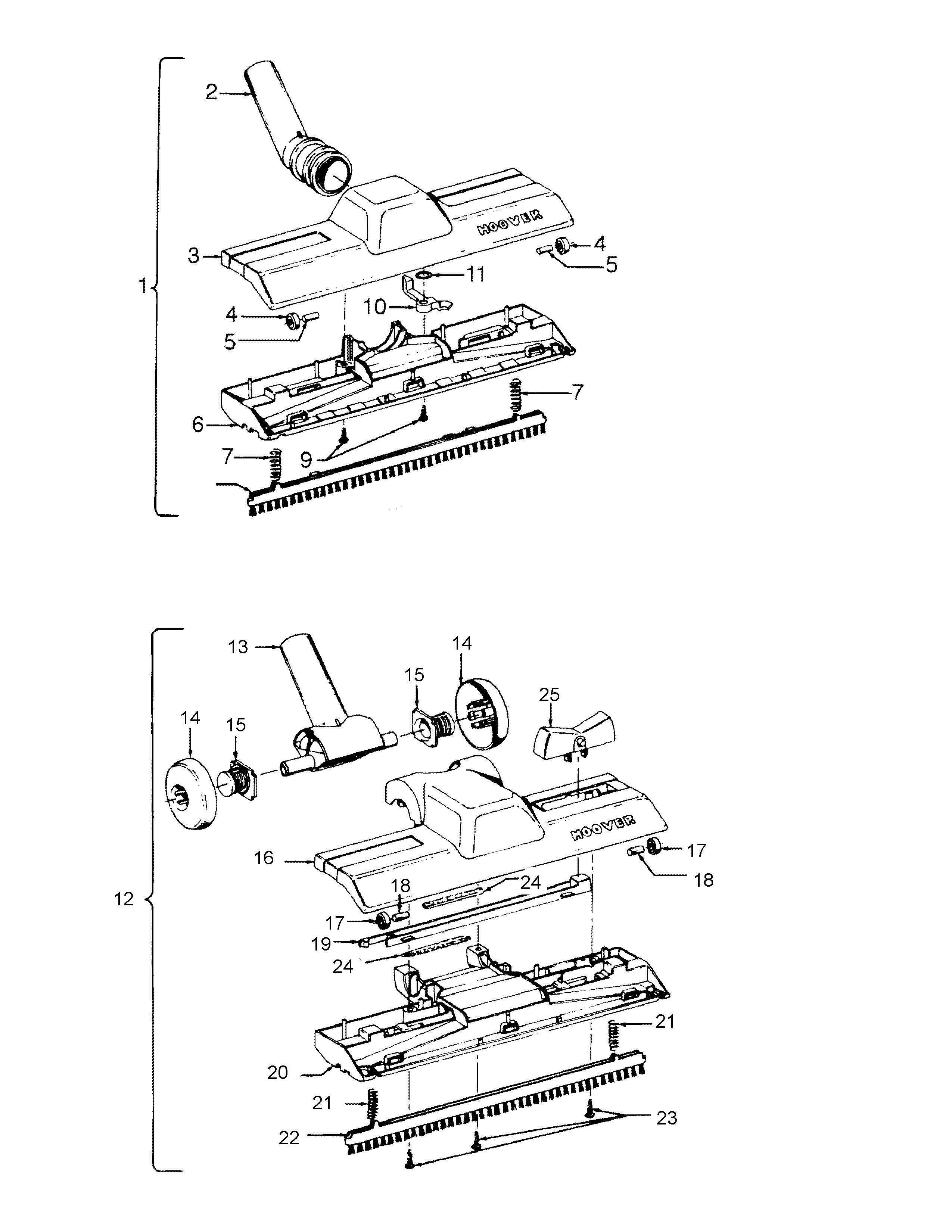

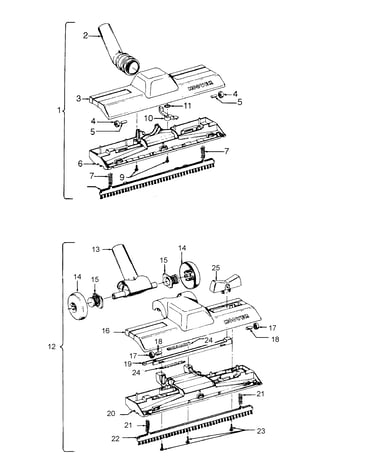

Rug_flrnozzle diagram

Tub nozzle

Part #38646039

The manufacturer no longer makes this part, and there's no substitute part

Wheel Bearing 38511015
#12

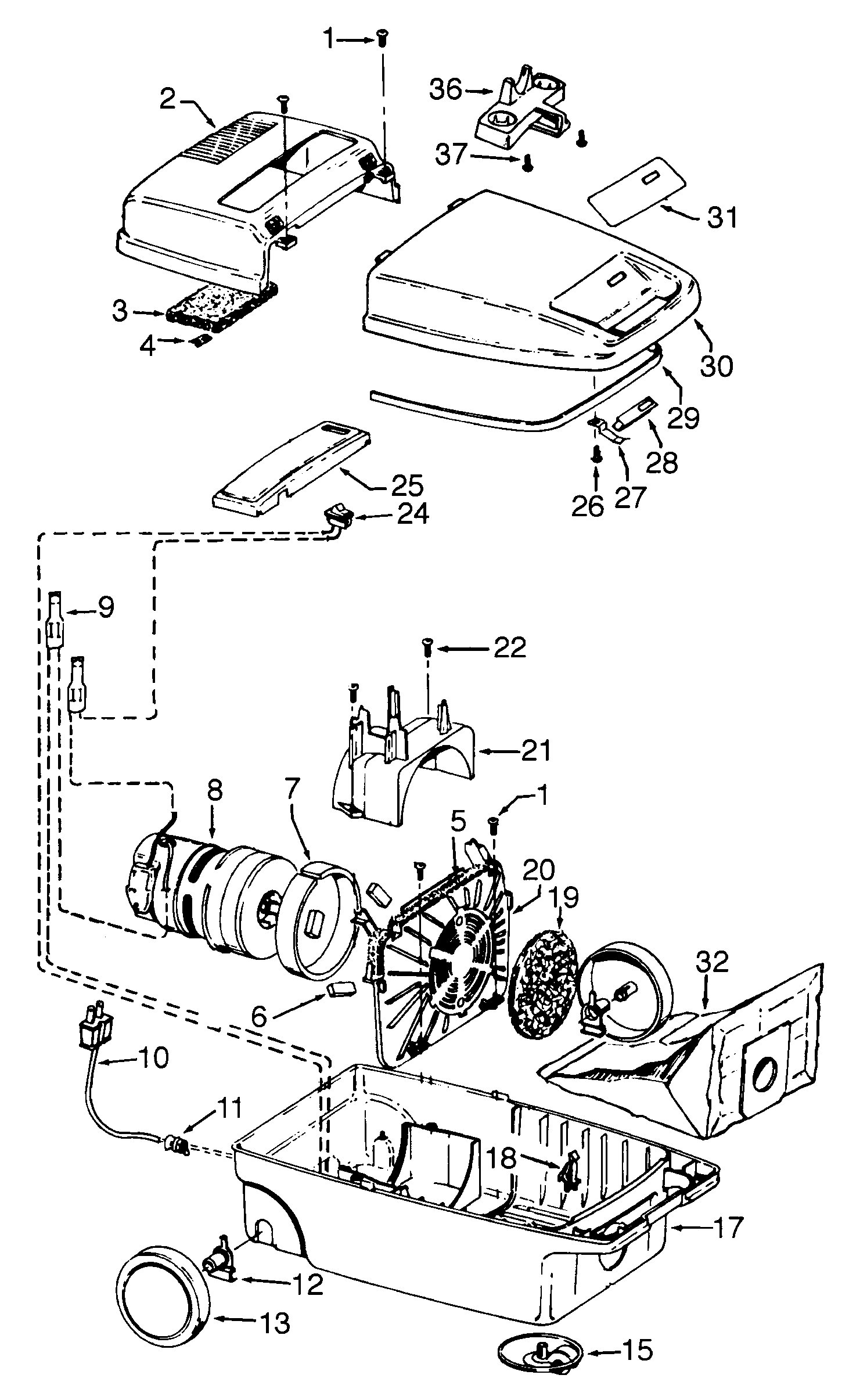

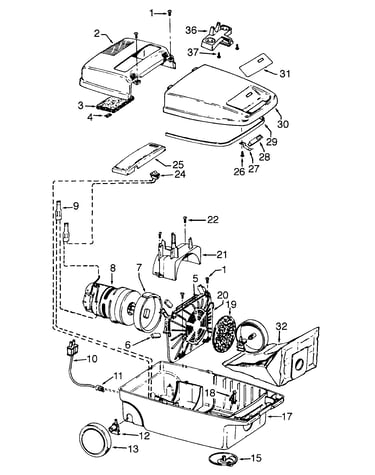

Mainhousing, motor assembly diagram

Wheel bearing

Part #38511015

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Crevice Tool 38617017
Kenmore vacuum crevice tool

Part #38617017

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Brush 48447001
#9

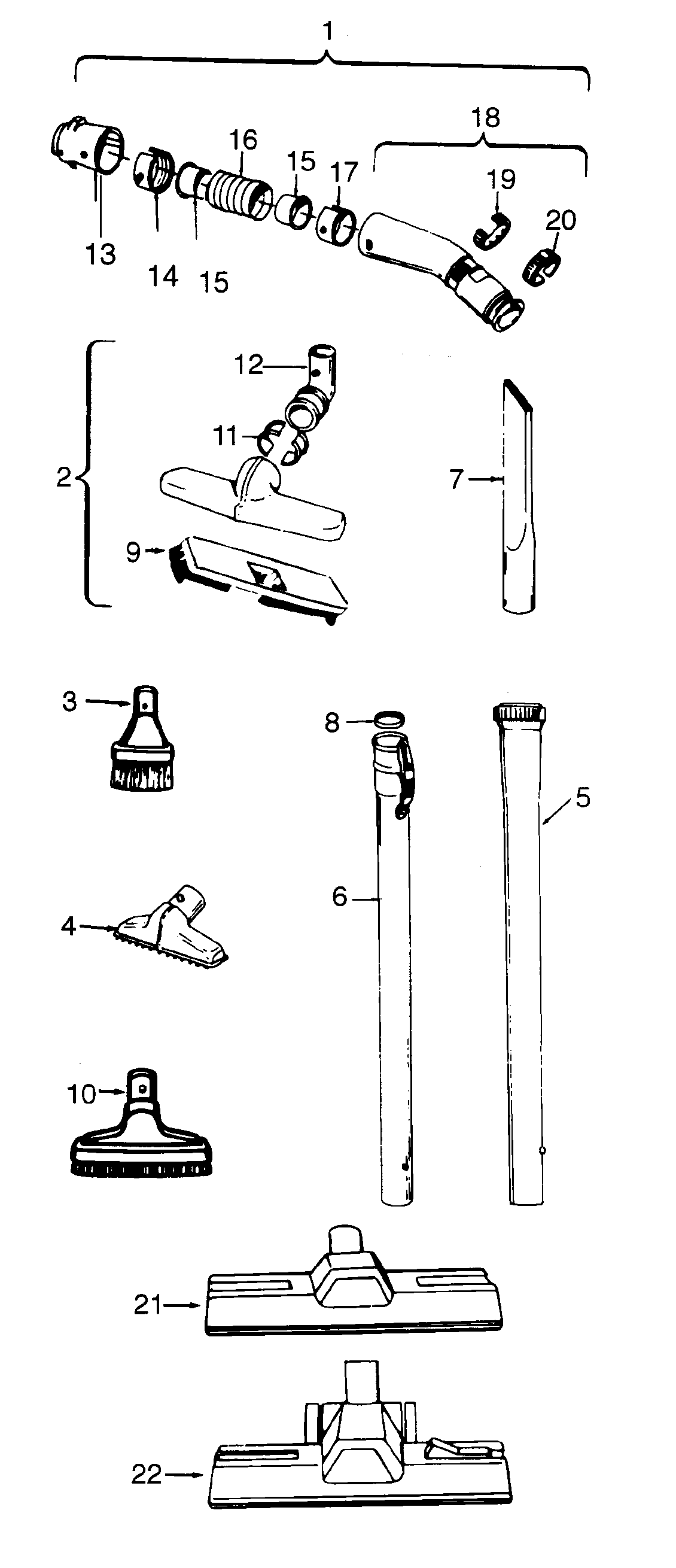

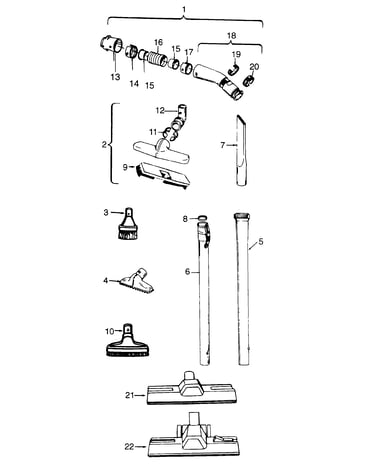

Hose, cleaningtools diagram

Kenmore vacuum brush

Part #48447001

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Dust Brush 43414064
Kenmore vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
#22

Mainhousing, motor assembly diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Upholstery Nozzle 43414057
#4B

Hose, cleaningtools diagram

Kenmore vacuum upholstery nozzle

Part #43414057

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Sleeve Hose 32156010
#15

Hose, cleaningtools diagram

Kenmore sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

Connector 38638019
#13B

Hose, cleaningtools diagram

Connector

Part #38638019

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring 36153009
#20

Hose, cleaningtools diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part
