Model # 106850127 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 106850127 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Screw 489073
#8

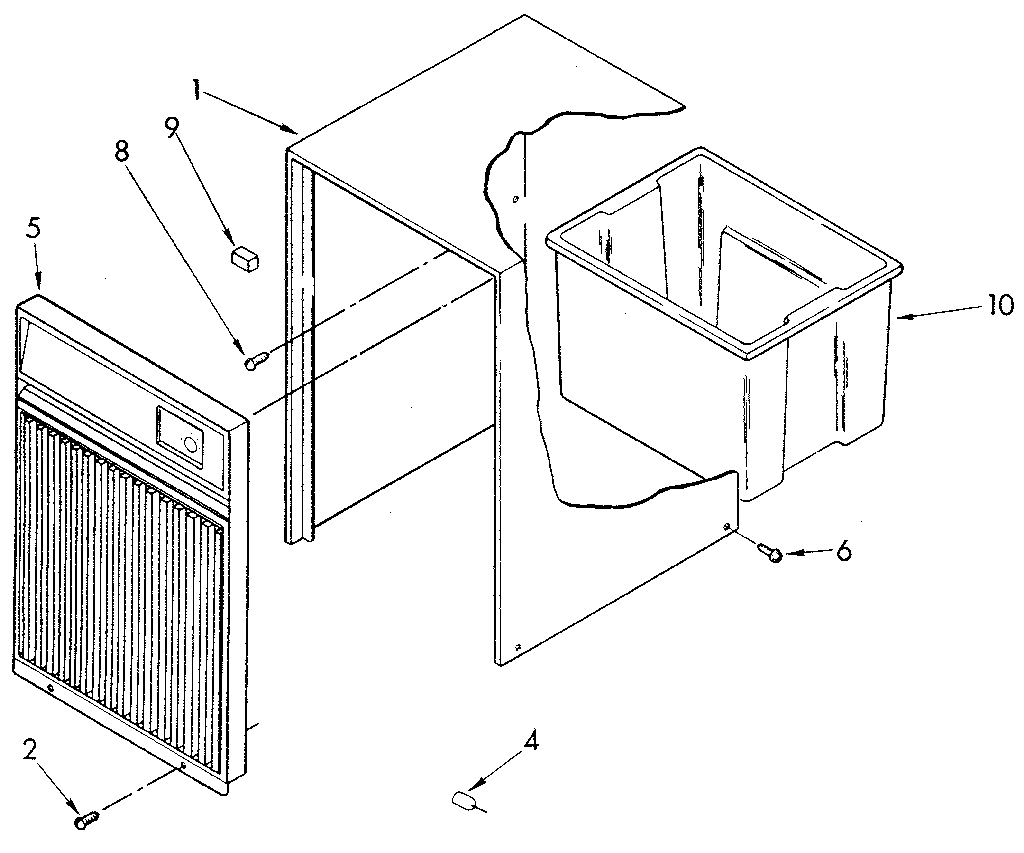

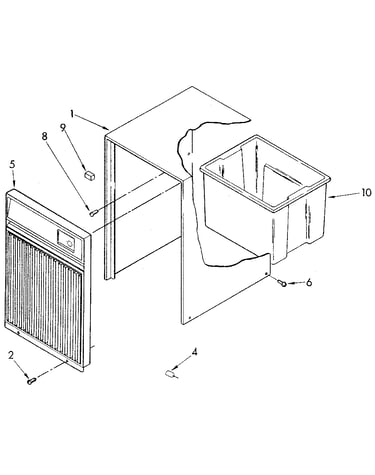

Cabinet diagram

Screw

Part #489073

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 489073. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 487910
#15

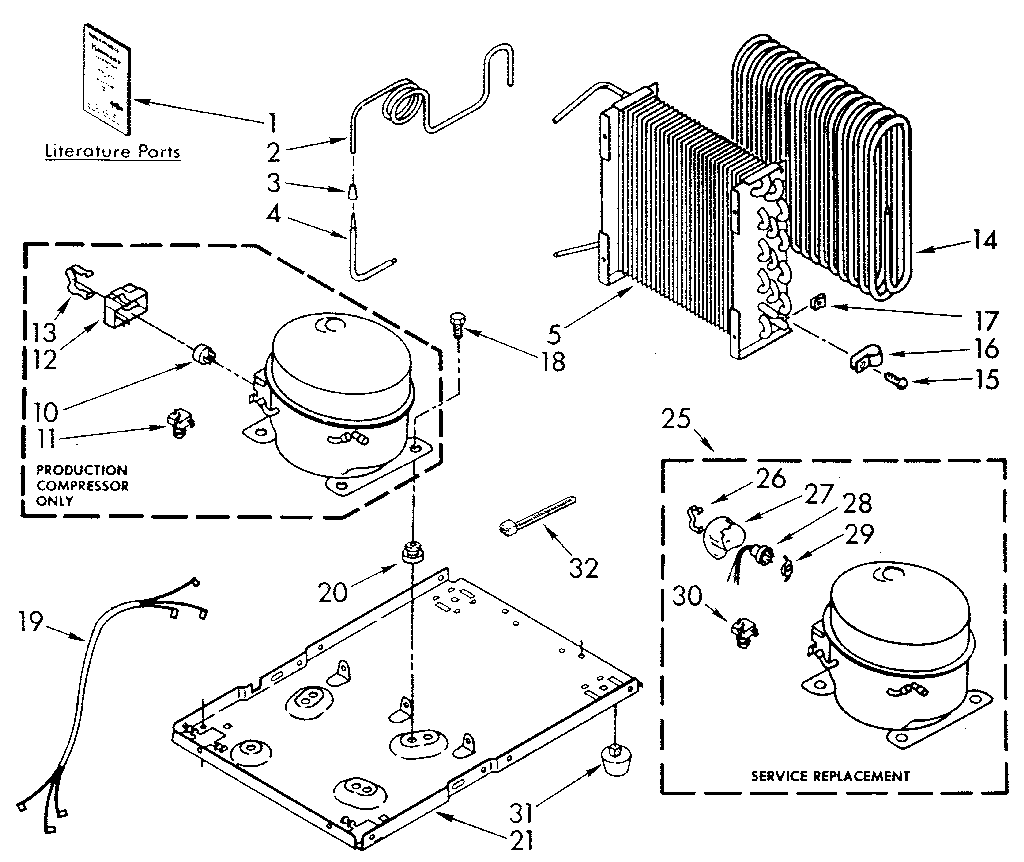

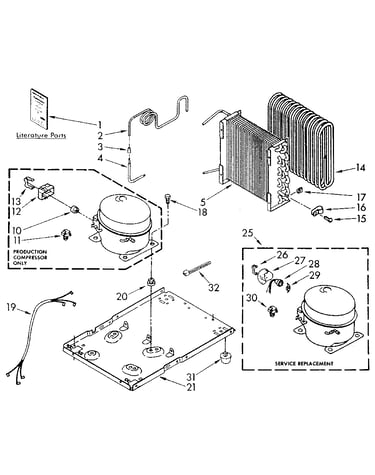

Unit diagram

Screw

Part #487910

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487910. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Valve Kit 978025

#NI

All parts diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Sealer 212643

#NI

All parts diagram

Sealer

Part #212643

Replaced by #212643

?
Manufacturer substitution
This part replaces 212643. Substitute parts can look different from the original.
This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Tube Clamp 488946
#16

Unit diagram

Tube clamp

Part #488946

$14.00
In Stock
Nut 486197
#17

Unit diagram

Nut

Part #486197

Replaced by #488660

?
Manufacturer substitution
This part replaces 486197. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Valve Kit 978027

#NI

All parts diagram

Valve kit

Part #978027

Replaced by #978027

?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Wire Tie 602851
#22

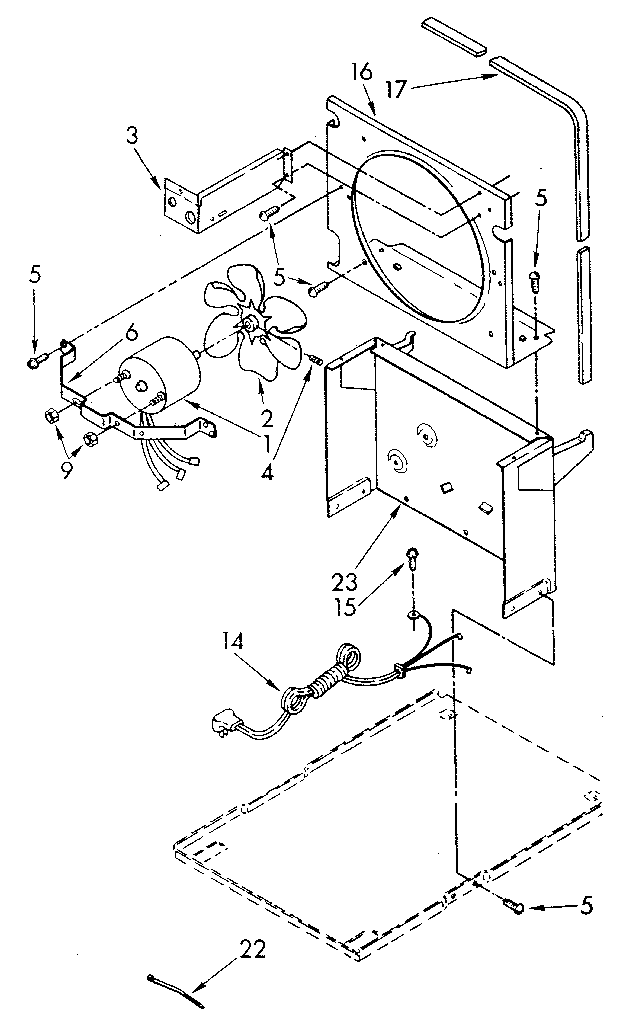

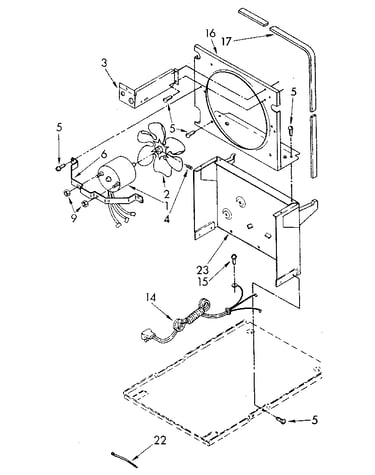

Air flow and control diagram
