Model # 200713121 Official Diehard battery charger

Here are the diagrams and repair parts for Official Diehard 200713121 battery charger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

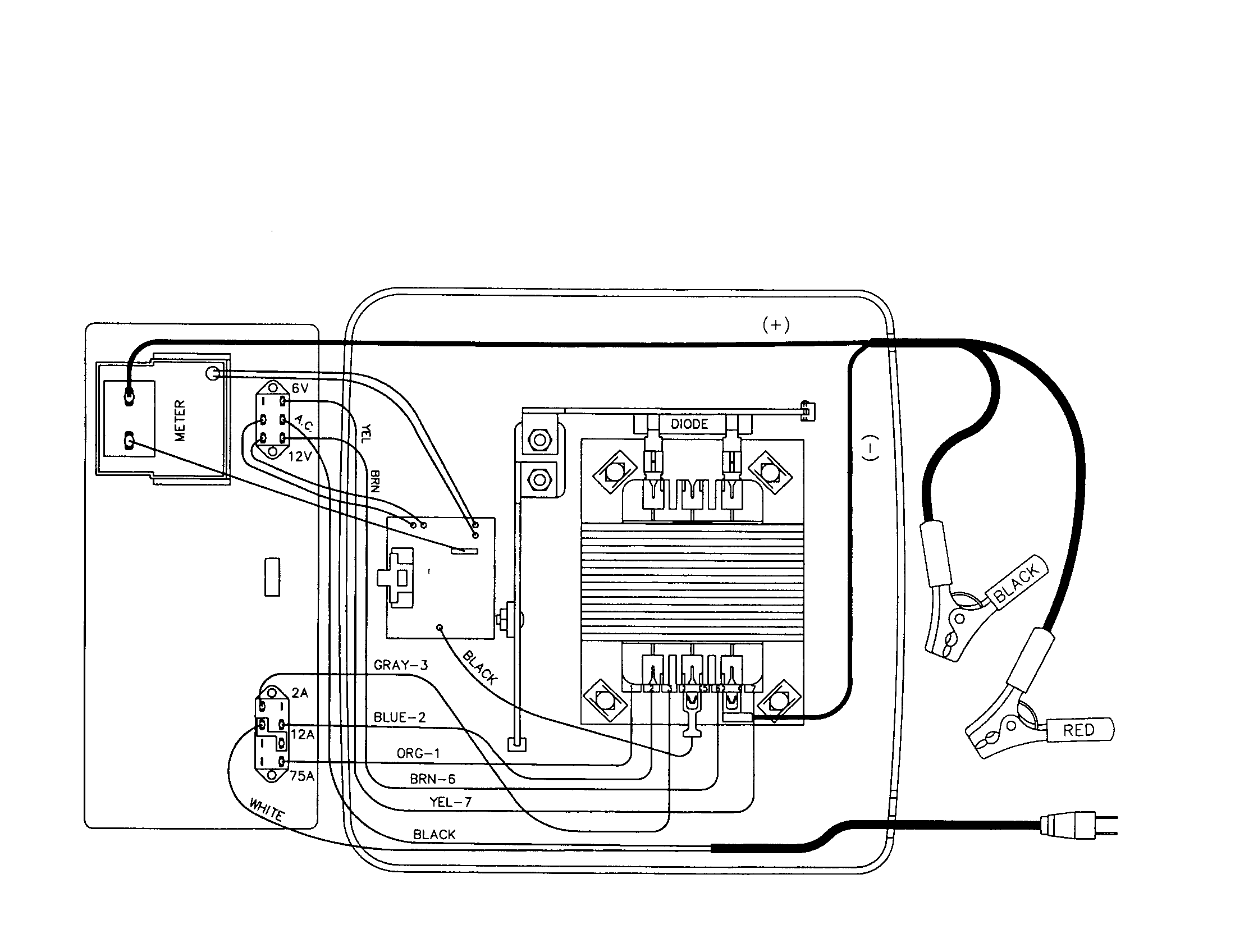

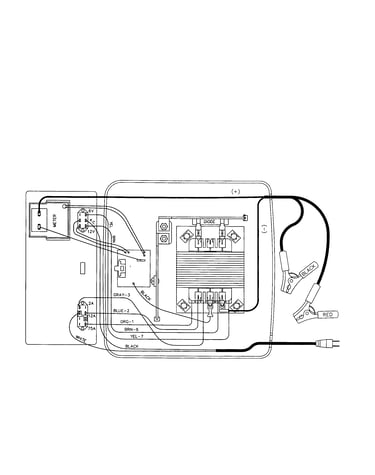

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Battery Charger Diode 3100300017
#6

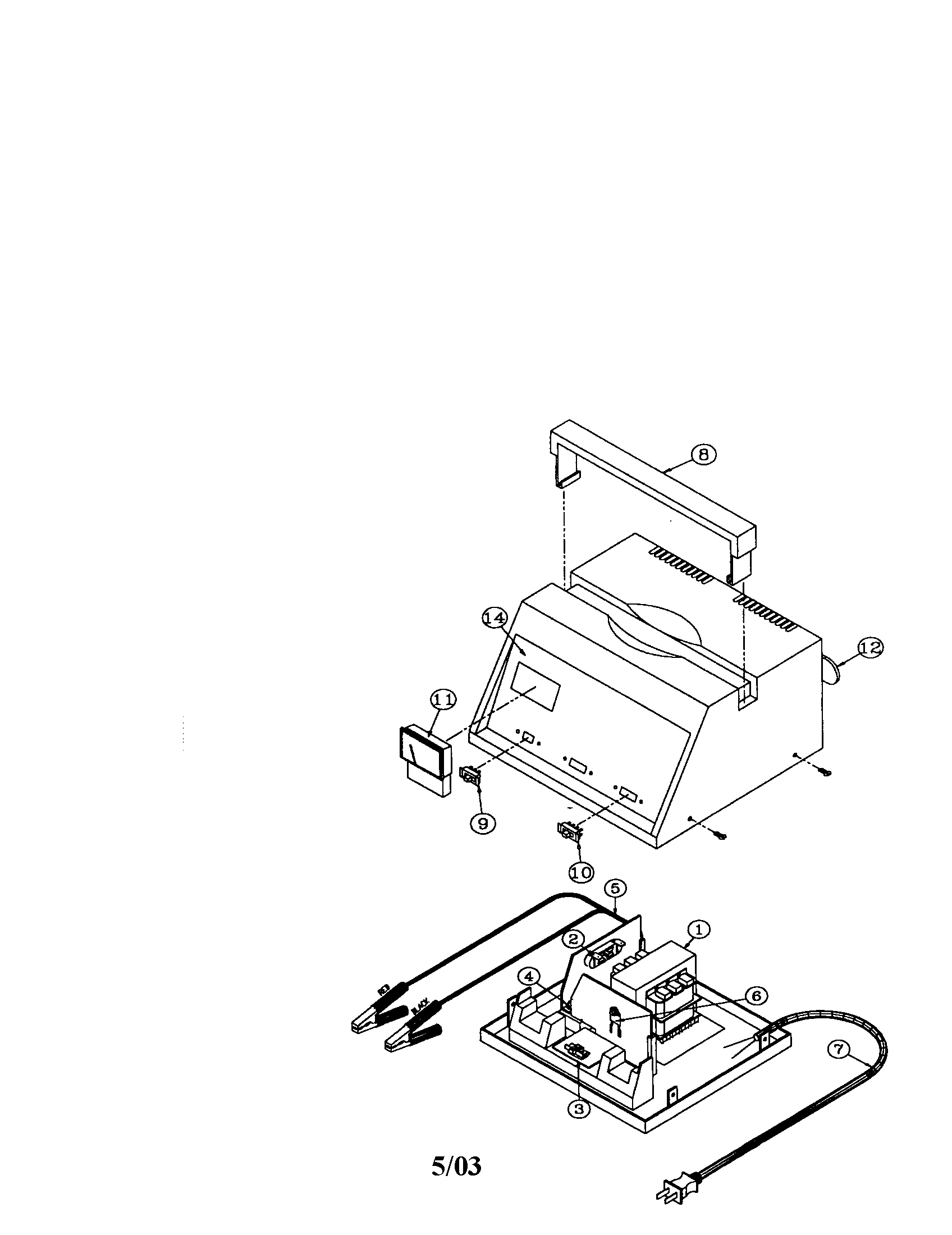

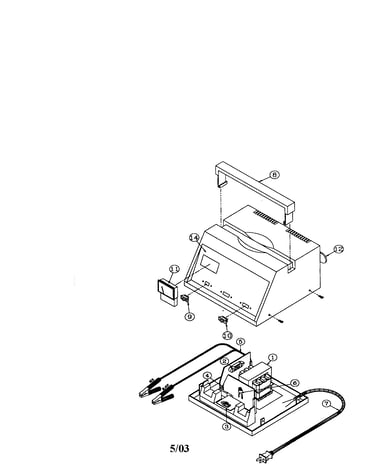

Battery charger diagram

Battery charger diode

Part #3100300017

The manufacturer no longer makes this part, and there's no substitute part

Switch 0499000068
#10

Battery charger diagram

Switch

Part #0499000068

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 90026111M
#7

Battery charger diagram

Power cord

Part #90026111M

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 3899000850
#5

Battery charger diagram

Cable assembly

Part #3899000850

The manufacturer no longer makes this part, and there's no substitute part

Cleat 1199004390
#12

Battery charger diagram

Cleat

Part #1199004390

The manufacturer no longer makes this part, and there's no substitute part

Diode Ay Kit 2299000976
#2

Battery charger diagram

Diode ay kit

Part #2299000976

The manufacturer no longer makes this part, and there's no substitute part

Circ Brkr 3999000088
#4

Battery charger diagram

Circ brkr

Part #3999000088

The manufacturer no longer makes this part, and there's no substitute part

Face Plate 0899001076
#14

Battery charger diagram

Face plate

Part #0899001076

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 0000000598
#13

Battery charger diagram

Owner's manual

Part #0000000598

The manufacturer no longer makes this part, and there's no substitute part

Transformer 93026483
#1

Battery charger diagram

Transformer

Part #93026483

The manufacturer no longer makes this part, and there's no substitute part
