Thermador
Electric Wall Oven

Model # ME301ES01 Official Thermador wall oven

Here are the diagrams and repair parts for Official Thermador ME301ES01 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

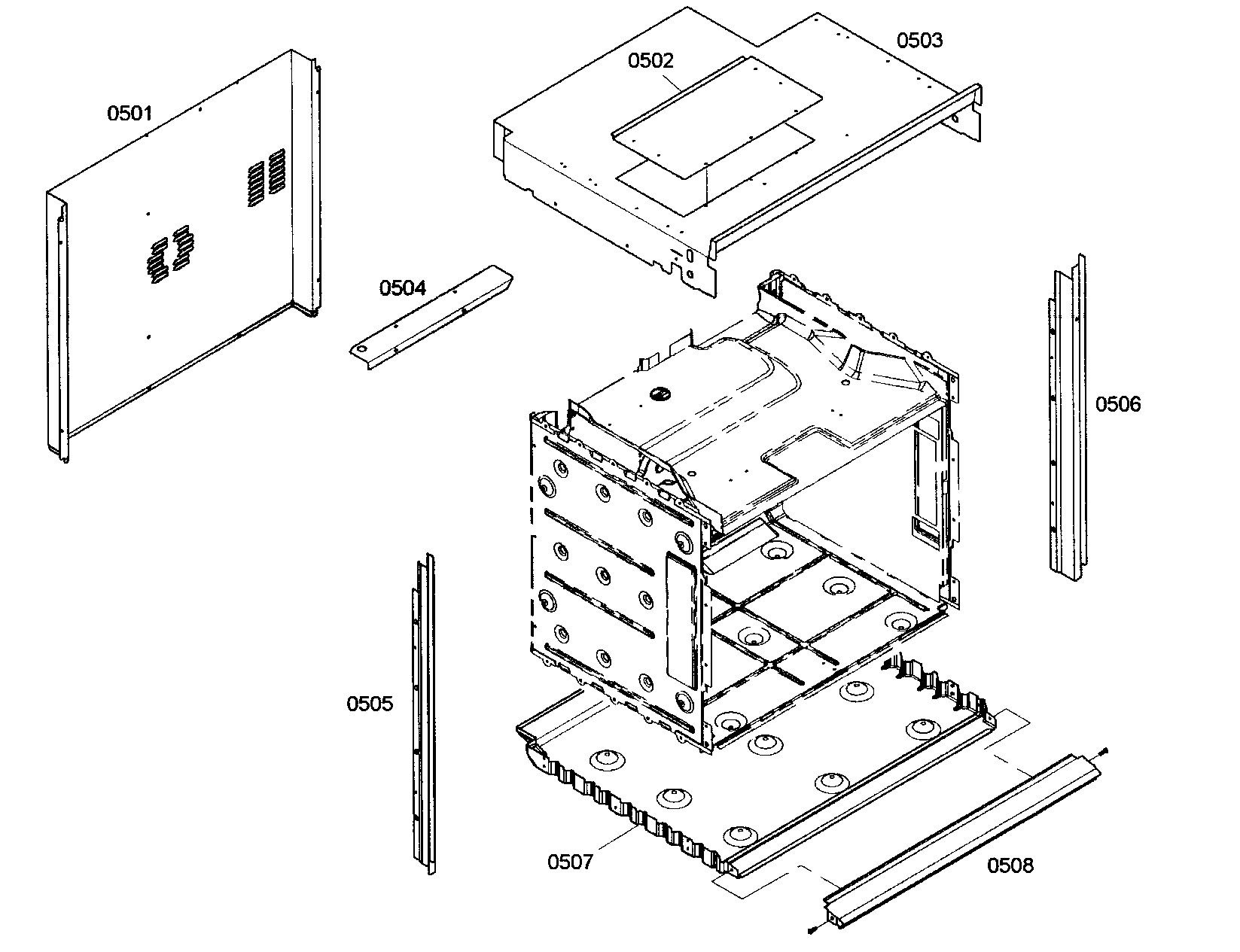

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Glass Panel 478309
#404

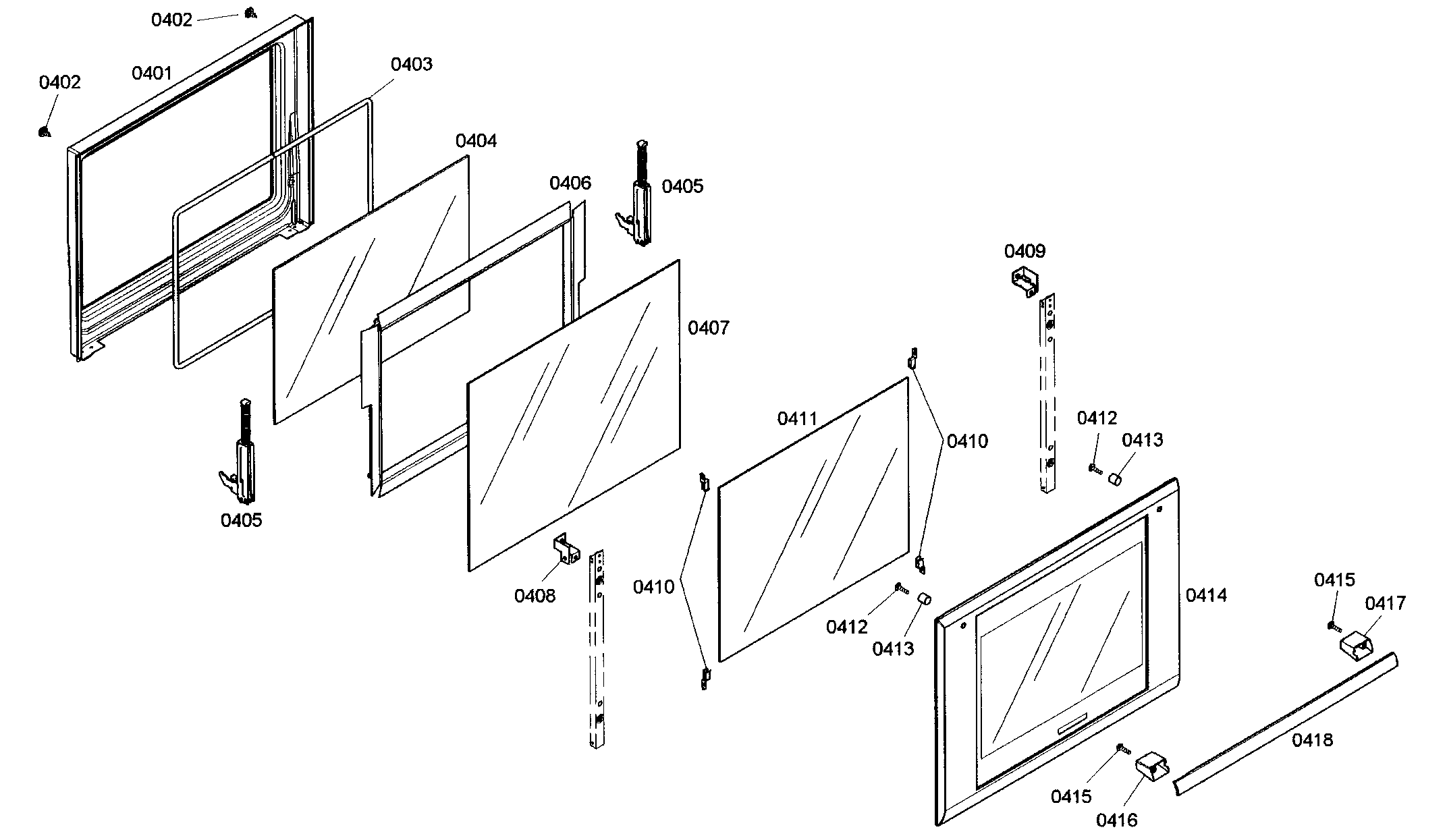

Oven door assy diagram

Glass panel

Part #478309

Replaced by #00770023

?
Manufacturer substitution
This part replaces 478309. Substitute parts can look different from the original.
$182.39 |
6% OFF Phone Price : $194.39
In Stock
Shelf 478316
#602

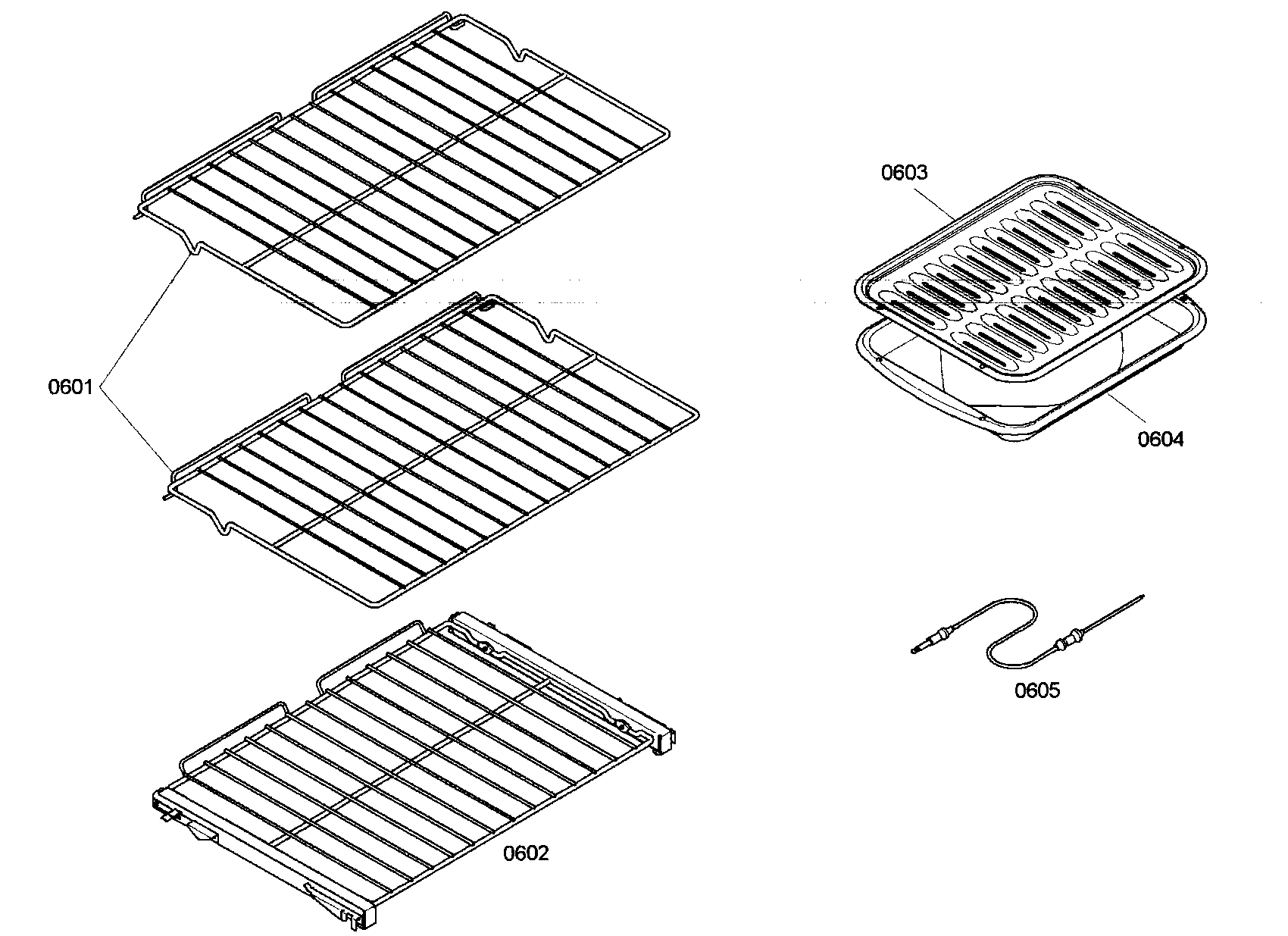

Shelf assy diagram

Shelf

Part #478316

Replaced by #00478316

?
Manufacturer substitution
This part replaces 478316. Substitute parts can look different from the original.
$394.03 |
$12.00 OFF Phone Price : $406.03
In Stock
Limiter 642844
#202

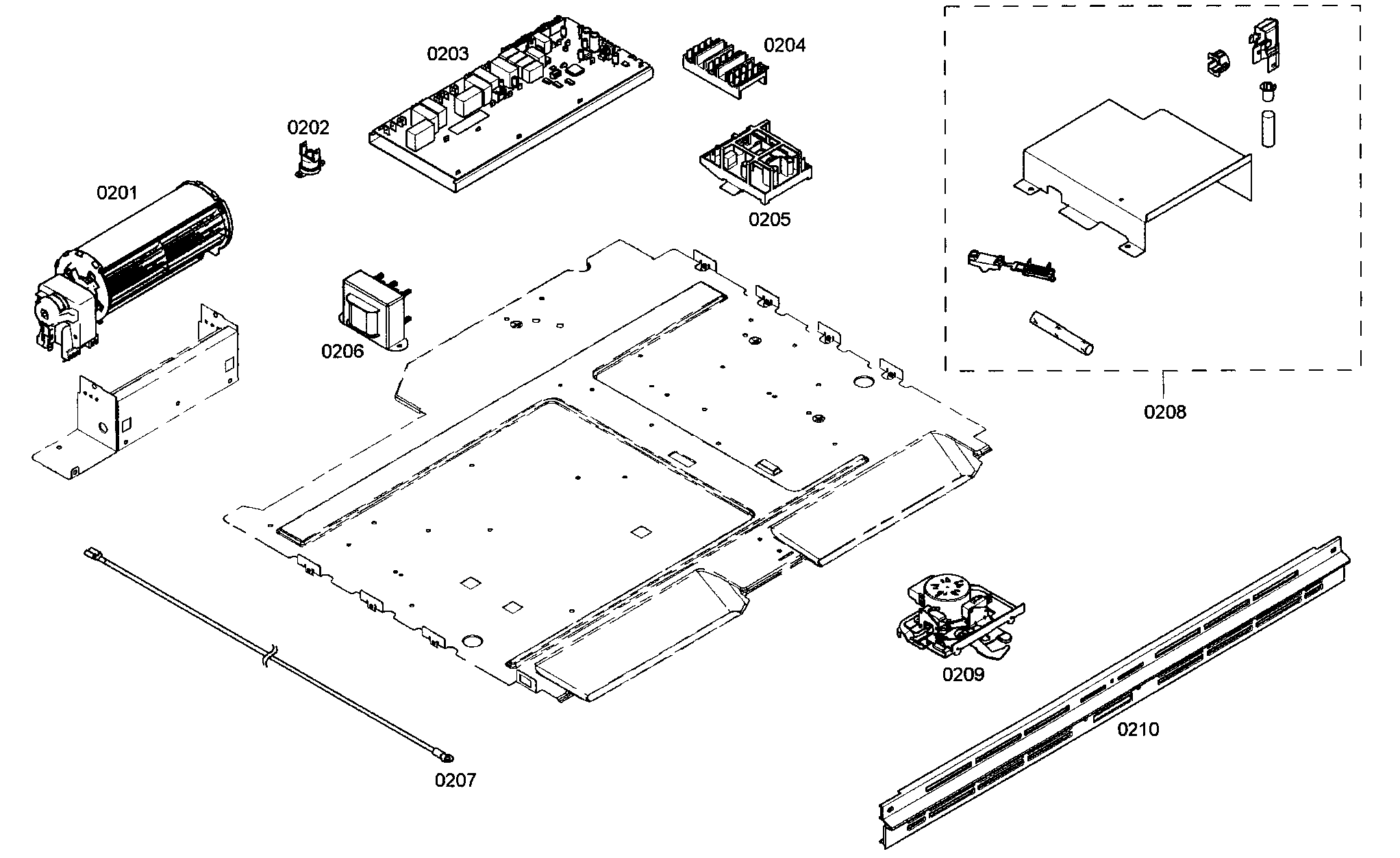

Pcb assy diagram

Limiter

Part #642844

Replaced by #00617877

?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
$29.36
In Stock
Bracket 608096
#409

Oven door assy diagram

Bracket

Part #608096

Replaced by #00613179

?
Manufacturer substitution
This part replaces 608096. Substitute parts can look different from the original.
$23.49
In Stock
Glass Panel 478310
#407

Oven door assy diagram

Glass panel

Part #478310

Replaced by #00478310

?
Manufacturer substitution
This part replaces 478310. Substitute parts can look different from the original.
$137.56 |
8% OFF Phone Price : $149.56
In Stock
Seal 144652
#403

Oven door assy diagram

Seal

Part #144652

Replaced by #00144652

?
Manufacturer substitution
This part replaces 144652. Substitute parts can look different from the original.
$39.29 |
13% OFF Phone Price : $45.29
In Stock
Screw 189345
#402

Oven door assy diagram

Screw

Part #189345

Replaced by #00189345

?
Manufacturer substitution
This part replaces 189345. Substitute parts can look different from the original.
$20.49
Back Order
Door Gasket 491569
#307

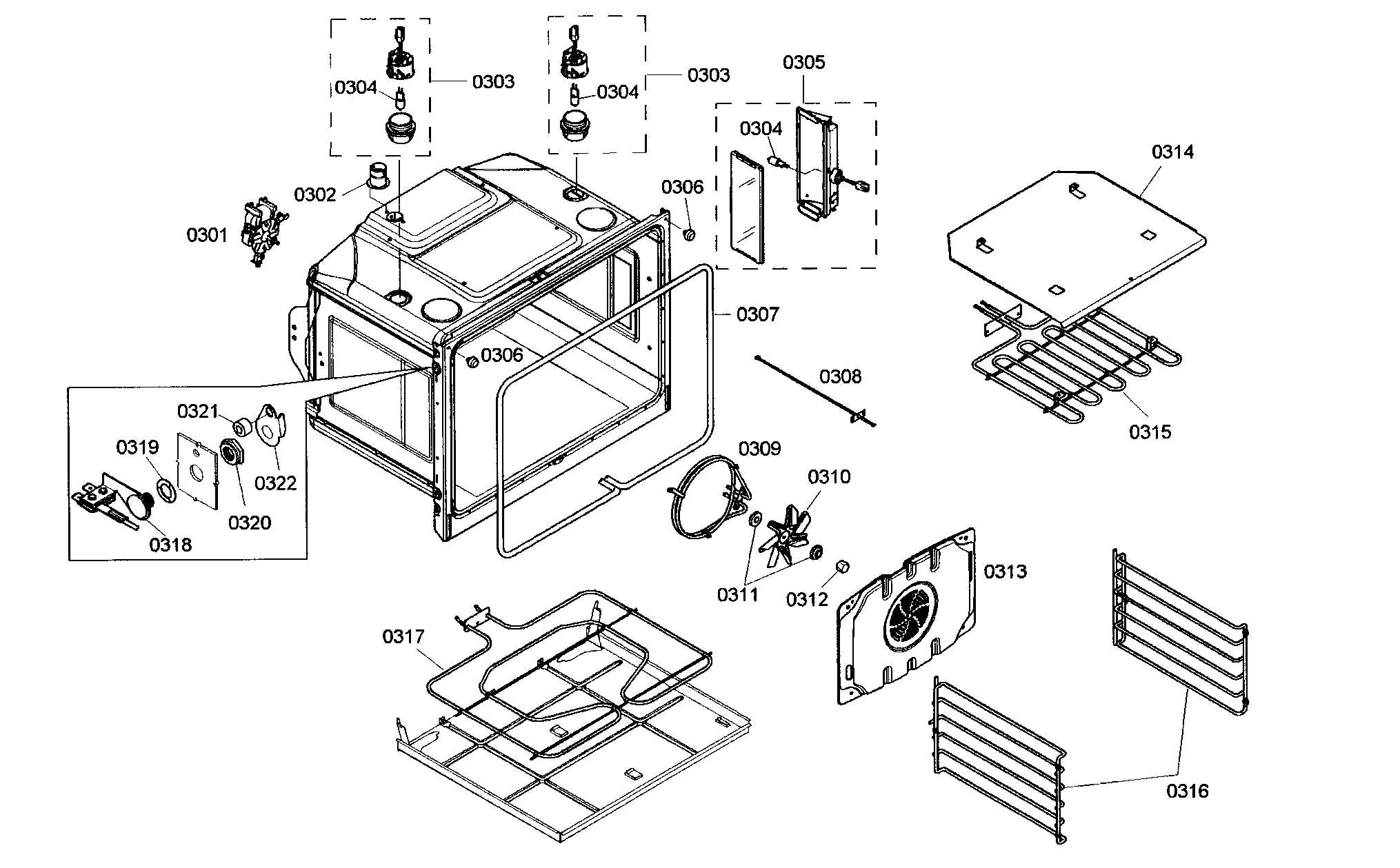

Oven parts diagram

Door gasket

Part #491569

Replaced by #00491569

?
Manufacturer substitution
This part replaces 491569. Substitute parts can look different from the original.
$84.95 |
7% OFF Phone Price : $90.95
In Stock
Harness 663798
#NI

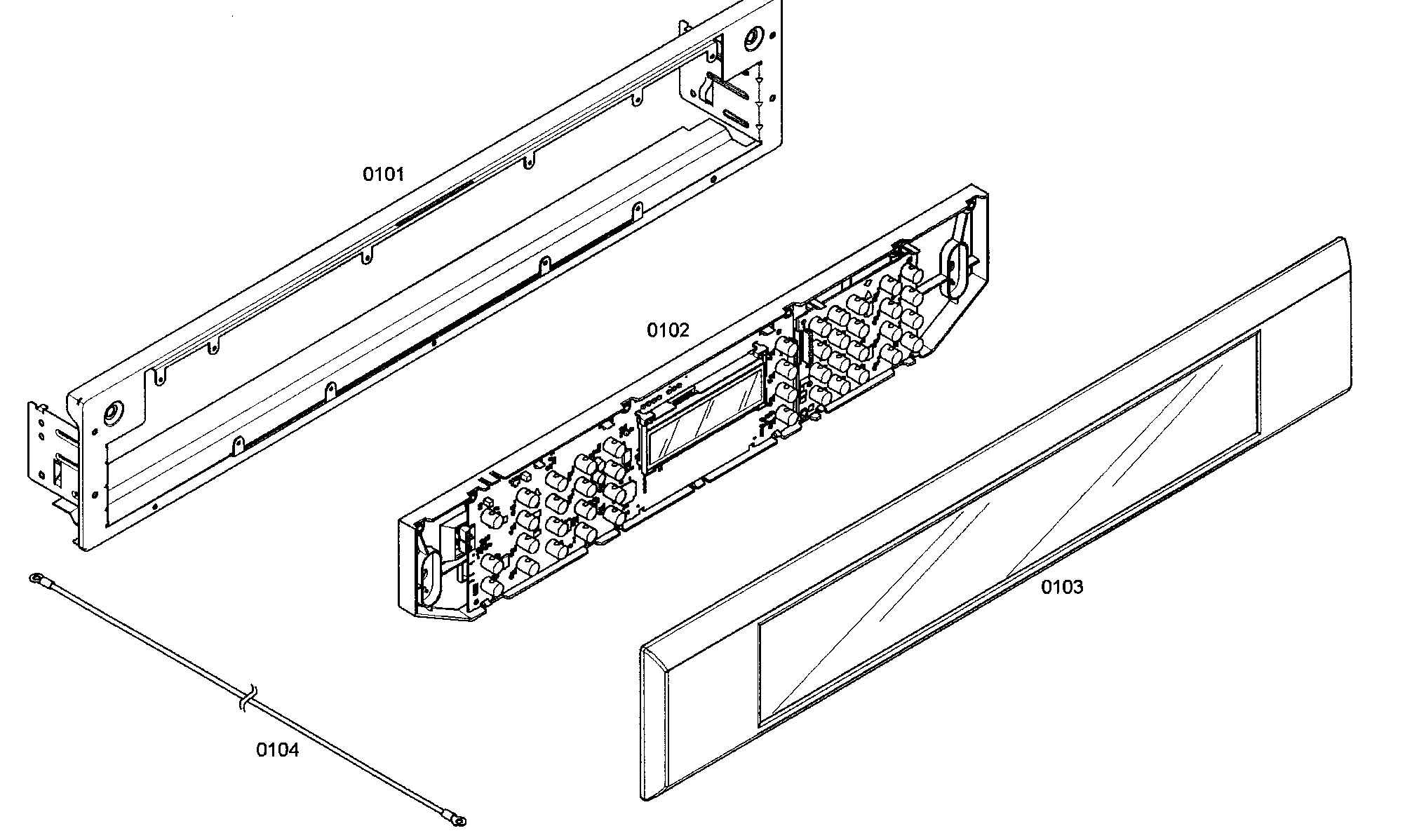

Control panel diagram

Harness

Part #663798

Replaced by #00663798

?
Manufacturer substitution
This part replaces 663798. Substitute parts can look different from the original.
$30.31
In Stock
Harness 663793
#NI

Control panel diagram

Harness

Part #663793

Replaced by #00663793

?
Manufacturer substitution
This part replaces 663793. Substitute parts can look different from the original.
$64.40
In Stock
