Model # TBE19PATNRAA Official GE top-mount refrigerator
Here are the diagrams and repair parts for Official GE TBE19PATNRAA top-mount refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

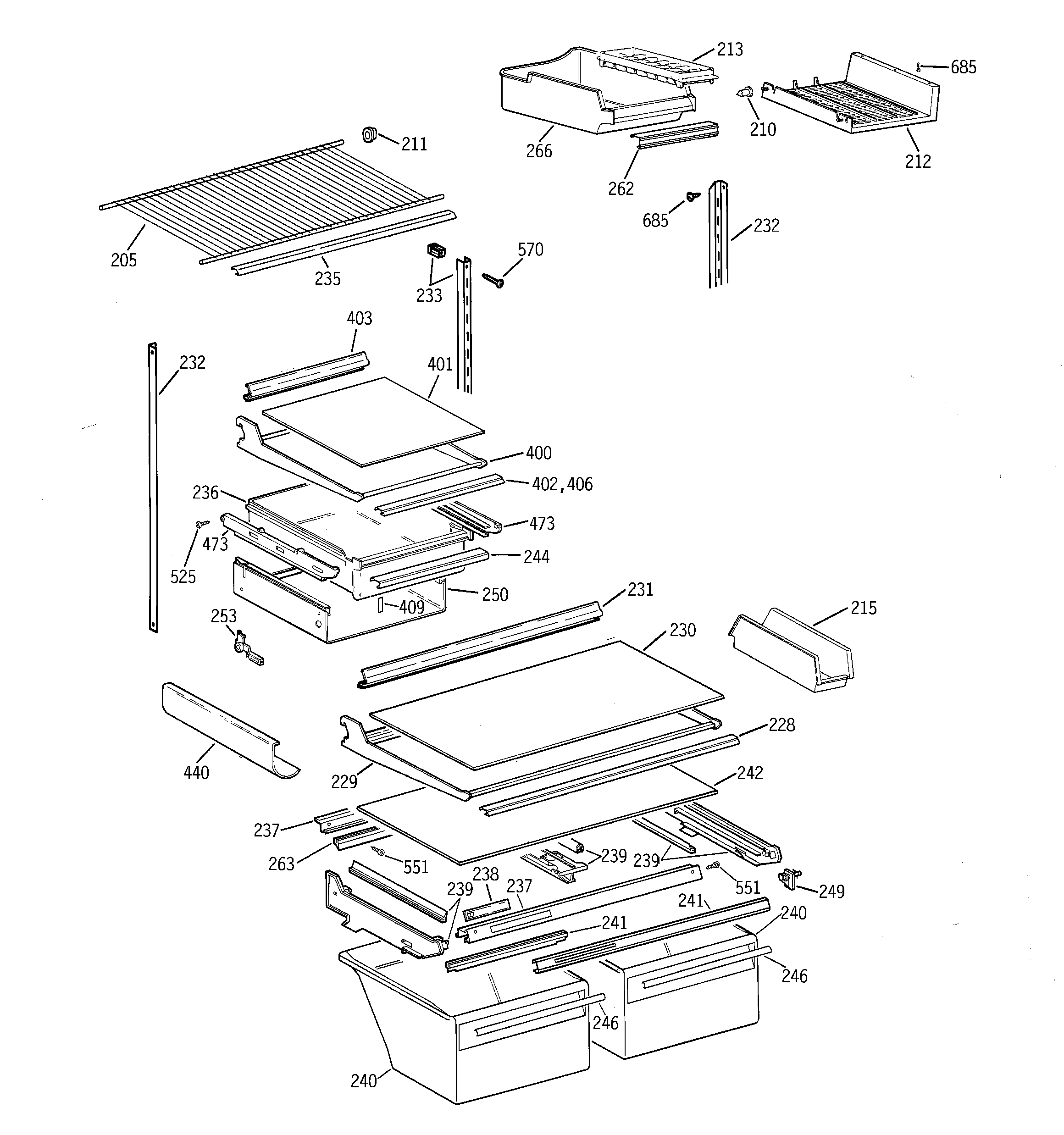

SELECT DIAGRAM
Browse Parts forTBE19PATNRAA Refrigerators
- #740

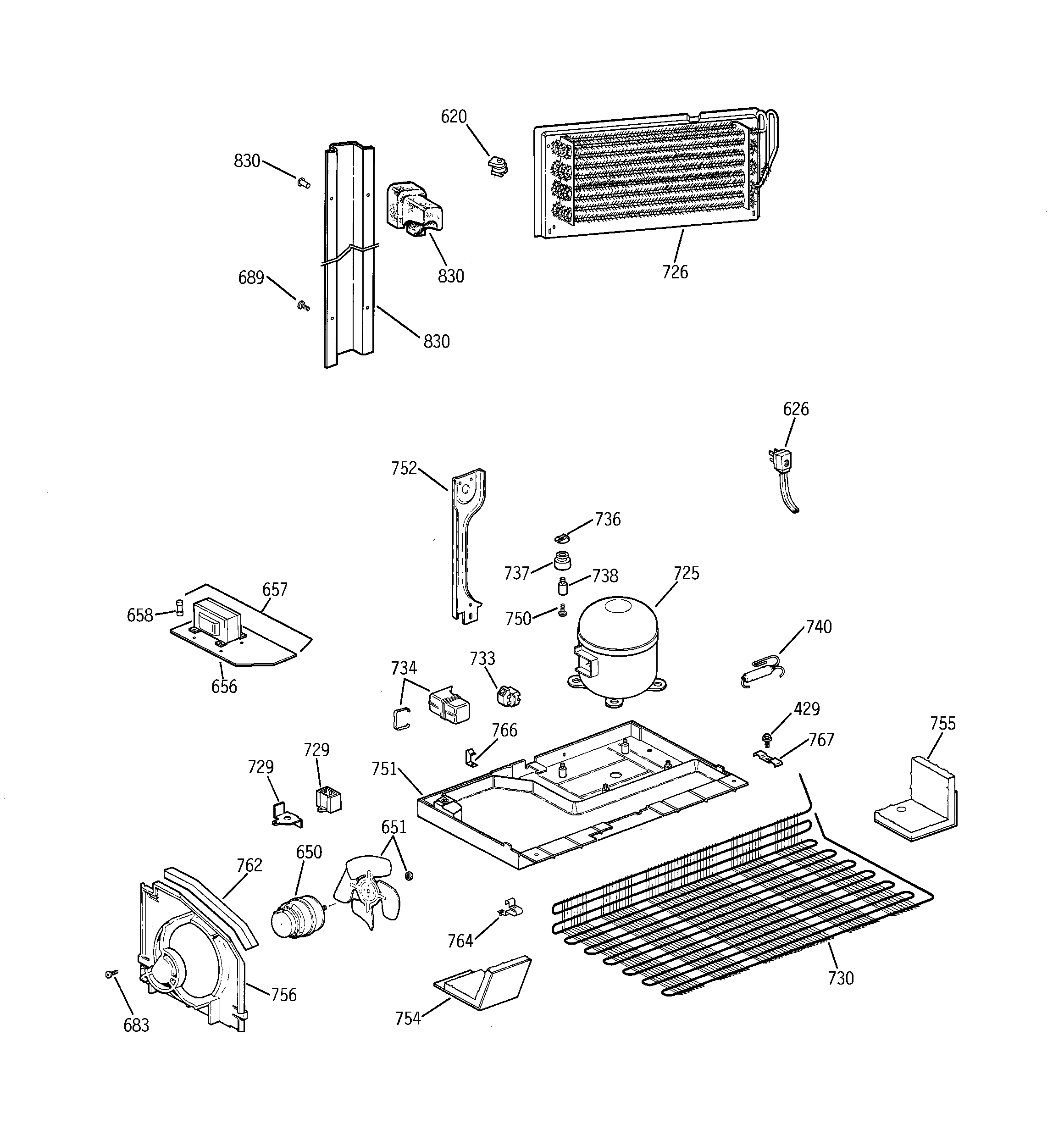

Unit parts diagram
Dryer assemblyPart #WR86X0086
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0086. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - 40a15/22
Part #STD372402
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372402. Substitute parts can look different from the original.$14.62 |12% OFF Phone Price : $16.62In Stock - #648

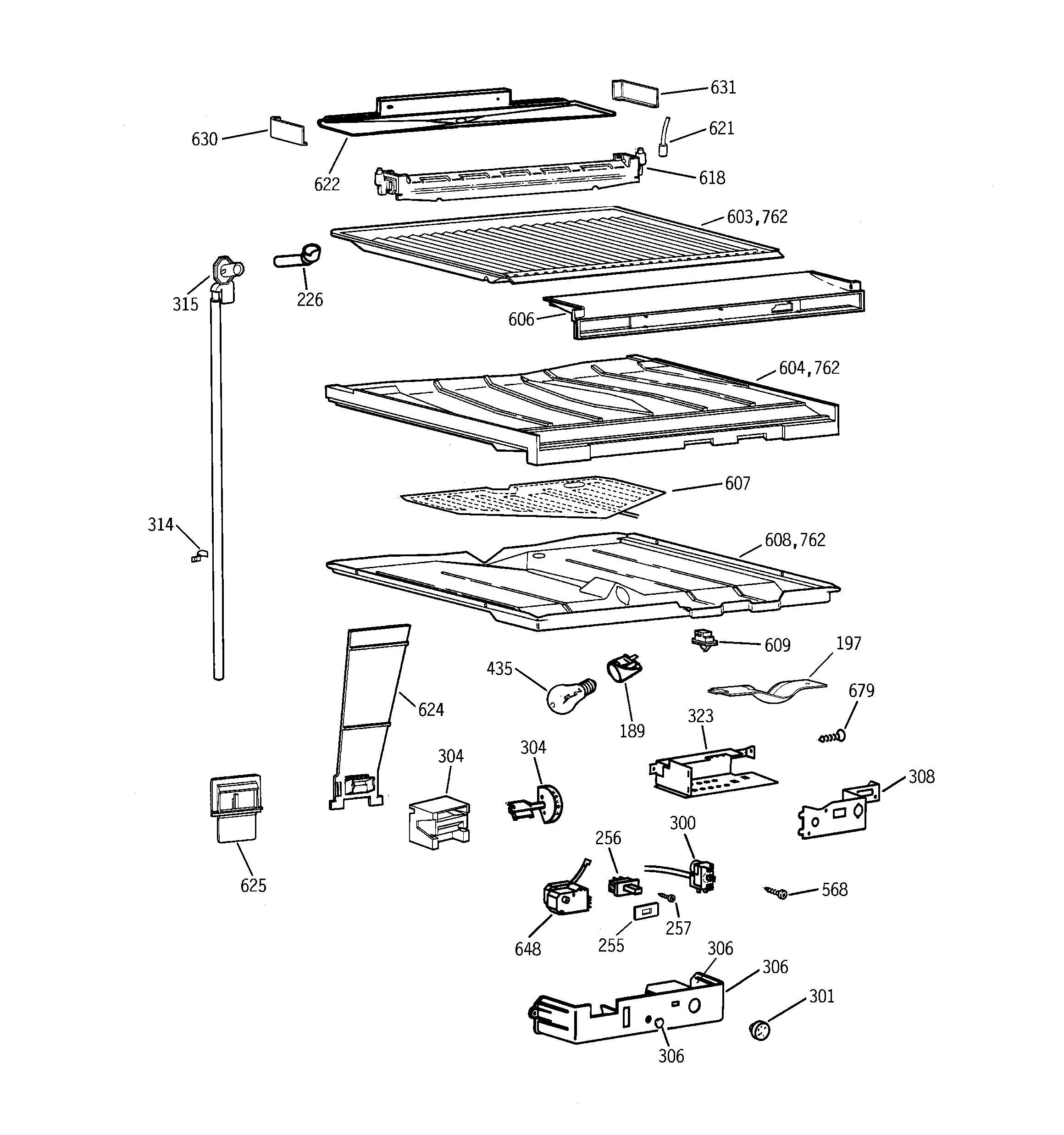

Compartment separator parts diagram
Defrost controlPart #WR09X0502
Replaced by #WR9X502
?Manufacturer substitutionThis part replaces WR09X0502. Substitute parts can look different from the original.$79.45 |7% OFF Phone Price : $85.45In Stock - #104

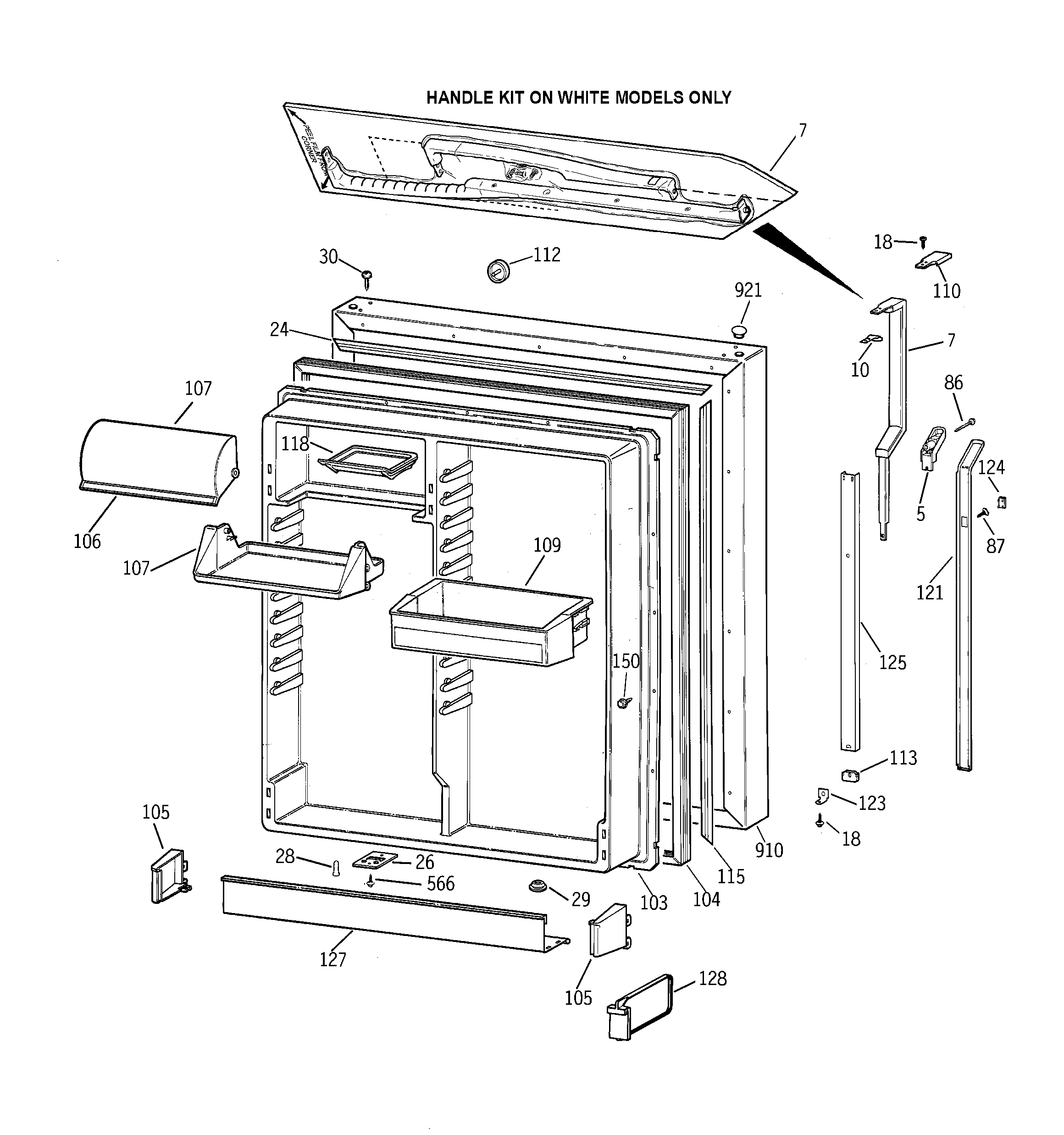

Fresh food door diagram
Refrigerator door gasketPart #WR24X0450
Replaced by #WR24X450
?Manufacturer substitutionThis part replaces WR24X0450. Substitute parts can look different from the original.$142.69 |8% OFF Phone Price : $154.69In Stock - #620
Unit parts diagram
Refrigerator defrost thermostatPart #WR50X0131
Replaced by #WR50X10010
?Manufacturer substitutionThis part replaces WR50X0131. Substitute parts can look different from the original.This item is not returnable$29.38 |17% OFF Phone Price : $35.38In Stock - #23

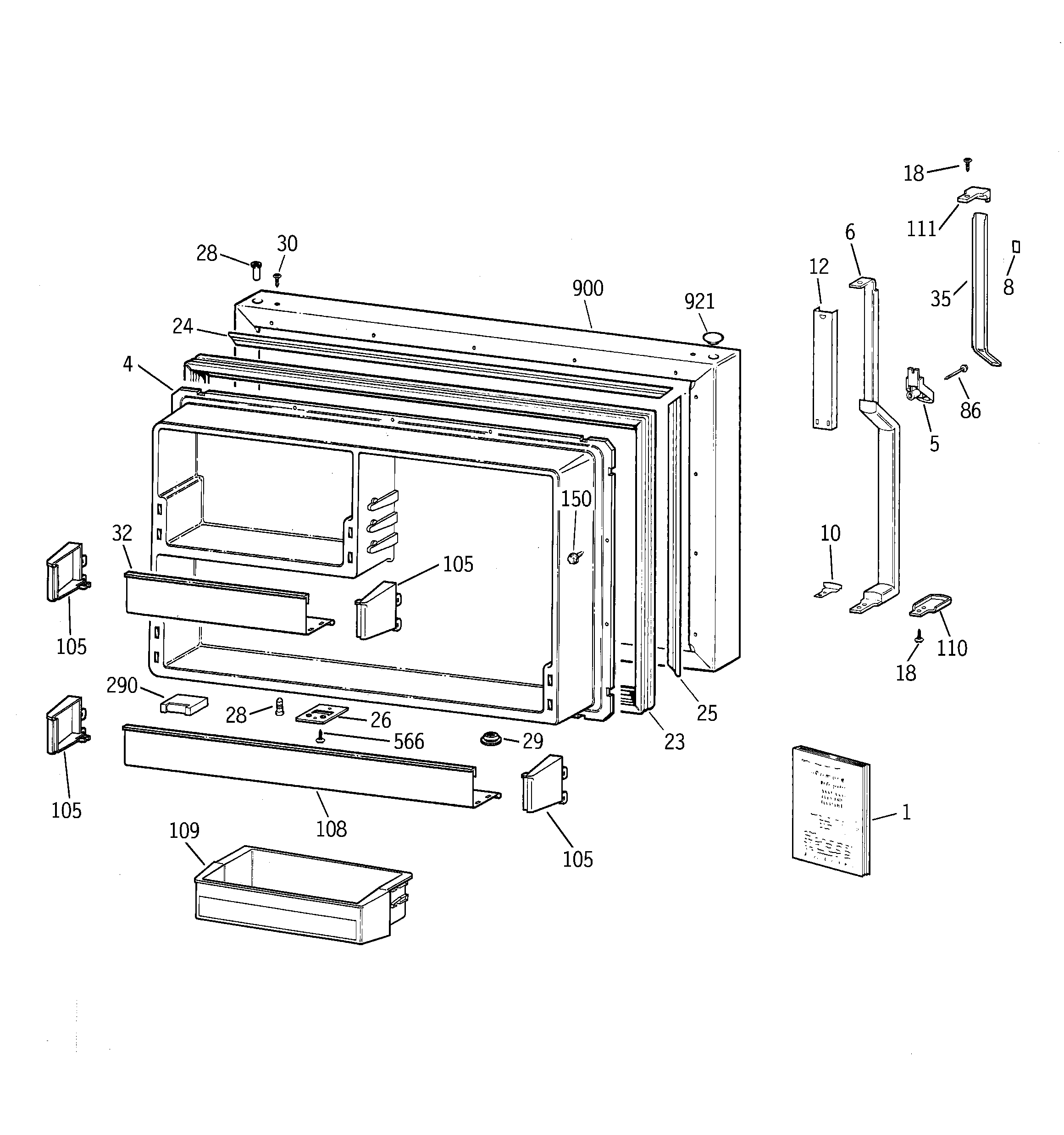

Freezer door diagram
Refrigerator freezer door gasketPart #WR24X0449
The manufacturer no longer makes this part, and there's no substitute part
- #87
Fresh food door diagram
Refrigerator screwPart #WZ04X0241
Replaced by #WZ4X241D
?Manufacturer substitutionThis part replaces WZ04X0241. Substitute parts can look different from the original.$21.64 |22% OFF Phone Price : $27.64In Stock - #257
Compartment separator parts diagram
Refrigerator screwPart #WR01X1762
Replaced by #WZ5X158D
?Manufacturer substitutionThis part replaces WR01X1762. Substitute parts can look different from the original.$32.90 |15% OFF Phone Price : $38.90In Stock - #112
Fresh food door diagram
Drive reversible plugPart #WR02X8693
Replaced by #WR01X21159
?Manufacturer substitutionThis part replaces WR02X8693. Substitute parts can look different from the original.This item is not returnable$9.03 |10% OFF Phone Price : $10.03In Stock - #613

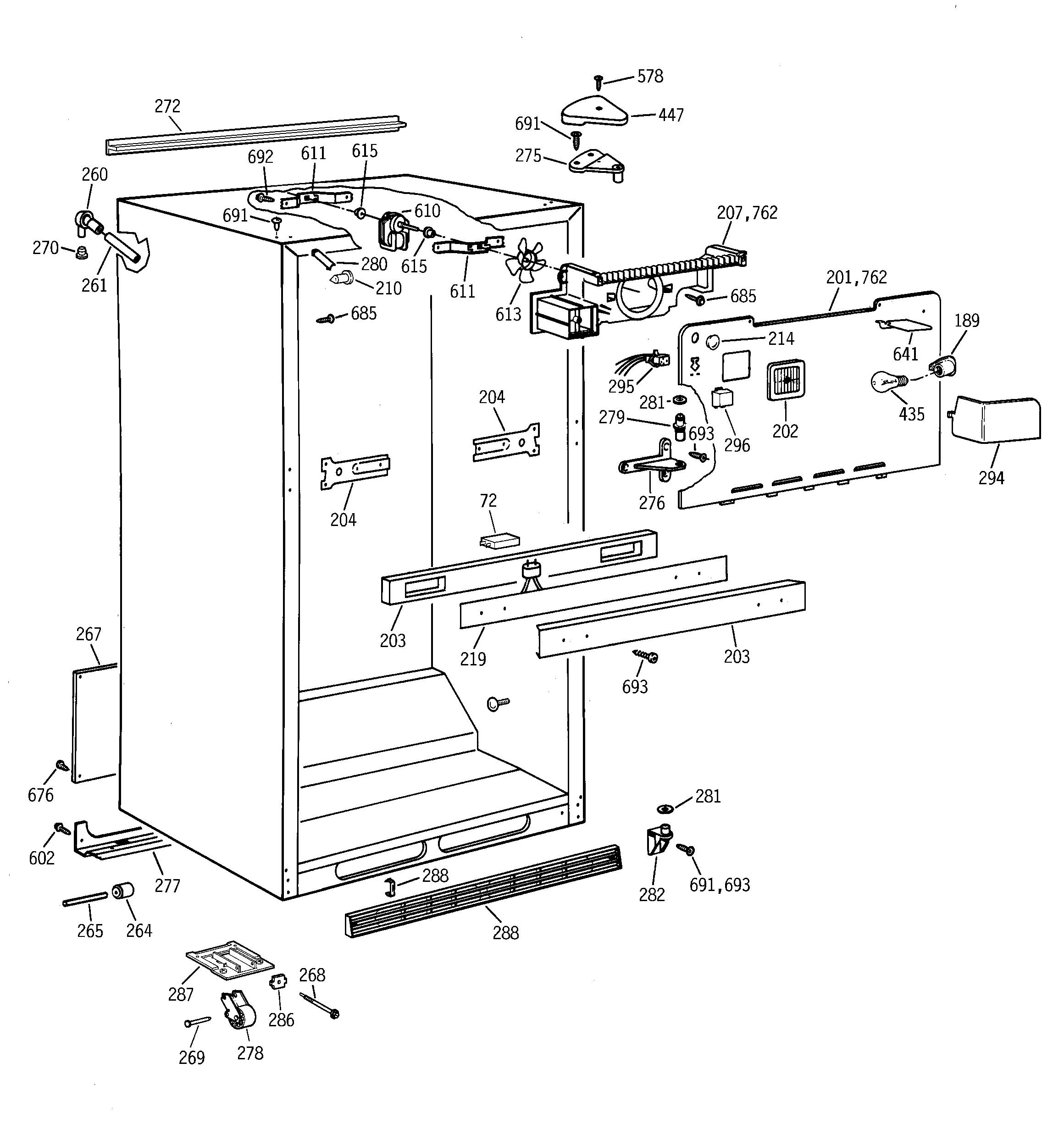

Cabinet parts diagram
Refrigerator fan bladePart #WR60X0123
Replaced by #WR60X123
?Manufacturer substitutionThis part replaces WR60X0123. Substitute parts can look different from the original.$81.92 |7% OFF Phone Price : $87.92In Stock
