Countertop Microwave

Model # JE1550WY01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1550WY01 microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JE1550WY01 Microwaves
Switch WB24X801
#1446

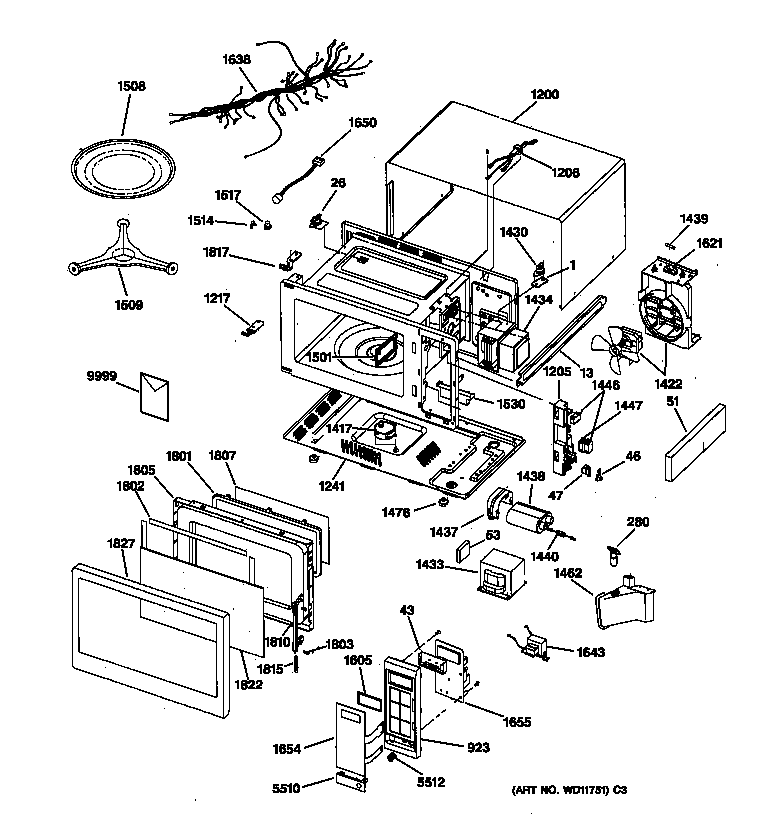

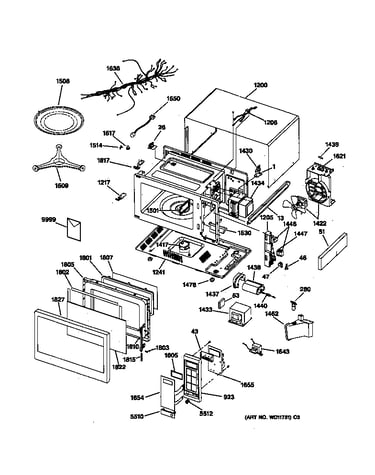

Microwave parts diagram

Switch

Part #WB24X801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Switch WB24X800
#1447

Microwave parts diagram

Switch

Part #WB24X800

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X800. Substitute parts can look different from the original.
BEST SELLER
$29.53 |
17% OFF Phone Price : $35.53
In Stock
Diode WB27X10072
#1440

Microwave parts diagram

Diode

Part #WB27X10072

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X10072. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Magnetron WB27X1114
#1434

Microwave parts diagram

Magnetron

Part #WB27X1114

The manufacturer no longer makes this part, and there's no substitute part

Latch Body WB6X401
#1205

Microwave parts diagram

Latch body

Part #WB6X401

This item is not returnable
$5.49
In Stock
Sensor Ga WB6X477
#1517

Microwave parts diagram

Sensor ga

Part #WB6X477

Replaced by #WB27X1170

?
Manufacturer substitution
This part replaces WB6X477. Substitute parts can look different from the original.
$98.78 |
11% OFF Phone Price : $110.78
In Stock
Holder Sensor WB6X193
#1514

Microwave parts diagram

Holder sensor

Part #WB6X193

Replaced by #WB6X549

?
Manufacturer substitution
This part replaces WB6X193. Substitute parts can look different from the original.
This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Cooking Tray WB49X10031
#1508

Microwave parts diagram

Cooking tray

Part #WB49X10031

Replaced by #WB49X690

?
Manufacturer substitution
This part replaces WB49X10031. Substitute parts can look different from the original.
$91.42 |
6% OFF Phone Price : $97.42
In Stock
Hinge Pin WB6X10060
#1803

Microwave parts diagram

Hinge pin

Part #WB6X10060

Replaced by #WB06X10060

?
Manufacturer substitution
This part replaces WB6X10060. Substitute parts can look different from the original.
This item is not returnable
$6.35 |
14% OFF Phone Price : $7.35
In Stock
Mica Spac WB6X10018
#1

Microwave parts diagram

Mica spac

Part #WB6X10018

The manufacturer no longer makes this part, and there's no substitute part
