Model # 580320450 Official Craftsman portable alternator

Here are the diagrams and repair parts for Official Craftsman 580320450 portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

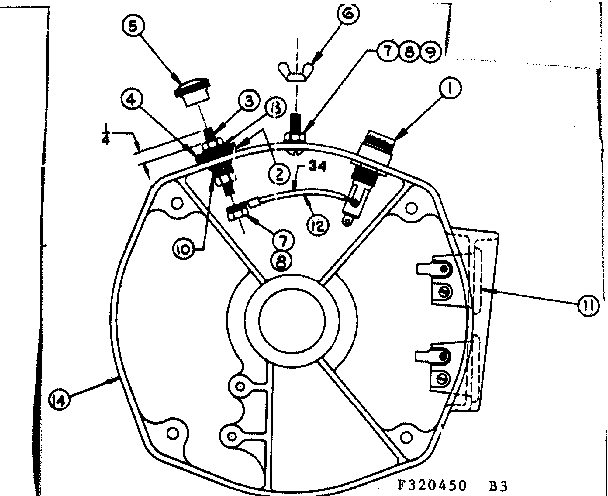

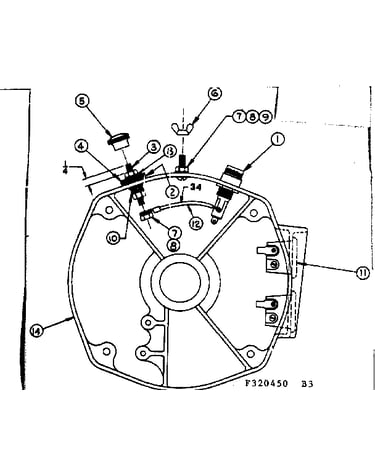

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Screw 24419
#19

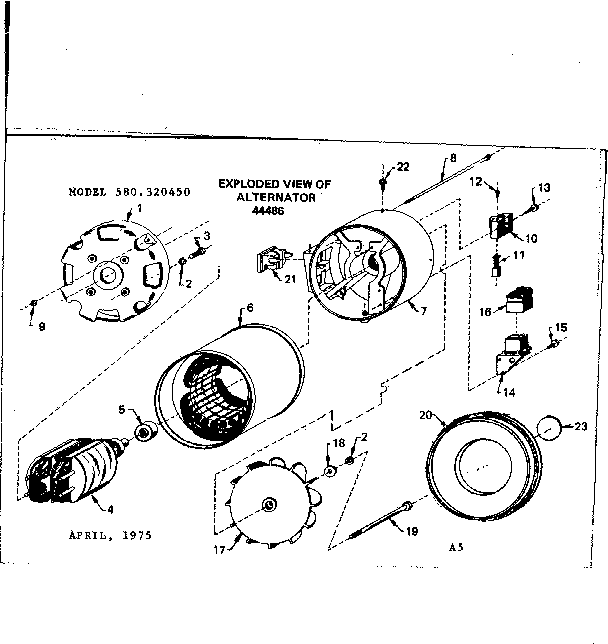

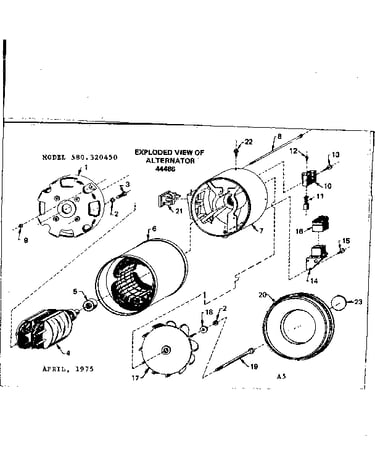

Stator assembly diagram

Screw

Part #24419

Replaced by #24419GS

?
Manufacturer substitution
This part replaces 24419. Substitute parts can look different from the original.
$24.27
In Stock
Reflector 37810
#23

Stator assembly diagram

Reflector

Part #37810

The manufacturer no longer makes this part, and there's no substitute part

U Bolt 36797
#12

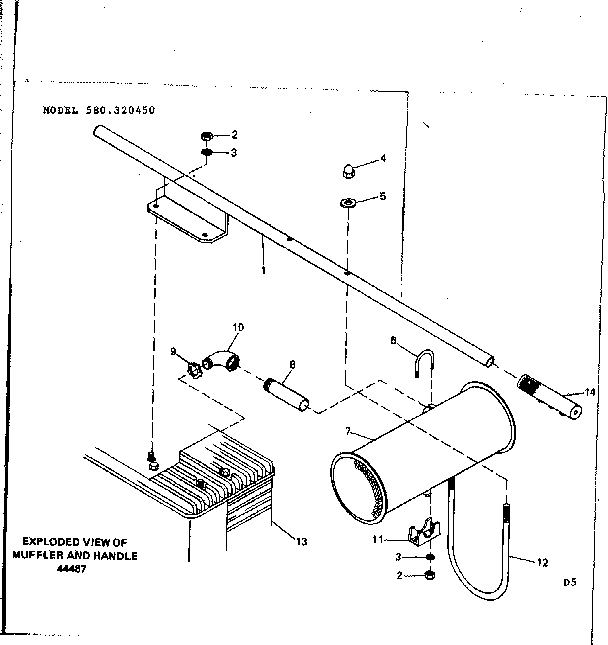

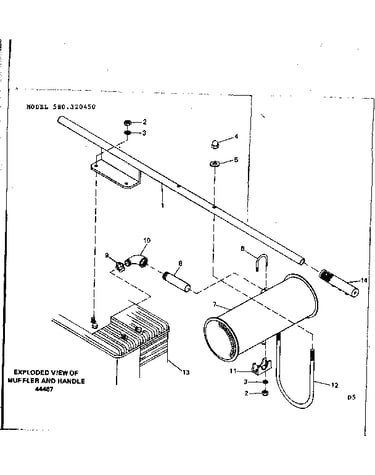

Muffler and handle diagram

U bolt

Part #36797

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 36796
#4

Muffler and handle diagram

Hex nut

Part #36796

The manufacturer no longer makes this part, and there's no substitute part

Spacer 22625
#6

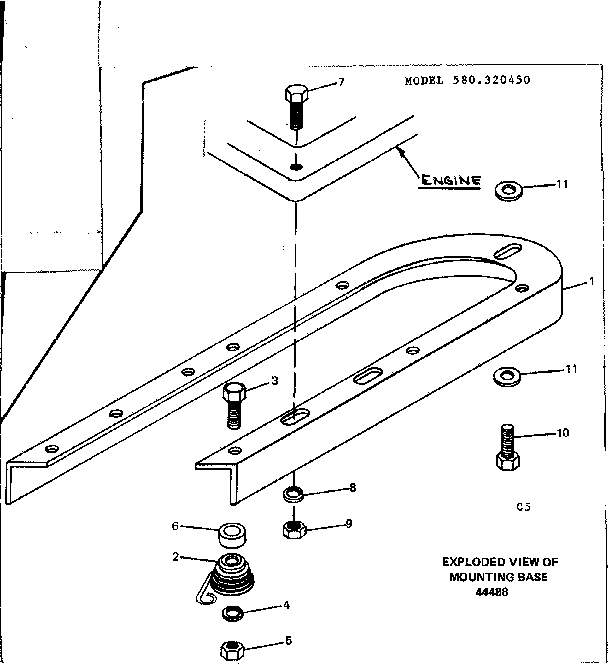

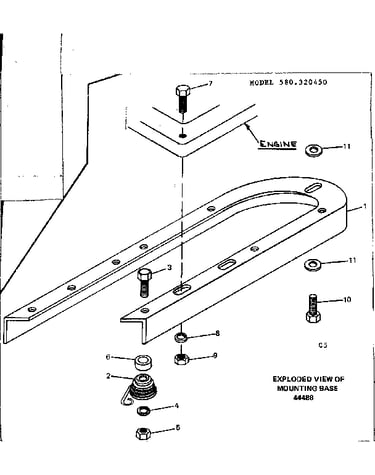

Mounting base diagram

Spacer

Part #22625

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22336
#3

Stator assembly diagram

Cap screw

Part #22336

The manufacturer no longer makes this part, and there's no substitute part

Screw 24490
#10

Mounting base diagram

Screw

Part #24490

The manufacturer no longer makes this part, and there's no substitute part

Adapter Housing 24381
#1

Stator assembly diagram

Adapter housing

Part #24381

The manufacturer no longer makes this part, and there's no substitute part

Rectifier A-22695
#16

Stator assembly diagram

Rectifier

Part #A-22695

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 24237
#9

Stator assembly diagram

Hex nut

Part #24237

The manufacturer no longer makes this part, and there's no substitute part
