Here are the diagrams and repair parts for Official Whirlpool WMH78019HZ3 microwave/hood combo, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

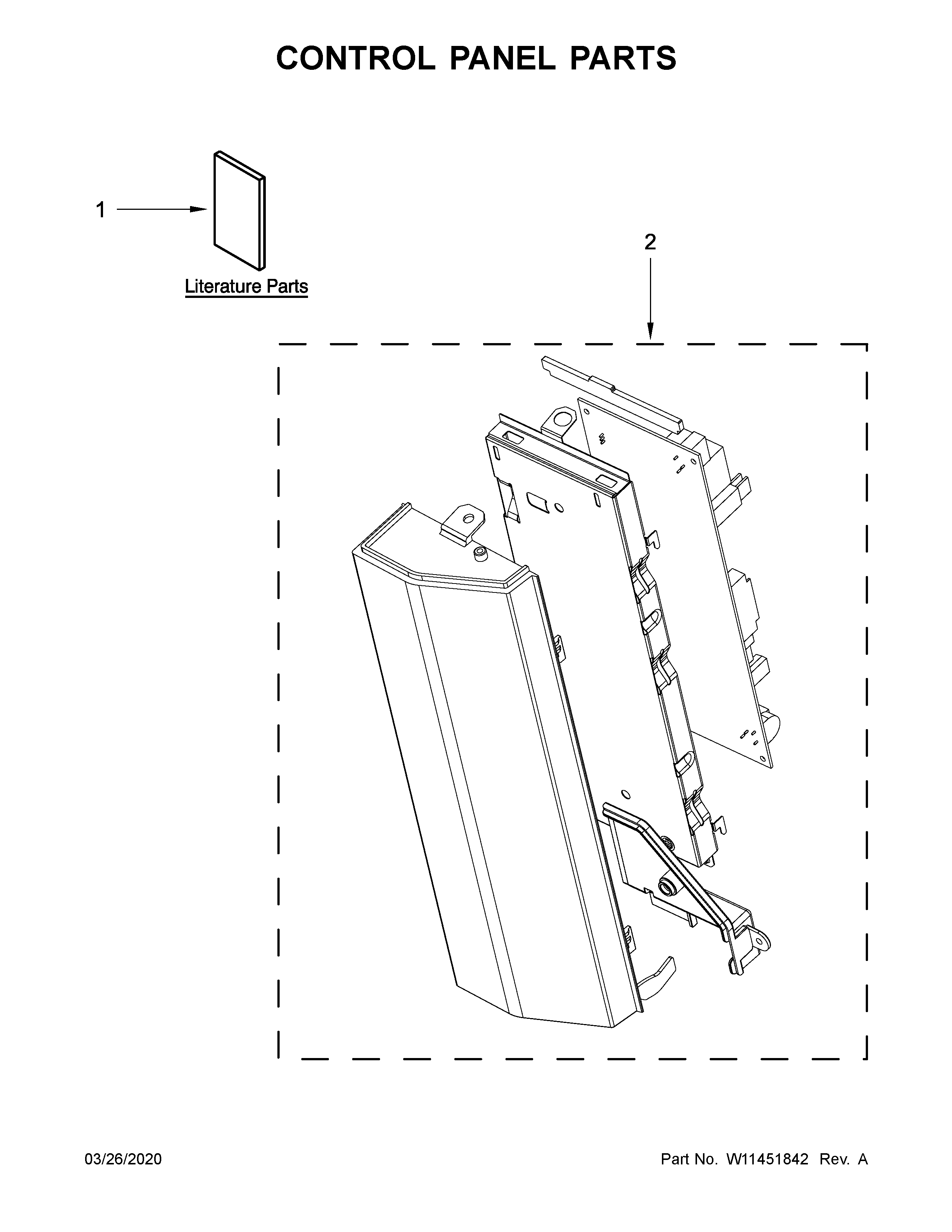

By Schematic

SELECT DIAGRAM

Browse Parts forWMH78019HZ3 MICROWAVE/HOOD COMBO

#26

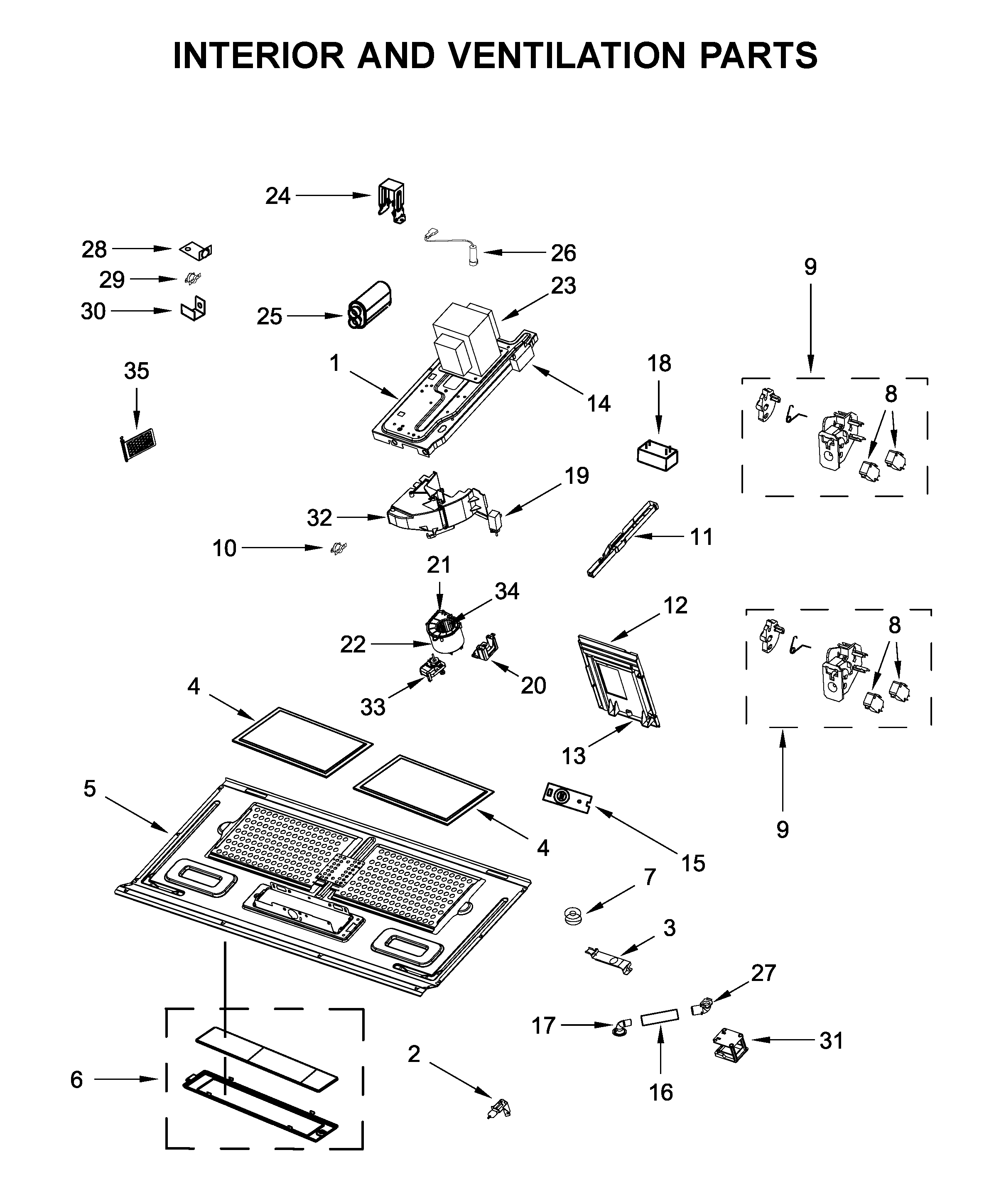

Interior and ventilation parts diagram
Gaoxin-hvd c
Part #W11222648
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W11222648. Substitute parts can look different from the original.
$23.69 |
20% OFF Phone Price : $29.69
In Stock
Qty
#4

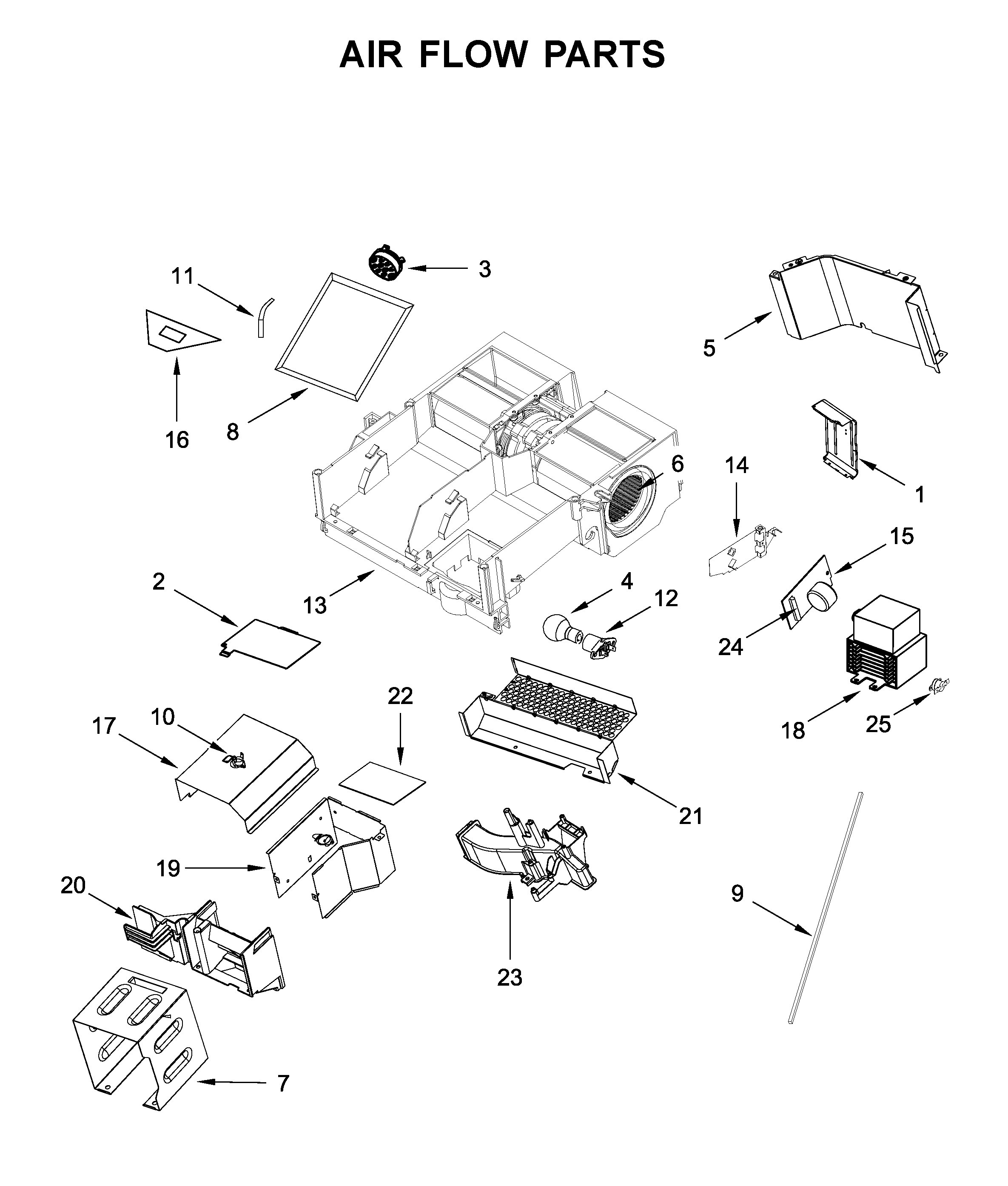

Air flow parts diagram
Lamp assembly
Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
3.9 (26)
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Qty
#24
Air flow parts diagram
Microwave fuse
Part #W10138793
Replaced by #W11707984
?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
$56.17
In Stock
Qty
#8
Air flow parts diagram
Filter
Part #8206230
Replaced by #8206230A
?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
4.8 (9)
$10.60 |
16% OFF Phone Price : $12.60
In Stock
Qty
#25
Interior and ventilation parts diagram
Microwave high-voltage capacitor
Part #W10561770
$33.93 |
15% OFF Phone Price : $39.93
In Stock
Qty
#7

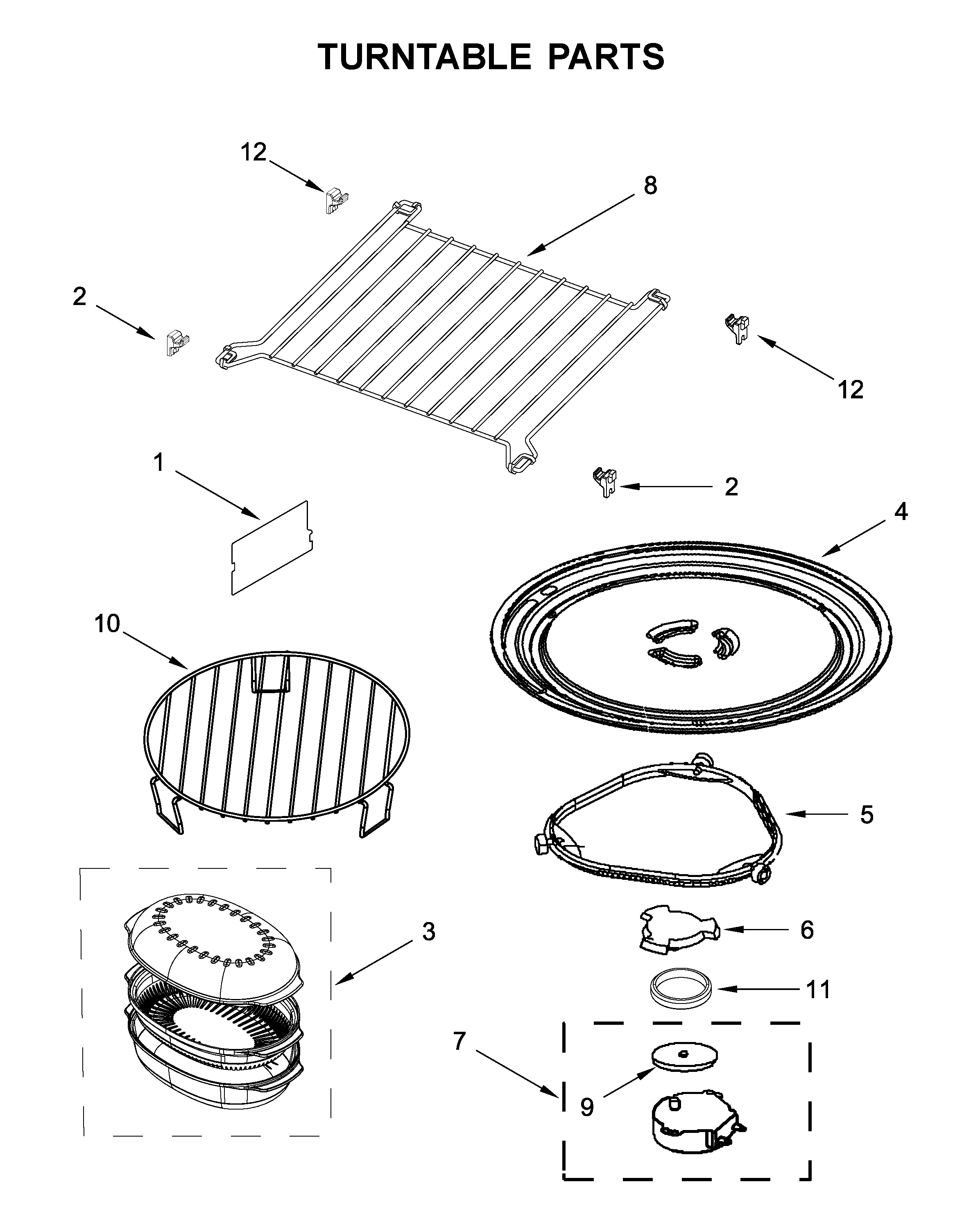

Turntable parts diagram
Turntable motor
Part #W10466420
Replaced by #WPW10466420
?
Manufacturer substitution
This part replaces W10466420. Substitute parts can look different from the original.
5 (5)
$36.50 |
14% OFF Phone Price : $42.50
In Stock
Qty
#1

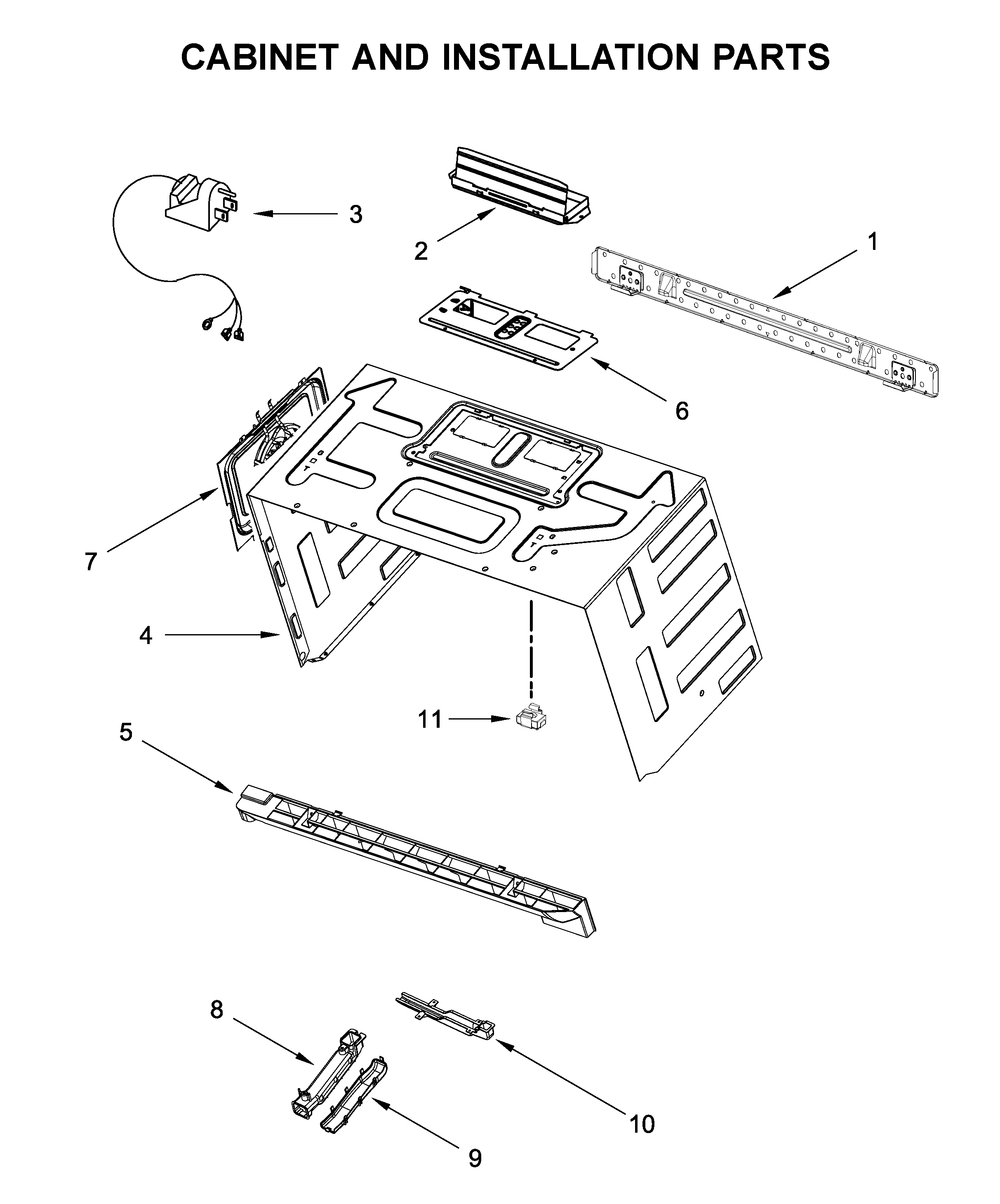

Cabinet and installation parts diagram
Microwave mounting plate
Part #W11025649
3.7 (7)
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Qty
#1B

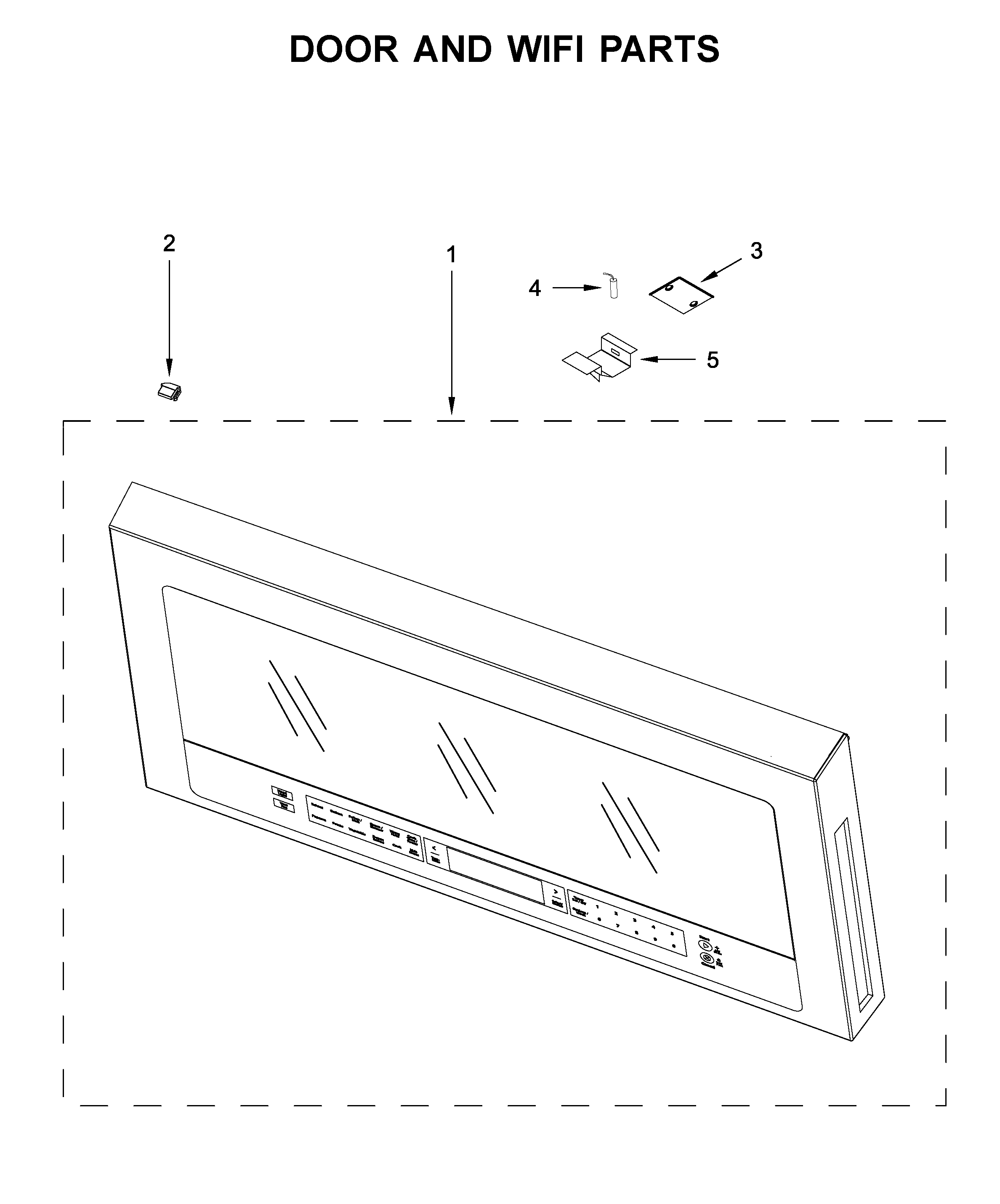

Door and wifi parts diagram
Microwave door assembly (stainless)
Part #W11196131
$359.32 |
$12.00 OFF Phone Price : $371.32
Back Order
Qty
#6
Turntable parts diagram
Microwave turntable motor coupler
Part #W10337248
4 (5)
This item is not returnable
$5.57 |
15% OFF Phone Price : $6.57
In Stock
Qty
#NI
Cabinet and installation parts diagram
Microwave installation template
Part #W10190018
2.3 (3)
This item is not returnable
$4.83 |
24% OFF Was : $6.39
In Stock
Qty
