Model # DCL333EA1WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DCL333EA1WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Selector Knob WE01X10156
#29

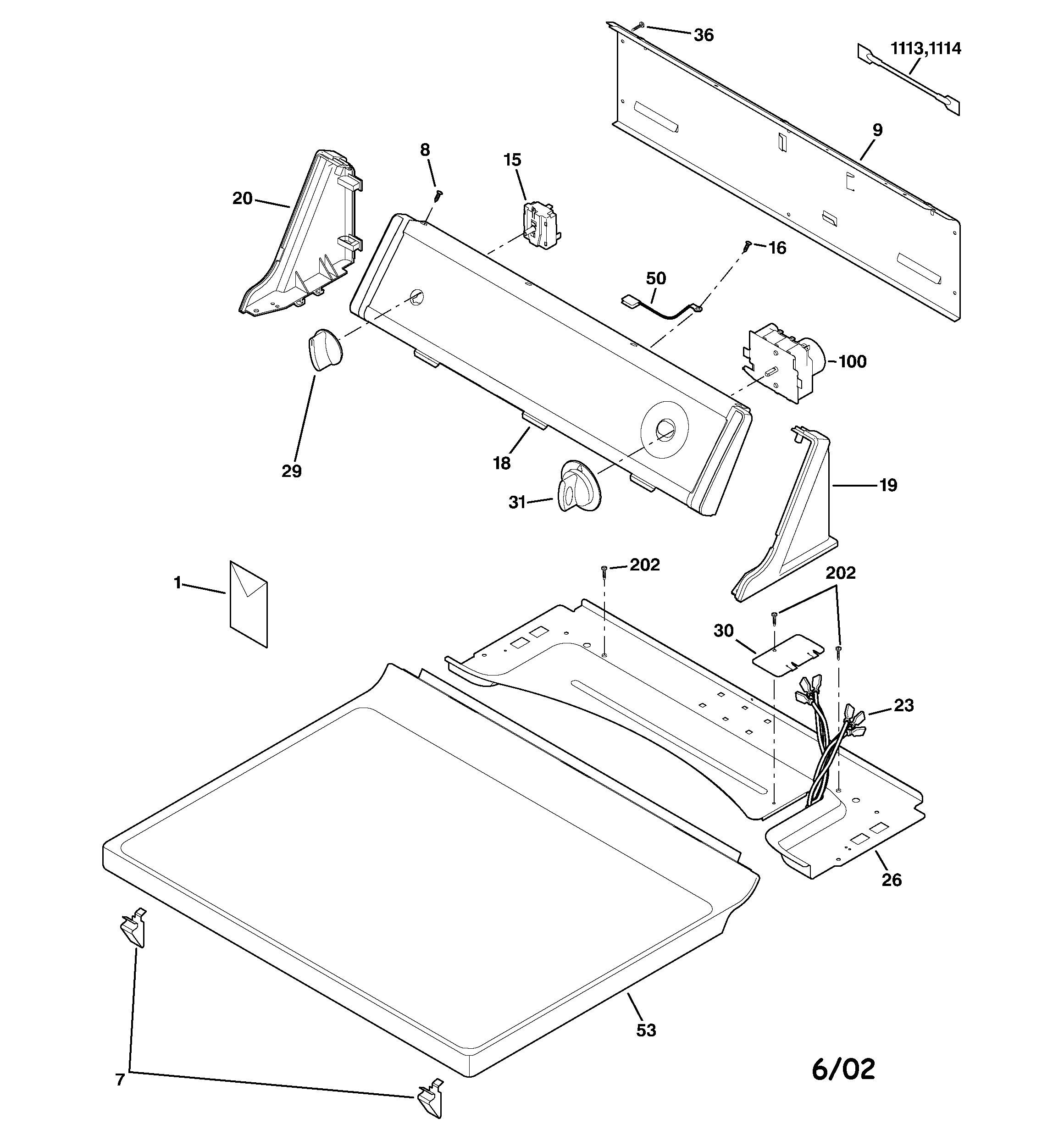

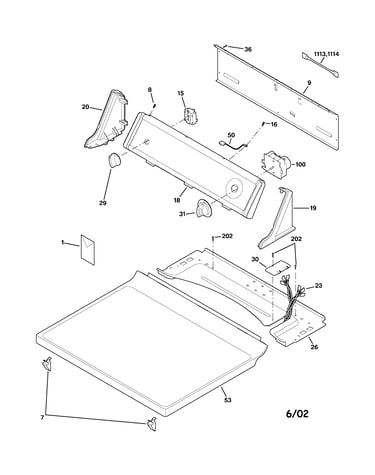

Controls & top panel diagram

Selector knob

Part #WE01X10156

Replaced by #WH1X2721

?
Manufacturer substitution
This part replaces WE01X10156. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.00 |
14% OFF Phone Price : $7.00
In Stock
Dryer Drum Felt Seal, Upper WE09X10013
#1220

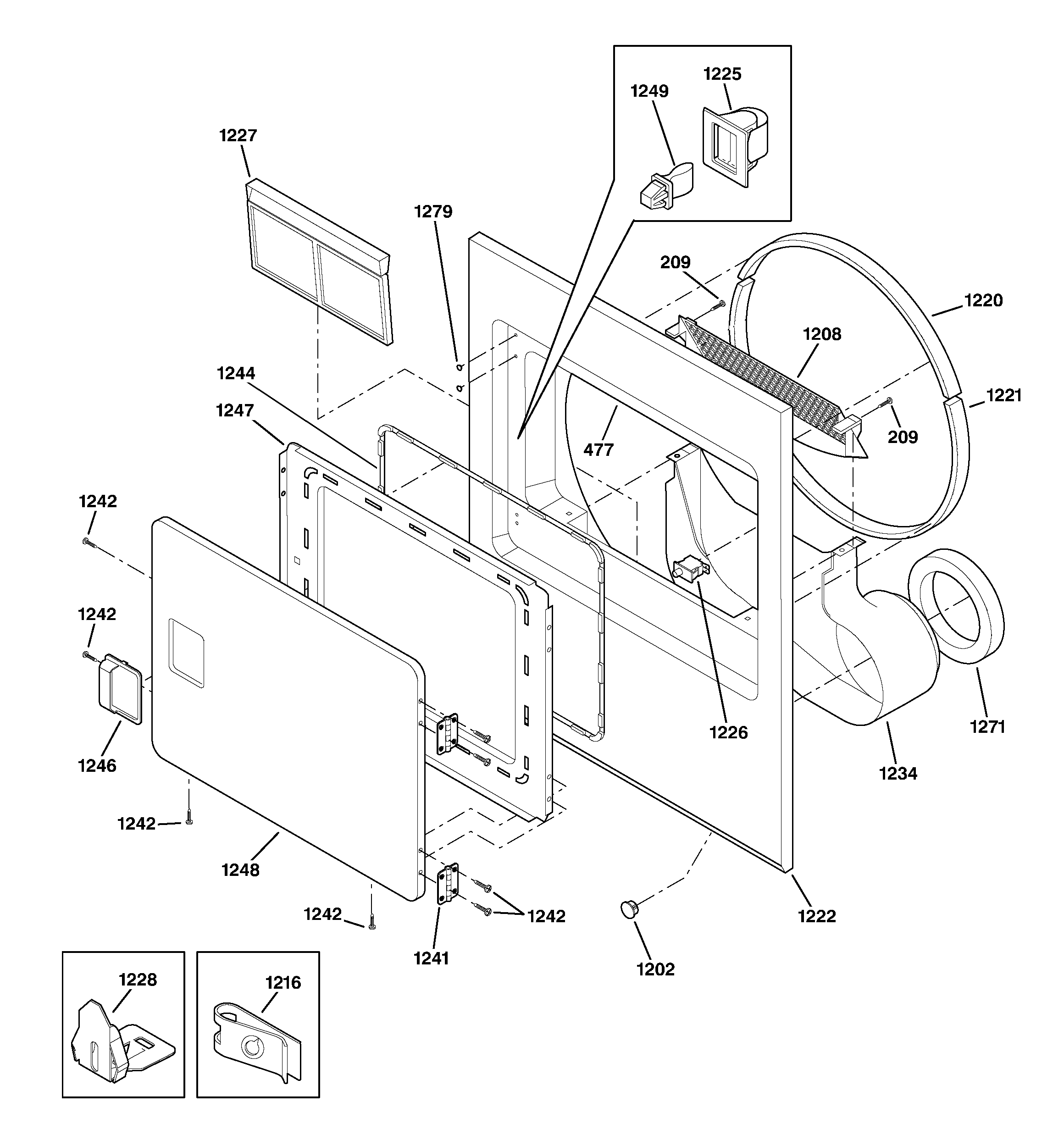

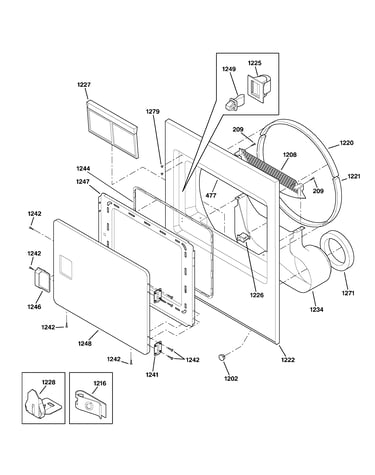

Front panel & door diagram

Dryer drum felt seal, upper

Part #WE09X10013

$76.76 |
7% OFF Phone Price : $82.76
In Stock
Dryer Drum Ball Hitch (replaces We13x0212, We13x10043, We13x212) WE13X10011
#1232

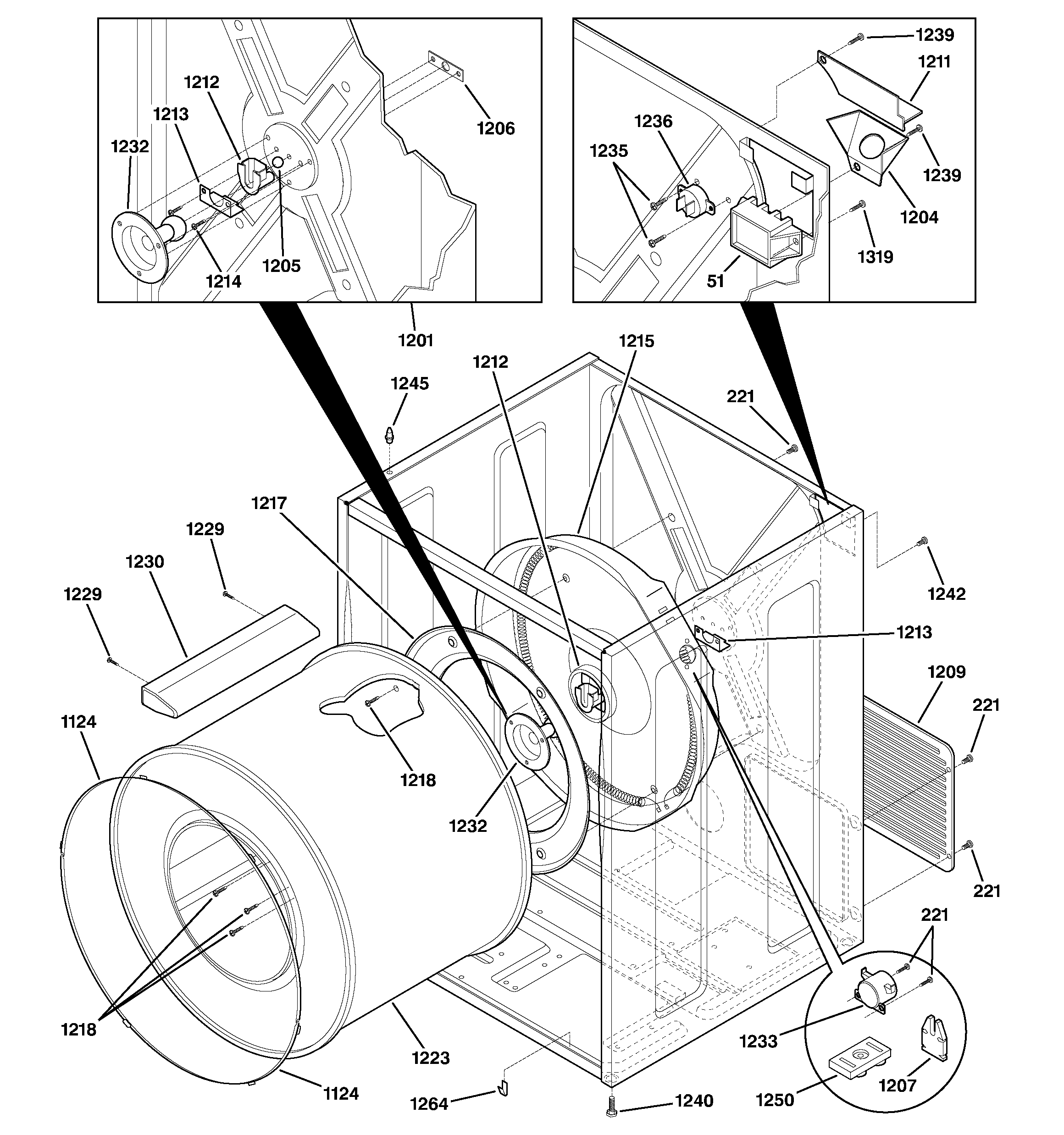

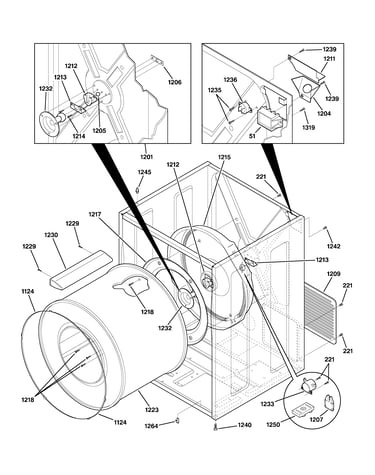

Cabinet & drum diagram

Dryer drum ball hitch (replaces we13x0212, we13x10043, we13x212)

Part #WE13X10011

$87.93 |
6% OFF Phone Price : $93.93
In Stock
Dryer Rear Bearing Kit WE25X10001
#1201

Cabinet & drum diagram

Dryer rear bearing kit

Part #WE25X10001

$90.31 |
6% OFF Phone Price : $96.31
In Stock
Dryer Drum Front Glide WE03X10007
#1124

Cabinet & drum diagram

Dryer drum front glide

Part #WE03X10007

$26.13 |
19% OFF Phone Price : $32.13
In Stock
Dryer Thermal Limiter WE04X10094
#1236

Cabinet & drum diagram

Dryer thermal limiter

Part #WE04X10094

$49.91 |
11% OFF Phone Price : $55.91
In Stock
Dryer Operating Thermostat WE04X10028
#1315

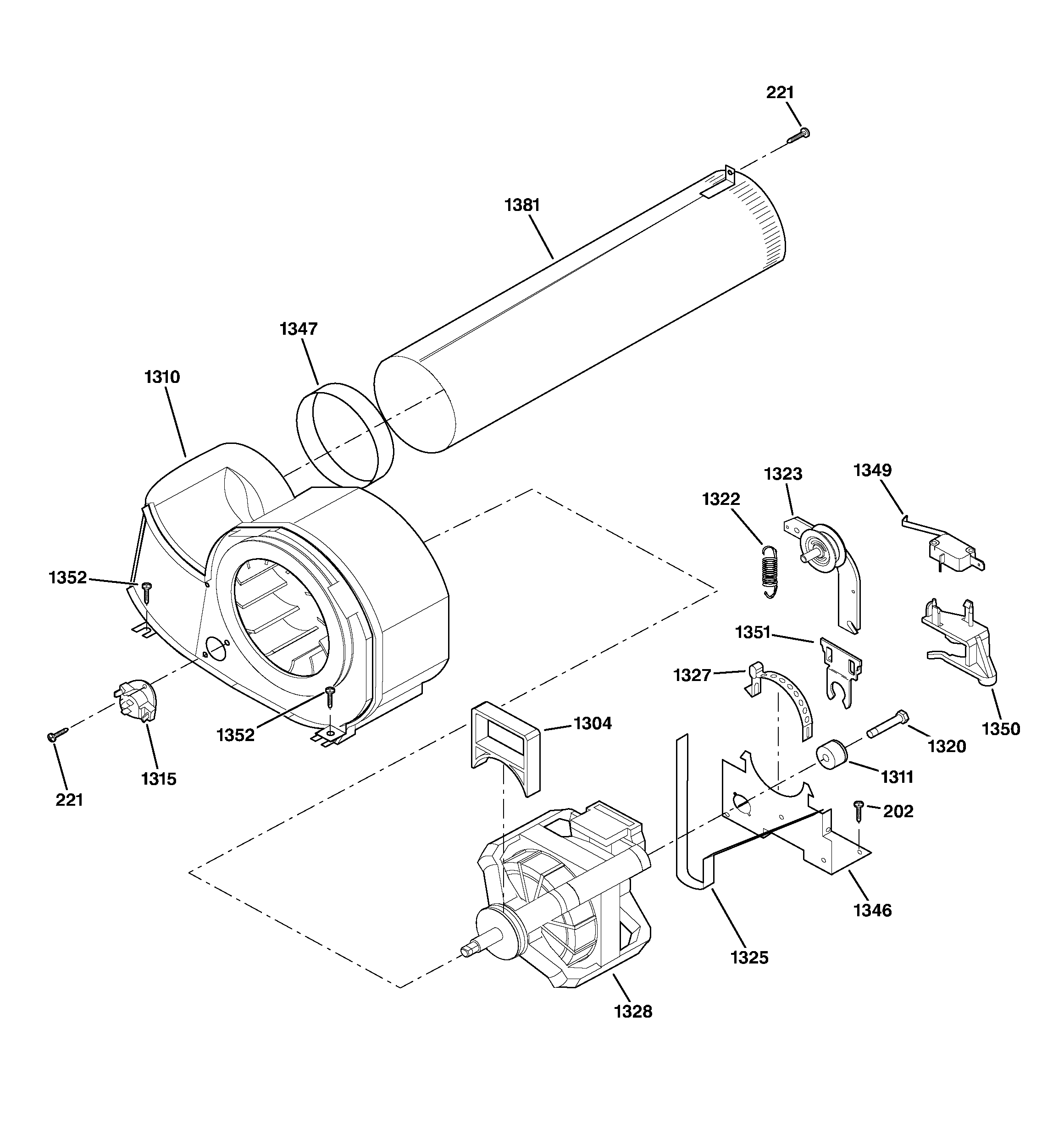

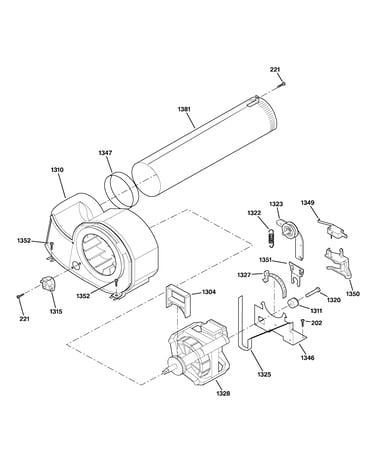

Motor diagram

Dryer operating thermostat

Part #WE04X10028

$39.19 |
24% OFF Was : $51.44
In Stock
Dryer Drum Felt Seal, Lower WE09X10014
#1221

Front panel & door diagram

Dryer drum felt seal, lower

Part #WE09X10014

The manufacturer no longer makes this part, and there's no substitute part

Dryer Timer WE04X10042
#100

Controls & top panel diagram

Dryer timer

Part #WE04X10042

$178.99 |
6% OFF Phone Price : $190.99
In Stock
Dryer Drive Motor WE17X10002
#1328

Motor diagram

Dryer drive motor

Part #WE17X10002

Replaced by #WE17X23466

?
Manufacturer substitution
This part replaces WE17X10002. Substitute parts can look different from the original.
$182.91
In Stock
