Sharp
Countertop Microwave

Model # R-4W38 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-4W38 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

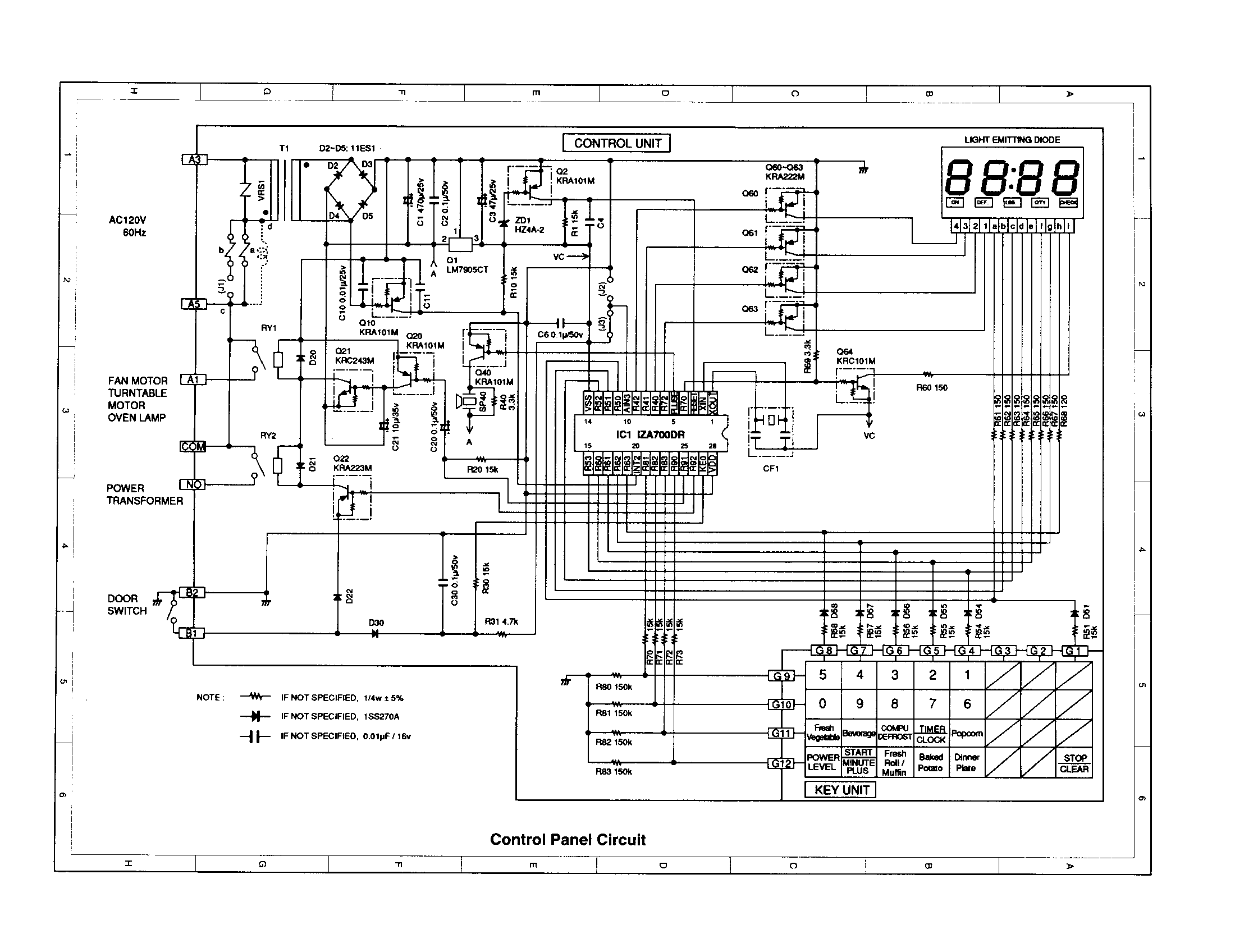

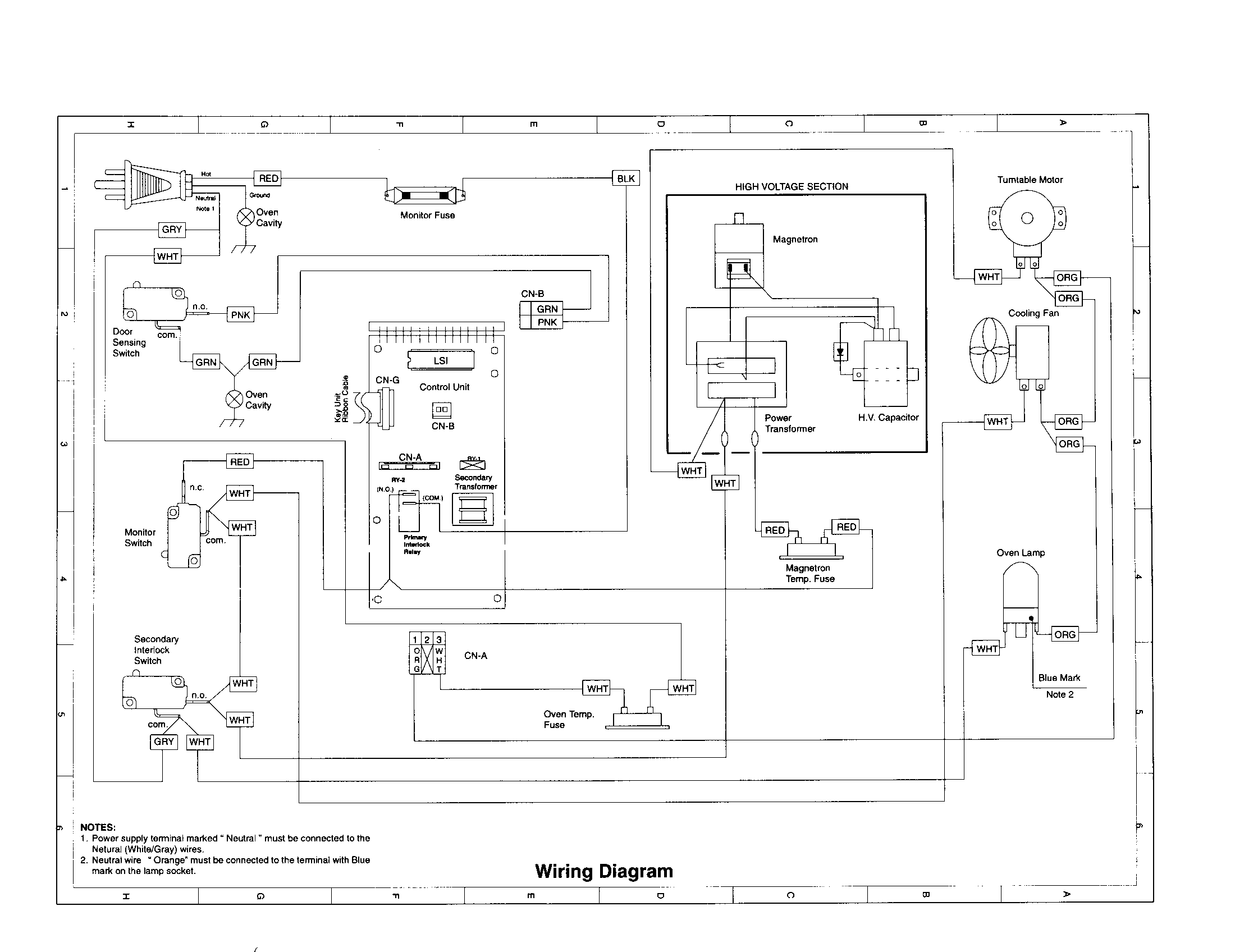

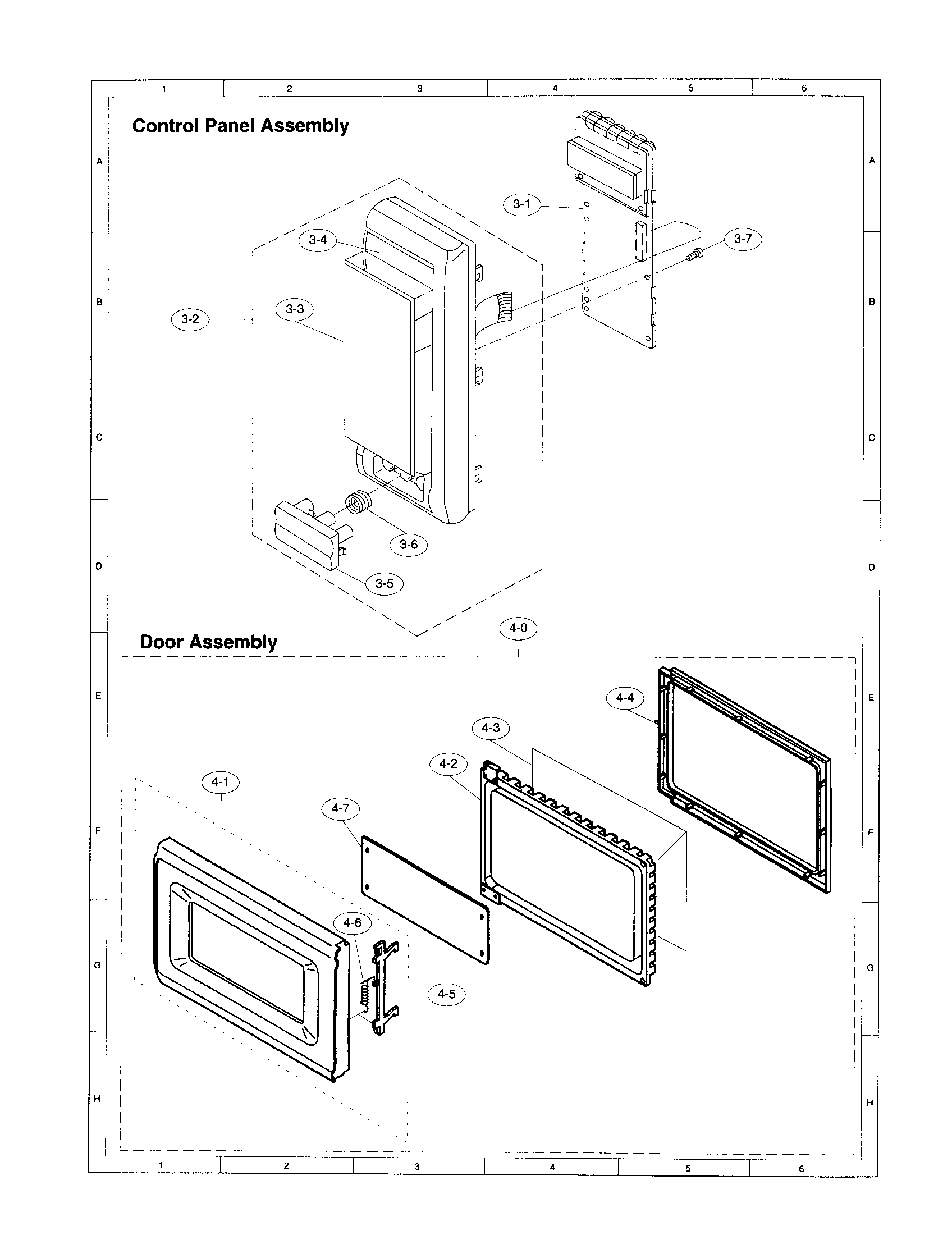

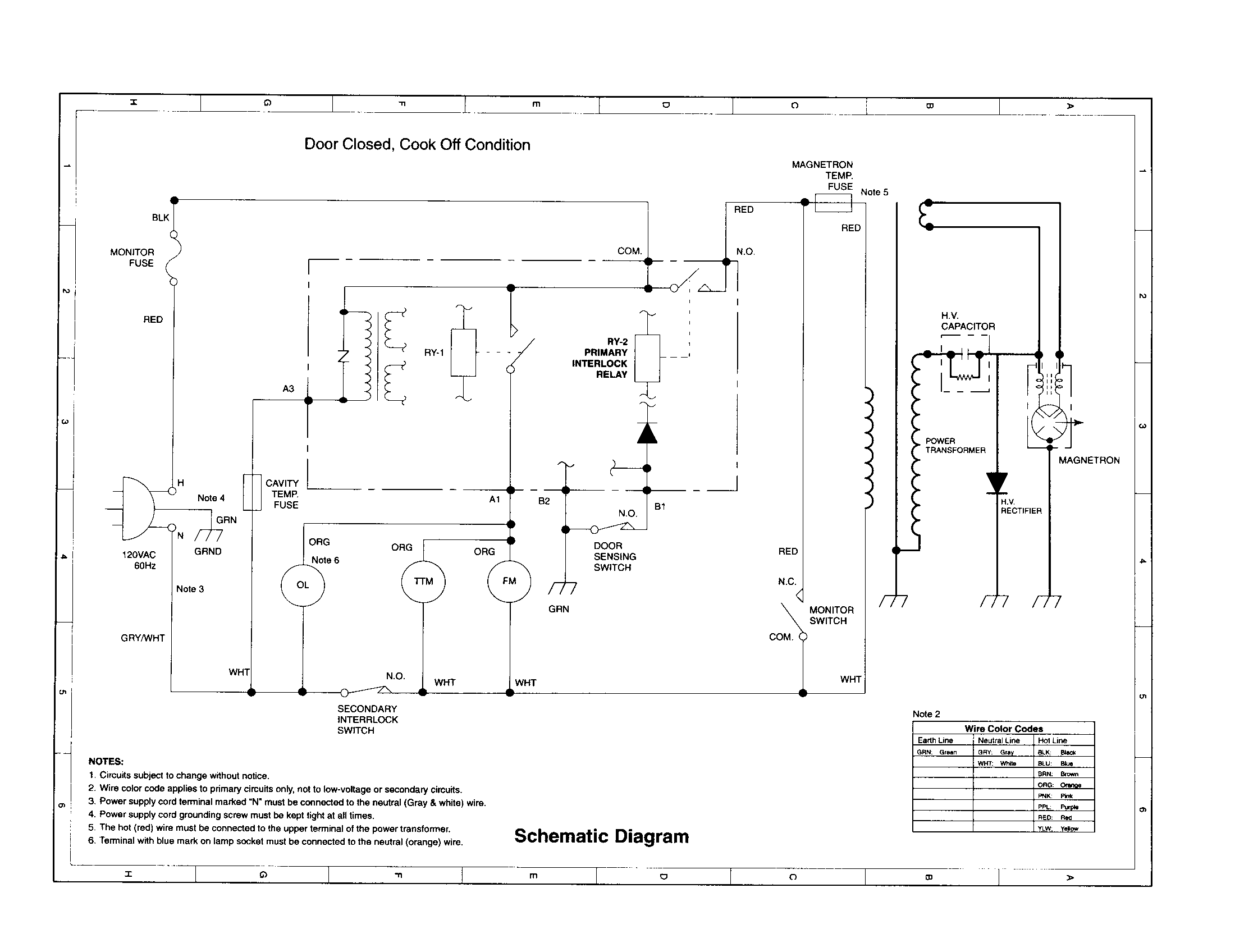

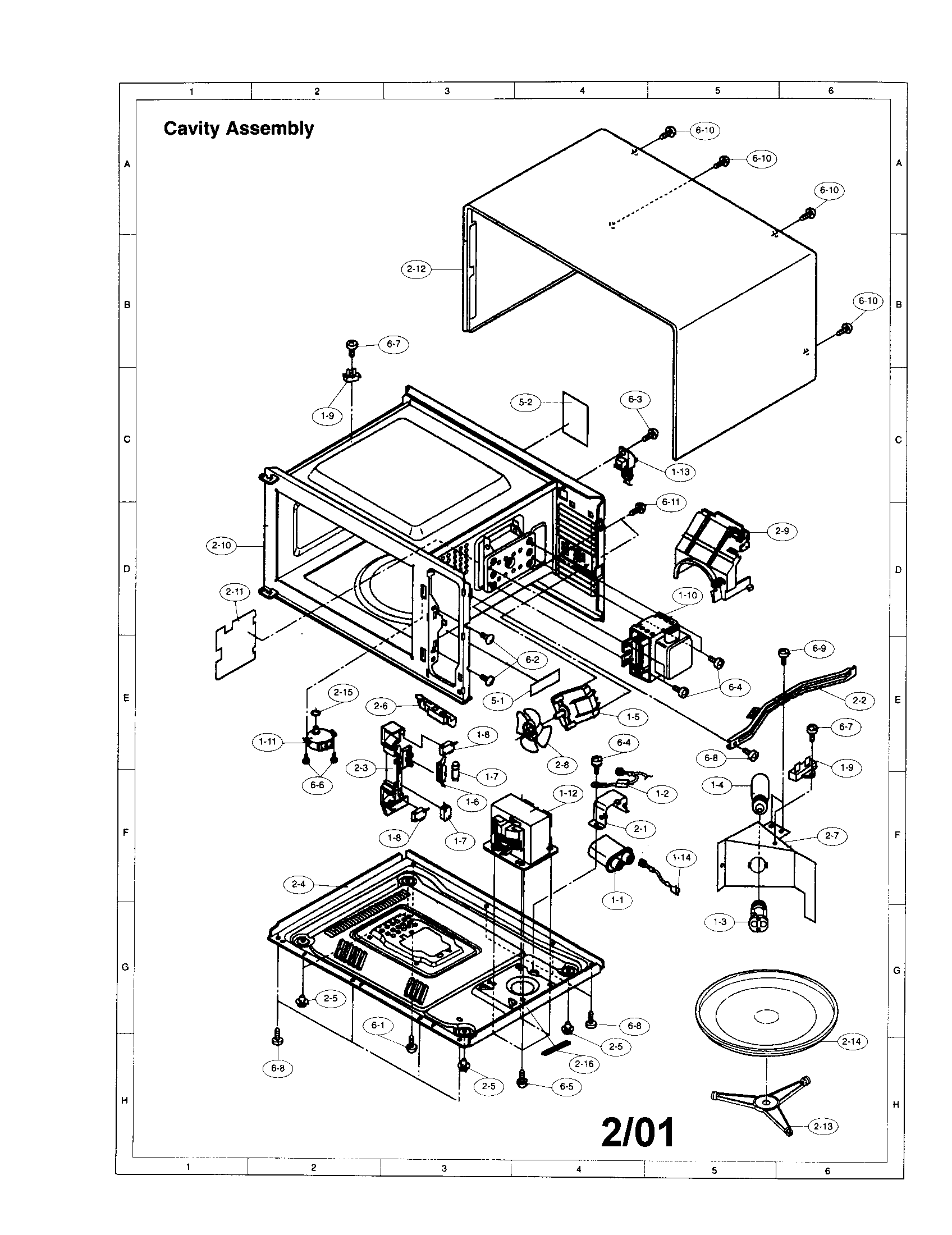

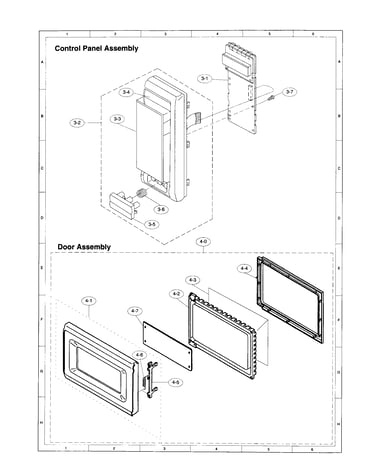

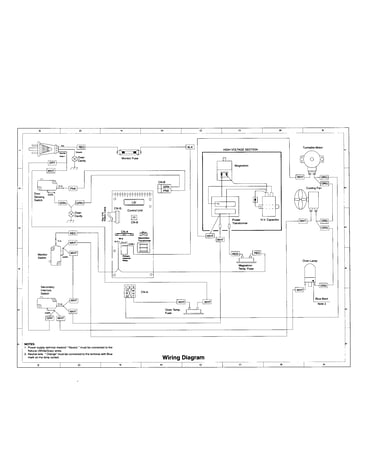

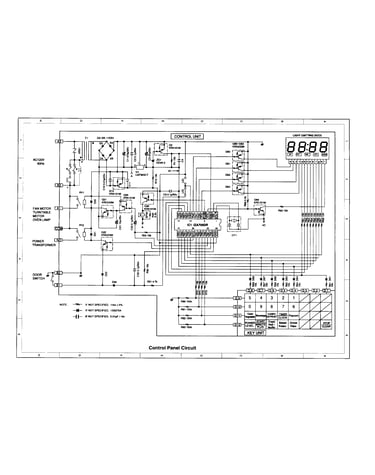

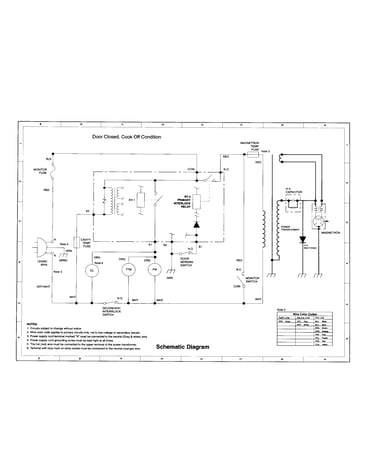

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Magnetron RV-MZA245WRE0

#1-10

All parts diagram

Magnetron

Part #RV-MZA245WRE0

The manufacturer no longer makes this part, and there's no substitute part

Switch FFS-BA016/KIT

#1-07

All parts diagram

Switch

Part #FFS-BA016/KIT

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDB001MRE0

#1-13

All parts diagram

Power cord

Part #FACCDB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Packing PPACGB014MRF0

#2-15

All parts diagram

Packing

Part #PPACGB014MRF0

The manufacturer no longer makes this part, and there's no substitute part

Transistor VSKRA101M//-3

#NI

All parts diagram

Transistor

Part #VSKRA101M//-3

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket QSOCLB006MRE0

#1-03

All parts diagram

Lamp socket

Part #QSOCLB006MRE0

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cu QFS-TB006MRE0

#1-09

All parts diagram

Thermal cu

Part #QFS-TB006MRE0

The manufacturer no longer makes this part, and there's no substitute part

Foot GLEGPB003MRF0

#2-05

All parts diagram

Foot

Part #GLEGPB003MRF0

The manufacturer no longer makes this part, and there's no substitute part

Tray NTNT-A036WRE0

#2-14

All parts diagram

Tray

Part #NTNT-A036WRE0

The manufacturer no longer makes this part, and there's no substitute part

T/table FROLPB018MRK0

#2-13

All parts diagram

T/table

Part #FROLPB018MRK0

The manufacturer no longer makes this part, and there's no substitute part
