Magic Chef
Electric Wall Oven

Model # C9875XVB Official Magic Chef electric wall oven

Here are the diagrams and repair parts for Official Magic Chef C9875XVB electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

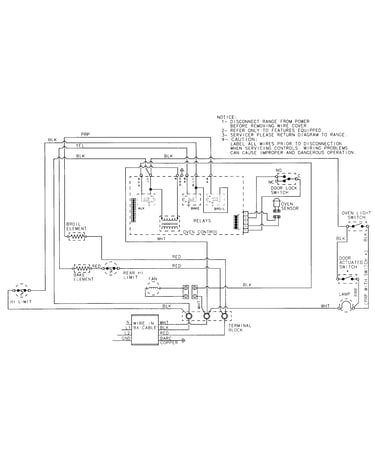

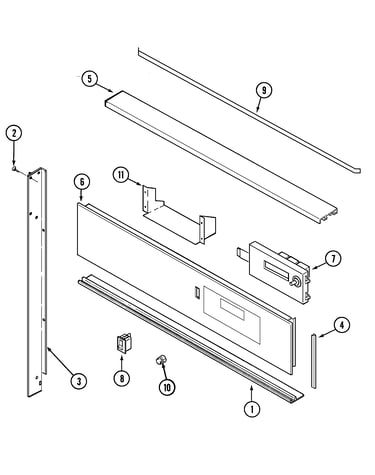

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Oven Bulb 7407P103-60
#8

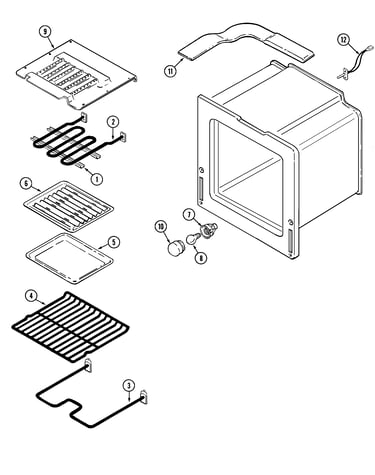

Oven diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Terminal Block 7401P038-60
#7

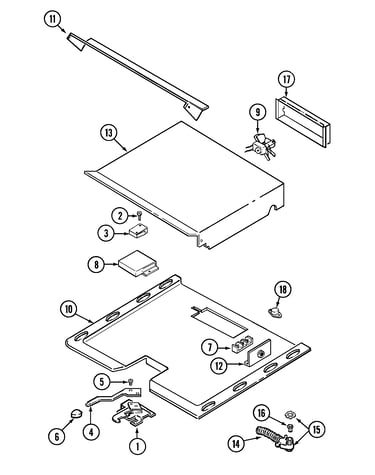

Internal controls diagram

Terminal block

Part #7401P038-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P038-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Door Gasket 7201P046-60
Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Screw 7101P290-60
#3A

Oven diagram

Screw

Part #7101P290-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P290-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Panel Screw 7101P041-60
#15A

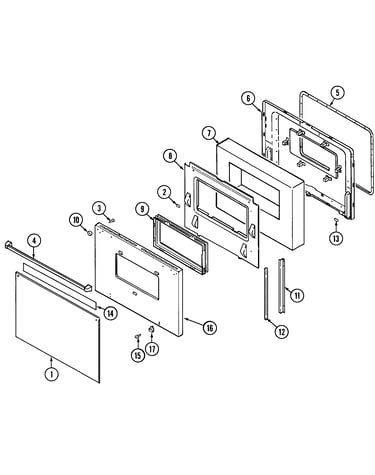

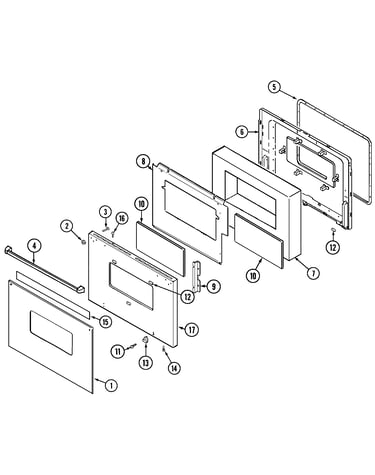

Door diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P115-60
#8

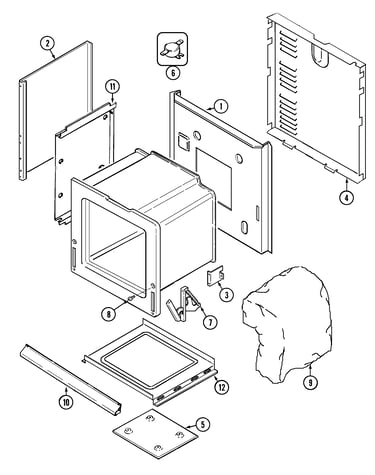

Body diagram

Screw

Part #7101P115-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P115-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Oven Rack 7801P047-60
#4

Oven diagram

Oven rack

Part #7801P047-60

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 7801P047-60. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Lever Screw 7101P230-60
#5

Internal controls diagram

Lever screw

Part #7101P230-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P230-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Bake Element 7406P078-60
#3

Oven diagram

Bake element

Part #7406P078-60

Replaced by #WP74003020

?
Manufacturer substitution
This part replaces 7406P078-60. Substitute parts can look different from the original.
$82.69 |
7% OFF Phone Price : $88.69
In Stock
