Model # U5468-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5468-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |

Vacuum Hose Holder 36433137
#4

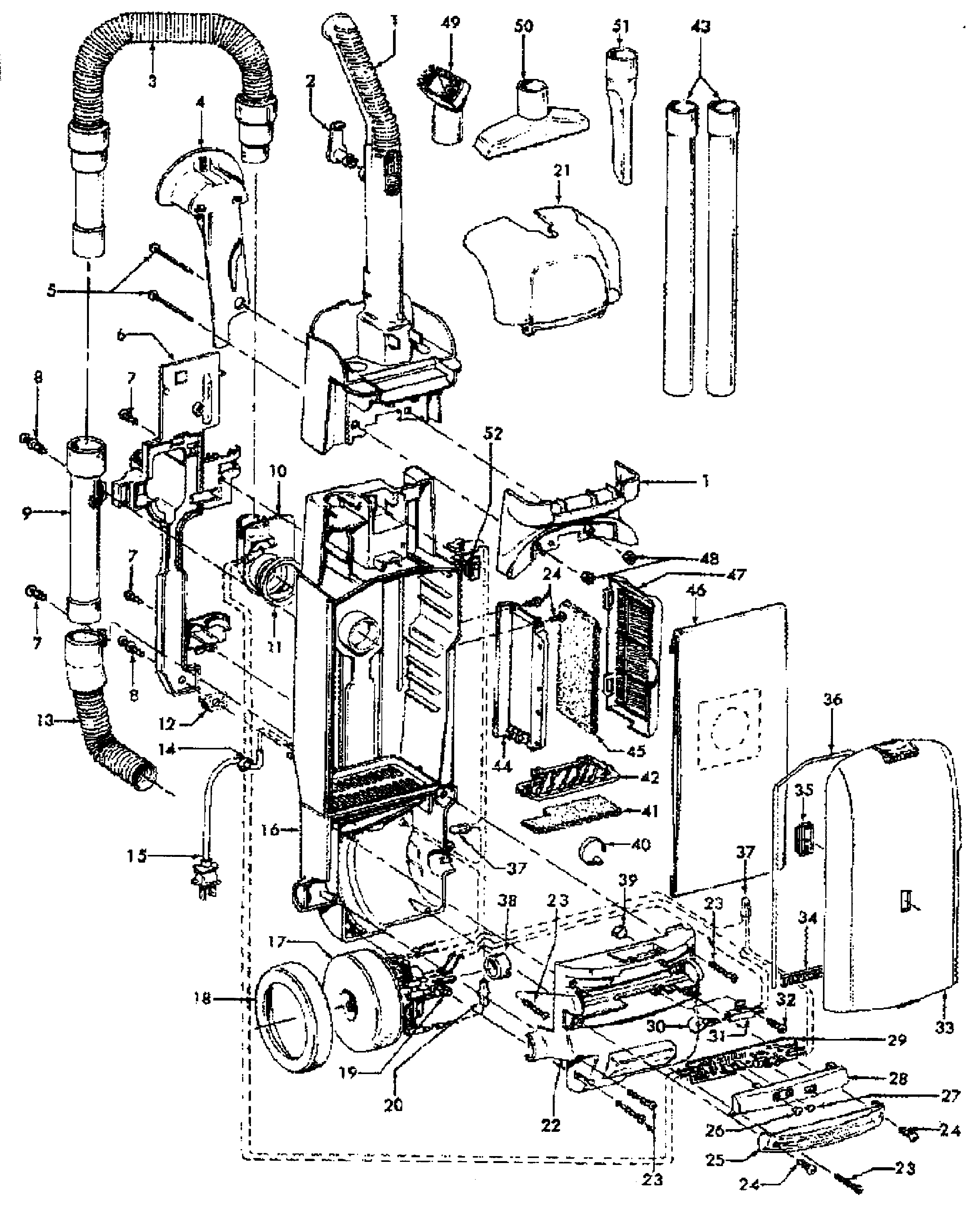

Main body diagram

Vacuum hose holder

Part #36433137

The manufacturer no longer makes this part, and there's no substitute part

Lit.pick/e 39511018
#23A

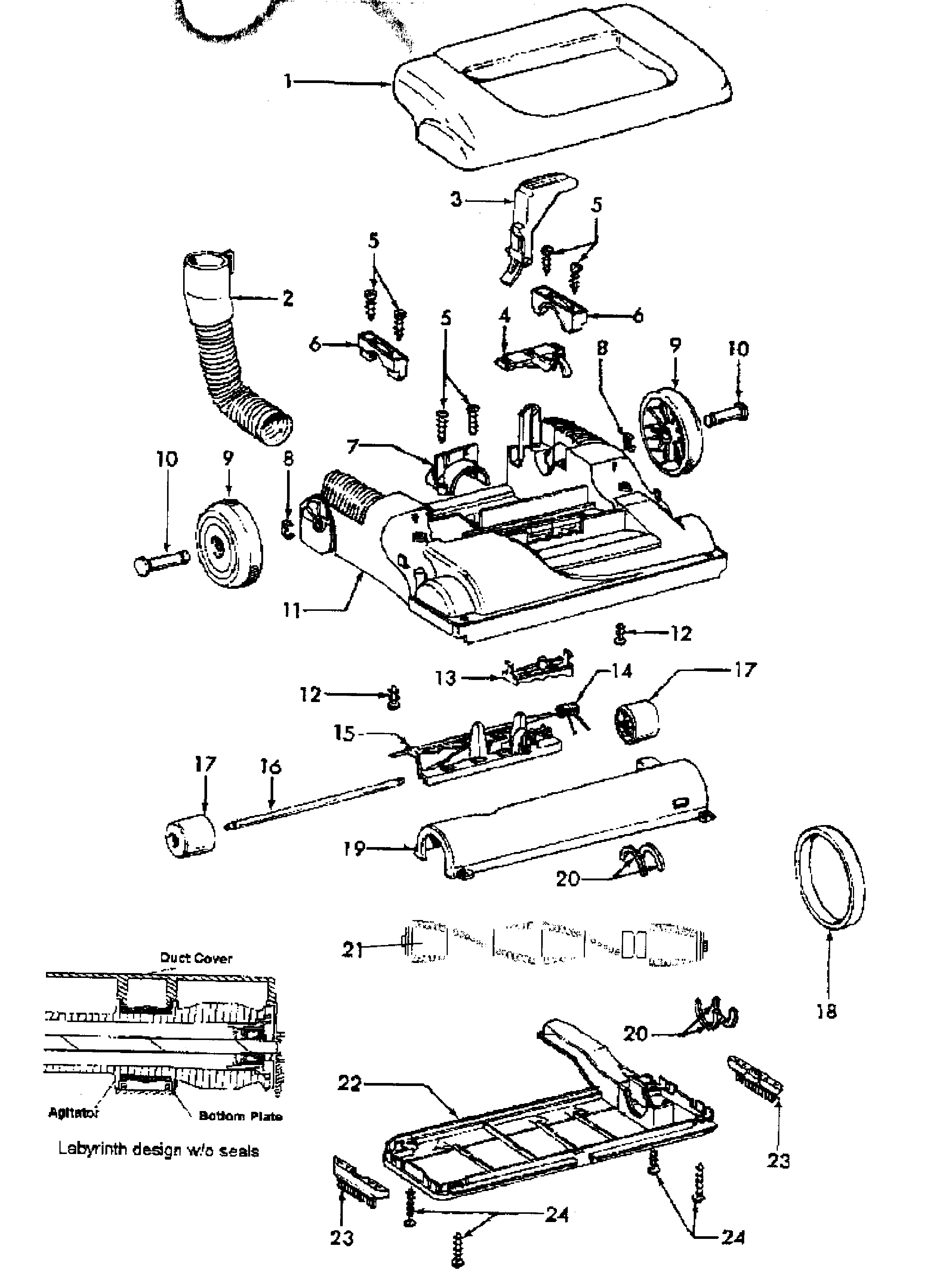

Hose assy diagram

Lit.pick/e

Part #39511018

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#14

Hose assy diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Duct 47823003
#10

Main body diagram

Duct

Part #47823003

The manufacturer no longer makes this part, and there's no substitute part

Holdr-filt 36426033
#44

Main body diagram

Holdr-filt

Part #36426033

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord 46383334
#15

Main body diagram

Vacuum power cord

Part #46383334

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528033
#18

Hose assy diagram

Vacuum beater bar belt

Part #38528033

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Screw 23149002
#8

Main body diagram

Regina carpet cleaner screw

Part #23149002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Assembly 27212057
#17

Main body diagram

Vacuum motor assembly

Part #27212057

The manufacturer no longer makes this part, and there's no substitute part

Gasket 34123050
#34

Main body diagram

Gasket

Part #34123050

The manufacturer no longer makes this part, and there's no substitute part
