Model # FFEC3624PSA Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FFEC3624PSA cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

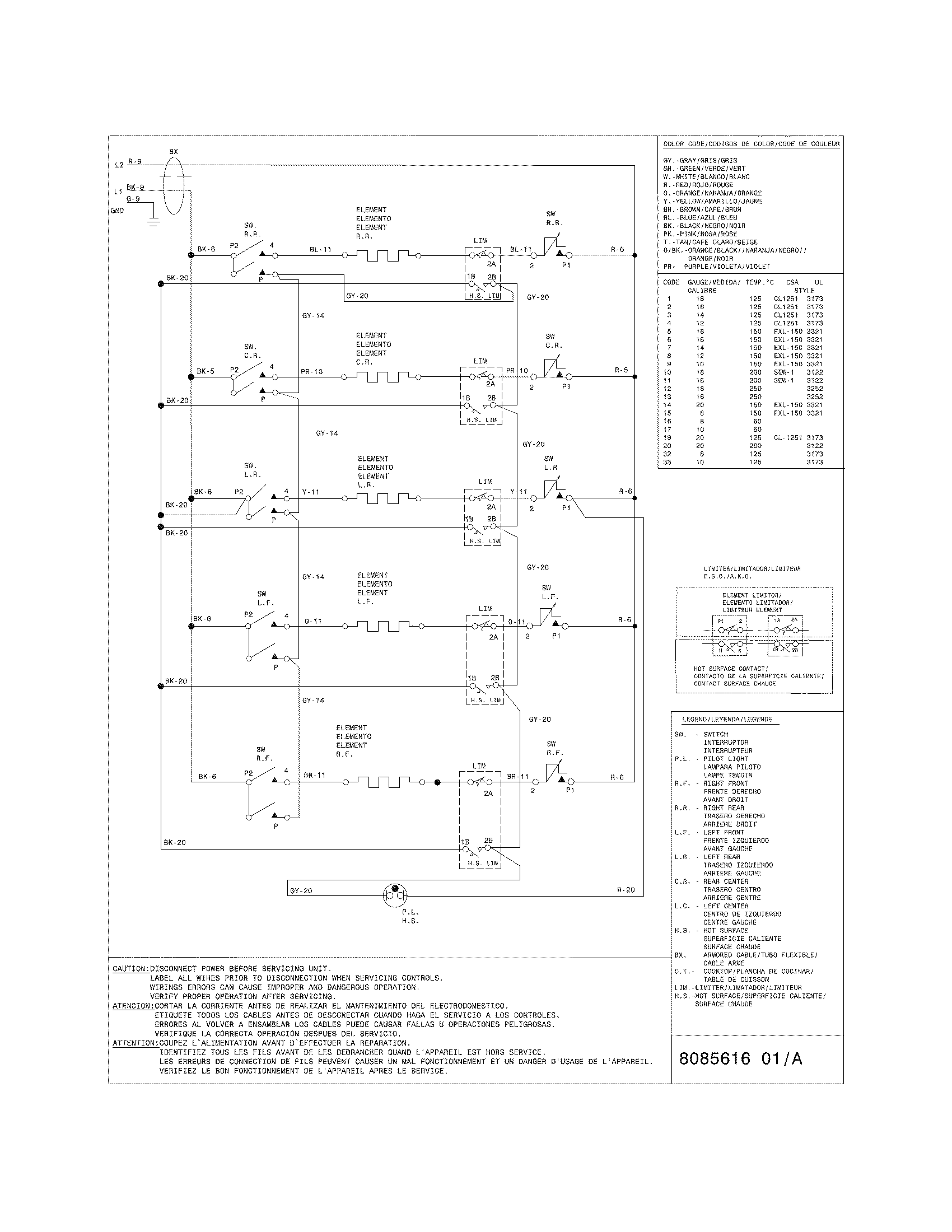

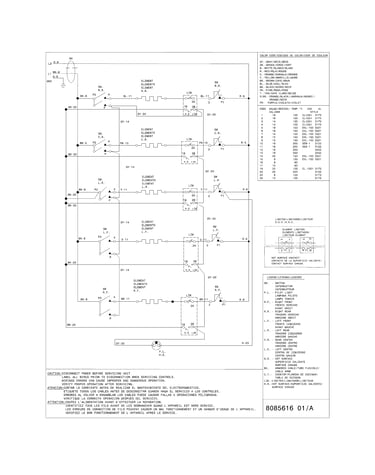

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |

Cooktop Element Control Switch 305458905
#5

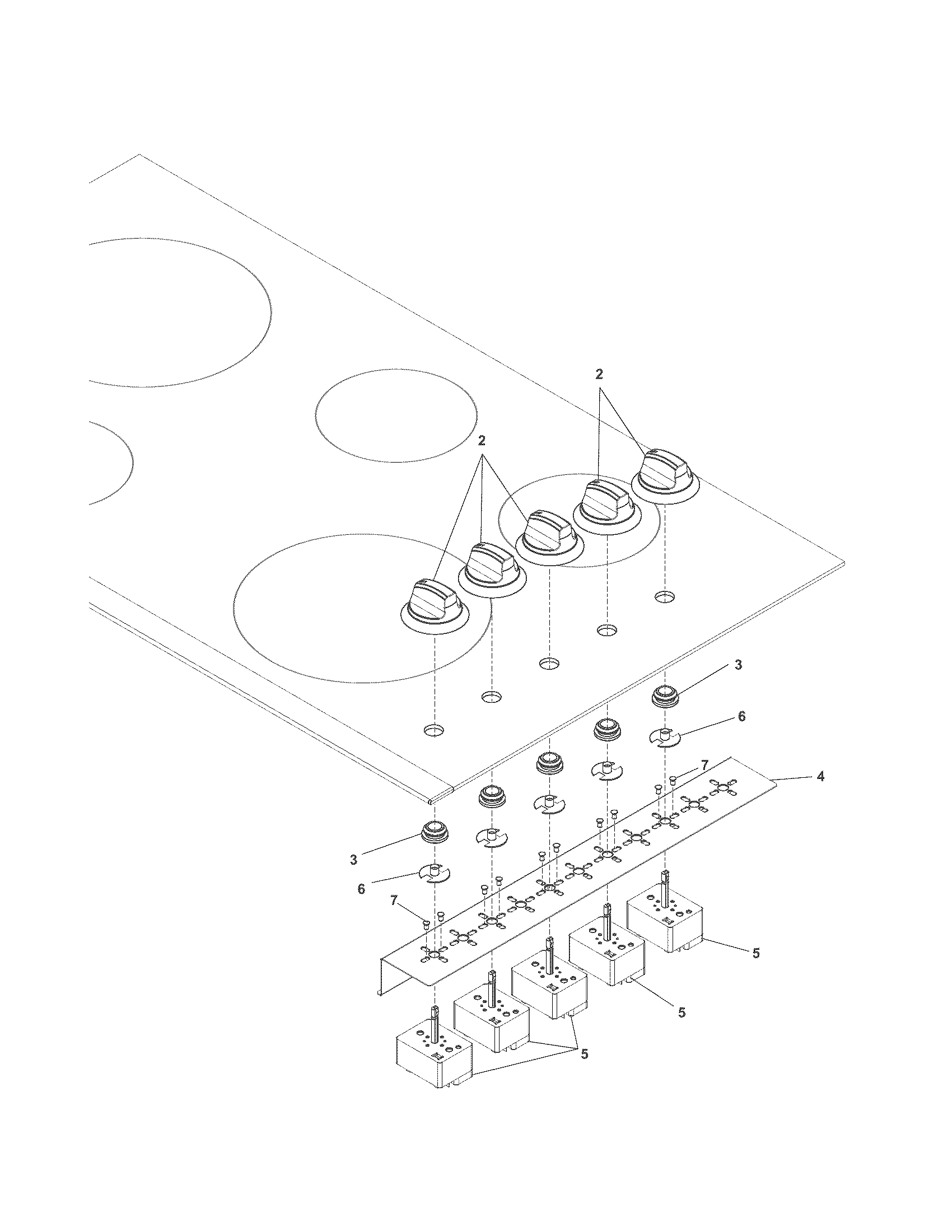

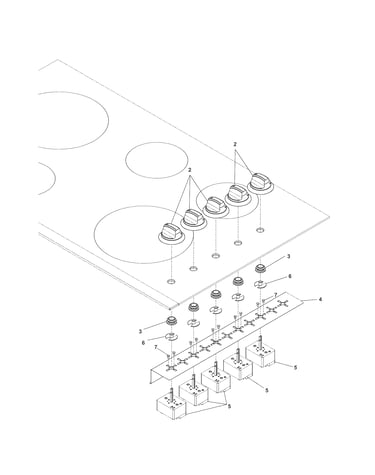

Control panel diagram

Cooktop element control switch

Part #305458905

Replaced by #5304526190

?
Manufacturer substitution
This part replaces 305458905. Substitute parts can look different from the original.
$58.18
9% OFF Phone Price : $64.18
In Stock
Screw 305376101
#NI

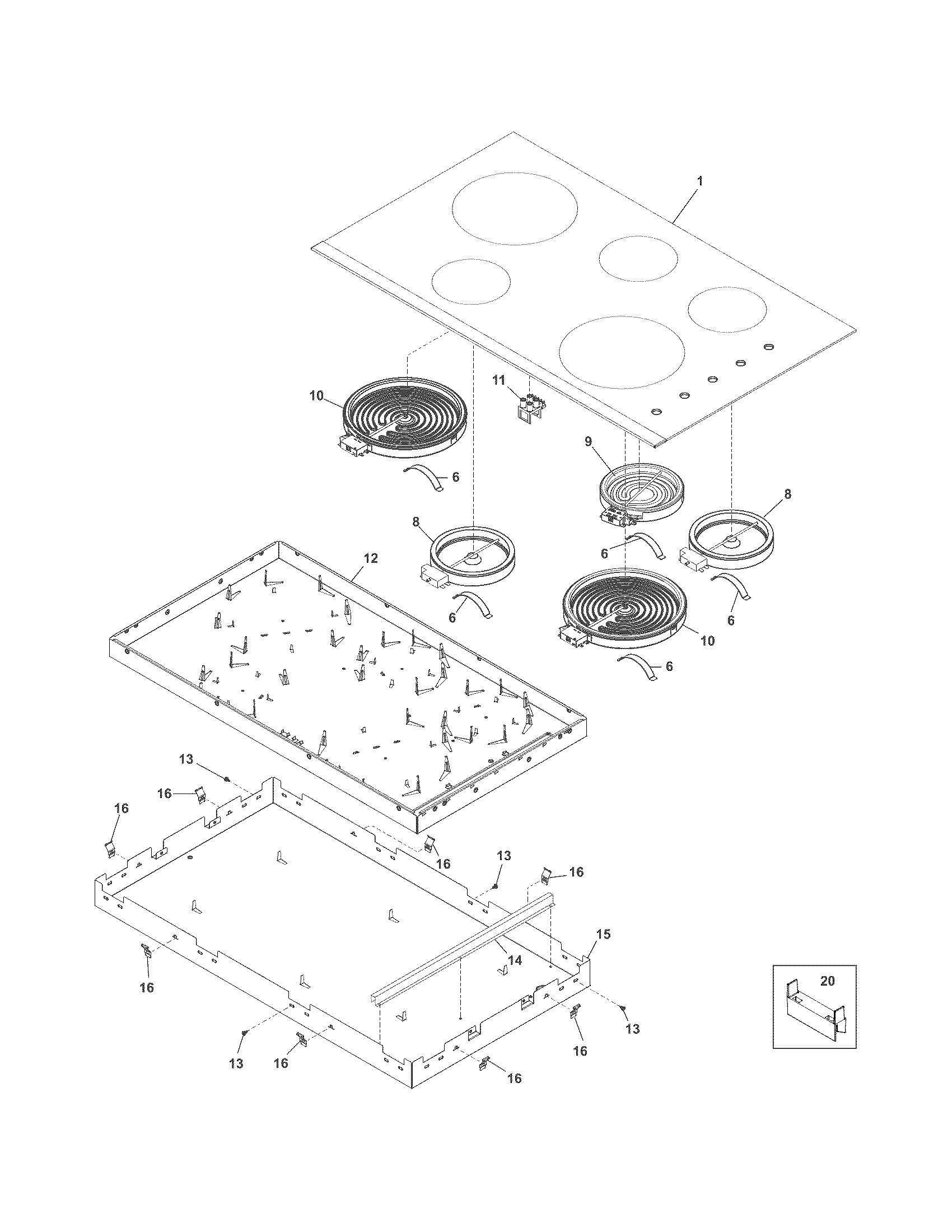

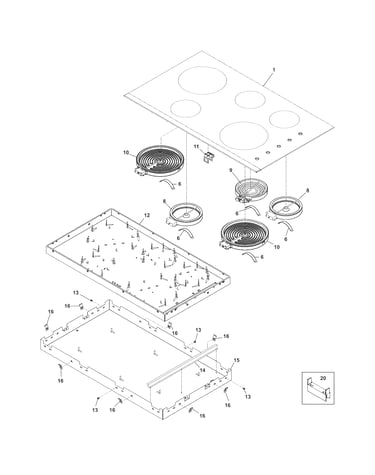

Main top/surface units diagram

Screw

Part #305376101

Replaced by #5308014215

?
Manufacturer substitution
This part replaces 305376101. Substitute parts can look different from the original.
This item is not returnable
In Stock
Cooktop Radiant Element, 6-in 374063522
#8

Main top/surface units diagram

Cooktop radiant element, 6-in

Part #374063522

Replaced by #A02843501

?
Manufacturer substitution
This part replaces 374063522. Substitute parts can look different from the original.
$117.03
9% OFF Phone Price : $129.03
In Stock
Ikea Cooktop Radiant Element, 9-in 305440417
#10

Main top/surface units diagram

Ikea cooktop radiant element, 9-in

Part #305440417

$170.89
7% OFF Phone Price : $182.89
In Stock
Cooktop Installation Bracket 387627700
#NI

Main top/surface units diagram

Cooktop installation bracket

Part #387627700

$26.63
18% OFF Phone Price : $32.63
In Stock
Cooktop Centering Spring 387174602
#16

Main top/surface units diagram

Cooktop centering spring

Part #387174602

This item is not returnable
In Stock
Cooktop Element Control Knob Bushing 387316100
#3

Control panel diagram

Cooktop element control knob bushing

Part #387316100

In Stock
Screw 305452800
#NI

Main top/surface units diagram

Screw

Part #305452800

In Stock
Rivet 305351200
#NI

Main top/surface units diagram

Rivet

Part #305351200

This item is not returnable
In Stock
Spring 387372900
#6

Main top/surface units diagram

Spring

Part #387372900

In Stock
