Homelite
Gas Line Trimmer

Model # UT15152 Official Homelite trimmer/brushcutter

Here are the diagrams and repair parts for Official Homelite UT15152 trimmer/brushcutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Blade 07076
#15

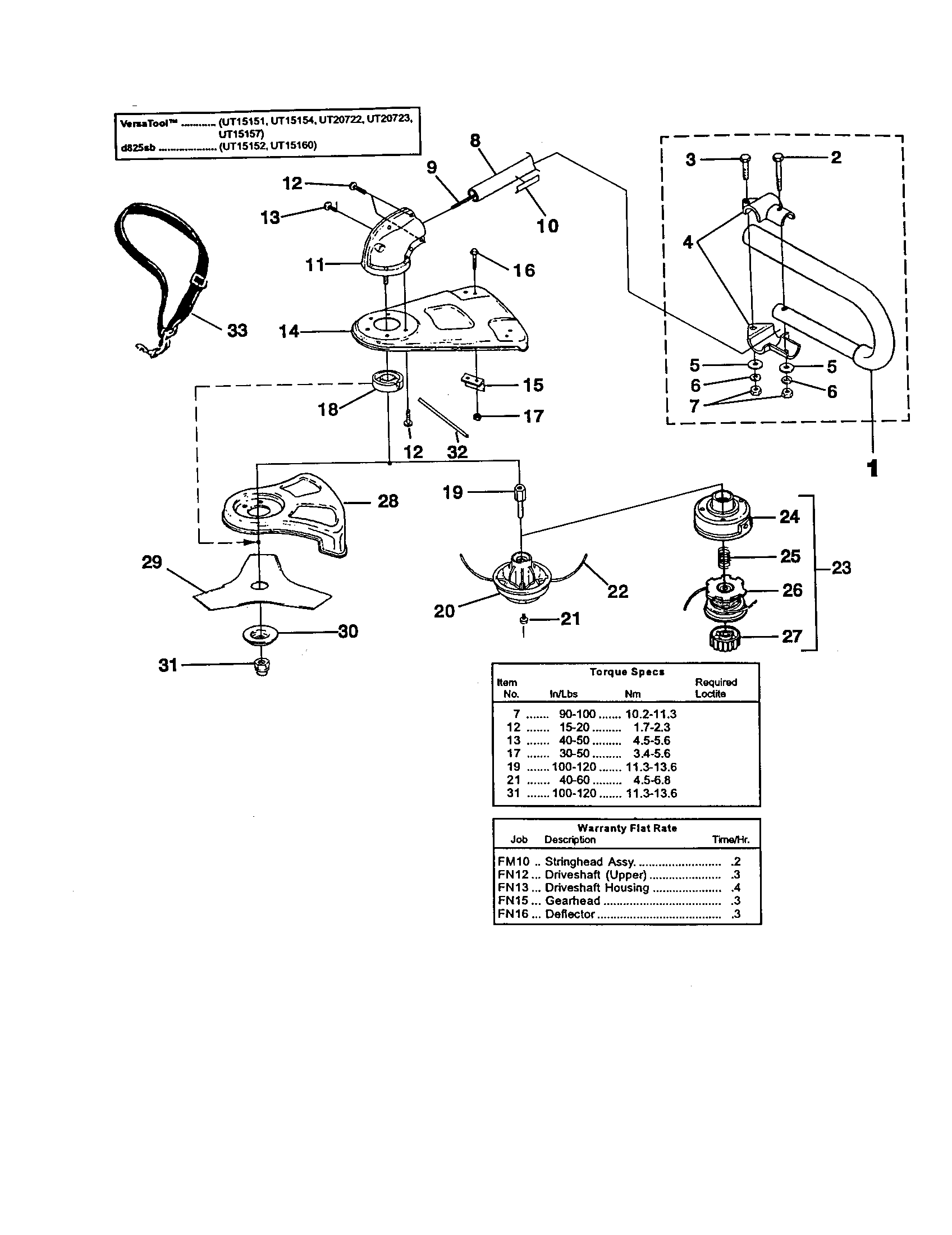

Shaft/spool and string/blade diagram

Blade

Part #07076

The manufacturer no longer makes this part, and there's no substitute part

Holding Tool 00063
#32

Shaft/spool and string/blade diagram

Holding tool

Part #00063

The manufacturer no longer makes this part, and there's no substitute part

Piston Rod UP00768
#2

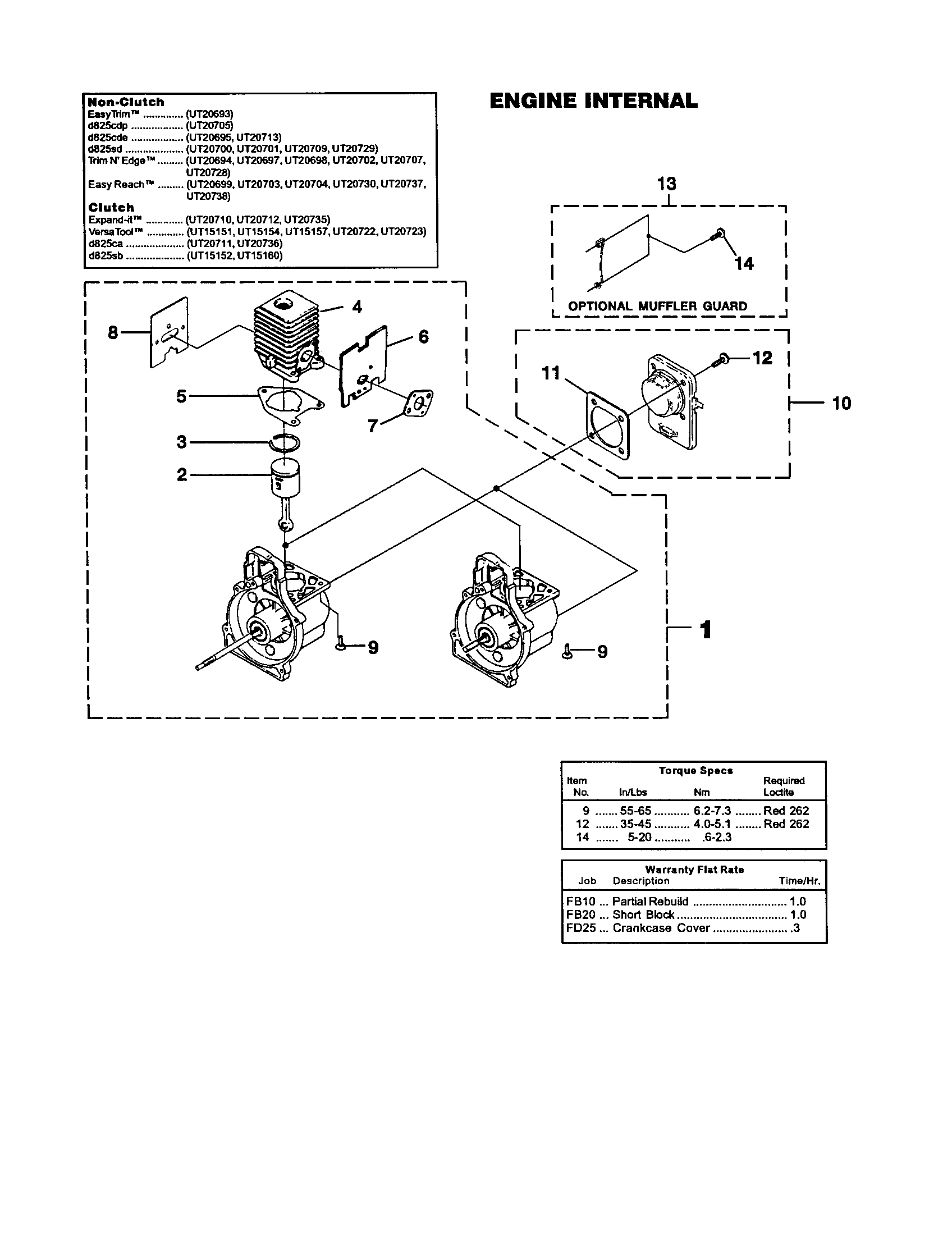

Engine internal diagram

Piston rod

Part #UP00768

The manufacturer no longer makes this part, and there's no substitute part

Blade D98717C
#29

Shaft/spool and string/blade diagram

Blade

Part #D98717C

The manufacturer no longer makes this part, and there's no substitute part

Washer 84004
#5

Shaft/spool and string/blade diagram

Washer

Part #84004

The manufacturer no longer makes this part, and there's no substitute part

Spring 95020A
#7

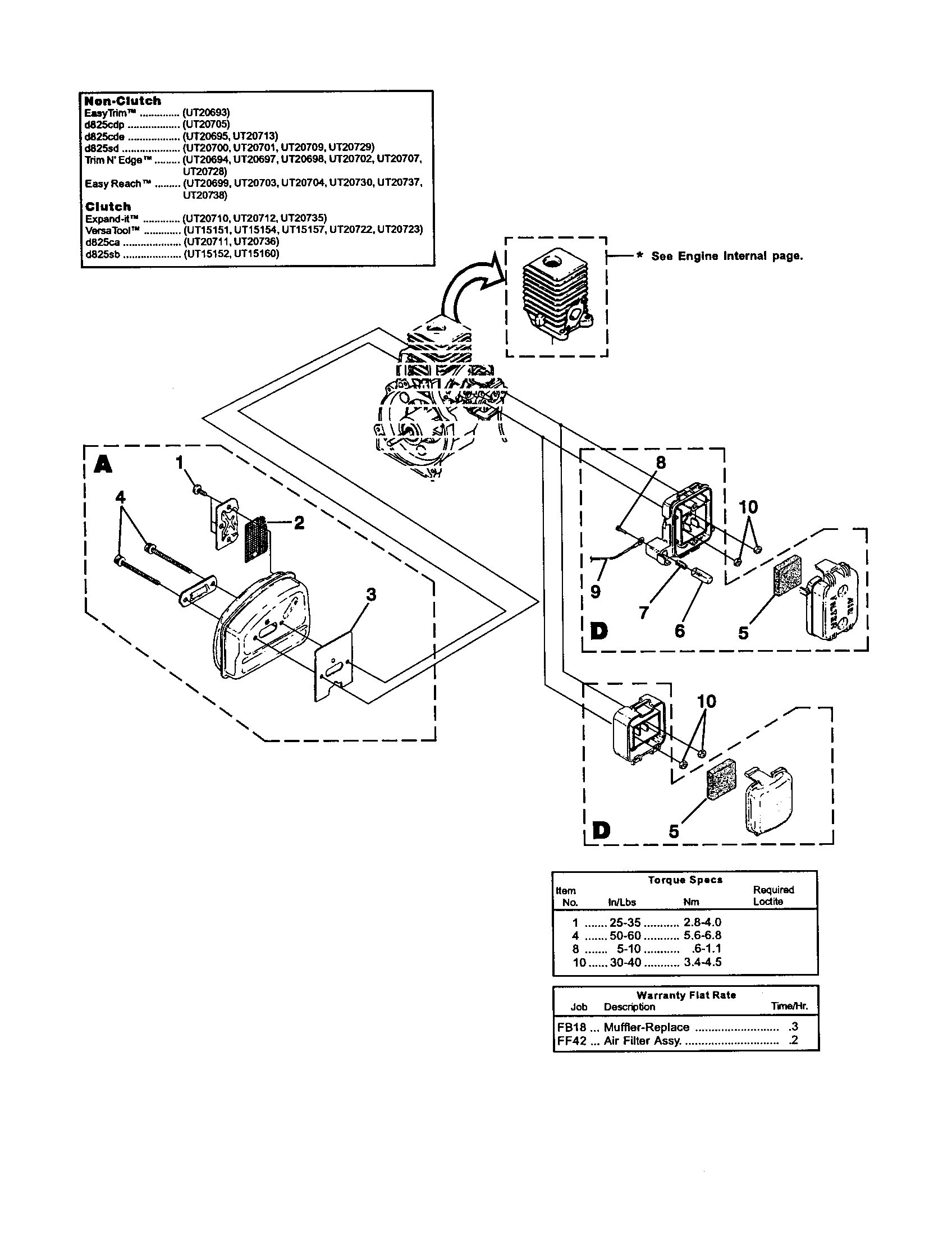

Muffler and air cleaner diagram

Spring

Part #95020A

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Screw 82496
#3

Shaft/spool and string/blade diagram

Line trimmer screw

Part #82496

The manufacturer no longer makes this part, and there's no substitute part

Screw 82563
#21

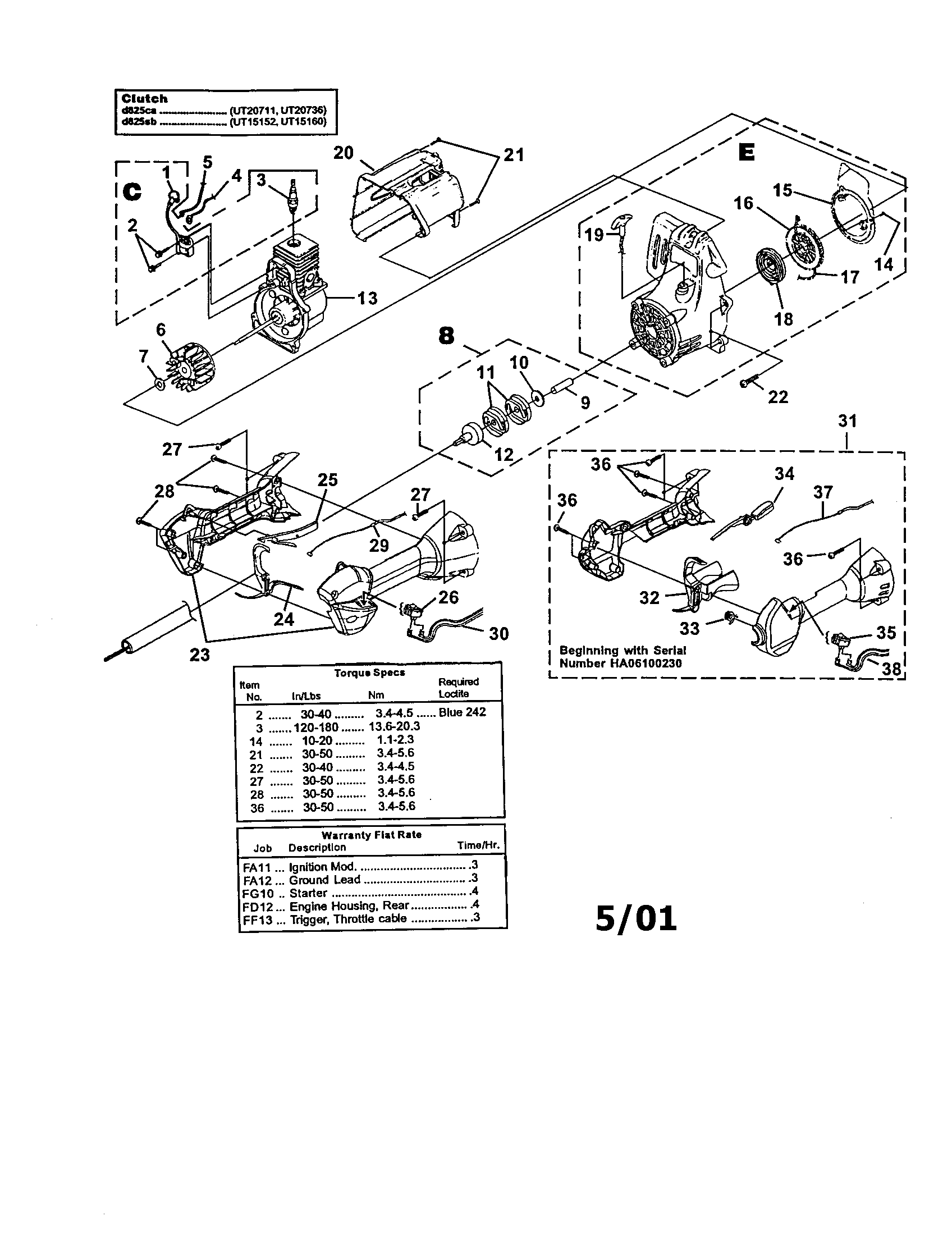

Ignition/rotor/starter/clutch diagram

Screw

Part #82563

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Fuel Line 9477213
#10

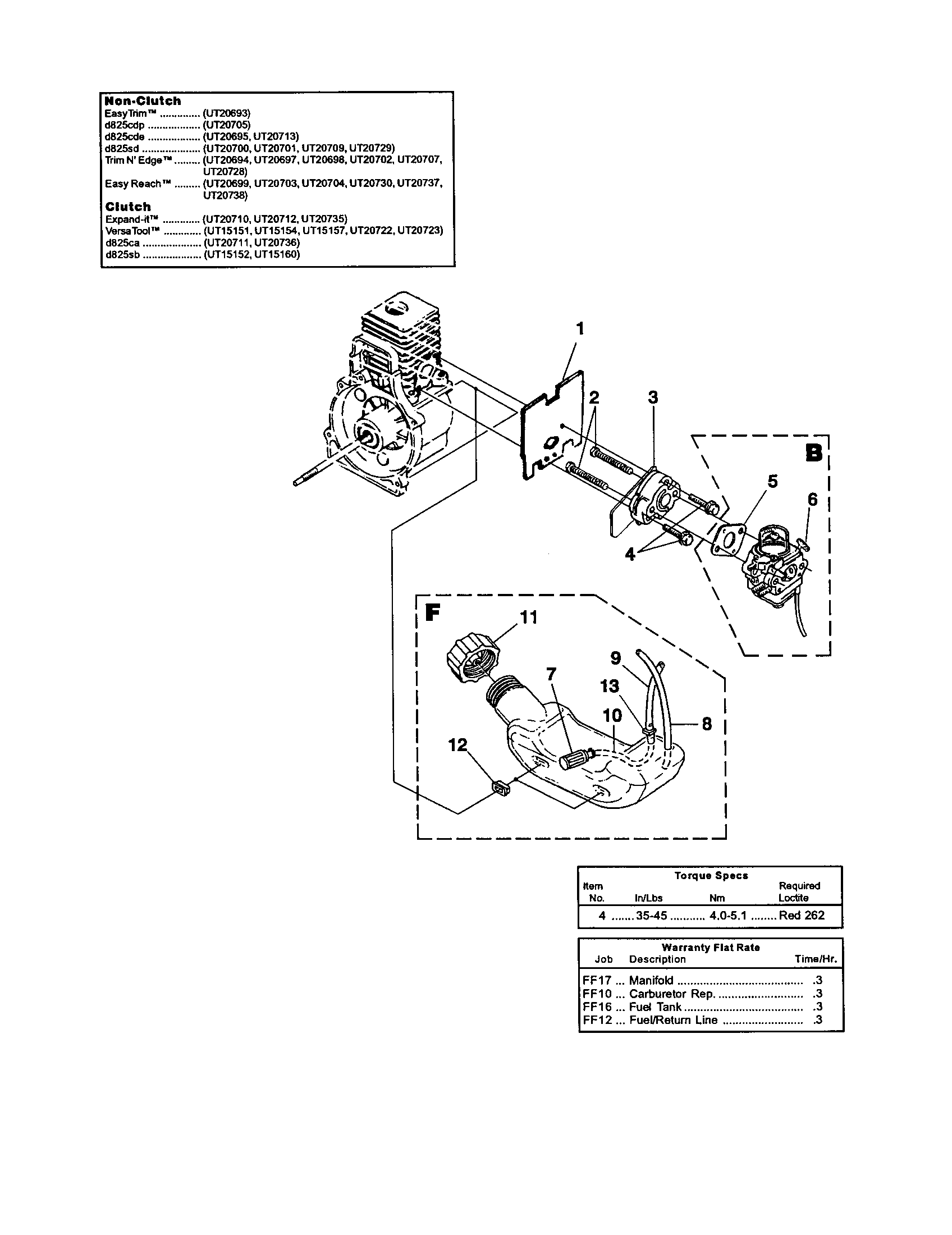

Carburetor and fuel tank diagram

Line trimmer fuel line

Part #9477213

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Screw 82513
#8

Muffler and air cleaner diagram

Lawn & garden equipment screw

Part #82513

The manufacturer no longer makes this part, and there's no substitute part
