Model # 72162779200 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162779200 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

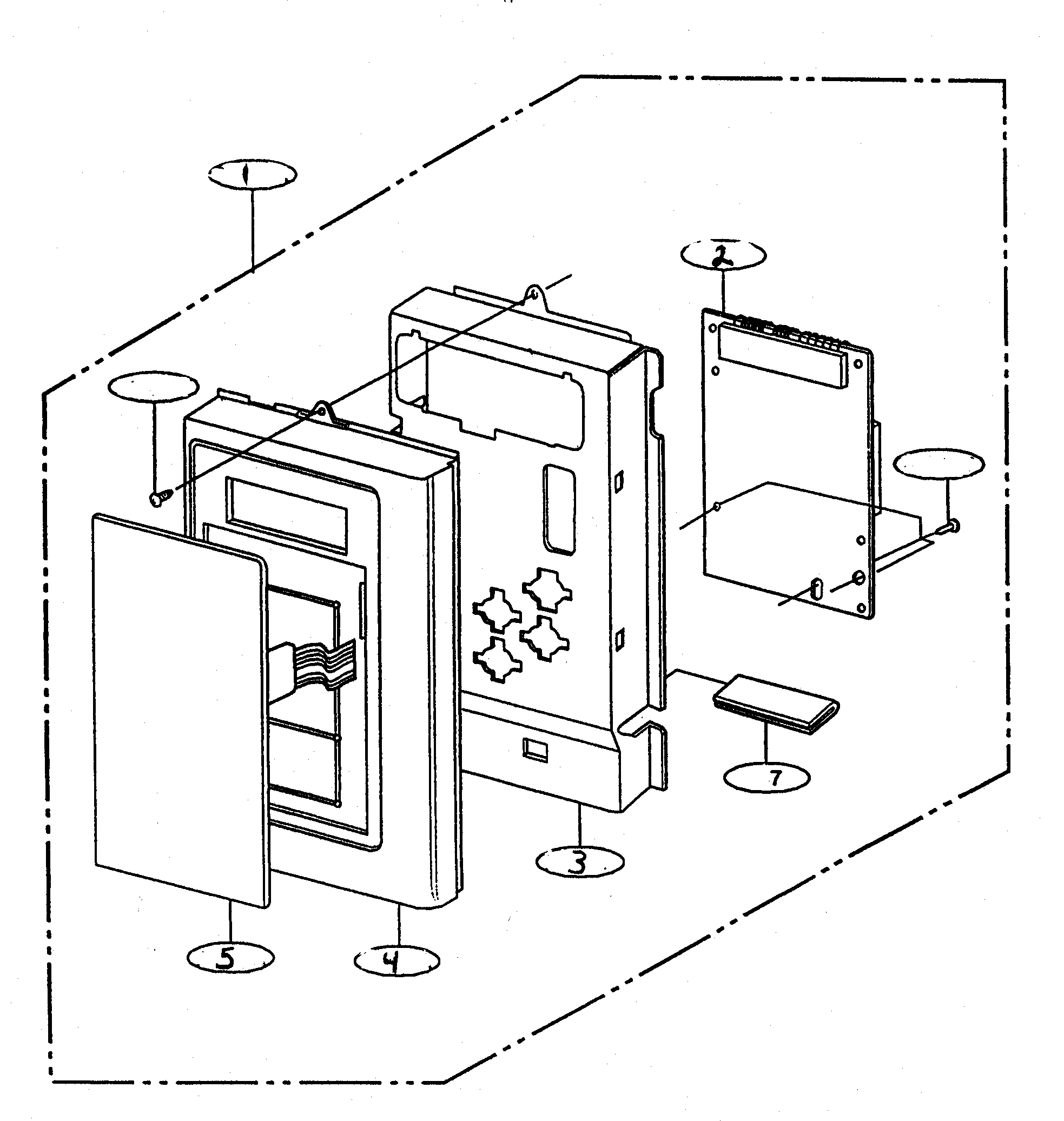

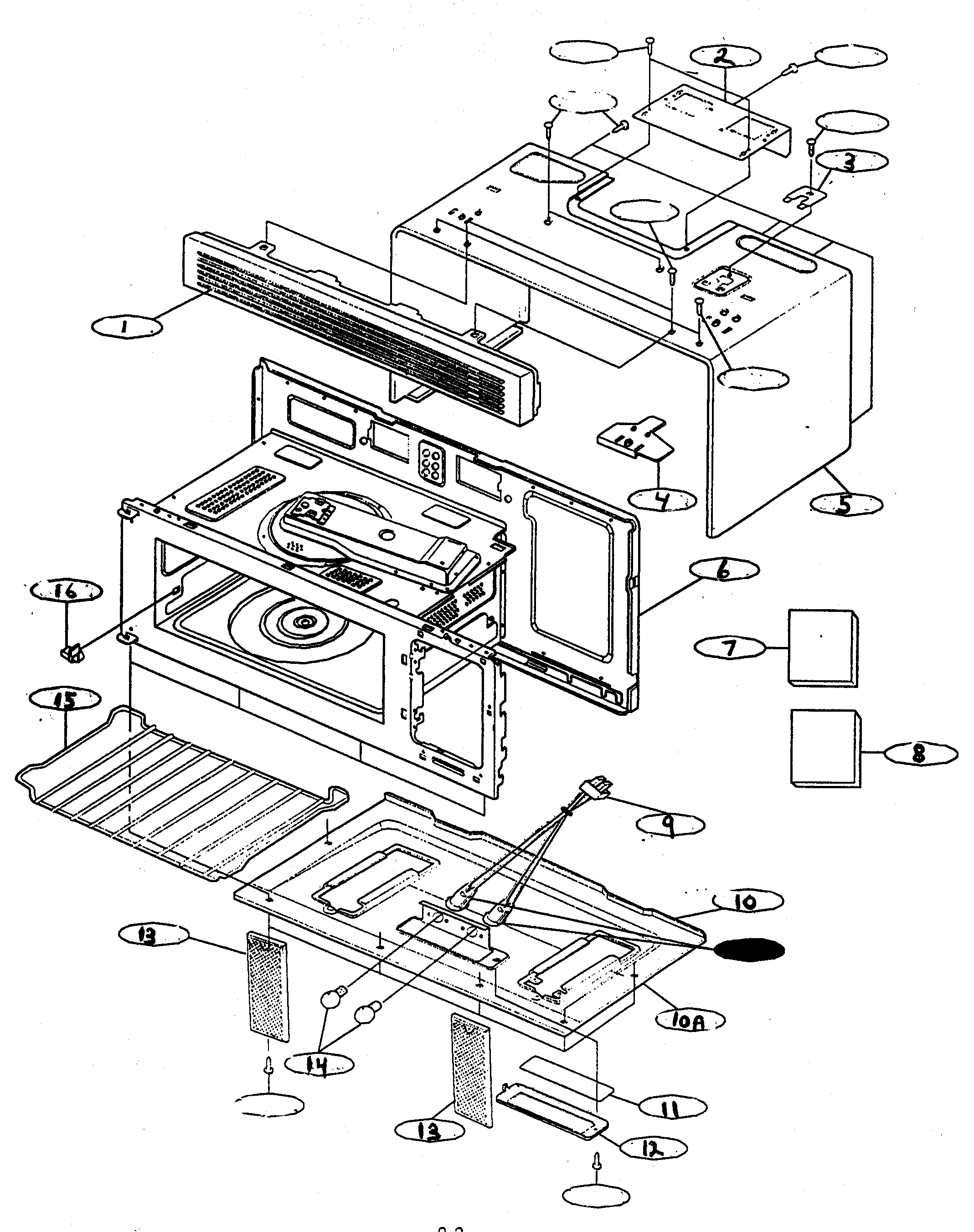

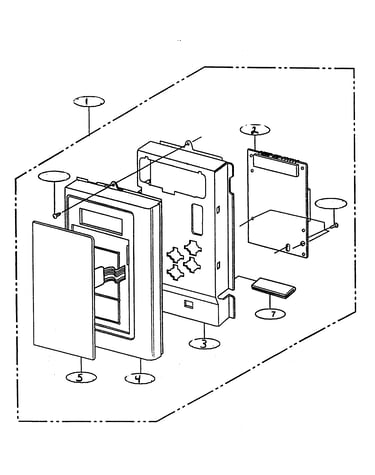

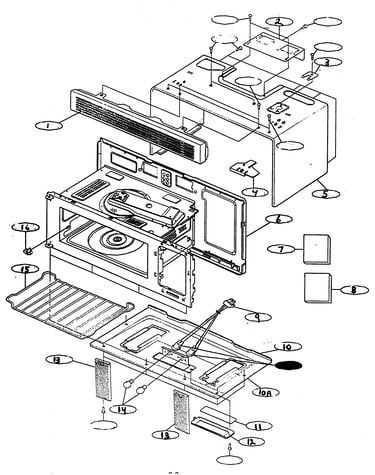

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Microwave Thermostat 6930WRT003C
#14

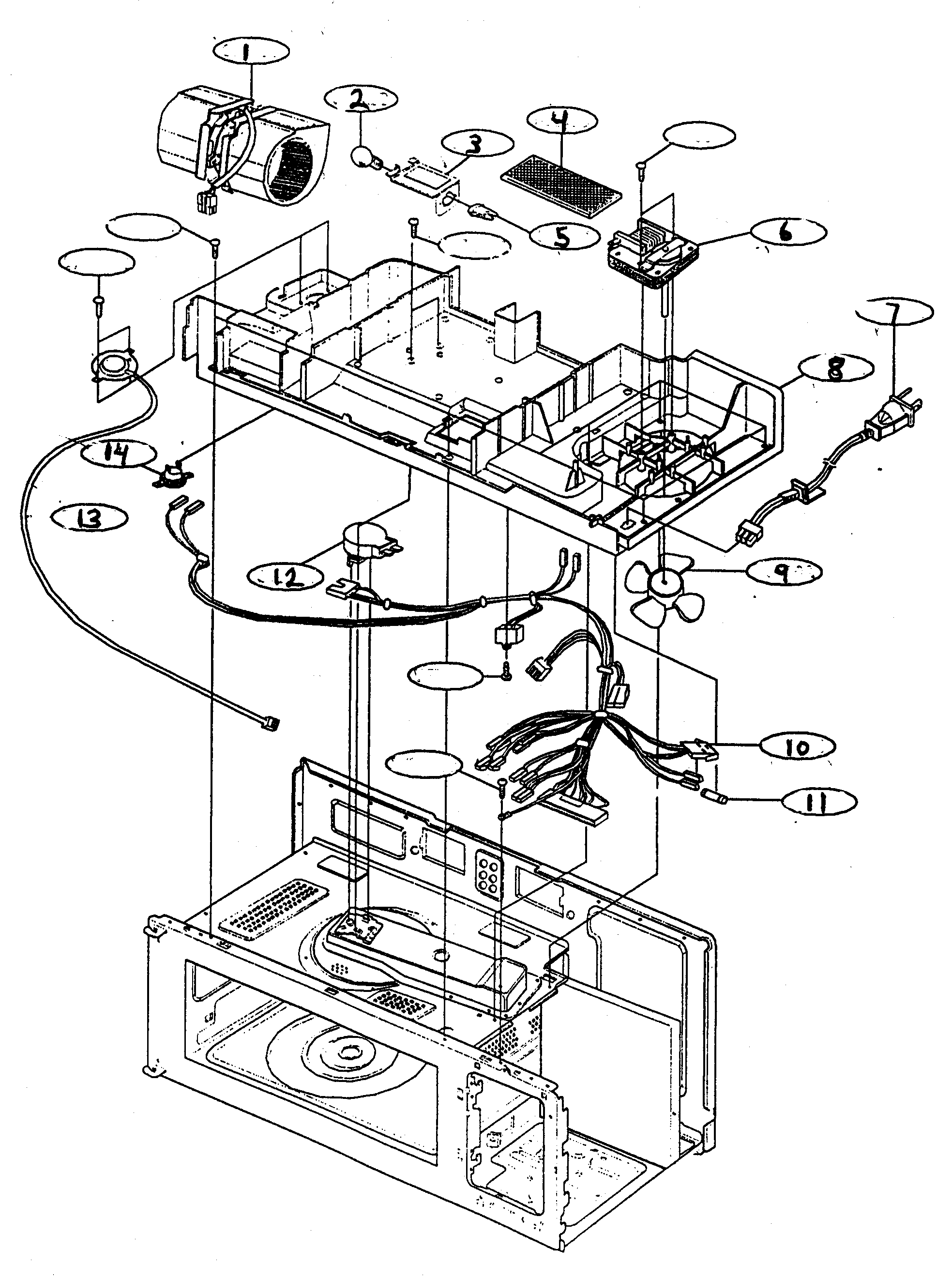

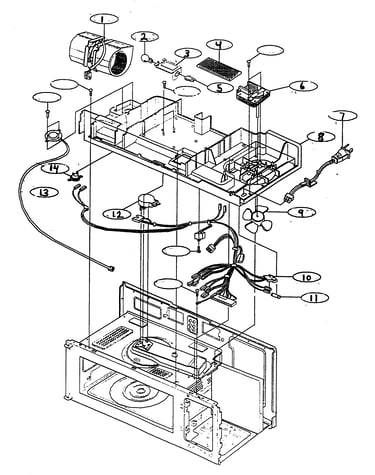

Interior parts 2 diagram

Microwave thermostat

Part #6930WRT003C

Replaced by #6930W1A003J

?
Manufacturer substitution
This part replaces 6930WRT003C. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Glass Turntable Tray 1B71961E
#1

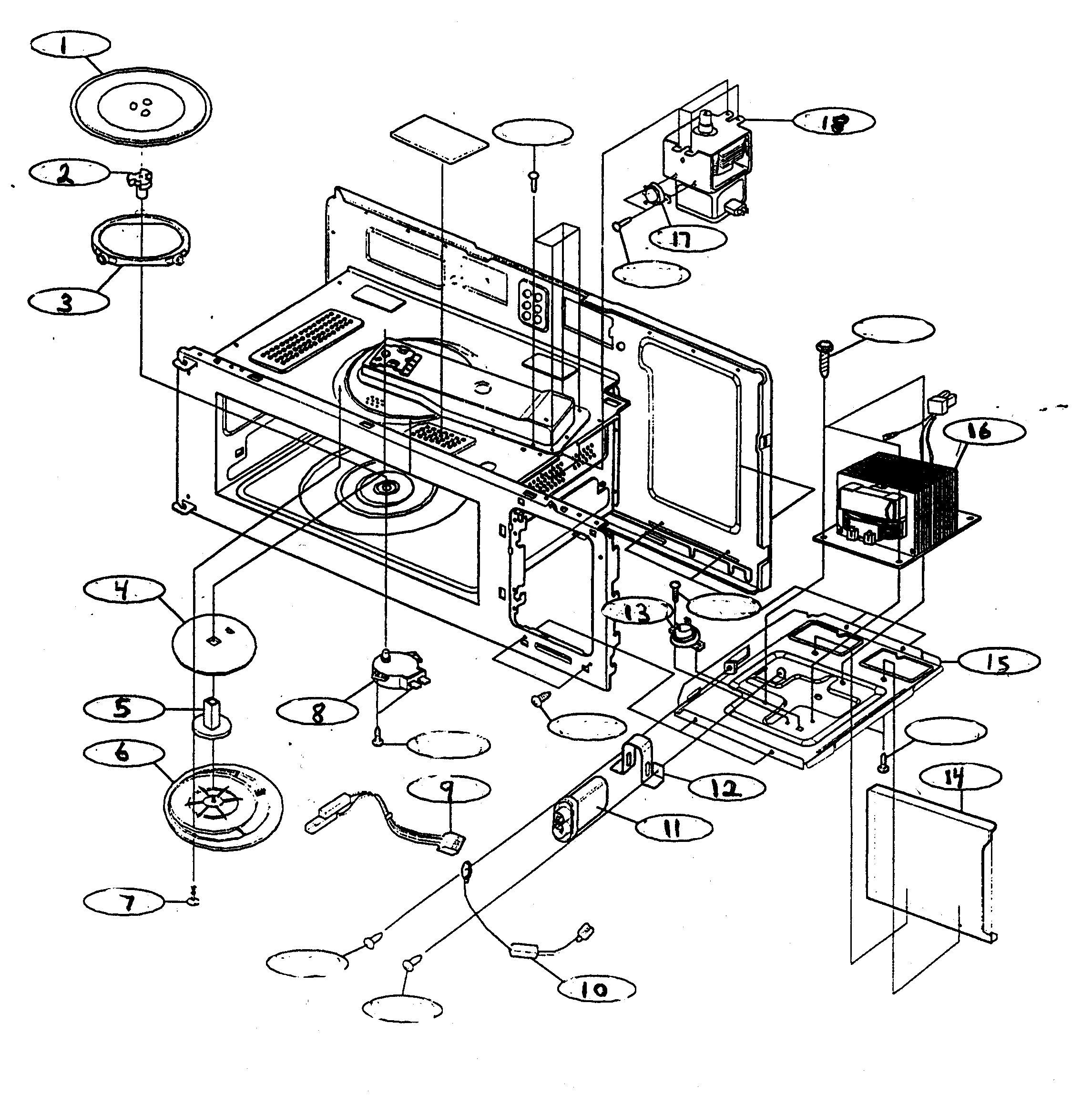

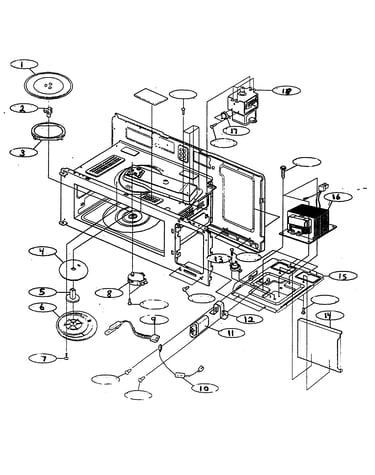

Interior parts 1 diagram

Microwave glass turntable tray

Part #1B71961E

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces 1B71961E. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
16% OFF Phone Price : $38.53
In Stock
Microwave Door Latch Hook 4026W2A015A
#7

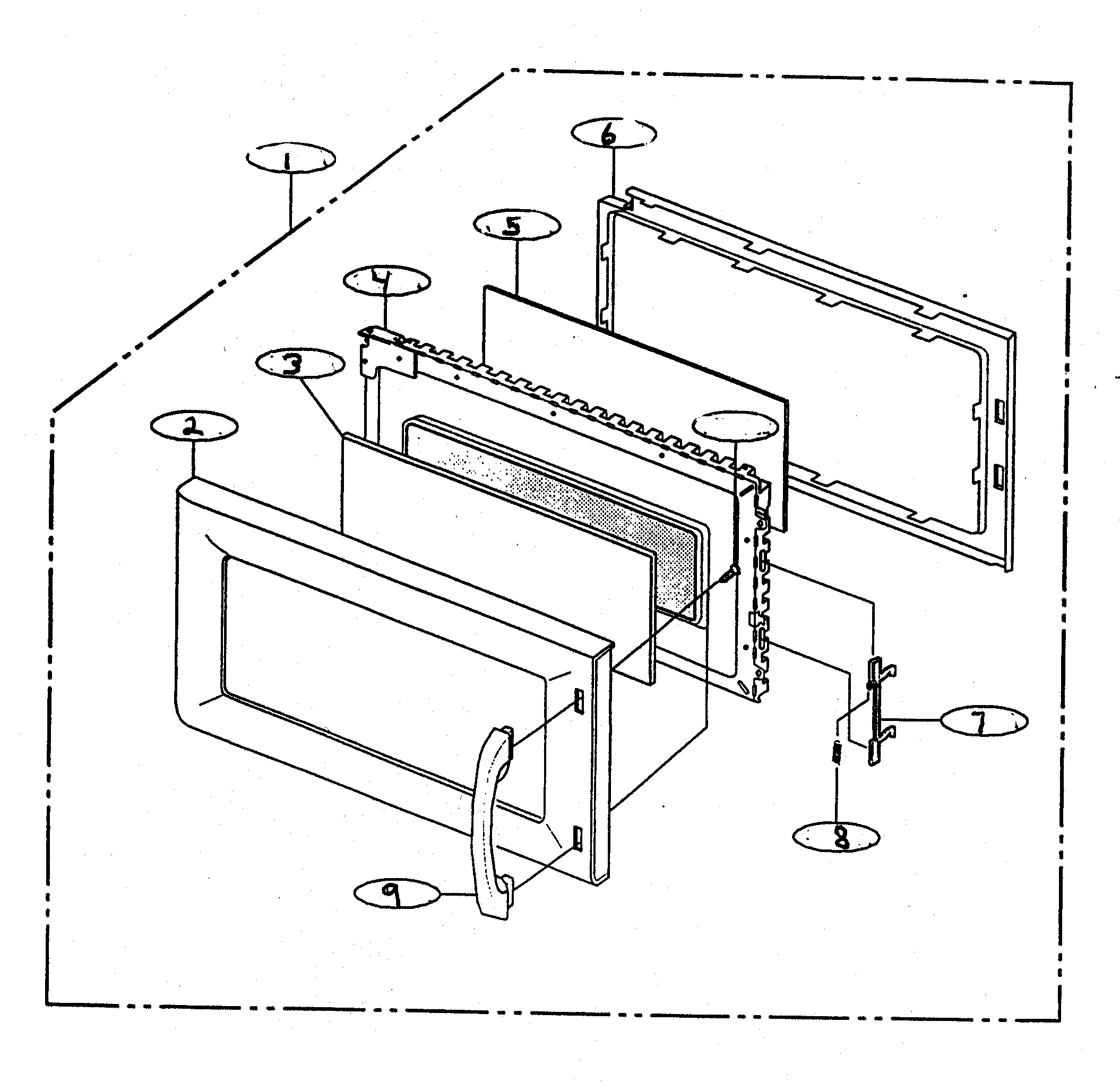

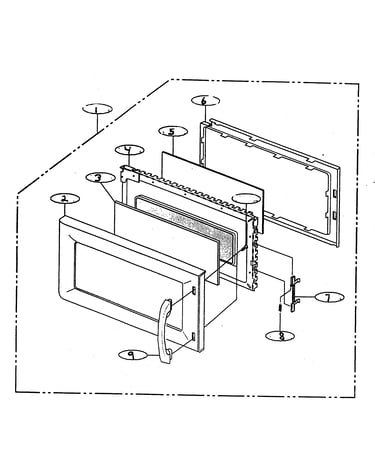

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#5

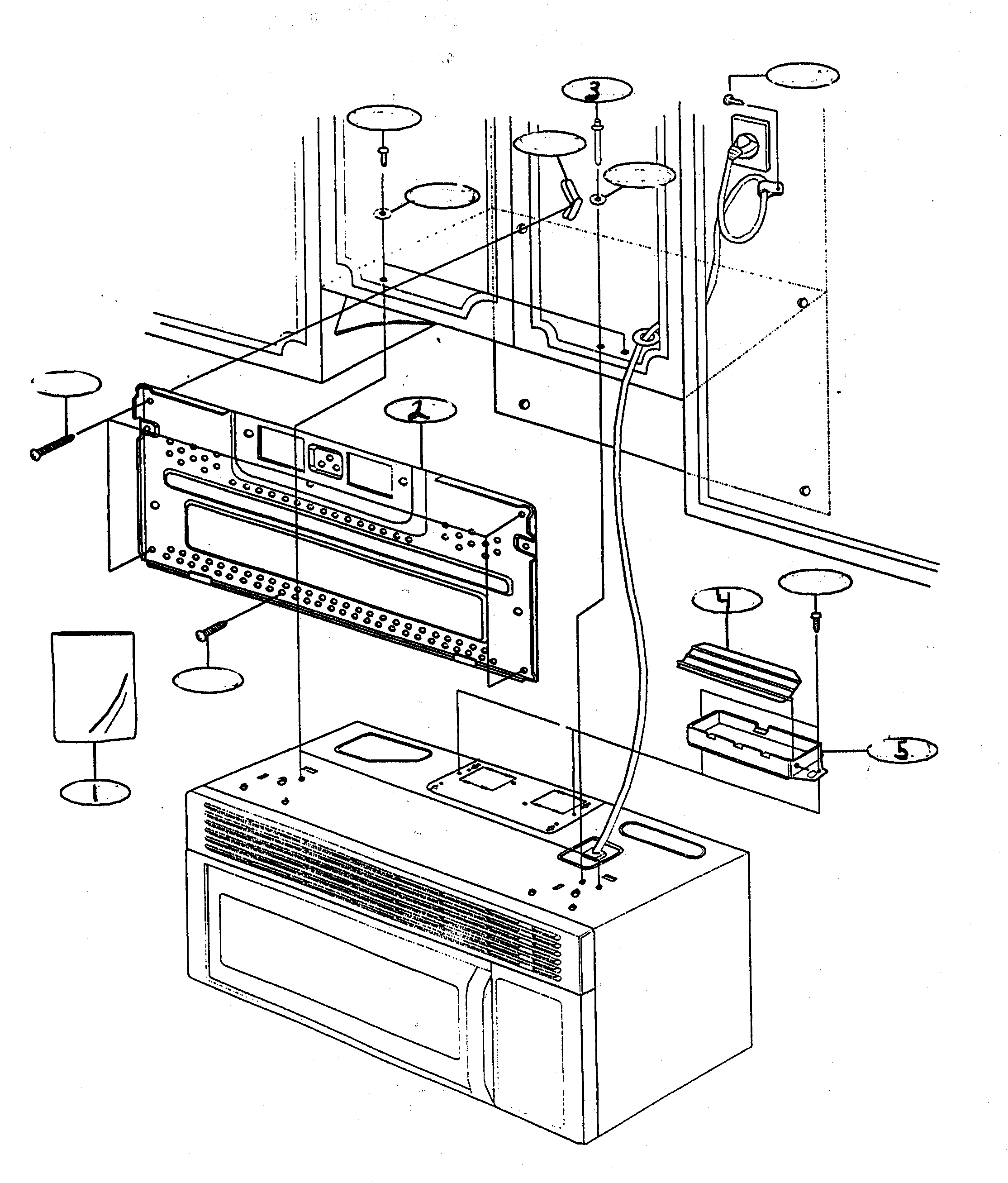

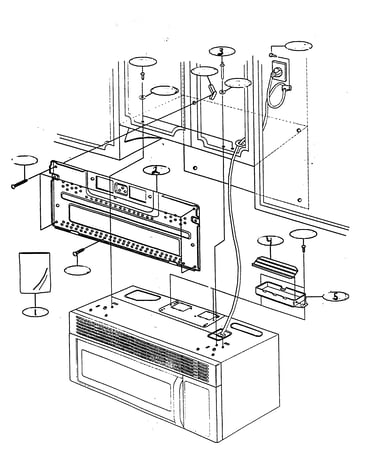

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Microwave Door Latch Spring 4970WRA001G
#8

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Shaft 3B72373D
#2

Interior parts 1 diagram

Shaft

Part #3B72373D

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 3B72373D. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#7

Interior parts 1 diagram

Microwave waveguide cover rivet

Part #4051W3A001A

This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
Latch 3500W1A005A
#2

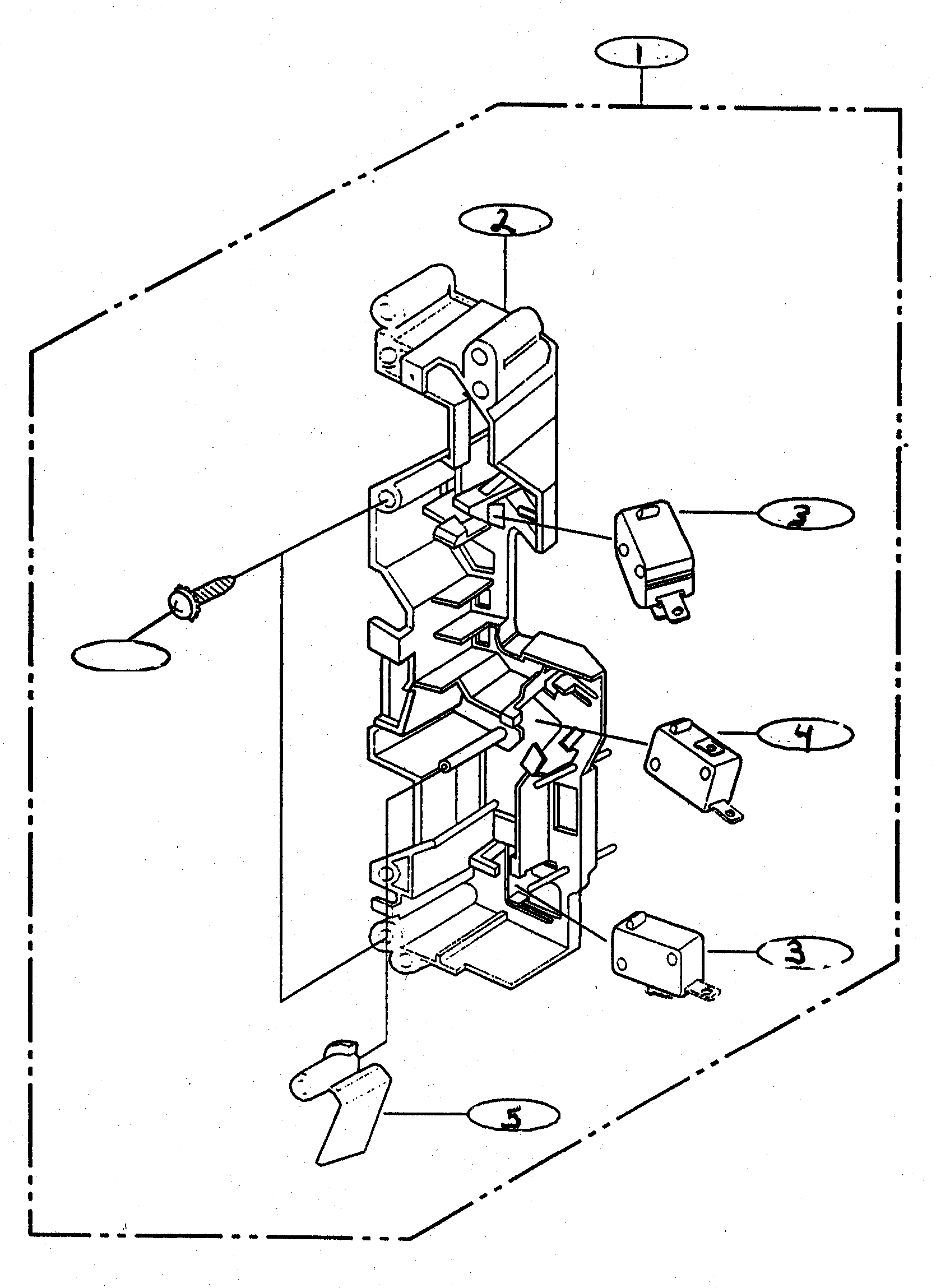

Latch board parts diagram

Latch

Part #3500W1A005A

Replaced by #3500W1A013R

?
Manufacturer substitution
This part replaces 3500W1A005A. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
Back Order
Seal Tape 3536WRA001R
#5

Door parts diagram

Seal tape

Part #3536WRA001R

Replaced by #3536W1A012B

?
Manufacturer substitution
This part replaces 3536WRA001R. Substitute parts can look different from the original.
This item is not returnable
$5.56 |
15% OFF Phone Price : $6.56
In Stock
Us Pressed Steel Microwave Door Latch Lever 4510W4A005A
#5

Latch board parts diagram

Us pressed steel microwave door latch lever

Part #4510W4A005A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
