Model # WR30X236 Official GE ice maker

Here are the diagrams and repair parts for Official GE WR30X236 ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Refrigerator Silicone WR97X163
#48B

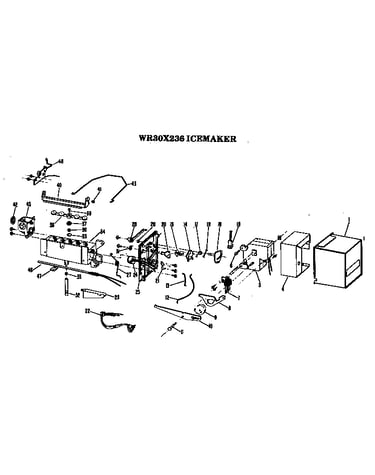

Icemaker diagram

Refrigerator silicone

Part #WR97X163

$42.00
In Stock
Refrigerator Retainer WR29X98

#NI

All parts diagram

Refrigerator retainer

Part #WR29X98

$7.51
In Stock
Refrigerator Connector WR2X4330
#24

Icemaker diagram

Refrigerator connector

Part #WR2X4330

Replaced by #WR2X4330D

?
Manufacturer substitution
This part replaces WR2X4330. Substitute parts can look different from the original.
$26.11
In Stock
Actuator Kit WR29X128
#16

Icemaker diagram

Actuator kit

Part #WR29X128

The manufacturer no longer makes this part, and there's no substitute part

Ejector Arm WR29X129
#10

Icemaker diagram

Ejector arm

Part #WR29X129

The manufacturer no longer makes this part, and there's no substitute part

Retract Asm WR29X110
#48

Icemaker diagram

Retract asm

Part #WR29X110

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Rod WR29X118
#32

Icemaker diagram

Refrigerator rod

Part #WR29X118

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw, 2-pack WR1X1379
#6

Icemaker diagram

Refrigerator screw, 2-pack

Part #WR1X1379

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Power Cord WR23X171
#22

Icemaker diagram

Refrigerator power cord

Part #WR23X171

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Motor Cover WR29X63
#1

Icemaker diagram

Refrigerator motor cover

Part #WR29X63

The manufacturer no longer makes this part, and there's no substitute part
