Kenmore
Furnace

Model # 693355670 Official Kenmore wall furnace

Here are the diagrams and repair parts for Official Kenmore 693355670 wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Thermostat 109417-G2
#25

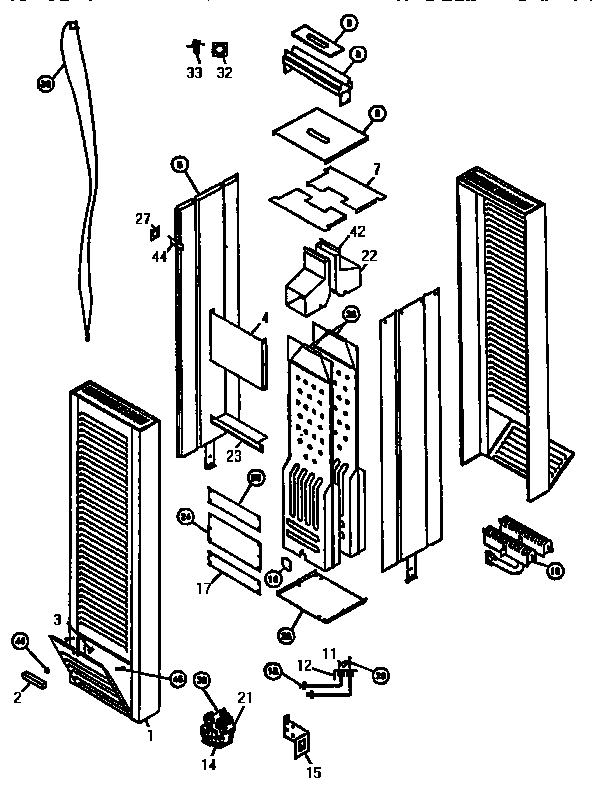

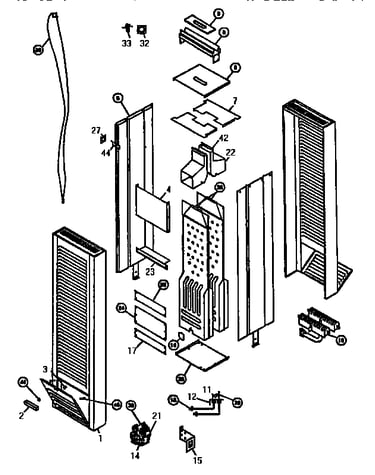

Functional replacement parts diagram

Thermostat

Part #109417-G2

The manufacturer no longer makes this part, and there's no substitute part

Natural Valve 110761-G1
#13

Functional replacement parts diagram

Natural valve

Part #110761-G1

The manufacturer no longer makes this part, and there's no substitute part

Thermopile 48950-G1
#14

Functional replacement parts diagram

Thermopile

Part #48950-G1

The manufacturer no longer makes this part, and there's no substitute part

Burner 110447-G1
#9

Functional replacement parts diagram

Burner

Part #110447-G1

The manufacturer no longer makes this part, and there's no substitute part

Casing Assembly PW35
#1

Functional replacement parts diagram

Casing assembly

Part #PW35

The manufacturer no longer makes this part, and there's no substitute part

Wire-therm 110408-G2
#26

Functional replacement parts diagram

Wire-therm

Part #110408-G2

The manufacturer no longer makes this part, and there's no substitute part

Temperature Switch 110972-G1
#29

Functional replacement parts diagram

Temperature switch

Part #110972-G1

The manufacturer no longer makes this part, and there's no substitute part

Screw 125310240816
#23

Functional replacement parts diagram

Screw

Part #125310240816

The manufacturer no longer makes this part, and there's no substitute part

Combctn Ch 110736-G1
#22

Functional replacement parts diagram

Combctn ch

Part #110736-G1

The manufacturer no longer makes this part, and there's no substitute part

Tube Pilot 108865-G1
#32

Functional replacement parts diagram

Tube pilot

Part #108865-G1

The manufacturer no longer makes this part, and there's no substitute part
