Here are the diagrams and repair parts for Official Kenmore 8676148 gas-fired boiler, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for8676148 Gas-Fired Boiler

#9

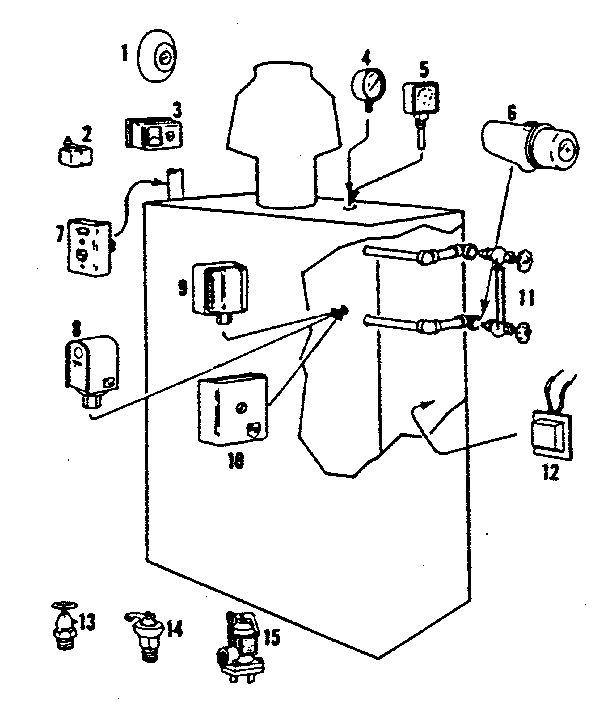

Boiler controls diagram
Control
Part #541.9168
Replaced by #PA404A1033
?
Manufacturer substitution
This part replaces 541.9168. Substitute parts can look different from the original.
$321.90 |
$12.00 OFF Phone Price : $333.90
In Stock
Qty
#5
Boiler controls diagram
Gauge
Part #8854
Replaced by #1260006SP
?
Manufacturer substitution
This part replaces 8854. Substitute parts can look different from the original.
$66.09
In Stock
Qty
#8
Boiler controls diagram
Control
Part #541.9195
Replaced by #PA404A1033
?
Manufacturer substitution
This part replaces 541.9195. Substitute parts can look different from the original.
$321.90 |
$12.00 OFF Phone Price : $333.90
In Stock
Qty
#15
Boiler controls diagram
Valve
Part #8840-3/4
Replaced by #10-408-05
?
Manufacturer substitution
This part replaces 8840-3/4. Substitute parts can look different from the original.
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Qty
#12
Boiler controls diagram
Transformer
Part #H211A14
The manufacturer no longer makes this part, and there's no substitute part
#1
Boiler controls diagram
Thermostat
Part #541.9120
The manufacturer no longer makes this part, and there's no substitute part
#7
Boiler controls diagram
Control
Part #541.9104
The manufacturer no longer makes this part, and there's no substitute part
#11
Boiler controls diagram
Gauge
Part #H67A294
The manufacturer no longer makes this part, and there's no substitute part
#13

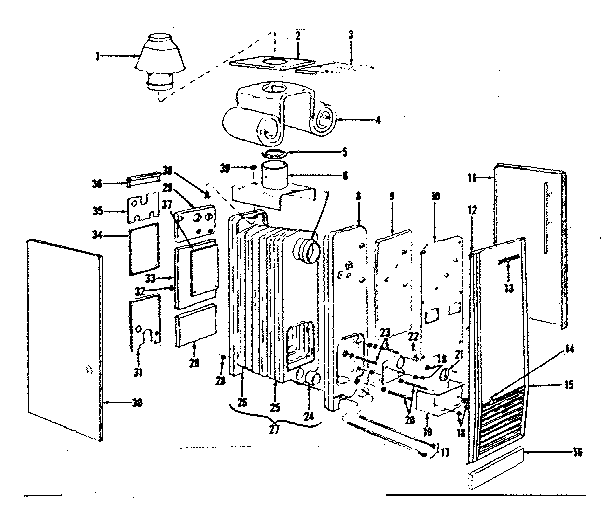

Boiler assembly diagram
Nameplate
Part #H212A390
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Cement
Part #H151A340
The manufacturer no longer makes this part, and there's no substitute part
