Whirlpool
Microwave/Hood Combo

Model # WMHA9019HN3 Official Whirlpool microwave/hood combo

Here are the diagrams and repair parts for Official Whirlpool WMHA9019HN3 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Lamp Assembly 4393681
#4

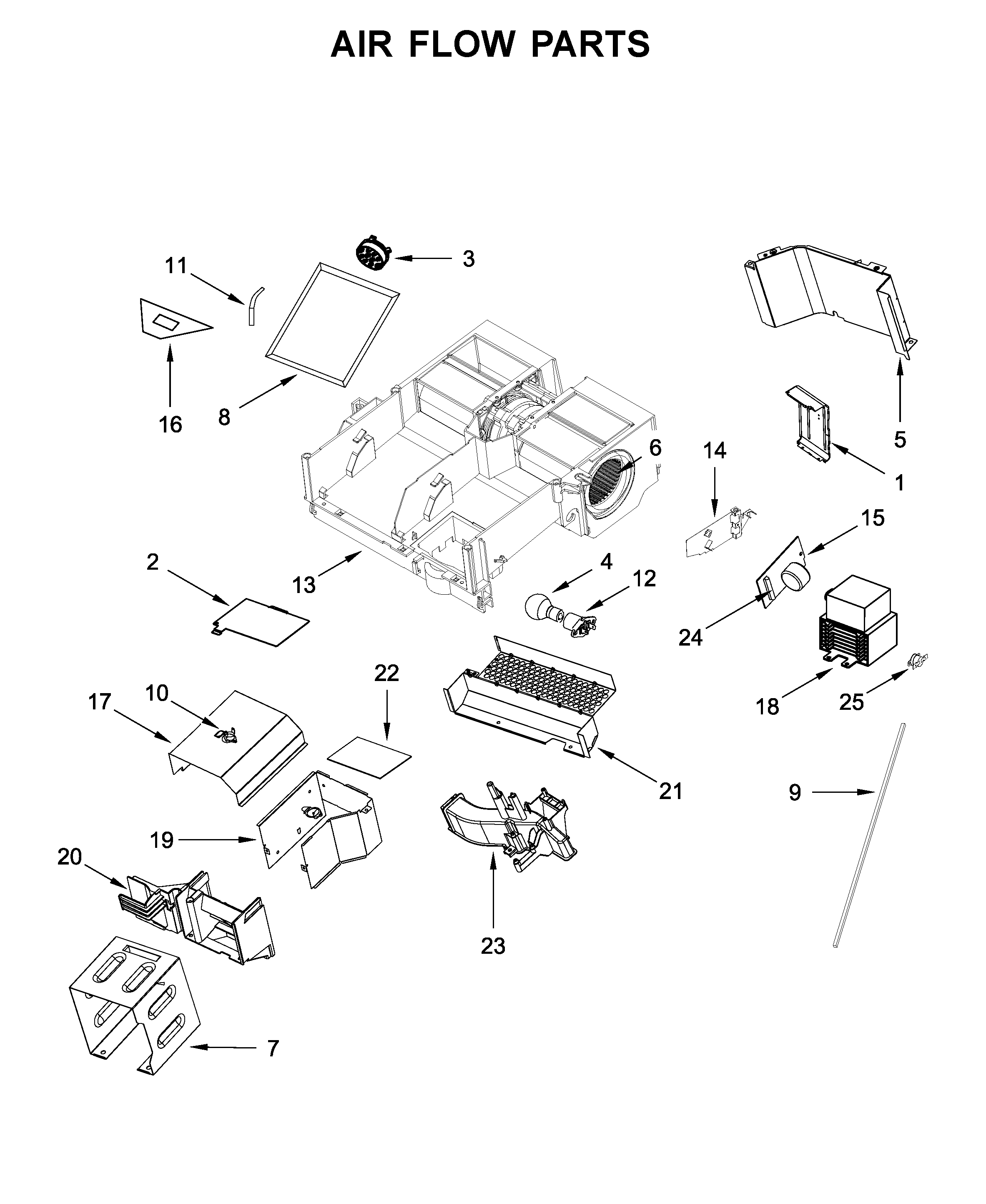

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$8.91 |
10% OFF Phone Price : $9.91
In Stock
Microwave High-voltage Capacitor W10561770
#25

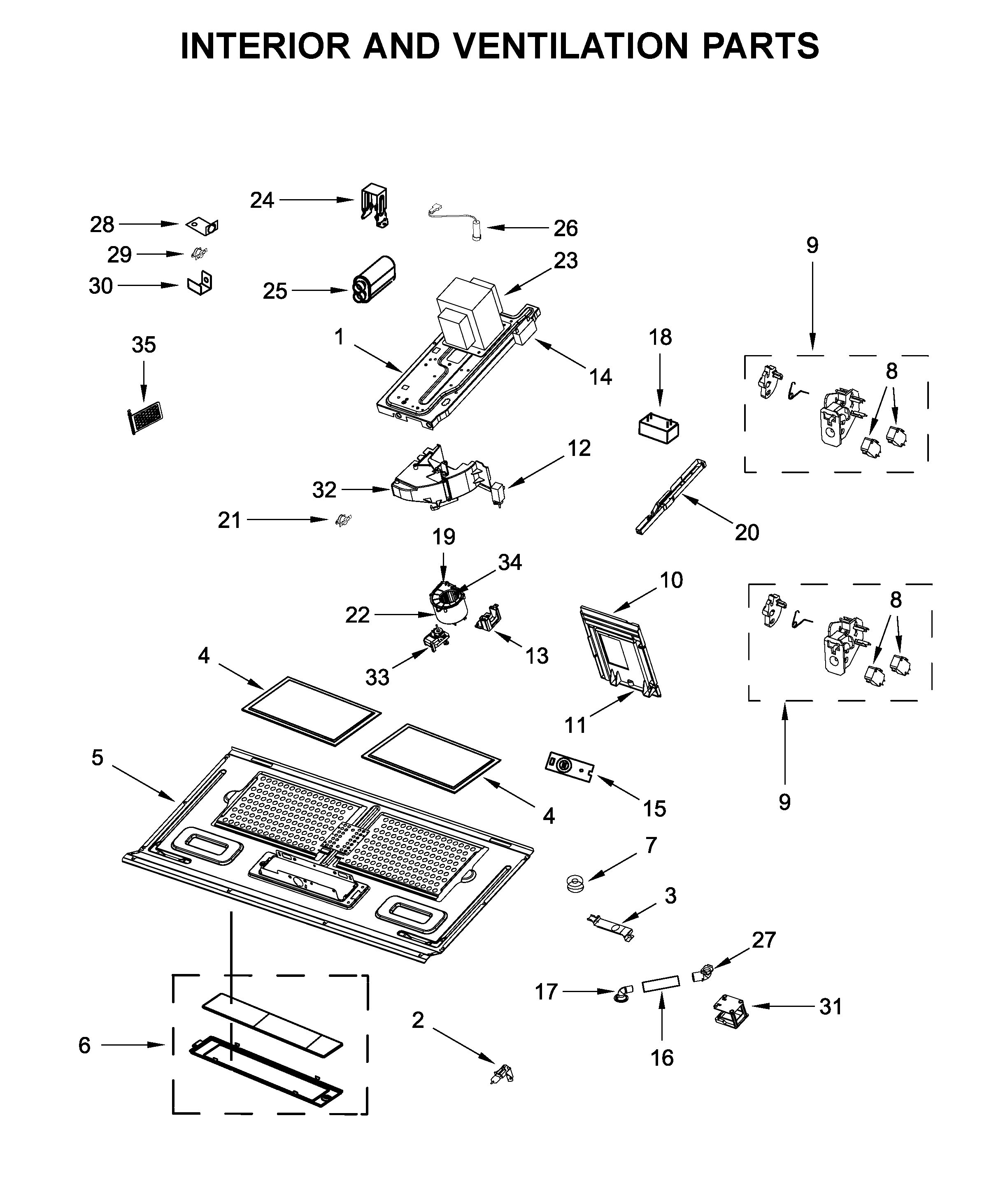

Interior and ventilation parts diagram

Microwave high-voltage capacitor

Part #W10561770

BEST SELLER
$29.89 |
17% OFF Phone Price : $35.89
In Stock
Microwave Turntable Motor Coupler W10337248
#6

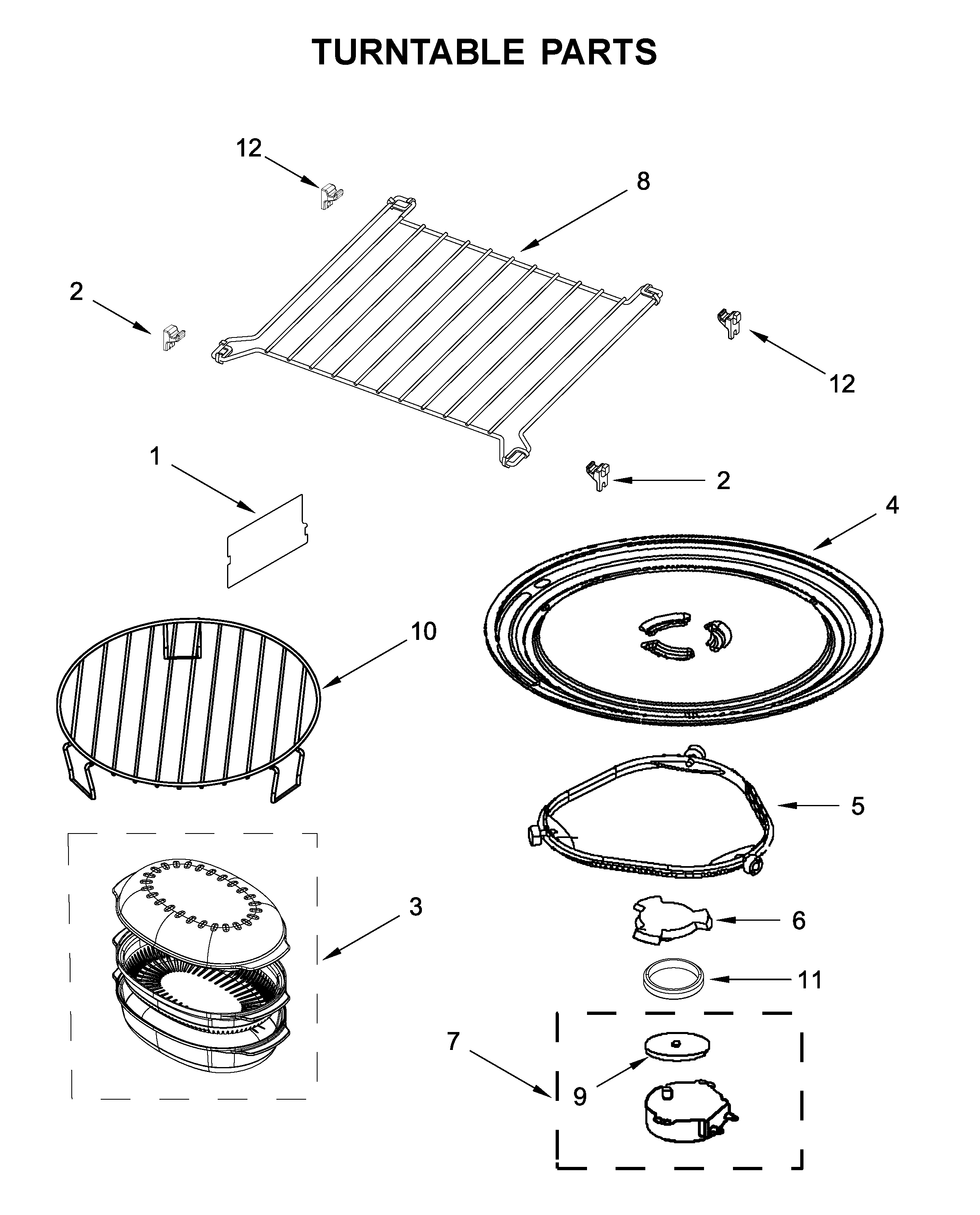

Turntable parts diagram

Microwave turntable motor coupler

Part #W10337248

This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Microwave Mounting Plate (replaces W10440498) W11025649
#1

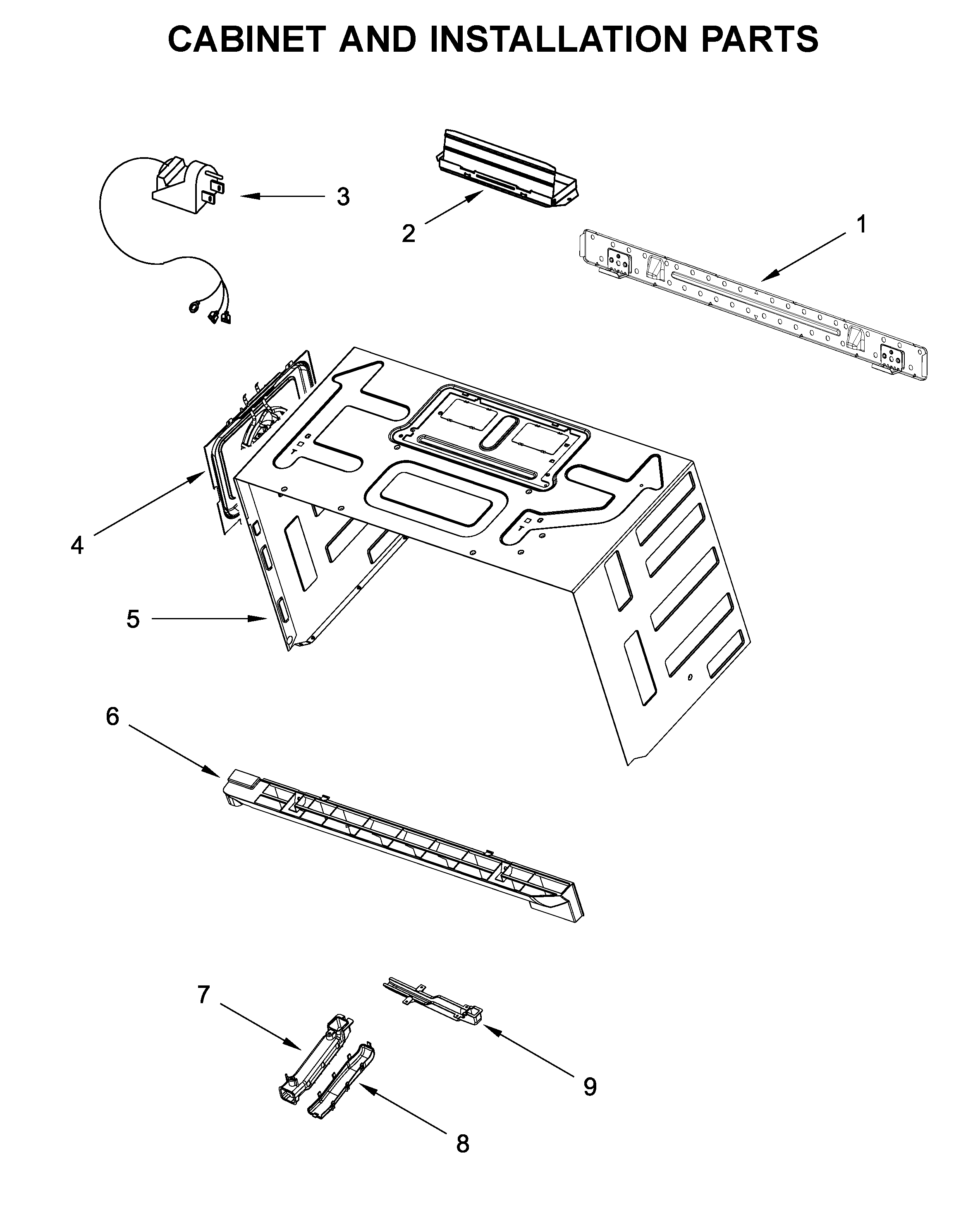

Cabinet and installation parts diagram

Microwave mounting plate (replaces w10440498)

Part #W11025649

$12.77 |
14% OFF Phone Price : $14.77
In Stock
Microwave Surface Light Bulb (replaces W10208564, W10618217, W10892536, W11414610) W10709921
#2

Interior and ventilation parts diagram

Microwave surface light bulb (replaces w10208564, w10618217, w10892536, w11414610)

Part #W10709921

$15.38 |
12% OFF Phone Price : $17.38
In Stock
Microwave Vent Grille (replaces W10533490) W10701701
#6

Cabinet and installation parts diagram

Microwave vent grille (replaces w10533490)

Part #W10701701

$44.69 |
12% OFF Phone Price : $50.69
In Stock
Housing W10210878
#12

Air flow parts diagram

Housing

Part #W10210878

Replaced by #WPW10210878

?
Manufacturer substitution
This part replaces W10210878. Substitute parts can look different from the original.
$19.07 |
10% OFF Was : $21.19
In Stock
Magnetron W11188557
#18

Air flow parts diagram

Magnetron

Part #W11188557

Replaced by #W11230995

?
Manufacturer substitution
This part replaces W11188557. Substitute parts can look different from the original.
$180.59 |
6% OFF Phone Price : $192.59
In Stock
Microwave Installation Template W10190018
#NI

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Microwave Vent Damper W10748710
#2

Cabinet and installation parts diagram

Microwave vent damper

Part #W10748710

Replaced by #W10843943

?
Manufacturer substitution
This part replaces W10748710. Substitute parts can look different from the original.
$57.22 |
9% OFF Phone Price : $63.22
In Stock
