Kenmore
Canister Vacuum

Model # 1162839080 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162839080 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Vacuum Receptacle Assembly 4147243
#24

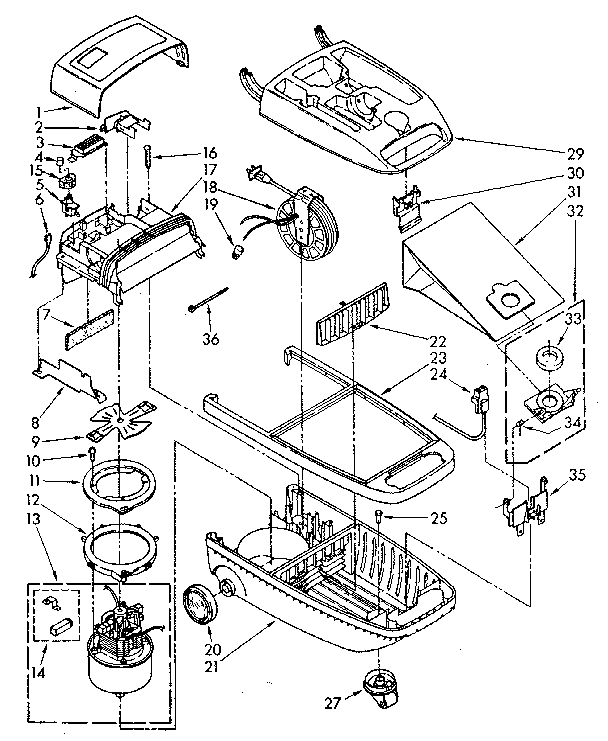

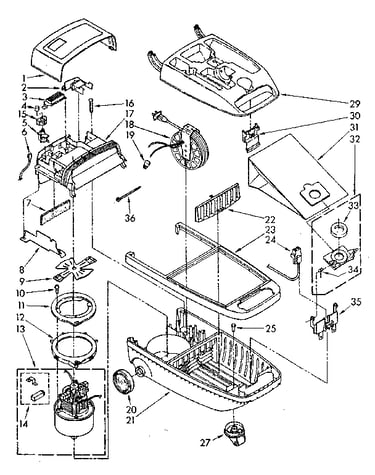

Base assembly diagram

Vacuum receptacle assembly

Part #4147243

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 4149654
#3

Base assembly diagram

Switch button

Part #4149654

The manufacturer no longer makes this part, and there's no substitute part

Canopy 4148034
#17

Base assembly diagram

Canopy

Part #4148034

The manufacturer no longer makes this part, and there's no substitute part

Motor Plate 706011
#11

Base assembly diagram

Motor plate

Part #706011

The manufacturer no longer makes this part, and there's no substitute part

Cable Tie 596702
#36

Base assembly diagram

Cable tie

Part #596702

The manufacturer no longer makes this part, and there's no substitute part

Lock Frame 4147477
#2

Base assembly diagram

Lock frame

Part #4147477

The manufacturer no longer makes this part, and there's no substitute part

Hose 4147158
#14

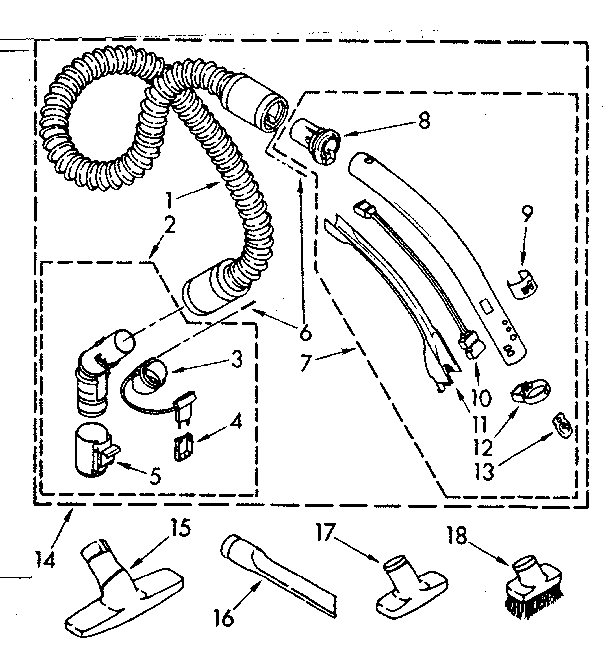

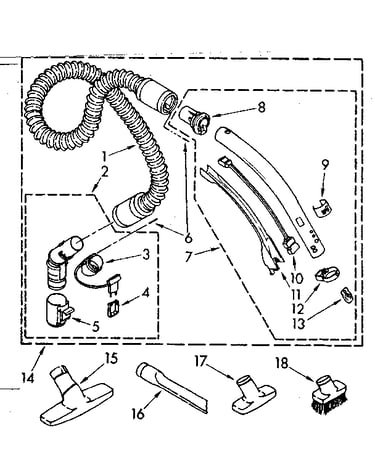

Hose and attachment parts diagram

Hose

Part #4147158

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 706389
#7

Base assembly diagram

Vacuum filter

Part #706389

The manufacturer no longer makes this part, and there's no substitute part

Screw 681697
#10

Base assembly diagram

Screw

Part #681697

The manufacturer no longer makes this part, and there's no substitute part

Nut 596564
#19

Base assembly diagram

Nut

Part #596564

The manufacturer no longer makes this part, and there's no substitute part
