Gas Cooktop

Model # ZGU486NRP2SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGU486NRP2SS gas cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forZGU486NRP2SS Cooktops

  • Grate WB31K10224
    #251

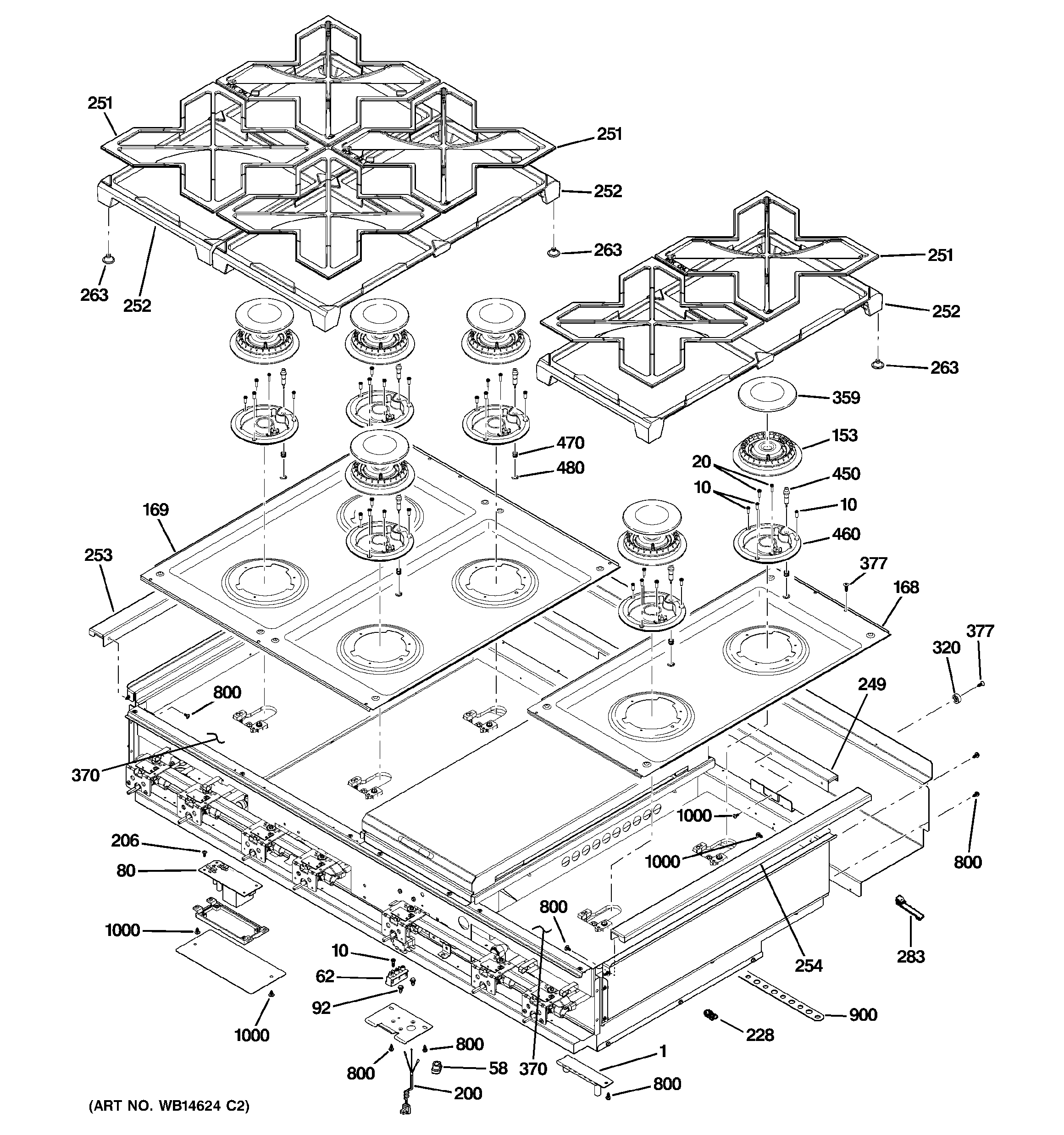

    Cooktop diagram

    Grate

    Part #WB31K10224

    Replaced by #WB31K10252

    ?
    Manufacturer substitution
    This part replaces WB31K10224. Substitute parts can look different from the original.
    $170.18 |
    7% OFF Phone Price : $182.18
    In Stock
  • Range Grill Surface Burner Igniter WB13K10030
    #145

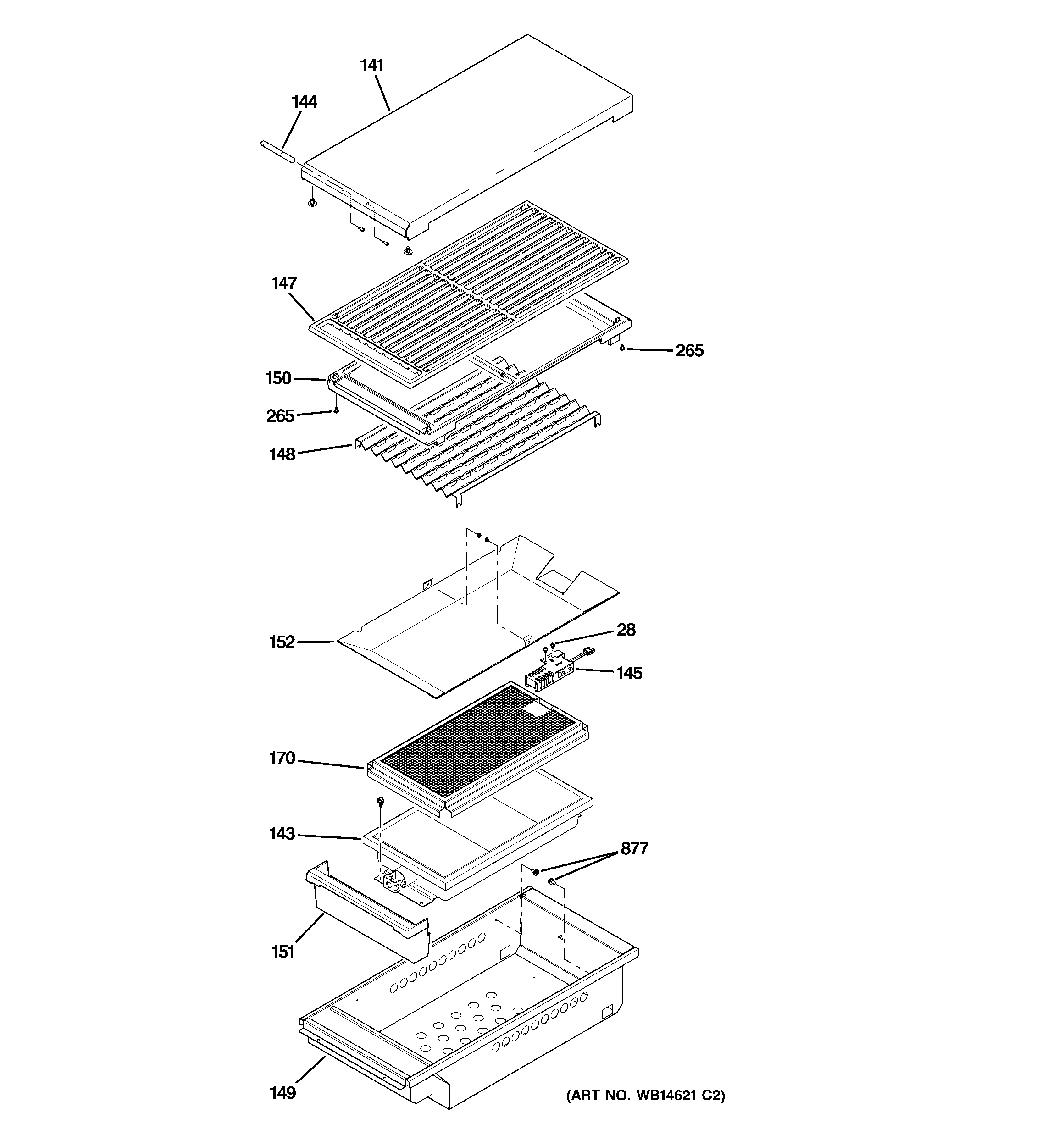

    Grill assembly diagram

    Range grill surface burner igniter

    Part #WB13K10030

    $107.89 |
    10% OFF Phone Price : $119.89
    In Stock
  • Scr 8 Hd 1/4 WB01K10067
    #21

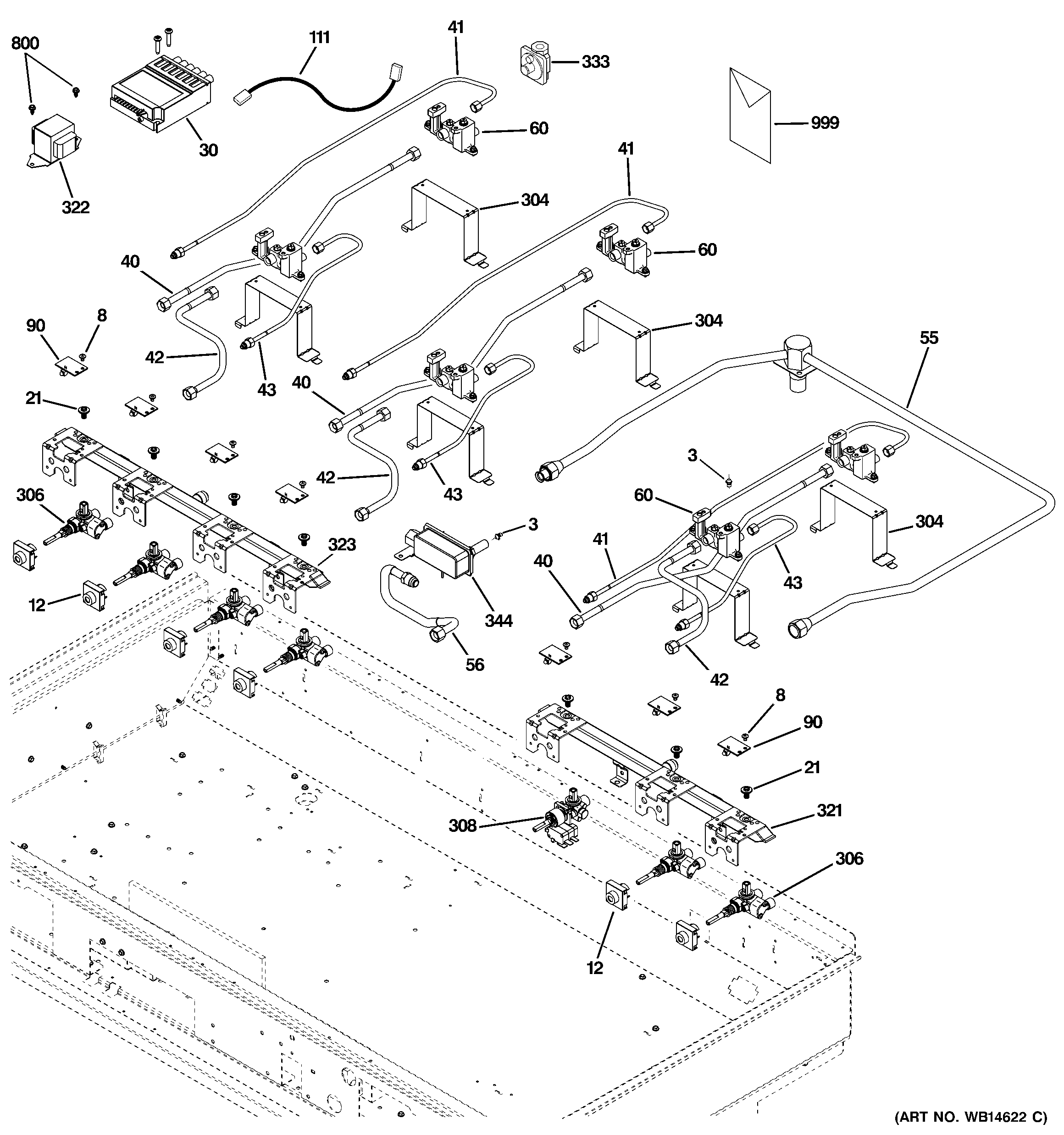

    Gas & burner parts diagram

    Scr 8 hd 1/4

    Part #WB01K10067

    This item is not returnable
    $9.49 |
    10% OFF Phone Price : $10.49
    In Stock
  • Range Burner Head WB16T10043
    #153

    Cooktop diagram

    Range burner head

    Part #WB16T10043

    Replaced by #WB16X26480

    ?
    Manufacturer substitution
    This part replaces WB16T10043. Substitute parts can look different from the original.
    $71.10 |
    8% OFF Phone Price : $77.10
    In Stock
  • Range Surface Burner Base Screw WB01T10092
    #20

    Cooktop diagram

    Range surface burner base screw

    Part #WB01T10092

    $7.95 |
    11% OFF Phone Price : $8.95
    In Stock
  • Range Screw WB01T10104
    #10

    Cooktop diagram

    Range screw

    Part #WB01T10104

    This item is not returnable
    $9.14 |
    10% OFF Phone Price : $10.14
    In Stock
  • Range Surface Burner Orifice WB28T10117
    #3

    Gas & burner parts diagram

    Range surface burner orifice

    Part #WB28T10117

    This item is not returnable
    $10.40 |
    16% OFF Phone Price : $12.40
    In Stock
  • Range Screw WB01K10091
    #206

    Cooktop diagram

    Range screw

    Part #WB01K10091

    This item is not returnable
    $9.49 |
    10% OFF Phone Price : $10.49
    In Stock
  • Range Lp Conversion Kit WB28K10538
    #1

    Cooktop diagram

    Range lp conversion kit

    Part #WB28K10538

    $76.76 |
    7% OFF Phone Price : $82.76
    In Stock
  • Range Surface Burner Base WB16T10047
    #460

    Cooktop diagram

    Range surface burner base

    Part #WB16T10047

    $72.30 |
    8% OFF Phone Price : $78.30
    In Stock
