Dacor
Electric Wall Oven

Model # DO230 Official Dacor oven

Here are the diagrams and repair parts for Official Dacor DO230 oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

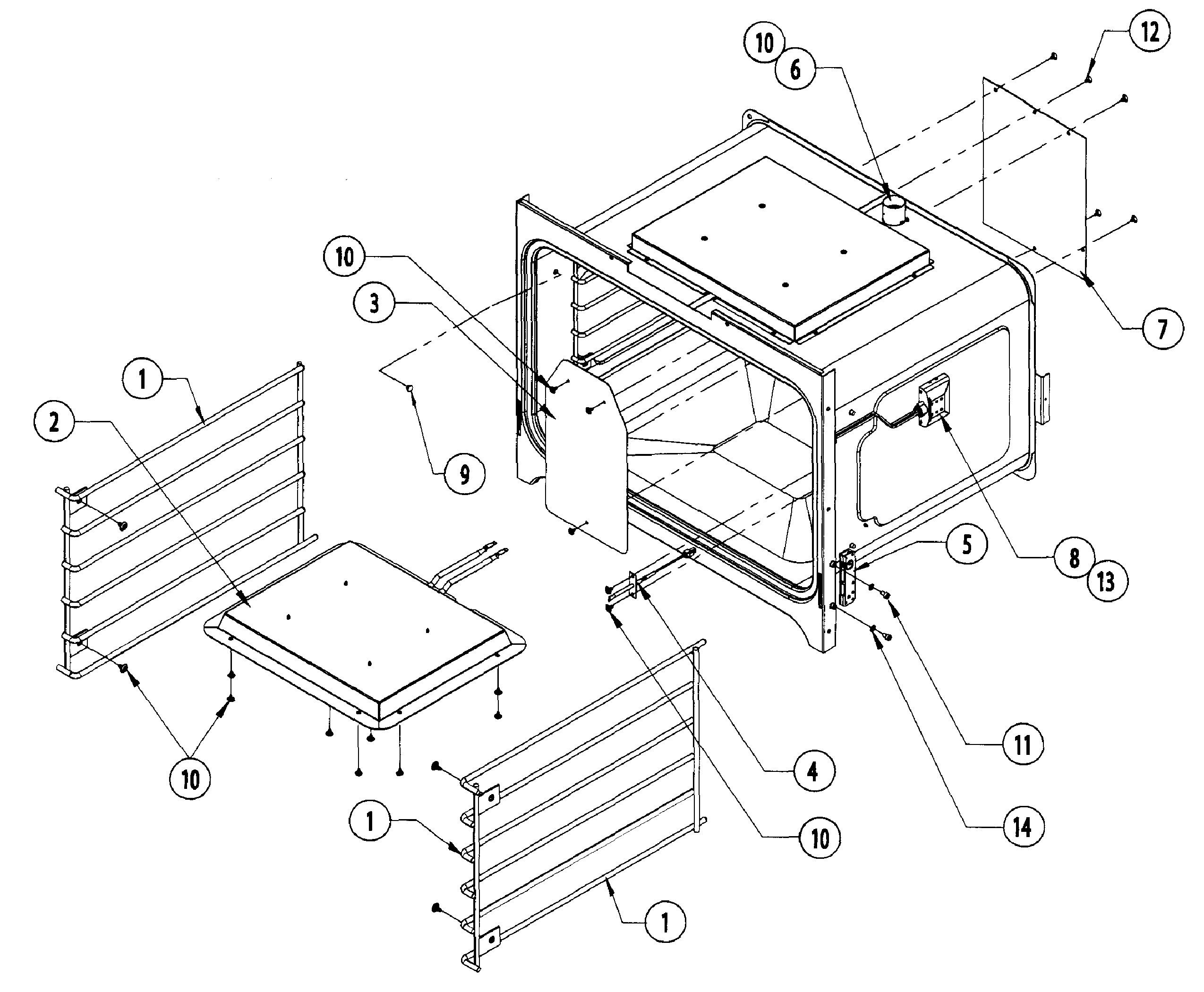

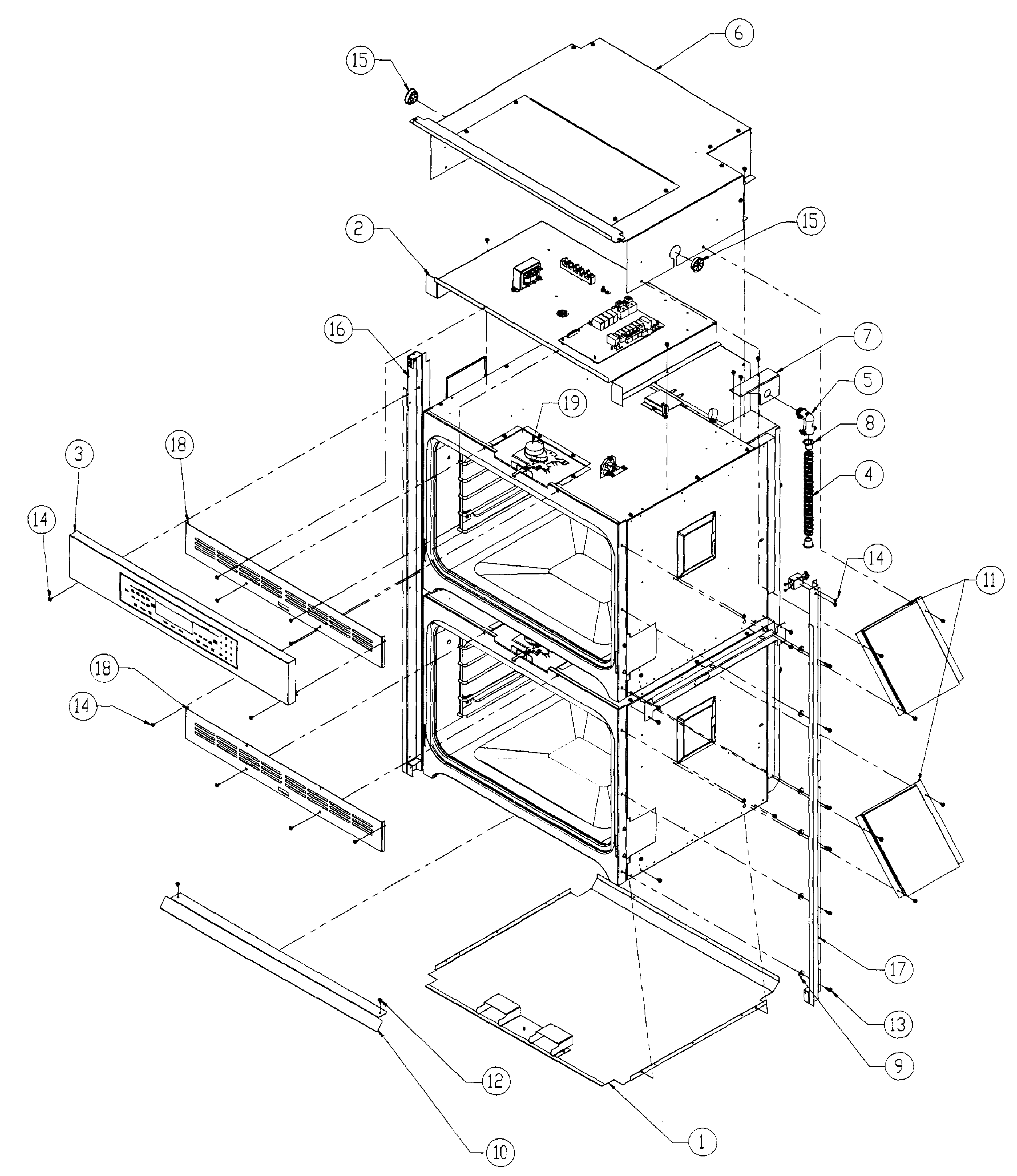

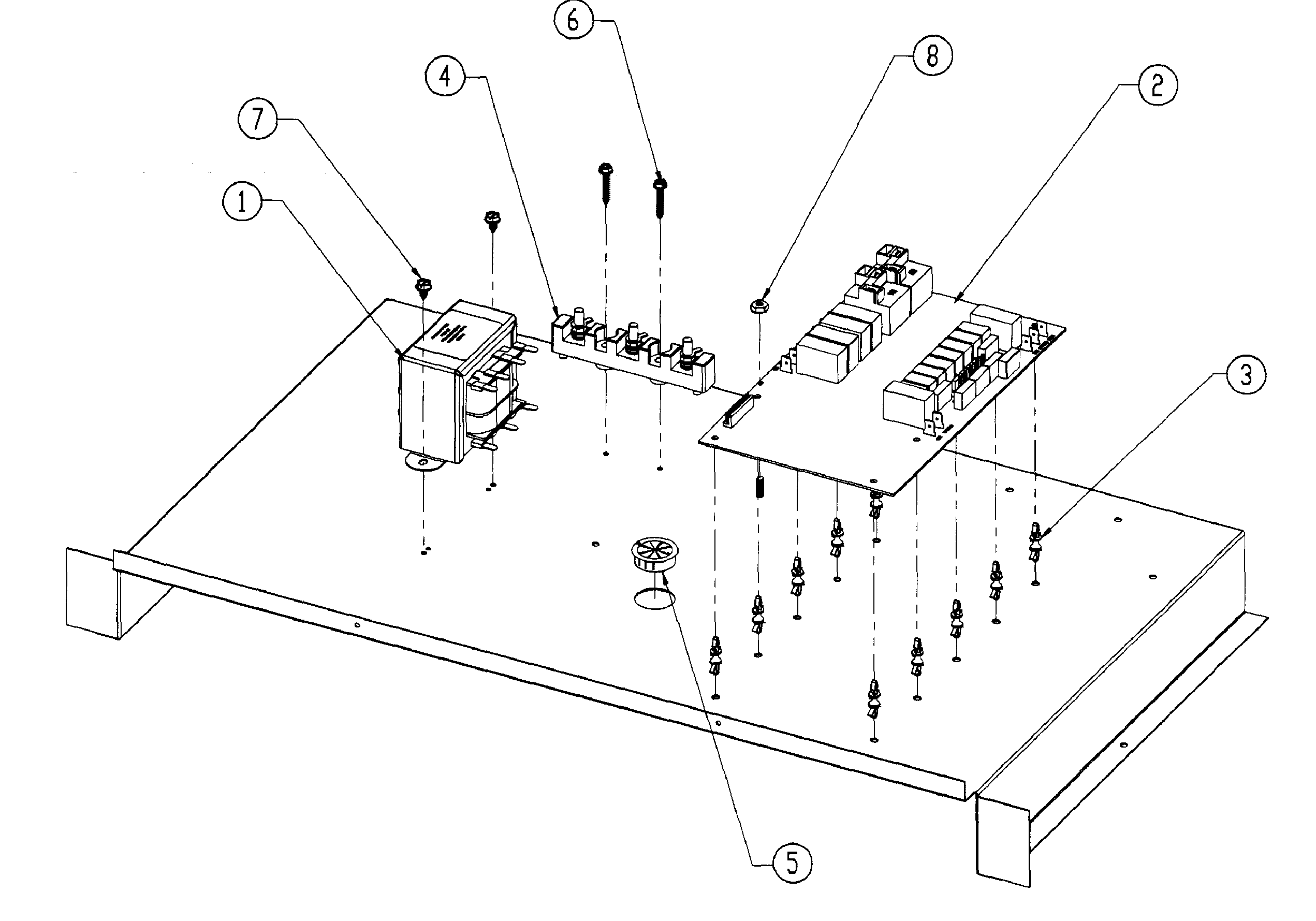

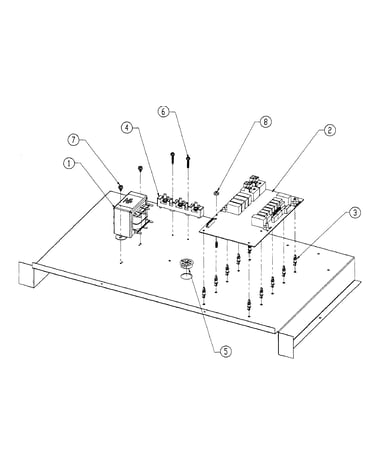

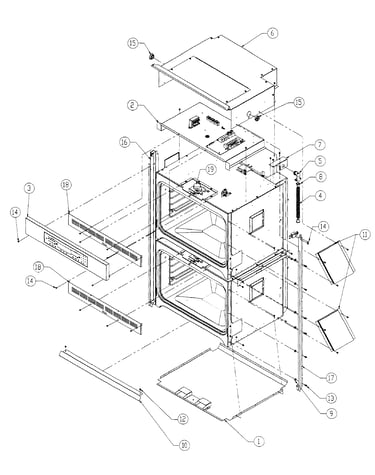

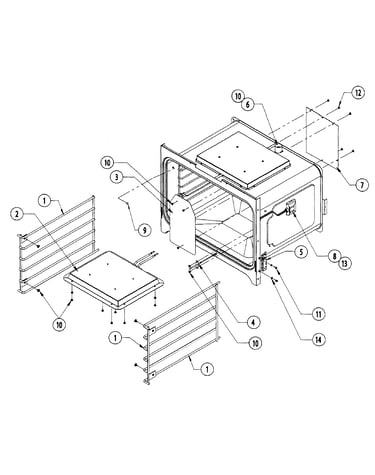

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Nut 83308
#4

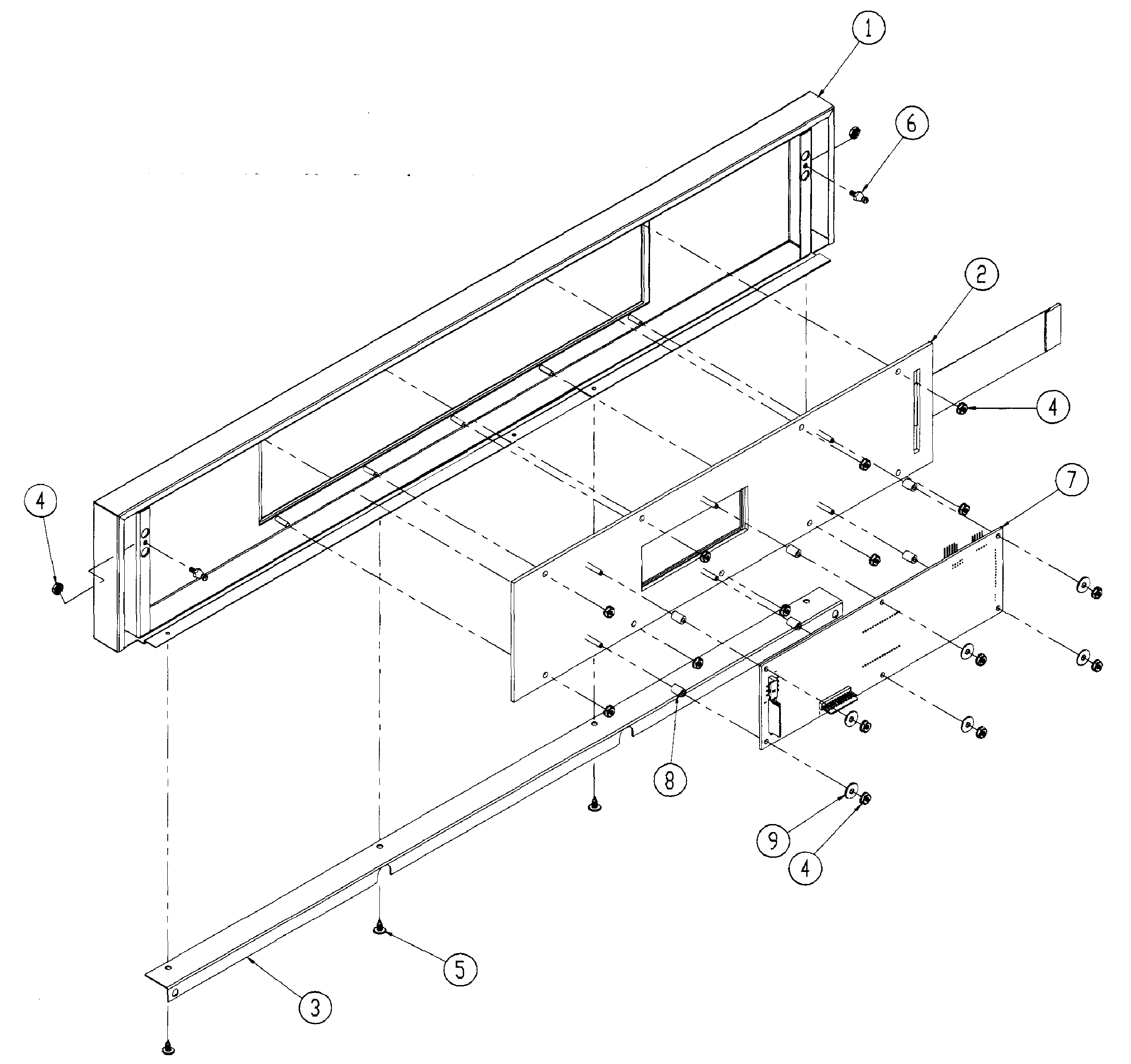

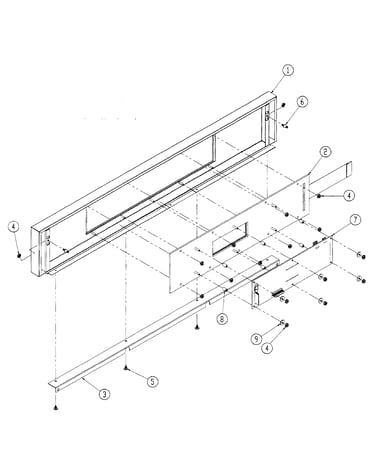

Bezel assy diagram

Nut

Part #83308

This item is not returnable
$2.16
In Stock
Appliance Screw, #8 X 3/8-in 83263
Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Cool Fan 102334
#4

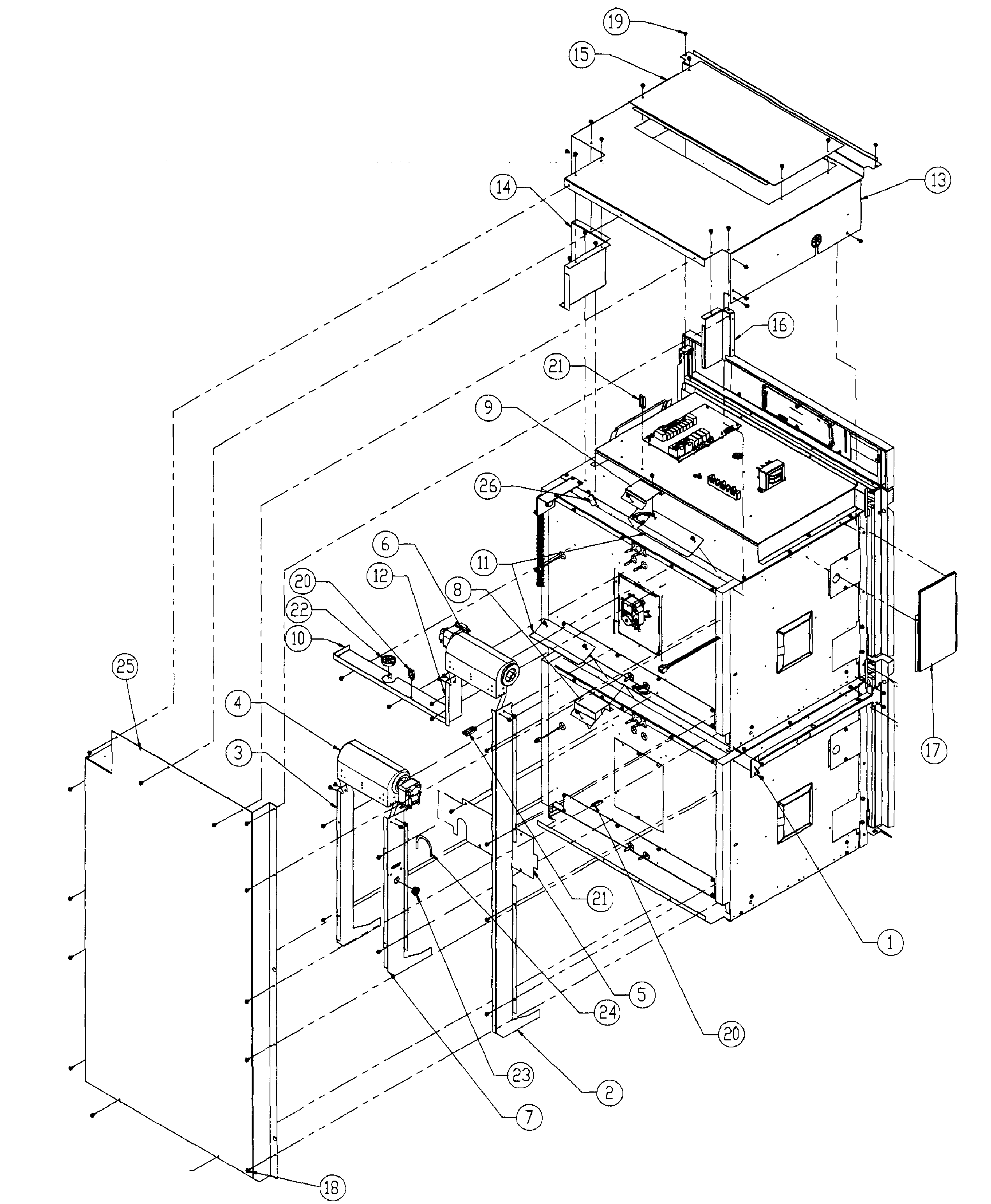

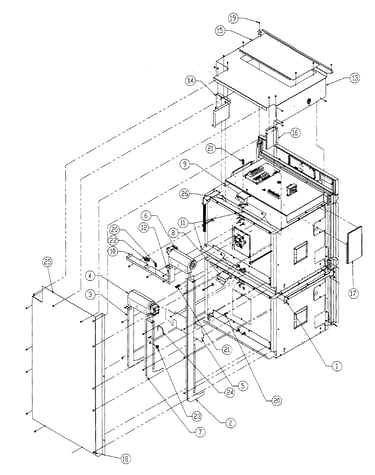

Cabinet 2 diagram

Cool fan

Part #102334

$137.49
In Stock
Appliance Screw 83534
Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
Oven Spacer 83189
#8

Bezel assy diagram

Oven spacer

Part #83189

This item is not returnable
$2.16
In Stock
Outer Line 701315BP
#7

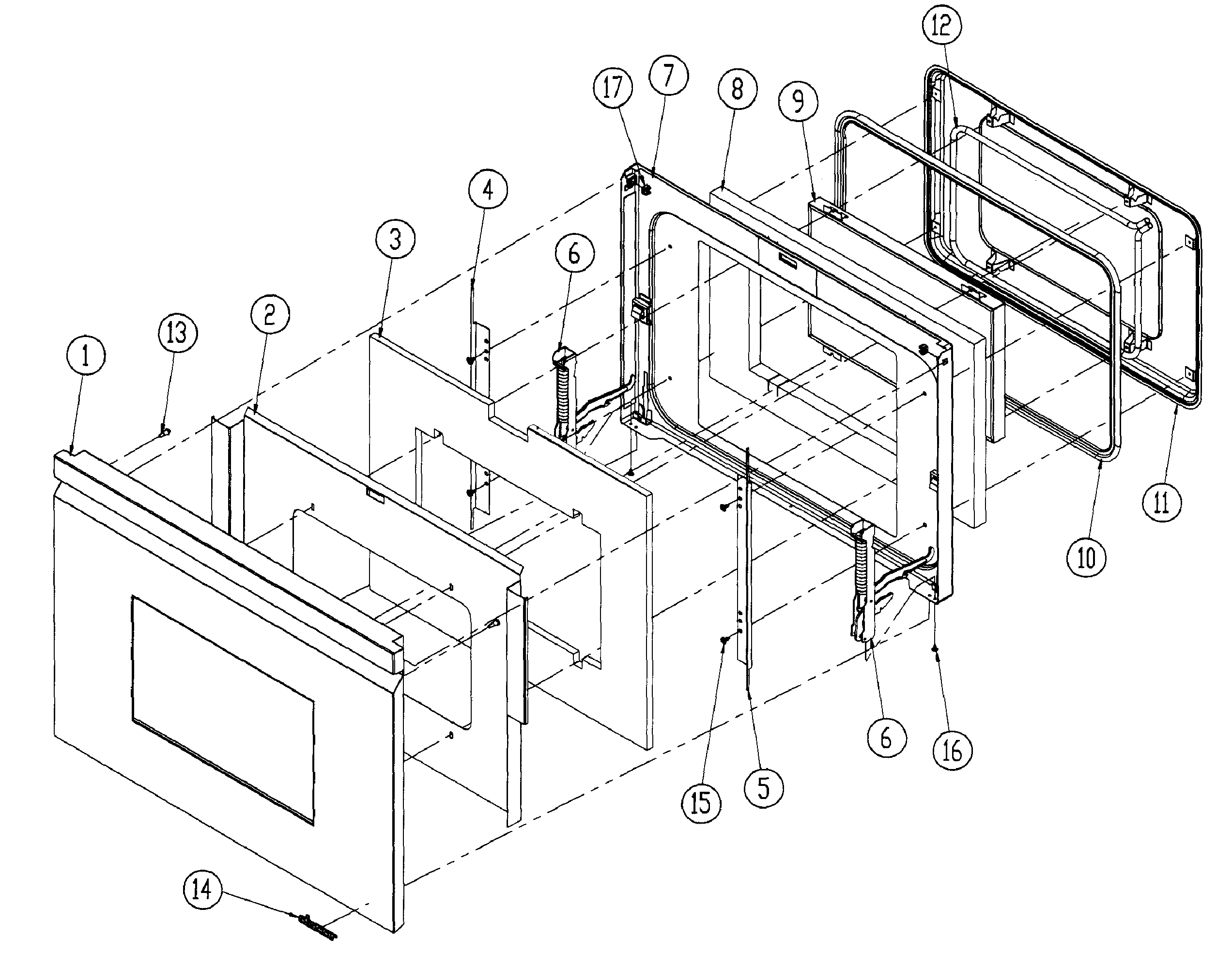

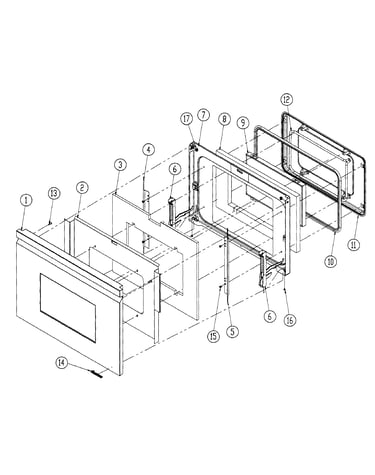

Door assy diagram

Outer line

Part #701315BP

$93.49
In Stock
Heat Shield 106746B
#2

Door assy diagram

Heat shield

Part #106746B

$52.49
In Stock
Dishwasher Trim Panel Ball Stud Fastener 83539
#6

Bezel assy diagram

Dishwasher trim panel ball stud fastener

Part #83539

This item is not returnable
$3.99
In Stock
Meat Probe 72717
#8

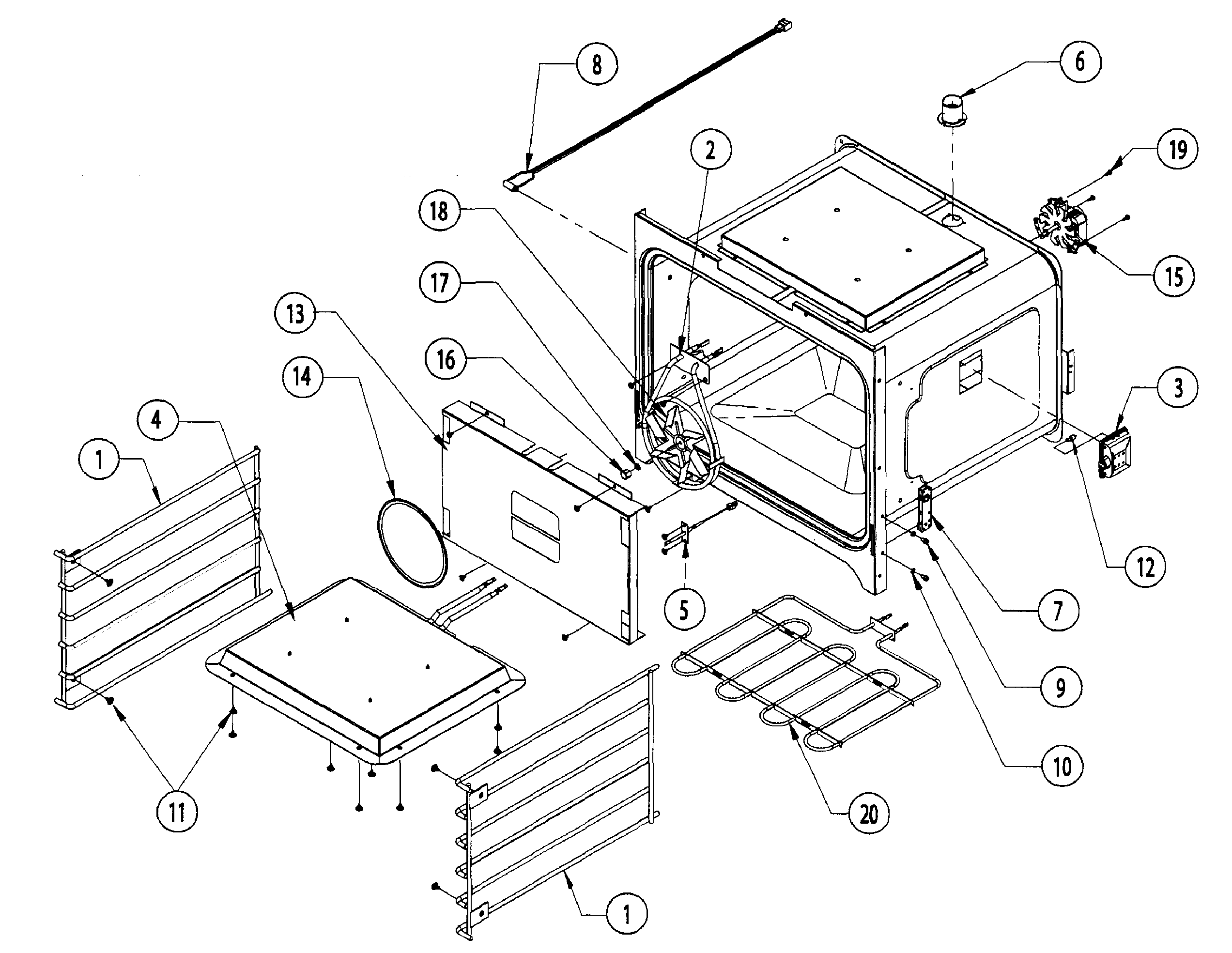

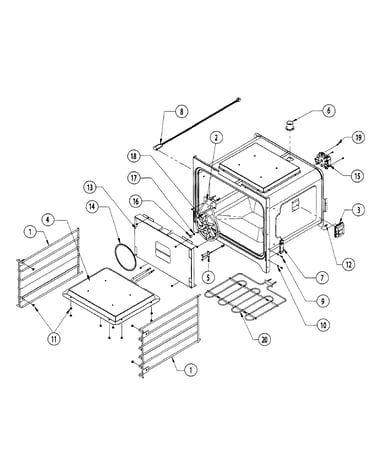

Upper oven diagram

Meat probe

Part #72717

$41.49
In Stock
Washer 83080
#9

Bezel assy diagram

Washer

Part #83080

This item is not returnable
$2.16
In Stock
