Model # 33021243 Official Sears sink faucet

Here are the diagrams and repair parts for Official Sears 33021243 sink faucet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Body 15343
#14

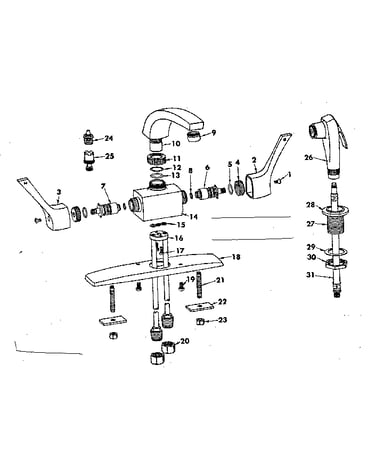

Replacement parts diagram

Body

Part #15343

The manufacturer no longer makes this part, and there's no substitute part

Spout 15332
#10

Replacement parts diagram

Spout

Part #15332

The manufacturer no longer makes this part, and there's no substitute part

Supply Tube 15360
#16

Replacement parts diagram

Supply tube

Part #15360

The manufacturer no longer makes this part, and there's no substitute part

Auto-spray 14133
#25

Replacement parts diagram

Auto-spray

Part #14133

The manufacturer no longer makes this part, and there's no substitute part

Spray Hose 31127
#31

Replacement parts diagram

Spray hose

Part #31127

The manufacturer no longer makes this part, and there's no substitute part

Screw 15357
#17

Replacement parts diagram

Screw

Part #15357

The manufacturer no longer makes this part, and there's no substitute part

Cap 14002
#4

Replacement parts diagram

Cap

Part #14002

The manufacturer no longer makes this part, and there's no substitute part

O-ring 1274
#15

Replacement parts diagram

O-ring

Part #1274

The manufacturer no longer makes this part, and there's no substitute part

Washer 34037
#29

Replacement parts diagram

Washer

Part #34037

The manufacturer no longer makes this part, and there's no substitute part

Spout Nut 2446
#11

Replacement parts diagram

Spout nut

Part #2446

The manufacturer no longer makes this part, and there's no substitute part
