Model # WU180 Official Maytag dishwasher

Here are the diagrams and repair parts for Official Maytag WU180 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

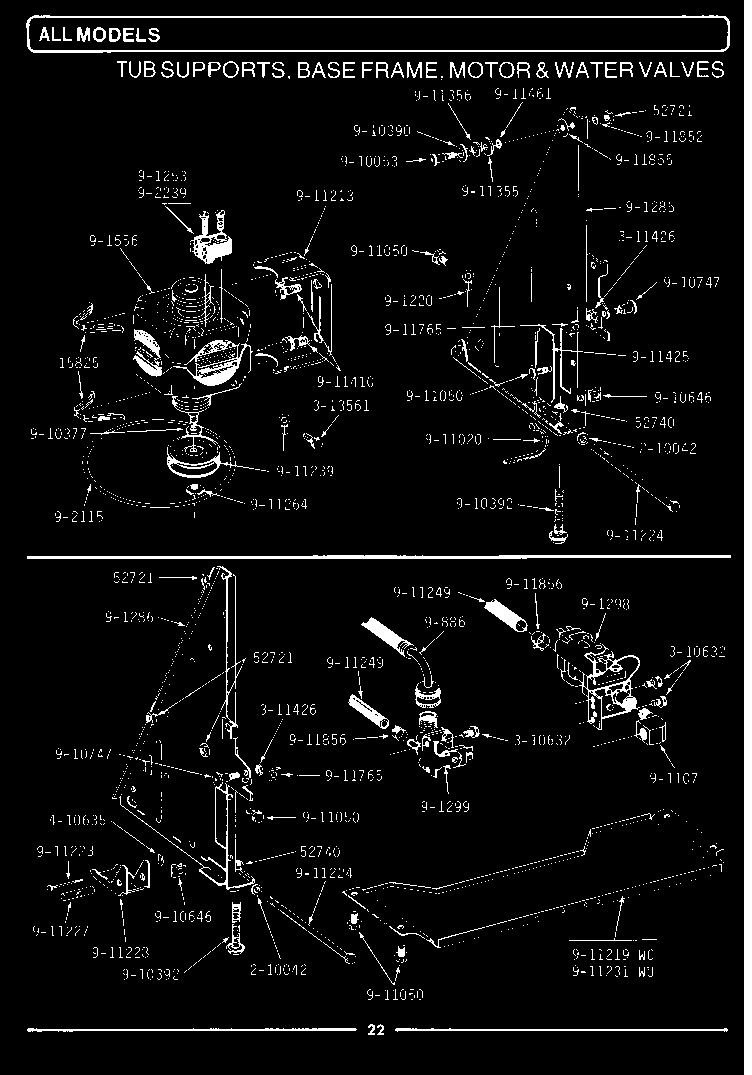

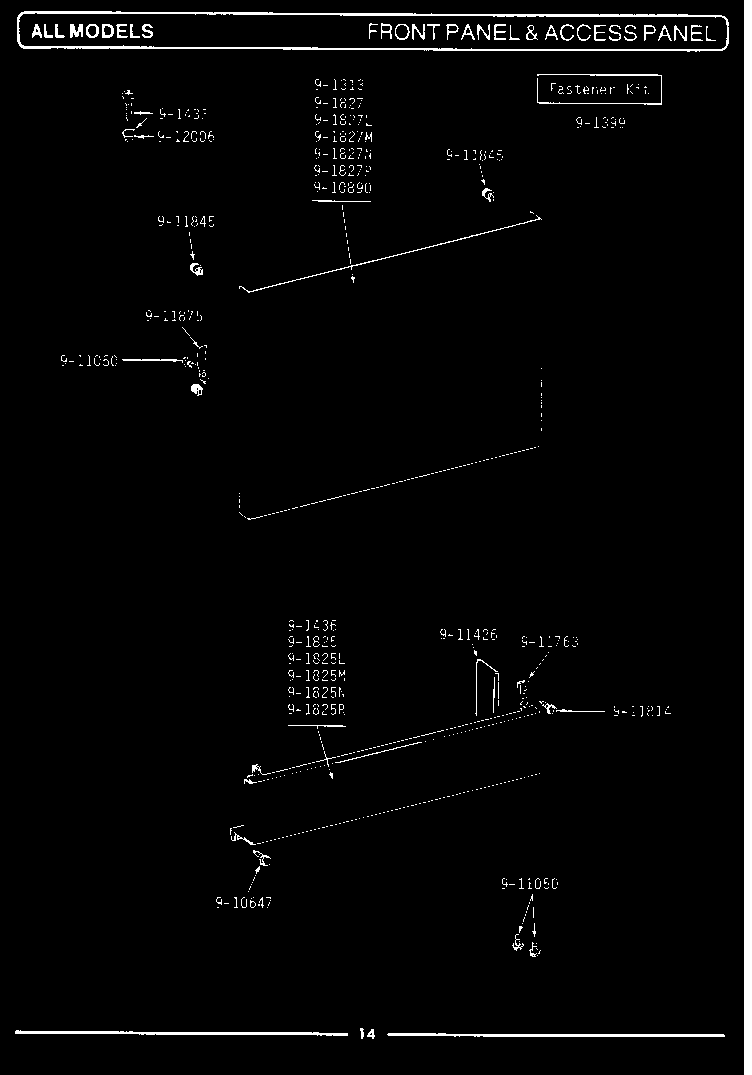

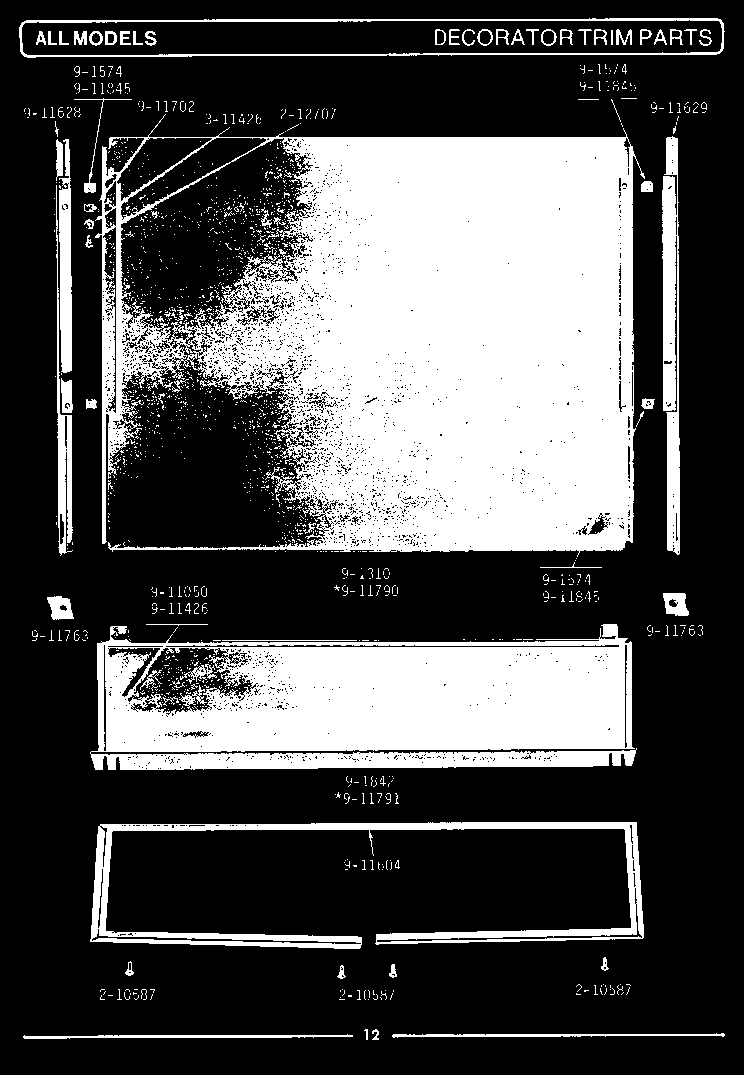

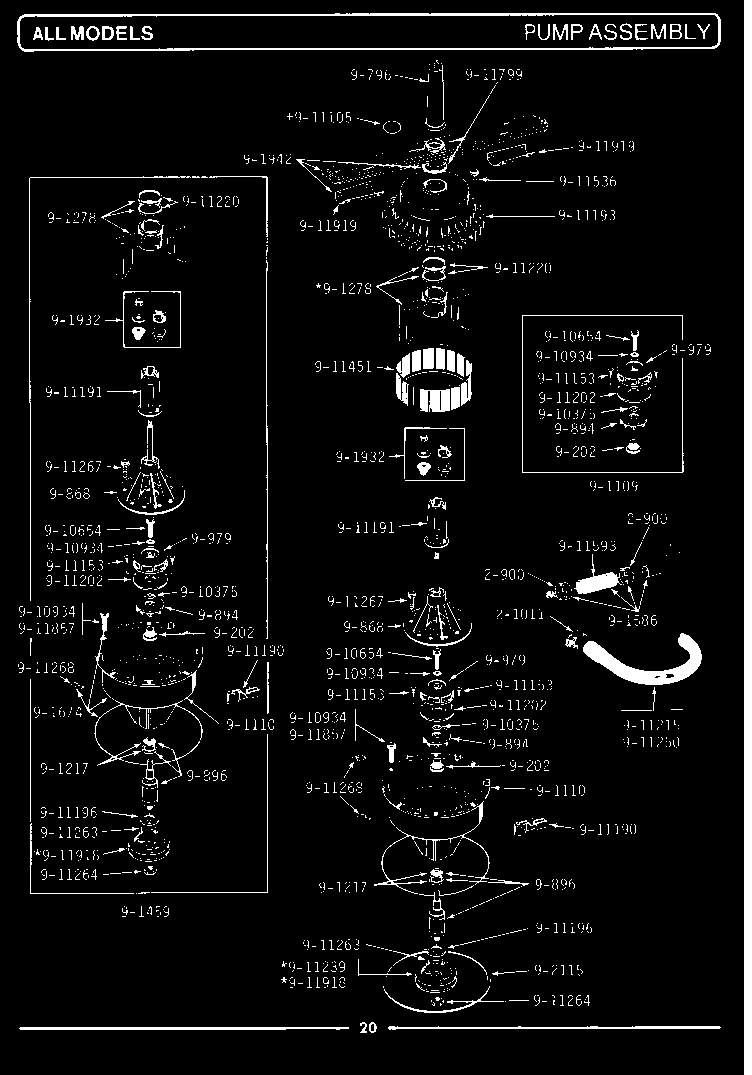

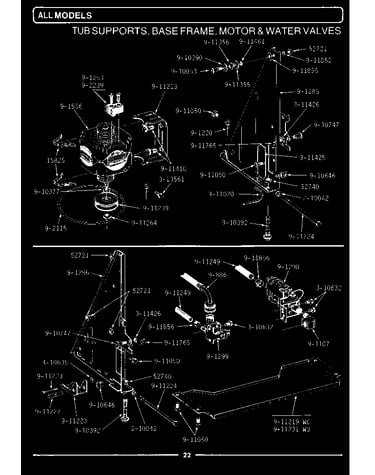

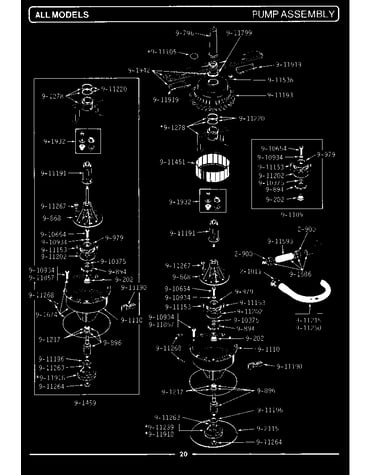

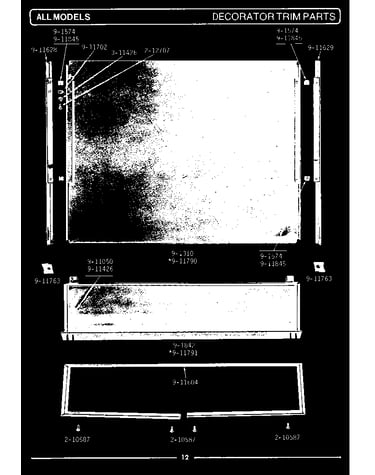

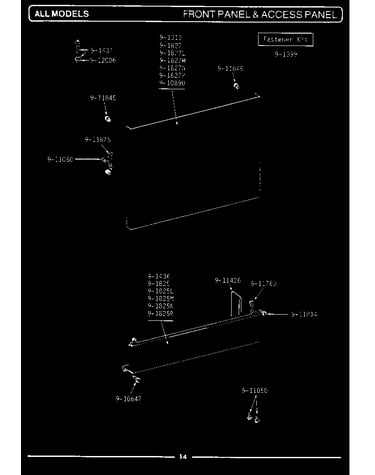

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 261 parts  |
Clamp Spring 911856
Clamp spring

Part #911856

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 911856. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Screw 211294
#10

Installation accessories diagram

Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 910647
Screw

Part #910647

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 910647. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Inlet Hose 200688
#5

Installation accessories diagram

Inlet hose

Part #200688

Replaced by #WP76314

?
Manufacturer substitution
This part replaces 200688. Substitute parts can look different from the original.
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Screw 210186
#7

Control panel diagram

Screw

Part #210186

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 210186. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Inlet & Drai 200672
#3

Installation accessories diagram

Inlet & drai

Part #200672

Replaced by #WP76314

?
Manufacturer substitution
This part replaces 200672. Substitute parts can look different from the original.
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Dishwasher Belt With Lubricant 902115
Dishwasher belt with lubricant

Part #902115

Replaced by #6-9021150

?
Manufacturer substitution
This part replaces 902115. Substitute parts can look different from the original.
$51.43 |
10% OFF Phone Price : $57.43
In Stock
Screw 910624
#36

Tub assembly & components diagram

Screw

Part #910624

Replaced by #WPW10139210

?
Manufacturer substitution
This part replaces 910624. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 211252
#2

Door assembly diagram

Screw

Part #211252

Replaced by #WP489399

?
Manufacturer substitution
This part replaces 211252. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Water Switch 900882
#3

Blower/air inlet & water level float diagram

Water switch

Part #900882

Replaced by #WP99002560

?
Manufacturer substitution
This part replaces 900882. Substitute parts can look different from the original.
$31.76 |
16% OFF Phone Price : $37.76
In Stock
