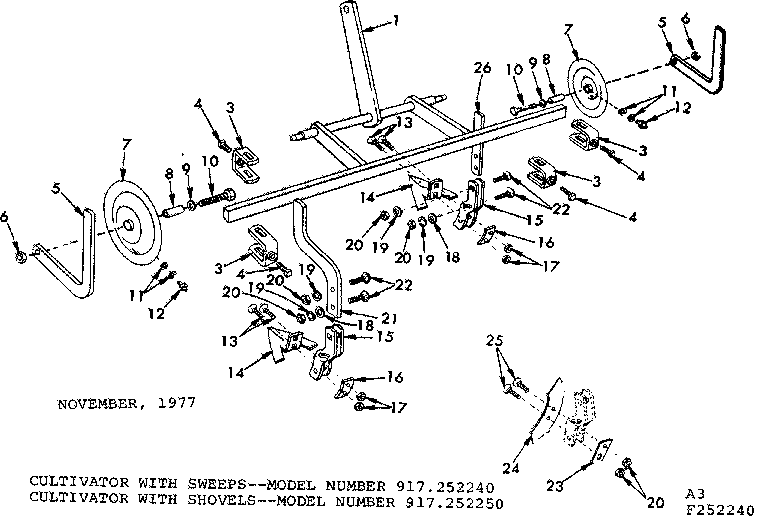

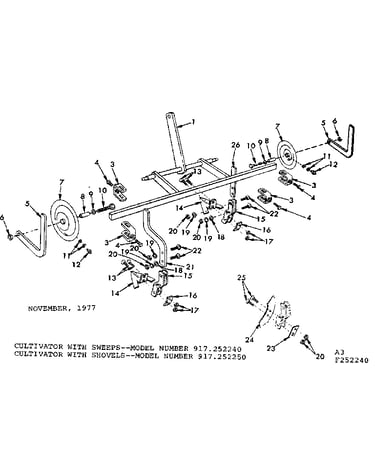

Model # 917252240 Official Craftsman 5-shank cultivator

Here are the diagrams and repair parts for Official Craftsman 917252240 5-shank cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Screw 4521P
#4

Replacement parts diagram

Screw

Part #4521P

Replaced by #582734201

?
Manufacturer substitution
This part replaces 4521P. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Wizard Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#12

Replacement parts diagram

Wizard lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

Replaced by #532183226

?
Manufacturer substitution
This part replaces 6855M. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Offset Shank 1334H
#21

Replacement parts diagram

Offset shank

Part #1334H

The manufacturer no longer makes this part, and there's no substitute part

Gauge Wheel 575PA35
#7

Replacement parts diagram

Gauge wheel

Part #575PA35

The manufacturer no longer makes this part, and there's no substitute part

Nut STD541050
#6

Replacement parts diagram

Nut

Part #STD541050

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer STD551143
#19

Replacement parts diagram

Lock washer

Part #STD551143

The manufacturer no longer makes this part, and there's no substitute part

Sweep 365H
#14

Replacement parts diagram

Sweep

Part #365H

The manufacturer no longer makes this part, and there's no substitute part

St Shank 1333H
#26

Replacement parts diagram

St shank

Part #1333H

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer, 1/2-in, 8-pack STD551050
#9

Replacement parts diagram

Flat washer, 1/2-in, 8-pack

Part #STD551050

The manufacturer no longer makes this part, and there's no substitute part

Plate 361H
#16

Replacement parts diagram

Plate

Part #361H

The manufacturer no longer makes this part, and there's no substitute part
